Видео карта AMD Radeon RX 6700 XT в комплект със захранване Cooler Master MWE Gold V2 FM, 750W, 12GB, PowerColor Red Devil (AXRX 6700XT 12GBD6-3DHE/OC), PCI-E 4.0, GDDR6, 192-bit, DP, HDMI

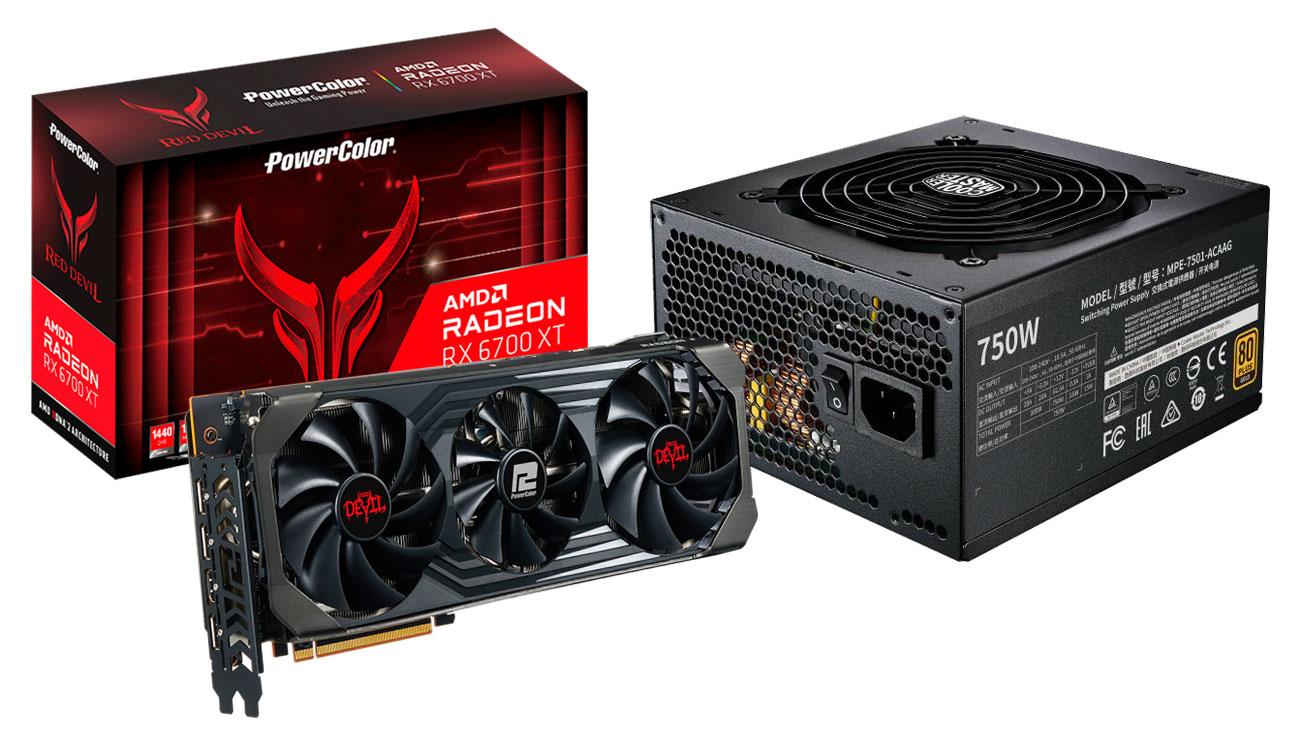

Red Devil AMD Radeon RX 6700XT 12GB GDDR6 и Захранване Cooler Master MWE Gold V2 FM, 750W



Red Devil AMD Radeon RX 6700XT

Engineered for Performance and Reliability

PowerColor Red Devil RX 6700 XT equips with triple fan design (100mm x 90mm x 100mm), a cooler with 6X6Φ nickel plated heatpipes, and a large nickel plated copper base. Moreover, the Red Devil RX 6700 XT features a state-of-the-art PCB design utilizing a 10+2 phase VRM with DrMOS, high quality polymer capacitors, and two 8-pin PCI-E connectors to offer the stable power.

Red Devil for the Ultimate 1440p Gaming Experience

he Red Devil RX 6700 XT shares the same cool and relentless appearance as the Red Devil RX 6900 XT. It is armed with triple-fan cooler design to keep the card in low temperatures while providing an incredible gaming experience. More than that, even under loading, it is whisper quiet. Red Devil RX 6700 XT is absolutely the one to amaze you.

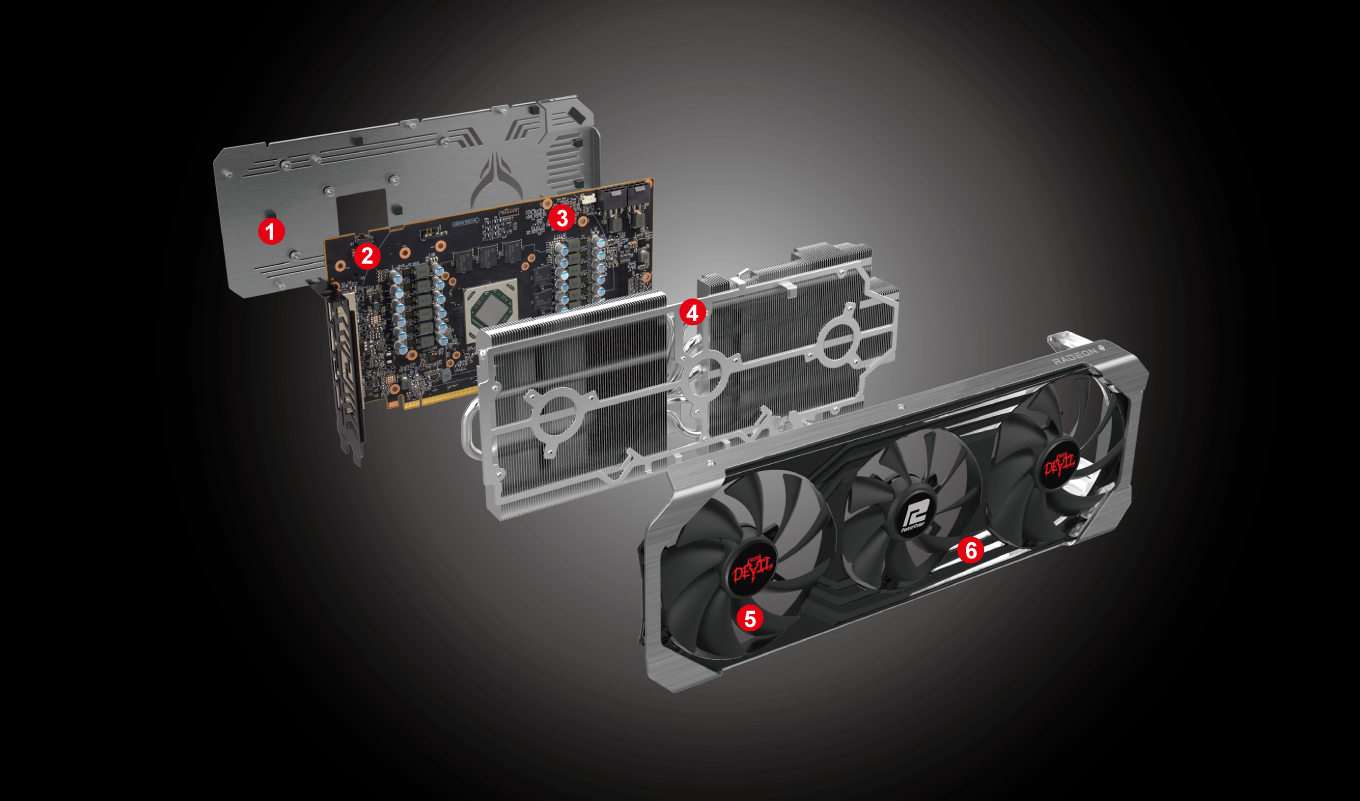

1. Back Plate : The metal back plate strengthens and protects the card and offers better heat dissipation.

2. Dual BIOS: Choosing the BIOS fits your need: better overclocking or silent operation.

3. Stronger components, Better performance: DrMOS provides superior power efficiency and better performance while high quality polymer capacitors offer uncompromising reliability. Red Devil is armed with stronger components: a 10+2 phase VRM guarantees better overclocking and stability for true gamers.

4.Cooler: Equips with 6X6Φ heatpipes and 25% more heat sink surface area to offer cooler and quieter performance.

5.Triple Fan: The 2X 100mm and 1X 90mm optimized static pressure fan design provides more air flow and better cooling circulation.

6.RGB: Featuring RGB on side, shroud, and back plate, the PowerColor Red Devil offers customized and personalized colors.

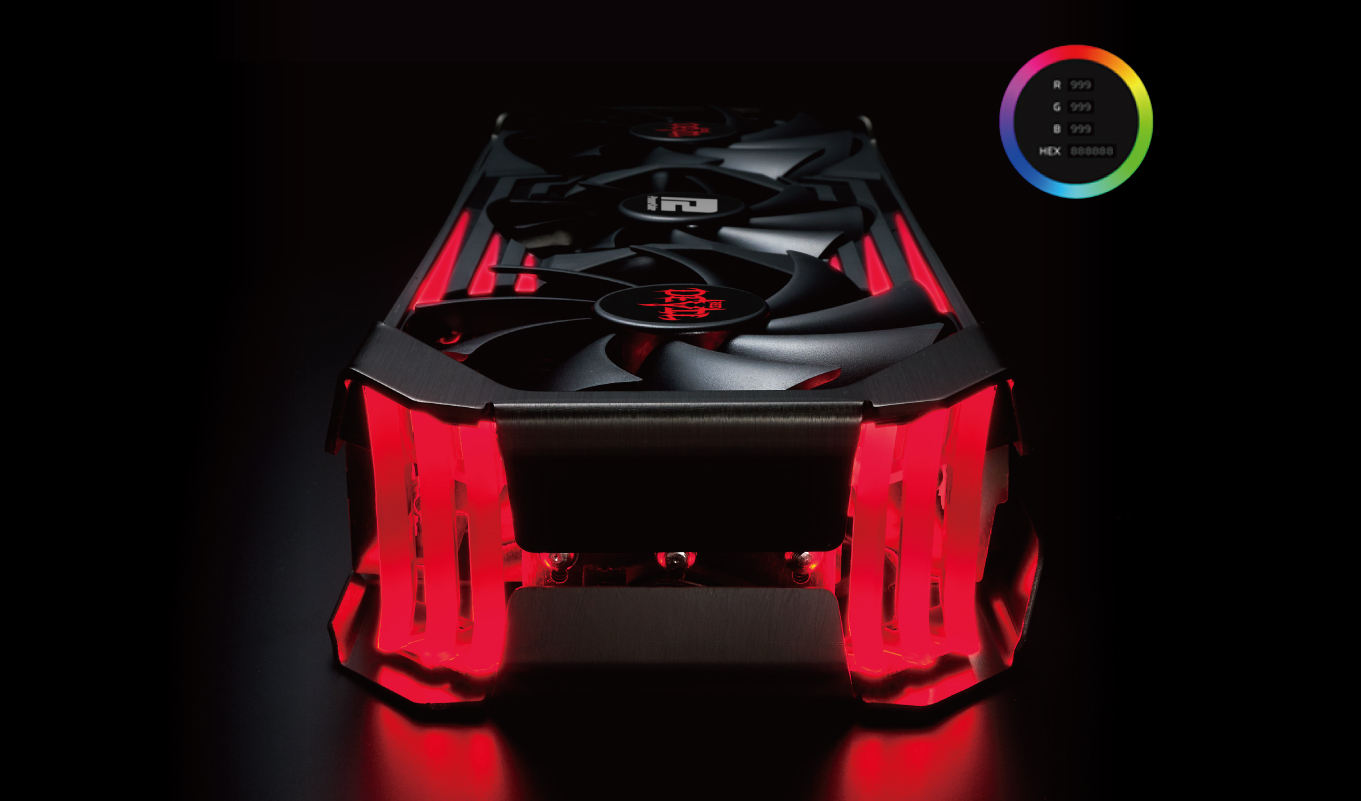

RGB

With the exquisite look, choose your unique RGB effect through the Devil Zone RGB software. Additionally, simply plugging an ARGB LED cable in a motherboard will allow for the Red Devil RGB light to be seamlessly synced with motherboard that enables you immerse yourself in a unique aesthetic atmosphere



Specification

Feature Support

OpenGL	Support
CrossFireX™ Technology	support (DirectX® 12/Vulkan™)
AMD Stream Technology	Support
AMD Eyefinity Technology	Support
AMD Hypermemory

Graphics Engine	AXRX 6700XT 12GBD6-3DHE/OC
Video Memory	12GB GDDR6
Stream Processor	2560 Units
Engine Clock(OC)	up to 2514MHz(Game) up to 2622MHz(Boost)
Engine Clock(STD/Silent)	up to 2433Mhz(Game) up to 2615Mhz(Boost)
Memory Clock	16.0 Gbps
Memory Interface	192-bit
DirectX® Support	12
Bus Standard	PCIE 4.0
Standard Display Connectors	1 x HDMI 2.1 , 3 x DisplayPort 1.4
Customized Specifications
Product Remark	'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. 'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.

Maximum Resolution

VGA
DVI
DisplayPort	7680×4320
HDMI	7680×4320

Power Specs + Board Dimensions

Board Dimensions	320*130*50mm
Minimum System Power requirement (W)	700W
Extension Power Connector	Two 8-pin PCI Express Power connectors

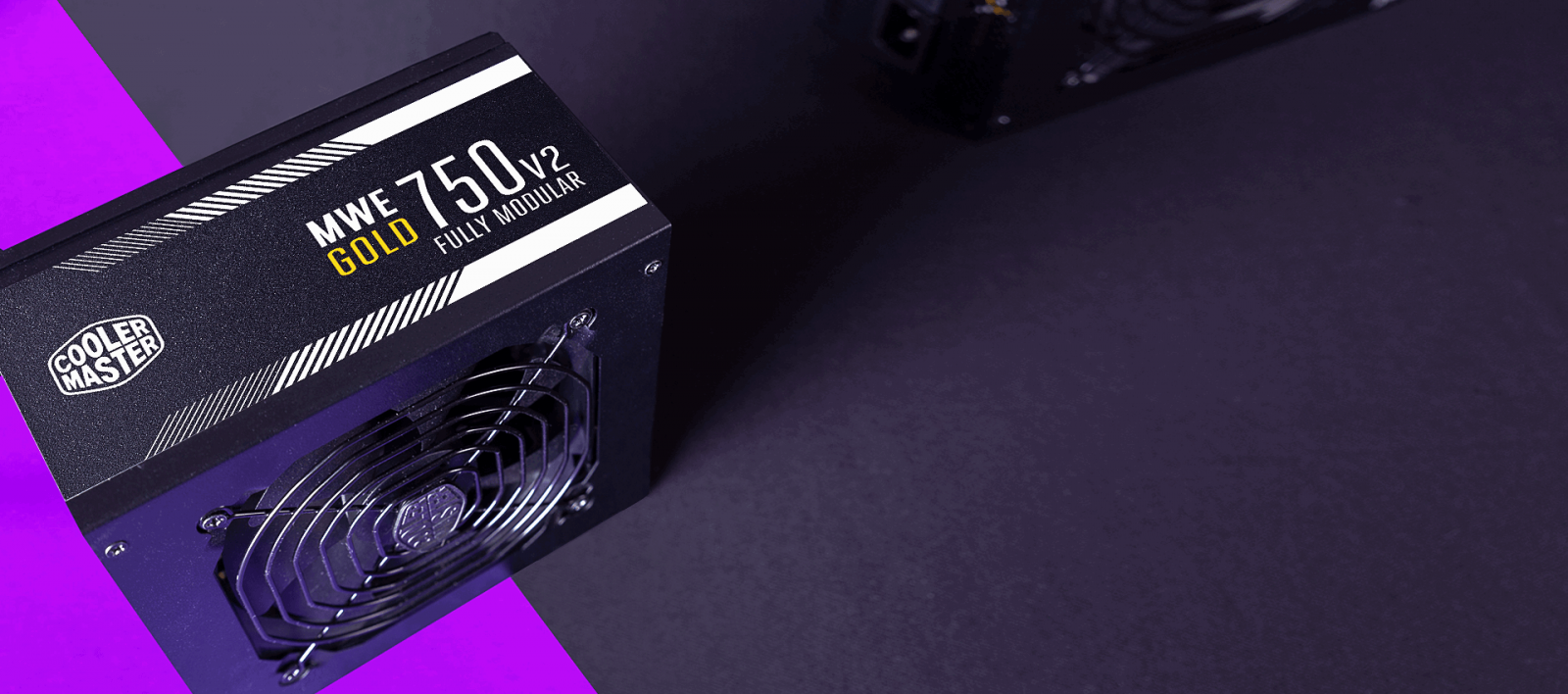

Cooler Master MWE Gold V2 FM, 750W





FULL MODULAR 80 PLUS GOLD ATX POWER SUPPLY UNIT

80 Plus Gold Efficiency
2 EPS Connectors
120mm HDB Fan
High Temperature Resilience
Full Modular Cabling
5 Year Warranty

High Temperature Resilience

While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.



Specification



Model :                MPE-7501-AFAAG

ATX Version:   ATX 12V

PFC:                    Active PFC

Input Voltage: 90-264V

Input Current: 10-5A

Input Frequency: 47-63Hz

Dimensions (L x W x H): 160 x 150 x 86 mm

Fan Size: 120mm

Fan Bearing: HDB

Fan Speed: 1500 RPM

Noise Level @ 20%: 0 dBA

Noise Level @ 50%: 17.8 dBA

Noise Level @ 100%: 24.9 dBA

Efficiency: 90% @ Typical Load

80 PLUS Rating: 80 PLUS Gold

ErP 2014 Lot 3: Yes

Operating Temperature: 0-50°C

Power Good Signal: 100 - 150 ms

Hold Up Time: >16ms at 100% Load

MTBF: >100,000 Hours

Protections: OVP, OPP, OTP, SCP, OCP, UVP

Regulatory: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

ATX 24-Pin Connectors:  1

EPS 4+4 Pin Connectors: 1

EPS 8 Pin Connector: 1

SATA Connectors: 12

Peripheral 4-Pin Connectors: 4

PCI-e 6+2 Pin Connectors: 4

Series: MWE Gold Series

80 Plus: Gold

Modular: Full Modular

Wattage: 500 to 750W
