ZyXEL WAX630S
НазадZyXEL WAX630SZyXEL WAX630SZyXEL WAX630SZyXEL WAX630SНапред

Точка за достъп ZyXEL WAX630S, 3000Mbps, 2.4GHz (575 Mbps)/ 5GHz (2400Mbps), Wireless AX, 1x RJ-45 10/100/1000, 1x RJ-45 10/100/1000/2500, 4x вътрешни антени

id 268428 Код: NTWBZYXELWAX630SEU0101F
844.54 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиДокументация

AX3000 WiFi 6 Dual-Radio NebulaFlex Pro Access Point

WAX630S







Ultra-fast, Smarter WiFi 6 Access Point

Featuring 6 spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz ), OFDMA and MU-MIMO capabilities, the Zyxel WAX630S is the true WiFi 6 access point that provides ultra-fast speed and consistent performance for your wireless network.

Any environment that needs to accommodate a large number of devices, it can offer a faster and smarter connection to everyone every time when they connect to the WiFi.

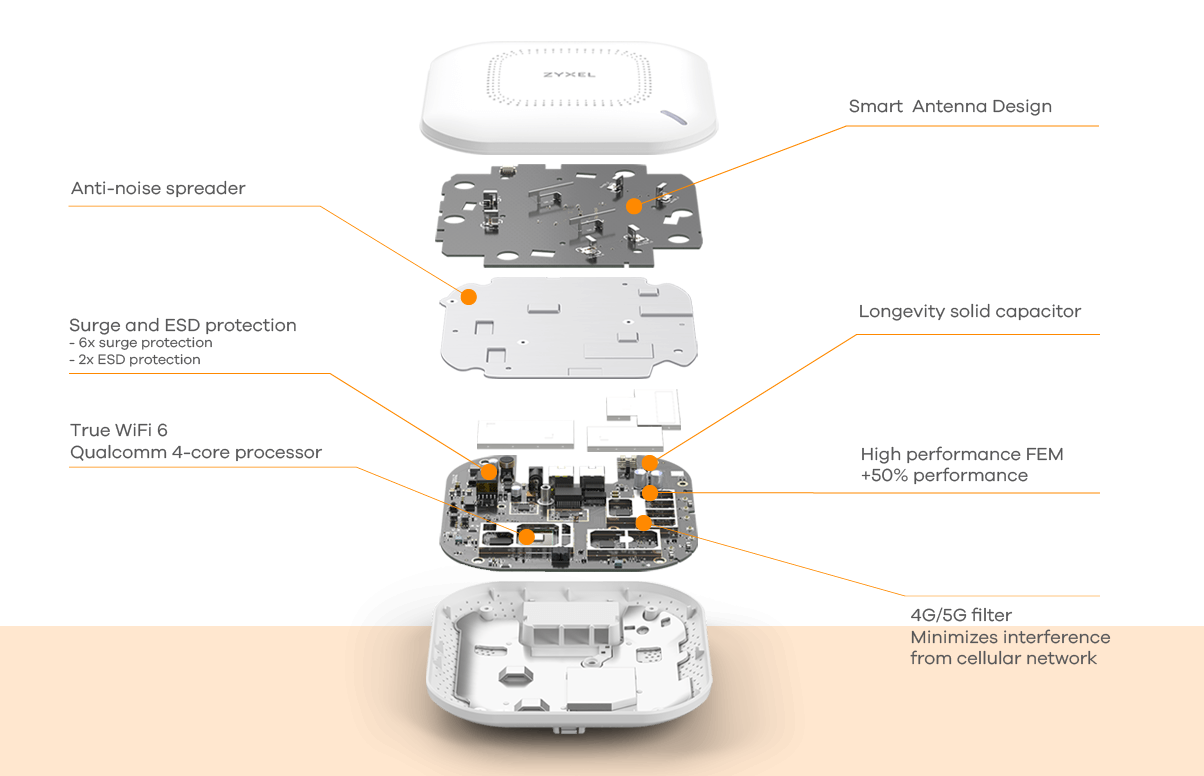

Robust Hardware You Can Trust

Every hardware design detail is critical to performance and reliability. The WAX630S access point is built with selected high quality components to warrant the best experience and longevity.





Hassle-free Upgrade

To meet the growing demands for WiFi connectivity, the WAX630S enhances the network capacity with 2.90 Gbps WiFi speed and 2.5 Gbps multi-gigabit Ethernet port, which allows multi-gigabit speed run on the existing infrastructure without the need of re-cabling.

Further boosted by smart antenna technology, it ensures everyone is provided with the optimum performance every time when they connect to the WiFi. Organizations such as schools, hotels, and retail stores can upgrade to the ultra-fast WiFi 6 network easily at an affordable price.





Specifications:

Product name
Description802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point
Wireless
StandardIEEE 802.11 ax/ac/n/g/b/a
MIMOMU-MIMO
Wireless speed2.4GHz: 575 Mbps
5GHz: 2400 Mbps
Frequency band

2.4 GHz

  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz

5 GHz

  • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth20-, 40-, 80- and 160-MHz
Conducted typical transmit output power*1
(limited by local regulatory requirements)
US (2.4GHz/5GHz): 23/28 dBm
EU (2.4GHz/5GHz): 19/25 dBm
RF Design
Antenna type4x4 + 2x2 smart antenna
Antenna gain2.4GHz: Peak gain 3 dBi
5GHz: Peak gain 4.5 dBi
Minimum Receive sensitivityMin. Rx sensitivity up to -101 dBm
WLAN feature
Band SteeringYes
WDS/Mesh*2Yes
Fast roamingPre-authentication, PMK caching and 802.11r/k/v
DCSYes
Load balancingYes
Security
Encryption
  • WEP
  • WPA
  • WPA2-PSK
  • WPA3
Authentication
  • WPA
  • WPA2
  • WPA3-Enterprise
  • EAP
  • IEEE 802.1X
  • RADIUS authentication
Access management
  • L2-isolation
  • MAC filtering
  • Rogue AP detection
Networking
IPv6Yes
VLANsYes
WMMYes
U-APSDYes
Management
Operating mode
  • Nebula Cloud managed
  • Controller-managed
  • Standalone
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
Zyxel Wireless Optimizer
  • WiFi AP planning
  • WiFi coverage detection
  • Wireless health management
Web UI/CLIYes
SNMPYes
Physical Specifications
ItemDimensions (WxDxH)(mm/in.)
180 x 180 x 39/7.09 x 7.09 x 1.54
Weight (g/lb.)
530/1.17
PackingDimensions (WxDxH)(mm/in.)
228 x 216 x 63/8.98 x 8.5 x 2.48
Weight (g/lb.)
765/1.69
Included accessories
  • Mount plate
  • Mounting screws
MTBF (hr)321,114
Physical Interfaces
Ethernet port1 x 1/2.5Gbps LAN, 1 x 1Gbps LAN
Power
  • PoE (802.3) at: power draw 19.5 W
  • DC input: 12 VDC 2 A




    Виж още Аксеспойнт/Репитер Безжични ZyXEL
    Виж всички Аксеспойнт/Репитер Безжични в категорията
    Документация
    Технически характеристики
    Тип:  Аксес пойнт
    Монтаж:  За вътрешен монтаж
    Безжична скорост:  3000 Mbps
    Честота:  2.4 & 5 GHz
    Антени:  4 Вътрешни
    dBi на антена/и:  4.5
    PoE:  In
    Интерфейс:  1x 2500 + 2x 1000
    Други:  Няма
