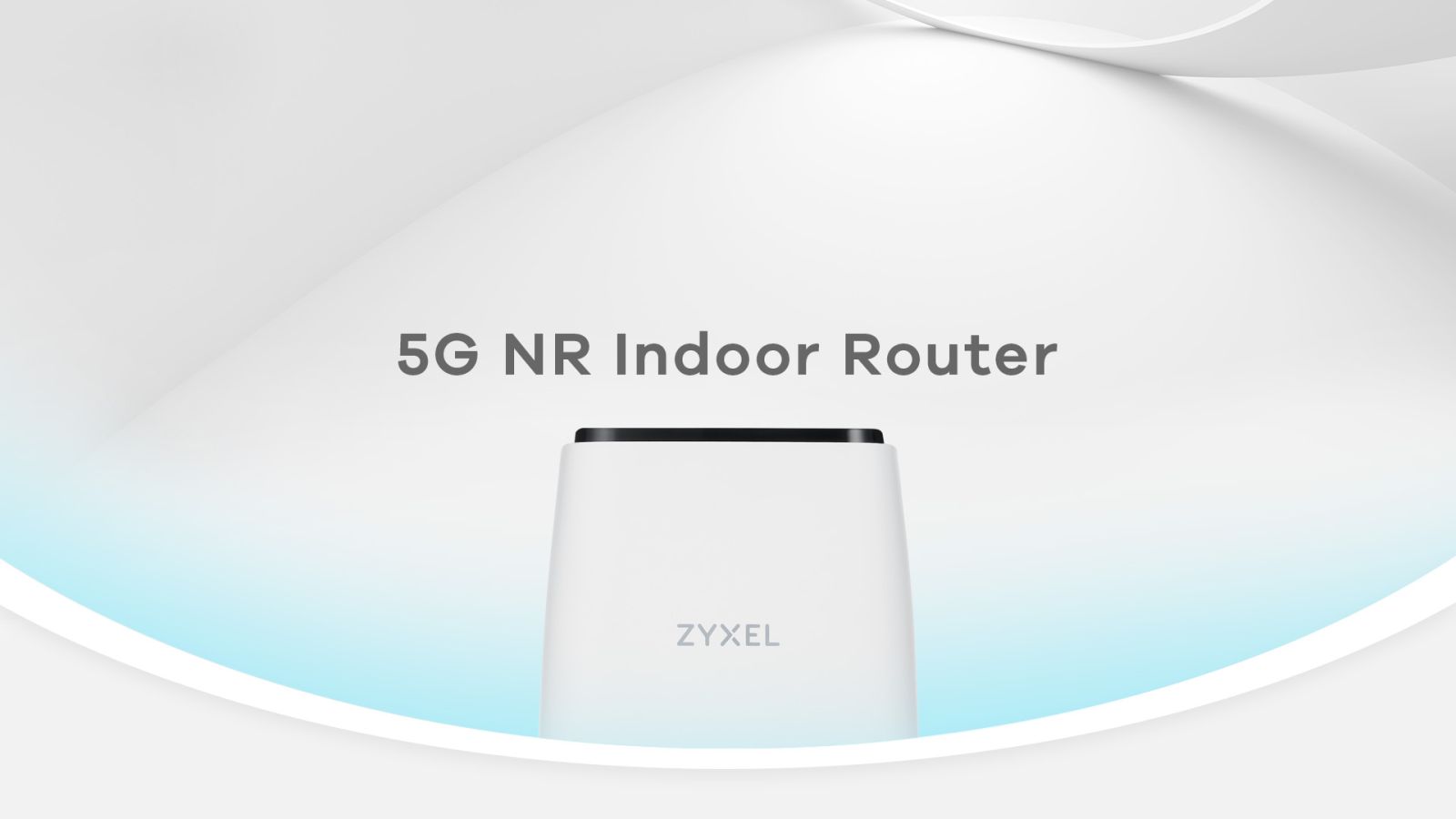

Nebula 5G NR Indoor Router
Nebula FWA510
Unlock Broadband via 5G Fixed Wireless Access
The most powerful 5G NR indoor router ever is here.
Unlock the speed with a professional 5G FWA router.
Integrated design that's ready for the future.
Get more done with pro-quality assistance!

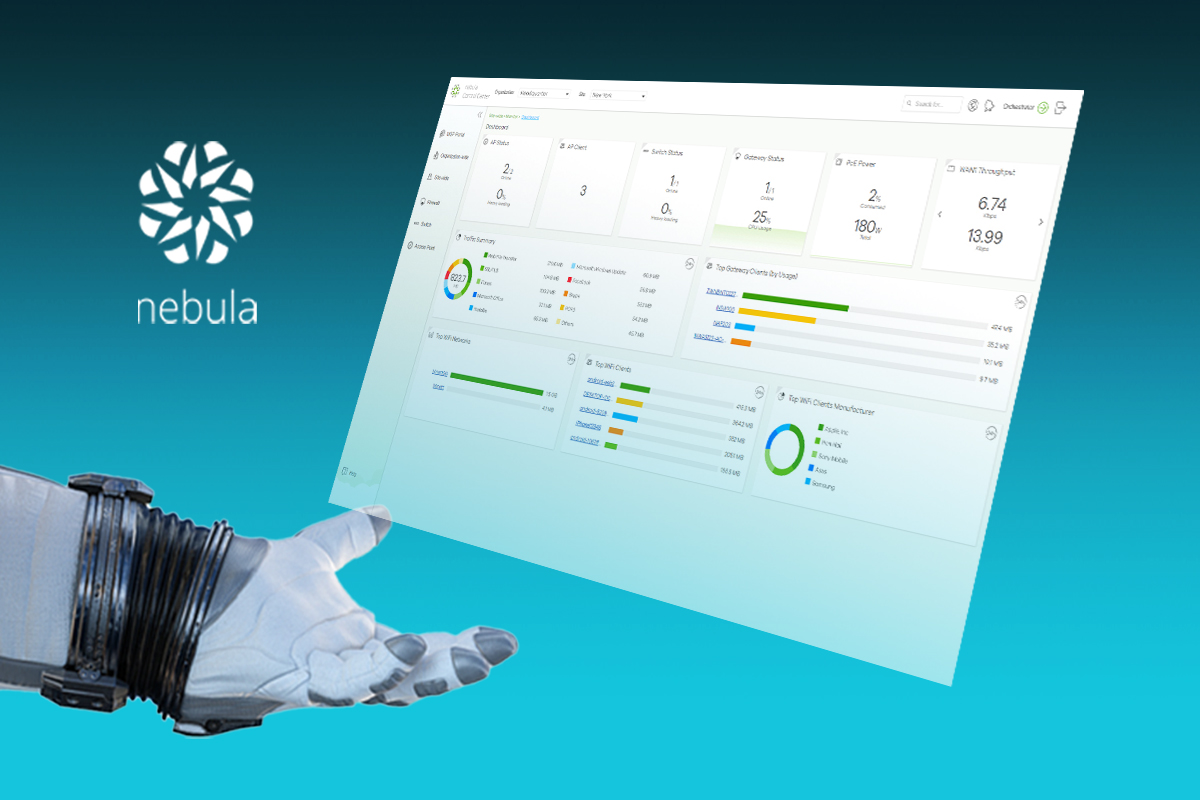

Nebula Cloud
Manage Devices Anywhere
Managing mobile routers behind carrier grade NAT can be challenging and expensive as you need to buy VPN service or lease extra landline from ISP. This is where Nebula Cloud comes to help!
Nebula Cloud platform provides real-time network management anytime anywhere with ease. Centrally provisioning and seamlessly manage all networking devices, including access points, switches and firewalls within your organization that are across distributed locations from the Nebula platform, while keeping your network aware of constantly changing devices.
Get the richest collaboration with everything you need on a simplified and unified Nebula Could platform. Get started now!
5 Gbps
Powerful Chip, 5G Unleashed
Thanks to the mind-blowingly fast chip, which is designed with an integrated quad-core Arm CPU, it provides 5G speeds of up to an impressive 5 Gbps* right out of the box. Along with the two integrated 2.5 Gbps Gigabit Ethernet interfaces, allowing it a wide range of LAN port configurations for ultra-fast speed for connection to servers, workstations, or high-end gaming devices.
Get groundbreaking performance in both speed and wide-spectrum bandwidth for multi-streaming data access and reduce network latency for premium and time-sensitive internet services now!
24/7
Non-stop Connectivity
Nebula FWA510 ensures that you’ll have internet access even during a fixed line network outage with the WAN failover capability, which allows Nebula FWA510 to either serve as a primary or backup option for internet access according to your needs. It is equipped with four external TS9 antenna ports***, allowing you to improve mobile broadband reception when you are in a weak-signal area.
Strong and stable connection work together to give you the power and flexibility to achieve greater productivity!
System specifications
IP networking
Supports IPv4/IPv6 dual stack (NDP IPv6)
DHCP server
Virtual Private Network (VPN) pass-through
Supports NAT/NAPT
Supports DMZ
Multiple APNs
Supports port forwarding
Supports ALG
Routing
Supports bridge and router modes
Supports dynamic DNS for first APN
Supports remote management under bridge mode
Static/dynamic routing settings for RIP v1/v2
IP firewall
DoS attack detection
Supports SPI (Stateful Packet Inspection)
Application-level firewall (LAN to WAN such as HTTP, Telnet, Ping)
Filters LAN MAC address
Filters LAN IP address
Filters URLs
Management
Supports local/remote device management and firmware upgrade via Nebula Cloud and web GUI
SMS management
PIN/PUK manage ment
APN management
Operating frequency band selection
Supports Zyxel Air app (iOS and Android) for easy installation and local management only
WLAN feature
Auto channel selection
WiFi Protected Setup (WPS)
WiFi Multimedia (WMM)
WiFi-enabled devices: up to 64
Security: none, WPA2-Personal, WPA+WPA2, WPA2+WPA3, WPA3
MAC address filtering with 64 address supported
Multiple SSIDs/hide SSIDs
WLAN scheduling
Hardware Specifications
5G NR interface
3GPP Release 15 standard-compliant
Supports both NSA and SA modes
Supports Sub-6 NR DL 2xCA (TDD/FDD)
Supports frequencies:
FDD: n1, n3, n5, n7, n8, n20, n28
TDD: n38, n40, n41, n77, n78
Supports DL 4×4 MIMO:
FDD: n1, n3, n5, n7
TDD: n38, n40, n41, n77, n78
Data rates:
5G SA: DL 4.67 Gbps*; UL: 2.5 Gbps*
5G NSA: DL 3.74 Gbps*; UL: 1.46 Gbps*
Output power:
Class 2 (26 dBm) for 5G NR n41/n78
Class 3 (23 dBm) for all 5G NR bands
4G LTE interface
3GPP UE Category 19 standard-compliant
Supports frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41/B42
Supports DL 4×4 MIMO:
LTE-FDD: B1/B3/B7
LTE-TDD: B38/B40/B41/B42
Peak data rates:
Max. DL 1.6 Gbps/UL 200 Mbps**
Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
Output power:
Class 2 (26 dBm) for LTE B41
Class 3 (23 dBm) for FDD/TDD LTE bands
WiFi air interface
Wireless standard:
IEEE 802.11 b/g/n/a/ac/ax
Wireless speeds:
Link rates up to 1.2 Gbps** for 2.4 GHz
Link rates up to 2.4 Gbps** for 5 GHz
WiFi antenna gain:
~3 dBi for 2.4 GHz
~5 dBi for 5 GHz
5G NR/4G LTE antennas
Four TS9 connectors for external antennas***
Four embedded omni-directional antennas
Ultra-high band:
Up to 5 dBi peak gain
High band and middle band:
Up to 5 dBi peak gain
Low band:
Up to 4 dBi peak gain
Hardware interface
Two 100/1000/2500 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
LED indicators:
Power indication
SMS status
Signal strength
Internet connection status
Radio access technology status
WiFi AP status
WPS status
Four external antenna connectors (TS9 type)***
One 3FF/Micro SIM card slot
One power on/off button
One WPS/WiFi on/off button
One reset button
One Int/Ext antenna switch
One USB 3.0 host port for file sharing
Power consumption
48 W (peak)
Physical Specifications
Item
dimensions (WxDxH):
132.5 x 134 x 230 mm (5.22” x 5.28” x 9.06”)
weight:
1,006 g (2.22 lb.)
Packing
dimensions (WxDxH):
250 x 200 x 140 mm (9.84” x 7.87” x 5.51”)
weight:
1,504 g (3.32 lb.)
Environmental Specifications
Operating Environment
Temperature:
0°C to 40°C (32°F to 104°F)
Humidity:
10% to 90% (non-condensing) Storage Environment
Storage Environment
Temperature:
-30°C to 70°C (-22°F to 158°F)
Humidity:
5% to 95% (non-condensing)
