Vertex PX-750

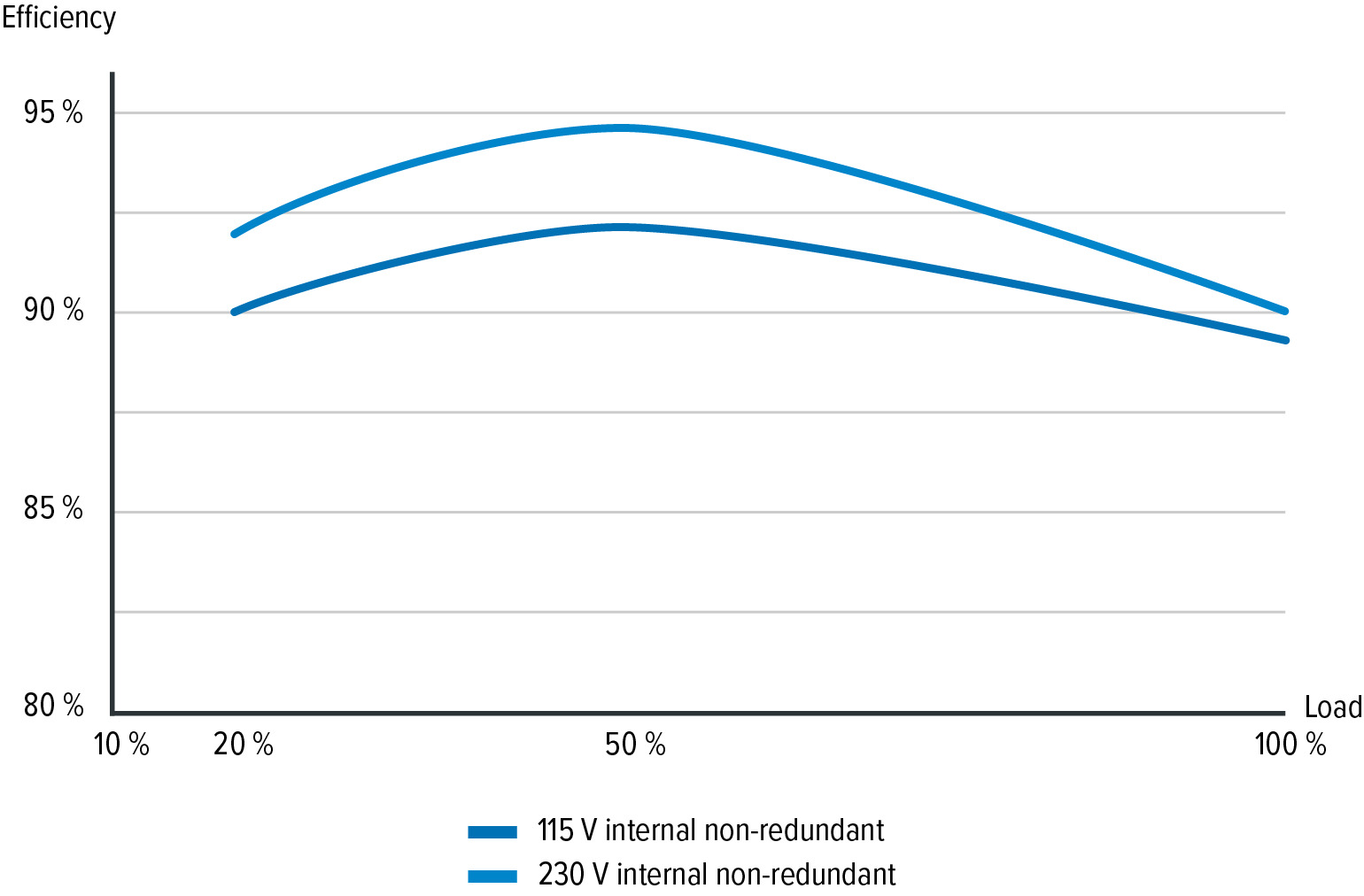

80 PLUS Platinum The Vertex PX Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load. | ![]() |
Fluid Dynamic Fan Bearing High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

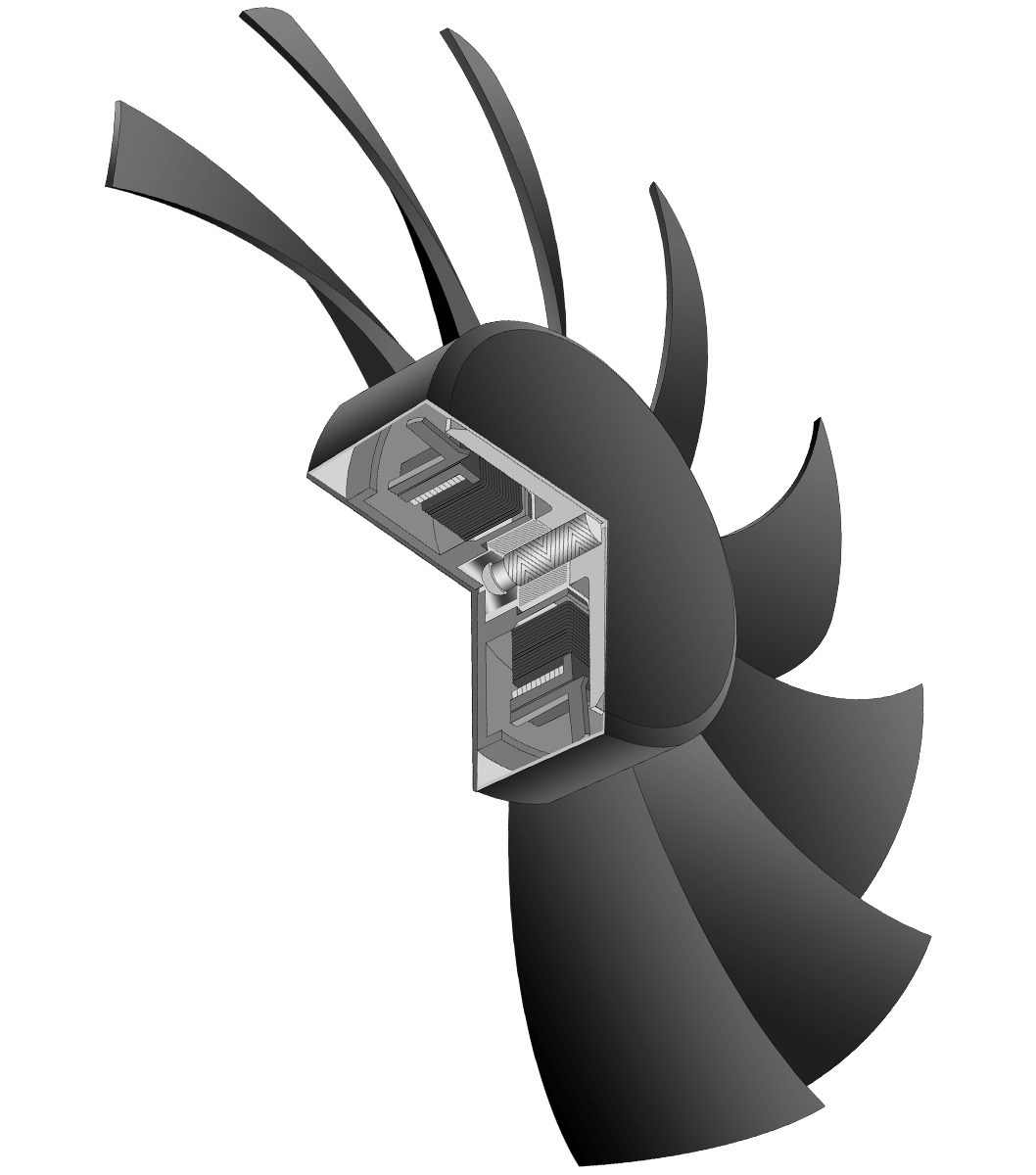

How it works When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage. | ![]() |
Technical Specifications | ||
---|---|---|
80PLUS® | Platinum | |
Cybenetics Efficiency Level | TBA | |
Cybenetics Noise Level | TBA | |
Form Factor | Intel ATX 12 V | |
Dimensions | 160 mm (L) x 150 mm (W) x 86 mm (H) | |
Fan Information | Fan Size | 135 mm |
Fan Control | Digital Fan Control | |
Fan Bearing | Fluid Dynamic Bearing | |
Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
Cable Information | Modularity | Fully Modular |
Cable type | Cables with Braided Pattern | |
Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
MTBF @ 25 °C, excl. fan | 100,000 hours | |
AC Input | Full Range | |
Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Power Output | ||||||
---|---|---|---|---|---|---|
AC Input | Voltage: 100 V - 240 V | |||||
Current: 10 - 5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
100 W | 744 W | 3.6 W | 15 W |
Cables
Cable type | Connector(s) per cable | Total Length (mm) | Number(s) of cable(s) included |
---|---|---|---|
MB (24/20 pins) | 1 | 610 | 1 |
CPU (8/4 pins) | 1 | 650 | 2 |
PCIe (8/6 pins) | 2 | 750 | 0 |
PCIe (8/6 pins) | 1 | 750 | 2 |
SATA | 4 | 950 | 3 |
SATA | 4 | 860 | 0 |
SATA | 4 | 760 | 0 |
SATA | 2 | 700 | 0 |
SATA | 2 | 570 | 0 |
SATA | 2 | 470 | 0 |
SATA 3.3 | 2 | 550 | 1 |
Molex | 3 | 690 | 1 |
Molex | 2 | 470 | 0 |
Molex to SATA 3.3 Adapter | 2 | 300 | 0 |
Molex to FDD Adapter | 1 | 101 | 0 |
12VHPWR | 1 (16 Pins to 16 Pins) | 750 | 1 |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Seasonic
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
Изходна мощност: | 750 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
