Захранване Seasonic Focus SGX-750
Икона нов продукт
НазадЗахранване Seasonic Focus SGX-750Захранване Seasonic Focus SGX-750Захранване Seasonic Focus SGX-750Захранване Seasonic Focus SGX-750Напред

Захранване Seasonic Focus SGX-750, 750W, Active PFC, 80 Plus Gold, 92mm вентилатор

id 275445 Код: PWRPCSEASONICSSR750SGX
311.77 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

Seasonic Focus SGX-750



Standard SFX Size

The 2021 version of the Focus SGX measures at 125 and 100 mm in length and width. This super-compact size allows it to fit into various sized computer cases.



Smart And Silent Fan Control [S3FC]

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

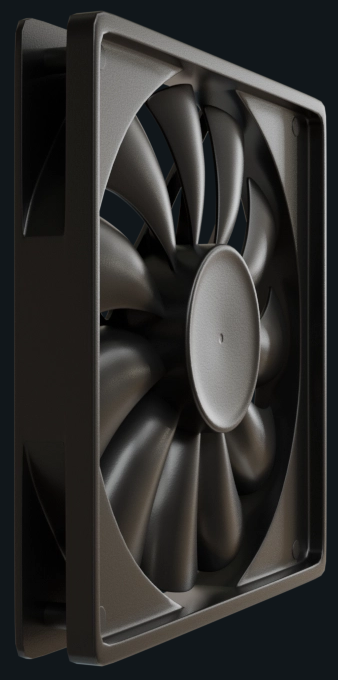

Fluid dynamic fan bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

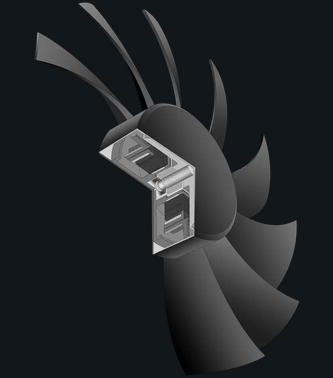

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.

As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Specifications

80 PLUSGold
Cybenetics Efficiency LevelTBA
Cybenetics Noise LevelTBA
Form FactorSFX
Dimensions125 × 100 × 63.5 mm
Fan InformationFan Size92 mm
Fan ControlPremium Hybrid Fan Control
Fan BearingFluid Dynamic Bearing
Life Expectancy50,000 hours at 40 °C, 15 % - 65 % RH
Cable InformationModularityFully Modular
Cable typeFlat black cables
Electrical FeaturesOperating Temperature0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
MTBF @ 25 °C, excl. fan100,000 hours
AC InputFull Range
ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output

AC Input100 V - 240 V
10 - 5 A
50 Hz - 60 Hz
DC OutputRail+3.3 V+12 V-12 V+5 VSB
Maximum Power20 A62 A0.3 A3 A
 100 W744 W3.6 W15 W


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Seasonic
    Виж всички Захранвания Настолни компютри в категорията

    Технически характеристики

    Изходна мощност:  750 W
    Модулен блок:  Да
    Форм фактор:  SFX
