Захранване NZXT C1200, 1200W, Active PFC, 80 Plus Gold, 135 mm вентилатор

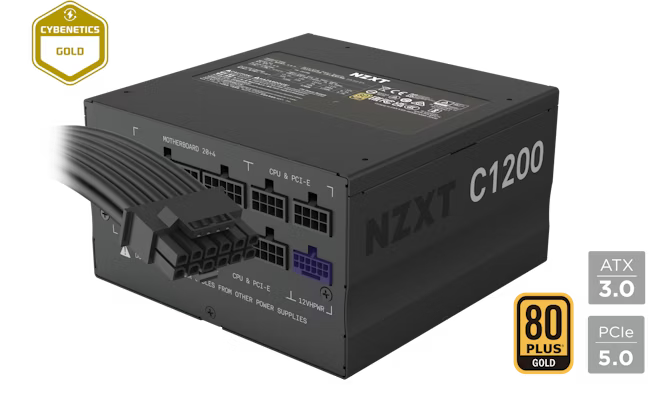

NZXT C1200

Next-Gen Power Provides up to 600W of power to PCIe 5.0 GPUs, such as the NVIDIA GeForce RTX 4090 - over a single 16-pin connector.

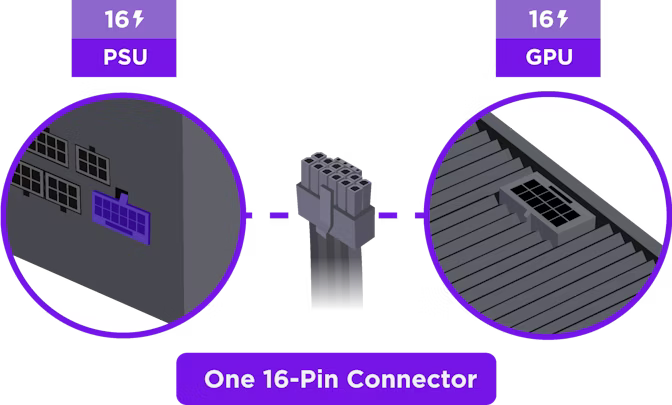

Single Cable Connection Featuring a single 16-pin connection cable—perfect for 40 Series cards. Installation is easier, safer, and less likely to damage parts without requiring any bulky adapters.

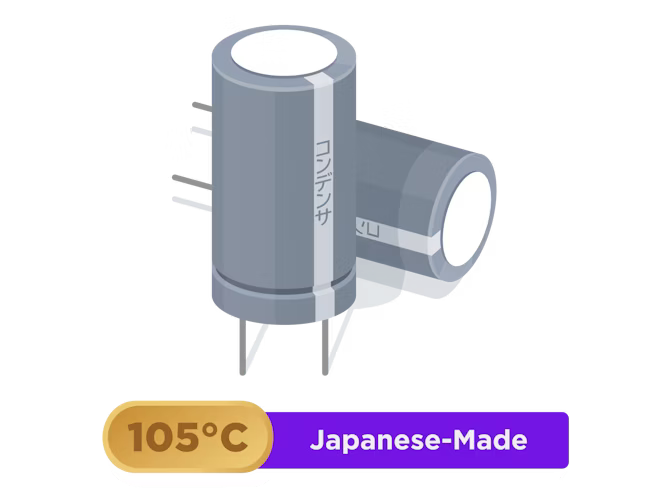

High-Quality Components Constructed with all Japanese 105C-rated capacitors for the highest standard in performance, reliability, and longevity.

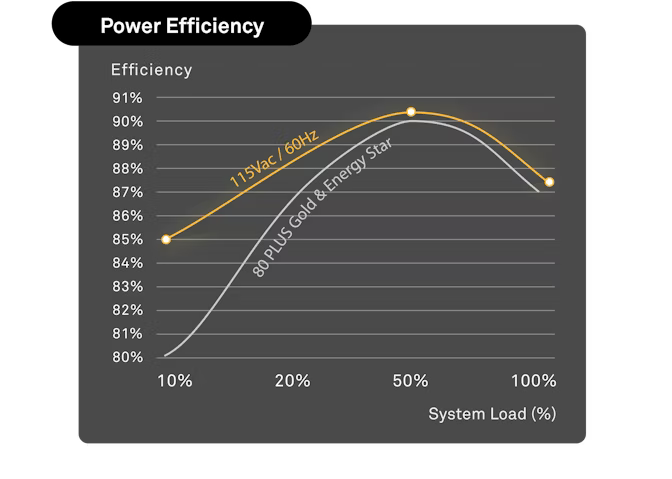

Elite Efficiency With over 90% efficiency at 50% load, the C1200 reduces energy usage to lower monthly costs and extend your PC's lifespan. No wasted energy - it only draws the power your system needs.

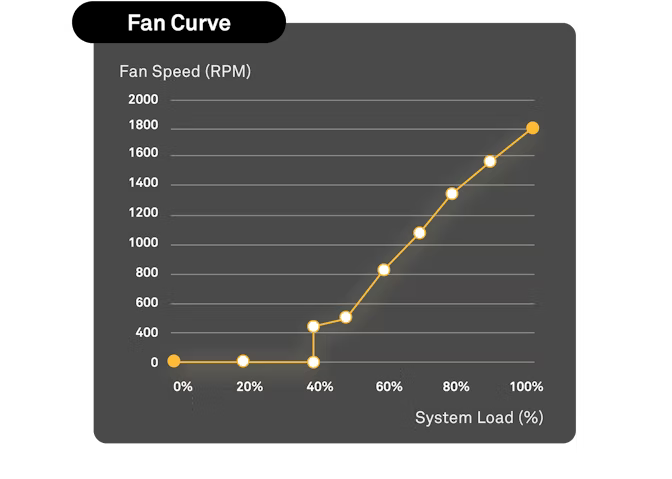

Silent Operation The 135mm PWM fan with a fluid dynamic bearing runs quietly, even at high loads. Zero Fan Mode shuts it off for total silence when under 40% load.

Tech Specs



Output Connectors

• 24-pin ATX power: 1
• 4+4-pin CPU power: 1
• 8-pin CPU Cable: 1
• 6+2-pin PCIe power: 2
• 16-pin (12+4) 12VHPWR PCIe Cable: 1
• SATA power: 8
• Peripherals: 4



Cable Specs

• 24-pin ATX power: 600 mm, Nylon sleeving
• 4+4-pin CPU power: 700 mm, Nylon sleeving
• 8-Pin CPU Power Cable: 700mm, Nylon sleeving
• 6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving
• 16-Pin (12+4) 12VHPWR PCIe Cable: 650mm, Nylon sleeving
• SATA power:500 + 150 mm
• Peripherals:500 + 150 mm



AC Input Rating

• 100 - 240Vac:14A-7A 50Hz-60Hz



DC Output Rating

• +3.3V and +5V:22A (120W)
• +12V:100A (1200W)
• -12V:0.3A (3.6W)
• 5Vsb:3A (15W)
• Total:1200W



Operation

• PF Correction:Active @0.96
• MTBF:100,000 hours
• Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)



Energy Efficiency

• Rating:80 Plus Gold
• 20% loading:90.97% @115Vac
• 50% loading:91.55% @115Vac
• 100% loading:88.51% @115Vac



Fan Specs

• Dimensions:135 x 135 x 25 mm
• Speed:0-2300 ± 10% RPM
• Airflow:93.02 CFM (Tpy.)
• Noise:44.5 dBA max
• Bearing:Fluid Dynamic Bearing (FDB)



General

• Dimensions:150 x 150 x 86mm
• Material(s):Steel, PCB and Plastic
• Compliance Standard:ATX12V v3.0 / EPS12V v2.92
• Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
