Рутер Xiaomi Mi AIoT Router AX3600, 2.4GHz (574 Mbps)/5GHz (2402 Mbps), 1x Gigabit WAN, 3x Gigabit LAN, 1 вътрешна, 7 външни антени

Xiaomi Mi AIoT AX3600




Mi AIoT Router AX3600

Wi-Fi 6 deluxe flagship model
The pioneer router in 5G era

Qualcomm six-core enterprise-class professional chip for more stable operation

The IPQ8071A enterprise-class professional chip—powered by the Qualcomm quad-core 64-bit A53 CPU dual-core network acceleration engine—offers a much better DMIPS capability than other router manufacturers Speed specification chip solution for more processing power and more stable operation.

6-channel external high-performance signal amplifier

Two and four external high-performance signal amplifiers (PA and LNA) are installed in the 2.4-GHz band and 5-GHz band respectively. The PA (Power Amplifier) effectively increases the signal transmitting power, allowing the router to transmit signals further and stronger through walls. The LNA (Low Noise Amplifier) increases the signal reception sensitivity, allowing the router to receive a weaker signal from further away.

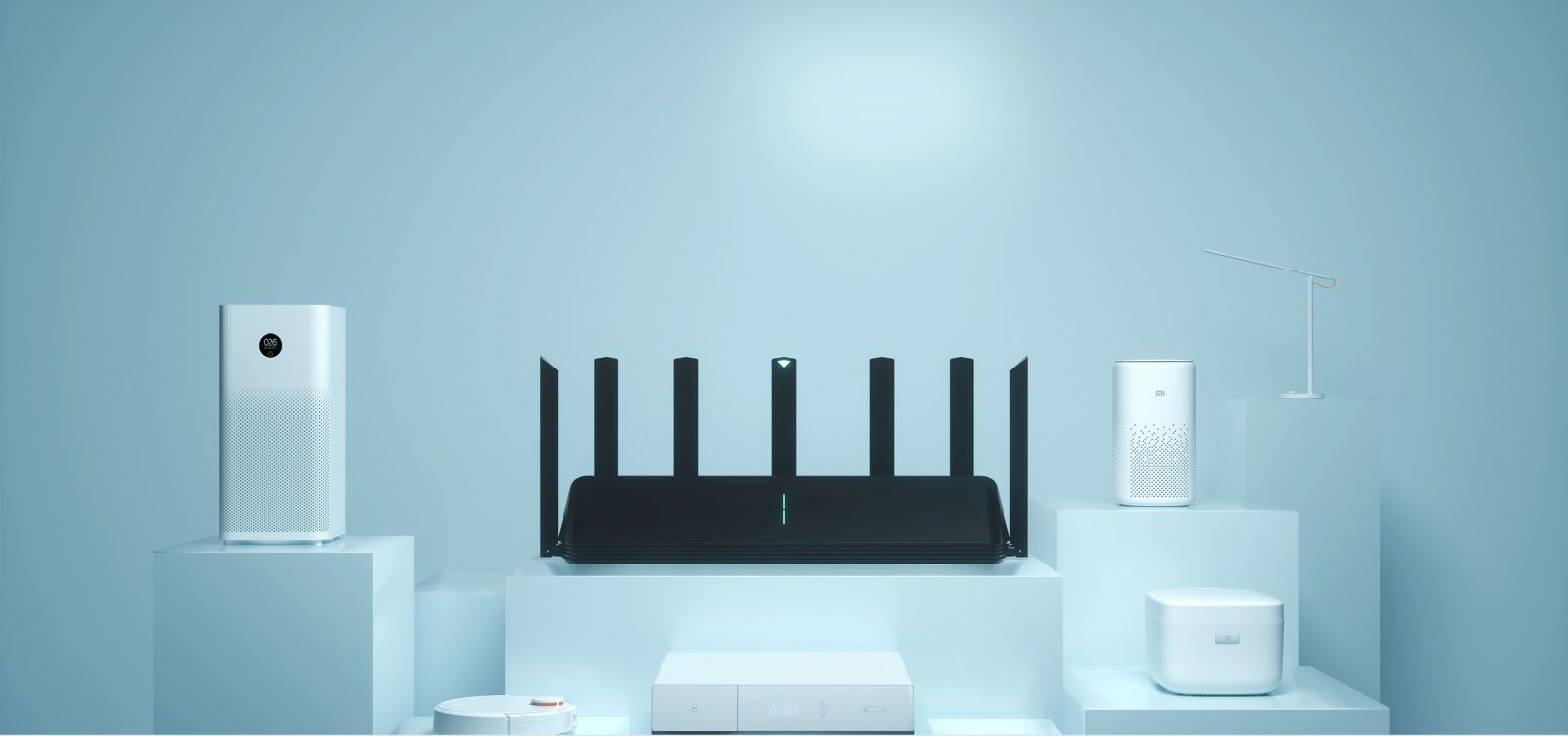

AIoT Smart Antenna，
Quickly discover a Xiaomi smart device
by entering it into the network

Equipped with an "AIoT Smart Antenna," open the Mi Home app to discover uninitialized Mi smart devices*. Connect to the network and access a wide range of smart features with the touch of a button. You can help your parents configure their new devices quickly, even when you're away from home.

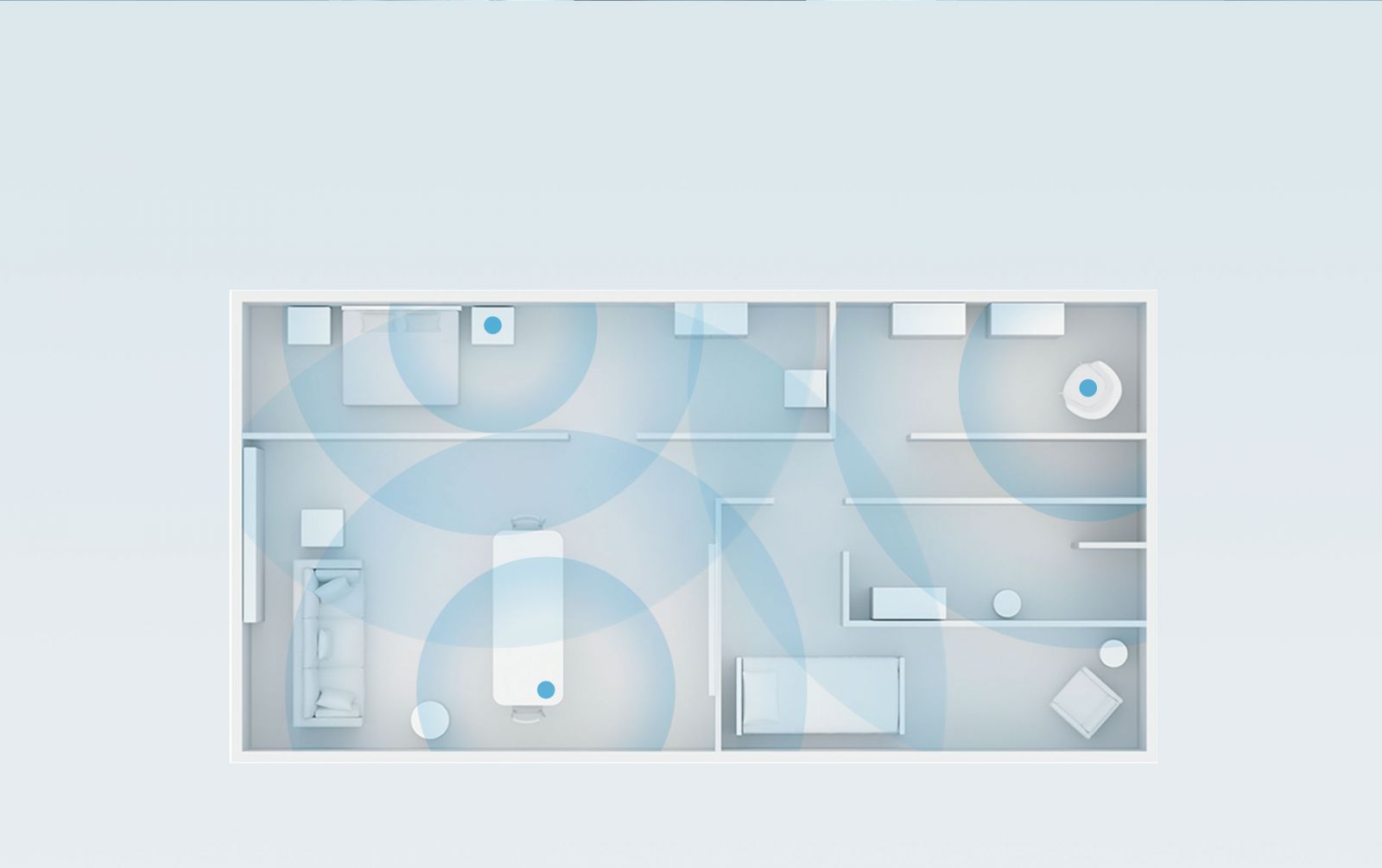

Supports multiple mesh networking*
Wi-Fi 6 throughout the house

Enjoy high-speed Wi-Fi 6 throughout the house. Instead of dealing with dead spots from a single router, multiple mesh groups* can easily handle all kinds of complex home layouts to seamlessly cover the house. Plus, you can enjoy high-speed Wi-Fi 6 everywhere you go with support for the 802.11k/v protocol. Actual experience depends on the actual environment and user end device capability.

Supports multiple mesh networking*
Wi-Fi 6 throughout the house

Enjoy high-speed Wi-Fi 6 throughout the house
Instead of dealing with dead spots from a single router, multiple mesh groups* can easily handle all kinds of complex home layouts to seamlessly cover the house. Plus, you can enjoy high-speed Wi-Fi 6 everywhere you go with support for the 802.11k/v protocol. Actual experience depends on the actual environment and user end device capability.

Спецификации:



Hardware configuration
Processor

IPQ8071A 4-core A53 1.4 GHz CPU

Network processing unit
ROM

Dual-core 1.7 GHz NPU
256MB

Memory

512MB

2.4G Wi-Fi

2 × 2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 574 Mbps)

5G Wi-Fi

4 × 4 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 2402 Mbps)

Product antenna

6 external high-gain antennas + 1 external AIoT antenna

Product heat dissipation

Natural heat dissipation

Total ports

1× 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX)
3× 10/100/1000M self-adaptive LAN ports (Auto MDI/MDIX)

LED indicator light

7× (SYSTEM light ×1, INTERNET light ×1, LAN light ×4, AIoT status light ×1)

System reset button

1×

Power input port

1×

Protocol standards

IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

Wireless specifications
Dual band

2.4 GHz and 5 GHz

Modulation

11b: DSSS: DBPSK(1 Mbps), DQPSK (2 Mbps), CCK(5.5/11 Mbps)
11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)"
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams)
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS0 to MCS11 (supports 4 streams)"

Software specifications
Operating system

Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT

WiFi Encryption

WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention

Network Security

Access control (blacklist, whitelist), guest network, DoS, SPI firewall, IP and MAC address binding, IP and MAC filtering

Management applications

Supports web, Android, iOS
