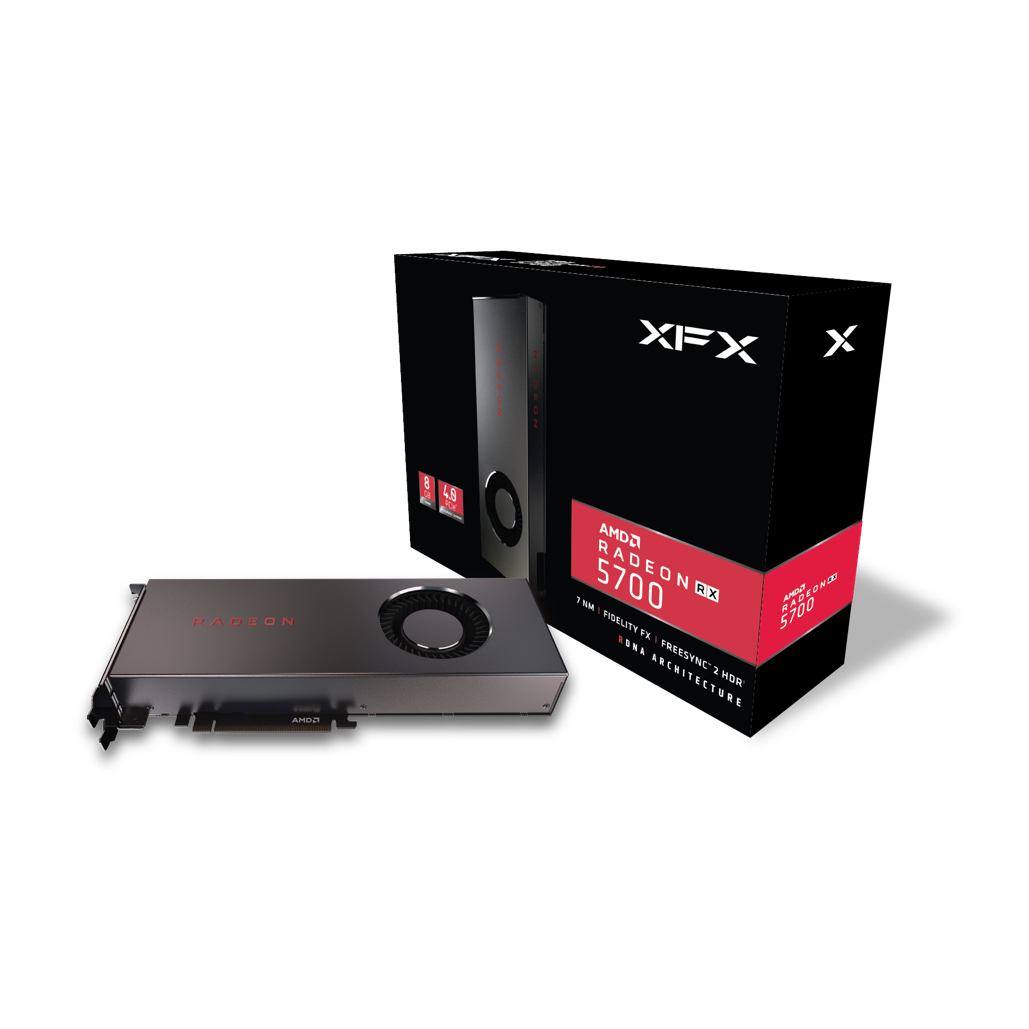

Radeon™ RX 5700 8GB GDDR6 3xDP HDMI
Great gaming experiences are created by bending the rules. The AMD Radeon™ RX 5700 Series GPUs are powered by the all new RDNA architecture and are designed from the ground up for exceptional 1440p performance, exceptional power-efficiency for high-fidelity gaming. Equipped with the latest 8GB of GDDR6 high-speed memory and PCI Express 4.0 support, delivering twice the bandwidth.
Manufacturer XFX
Model Number RX-57XL8MFG6
Product Name AMD Radeon™ RX 5700
Product Description RADEON RX 5700 8GB D6 3xDP HDMI
Launch Date July 7,2019
UPC Number 778656077430
Specifications
Bus Type PCI-E 4.0
Base Clock 1465MHz
Game Clock, up to 1625MHz
Boost Clock, up to 1725MHz
Stream Processors 2304
Memory Bus 256 bit
Memory Clock 14 Gbps
Memory Size 8 GB
Memory Type GDDR6
Card Profile Dual
Thermal Solution Blower fan
"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Outputs
Dual link Support Y
Max Supported Resolution (DIGITAL) 4096 x 2160
Output - Display Port 3
Output - HDMI 1
Features
Display Port ready 1.4
HDMI Ready 2.0b
Requirements
External Power - 8-pins 1
External Power - 6-pins 1
Minimum Power Supply Requirement 600 watt
XFX Recommended Power Supply XFX 600W PSU
Technologies
RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI® Express4.0 Support
Video Streaming up to 8K
DisplayPort 1.4w/DSC
Radeon™ Image Sharpening
Async Compute
Radeon™ Rays Audio + True Audio Next
Radeon™ Freesync™ 2 HDR
Radeon™ VR Ready Premuim
Radeon™ Software
Driver Optimizations
Radeon™ Boost
Certifications
RoHS
Package Contents
8-pin to 6-pin power cable 1
6-pin to 4-pin power cable 1
Driver Disk Installation Guide 1
Installation DVD 1
Estimated Dimensions And Weights
Card Dimension (cm) 26.67 x 11.12 x 4
Card Dimension (inch) 10.5 x 4.38 x 1.57
Master Carton Dimensions (cm) 43 x 49 x 35.5
Master Carton Dimensions (inch) 16.93 x 19.29 x 13.98
Master Carton Weight (Kg) TBC
Master Carton Weight (lb) TBC
Package Dimensions (cm) 34 x 24 x 8
Package Dimensions (inch) 13.39 x 9.45 x 3.15
Package Weight (Kg) TBC
Package Weight (lb) TBC
Units/Carton 10
