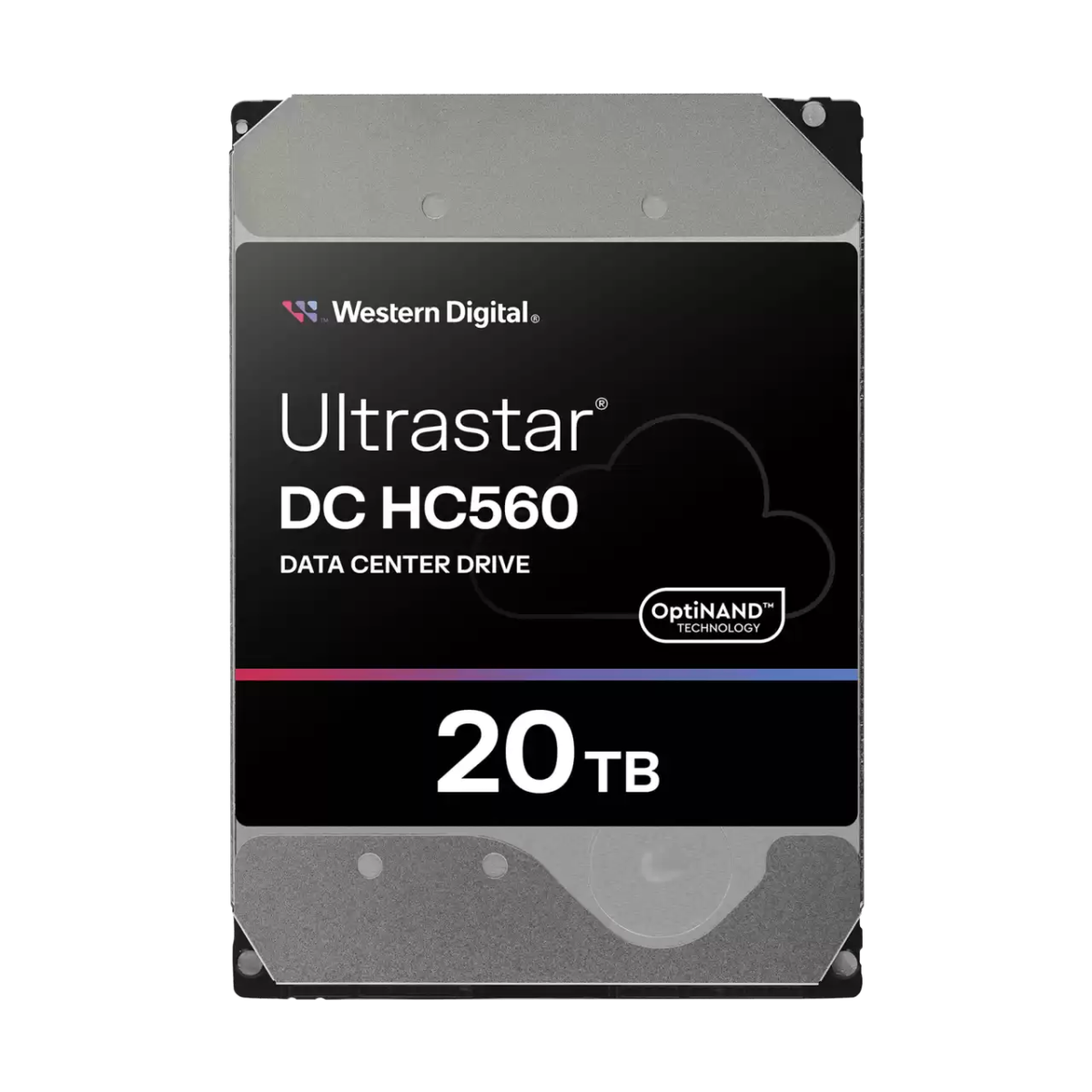

Твърд диск 20TB Western Digital Ultrastar HC560, SATA 6Gb/s, 7200 rpm, 512MB кеш, 3.5" (8.89 cm)

Ultrastar DC HC560 - 20TB

An innovative storage architecture to help our customers meet their need for exponential data growth.

20TB capacity with a reimagined HDD

An innovative storage architecture to help our customers meet their need for exponential data growth.

Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.

Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs.  Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.

20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.

The Ultrastar  DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format.

Trusted Reliability and Quality for Data at Scale
The Ultrastar DC HC560 meets modern data center reliability requirements with 2.5M MTBF2 (projected) and a 5-year limited warranty. It offers security and encryption options to help protect data from unauthorized use, including SED models.

Trust Western Digital and the Ultrastar DC HC560 hard drive to deliver the highest capacity and greatest value for your data center.

Specifications:

Capacity

20TB

Form Factor

3.5-Inch

Interface

SAS

Transfer Rate

up to 291MB/s

Disk Speed (RPM)

7200 RPM

Recording Technology

EAMR

Cache Size

512MB

Security

SED

Dimensions (L x W x H)

147mm x 101.6mm x 26.1mm

Weight

690gms

Operating Temperature

5°C to 60°C

Non-Operating Temperature

-40°C to 70°C

Drive

3.5"

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
