Name: Проектор Vivitek DX977-WT, DLP, 3D Ready, XGA (1024x768), 15000:1, 6000 lm, 2x HDMI, Display Port, 2x VGA, RJ-45, USB, бял
Brand: Vivitek
SKU: PJVIVITEKDX977WT
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

DX977-WT

High Brightness Multimedia XGA Projector

Suited for installations in meeting rooms for professional usage

The Vivitek DX977WT is a high brightness multimedia digital projector. The DX977WT delivers an amazing image quality and would be perfectly suited for any large meeting room. With a brightness of 6,000 ANSI lumens, XGA resolution and an outstanding 15,000:1 contrast ratio, the projector performs outstanding. The DX977WT also features DLP Link™ and BluRay 3D functionality, Crestron® RoomView™ certification, high-efficiency lamps and an assortment of connectivity options for easy connection to a variety of multimedia devices.

Key features

XGA (1024 x 768) resolution with 6,000 ANSI lumens and a 15,000:1 contrast ratio
DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
Vertical lens shift and 1.5x zoom range for flexible image sizing and distance planning
5 segment RYGWB color wheel for improved and vivid color reproduction
Assortment of video (HDMI 1.4b, DisplayPort, VGA, S-Video, Composite Video), communication (RJ45, USB, RS232, 12v trigger) and audio (audio-in/out) I/O options for simplified device connectivity
Extend lamp life with an energy efficient lamp that deliver up to 4,000 hours of usage (Dynamic Eco. Mode)
Project 3D content from DLP® Link™, PC based 3D and BluRay HDMI 1.4b for realistic life-like images
Built-in 3W audio speaker with multiple audio-in and audio-out ports
Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX SSDP and Telnet
Choice of 8 pre-set display scenario modes including presentation, bright, game, movie, TV, sRGB, blackboard and user
Integrated Closed Caption Decoding (CCD) automatically converts the audio portion of a TV signal and displays it as subtitles on the projected screen
Hassle-free maintenance with top loading lamp door for convenient lamp replacement
Front/Rear infrared sensors for handy remote control from either in front or behind the projector
Anti-theft security features include: Kensington® security slot, security bar, and password protected keypad lock

SPECIFICATIONS

Native Resolution: XGA (1024 x 768)
Brightness: 6000 ANSI Lumens
Contrast Ratio: 15,000:1
Max. Supported Resolution: WUXGA (1920 x1200) @60Hz
Native Aspect Ratio: 4:3
Lamp Life and Type: 2,500/ 3,500/ 4,000 Hours (Normal /Eco/Dynamic Eco Mode) 310W/245W
Display Type: Single chip DLP® Technology by Texas Instruments
Chip Size: 0.7” DMD
Throw Ratio: 1.43 - 2.14
Image Size (Diagonal): 27.6" – 344.6"
Projection Distance: 1.2 - 10m
Projection Lens: F= 2.42 - 2.97, f = 20.9 - 31.05 mm
Zoom Ratio: 1.5x
Lens Shift ( Based on Full Image Height): Vertical:109.5% - 120%, +/- 5%
Offset (Based on Full Image Height): 112% +/- 10%
Keystone Correction: Vertical +/- 30°
Speakers: 3W
Video Compatibility: SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

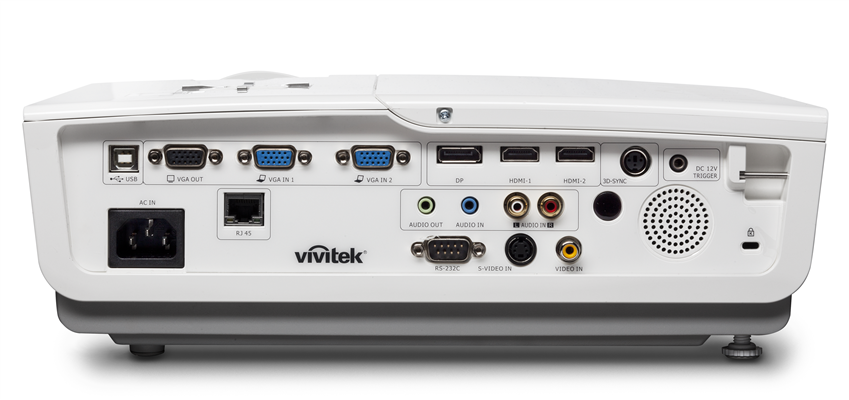

I/O Connection Ports: VGA-In (15pin D-Sub) (x2), HDMI (x2), Display Port (x1), S-Video (x1), Composite Video (x1), Audio-In (RCA) (x1), Audio-In (Mini-Jack) (x1), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack) (x1), RJ45 (x1), RS-232, 3D-Sync (x1), USB B (Service)
Dimensions (W x D x H): 332.8 x 255 x 114.6mm
Weight: 3.95 kg
Noise Level: 36dB/ 30dB (Normal/Eco. Mode)
Power: Power Supply: AC 110-240V, 50/60Hz. Power Consumption: 370W (Normal Mode), 300W (Eco. Mode), <0.5W (Standby Mode) , <6W (LAN Standby Mode)
3D Ready(DLP link, PC+Video): Yes
Spare Lamp P/N: 5811118436-SVV
Standard Accessories: VGA Cable, User Manual (CD), Lens Cap, Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
UPC Code: 813097 021380

Виж още Проектори Vivitek
Виж всички Проектори в категорията

Тип:	DLP
3D:	3D Ready
Разделителна способност (native):	1024 x 768
Разделителна способност (max):	1920 x 1200
Яркост:	6000 lm
Контраст:	15000
Мрежови възможности:	RJ-45
Говорители:	Да
4K:	Не
Разстояние на проектиране:	1.2m - 10m
Short Throw:	Не
