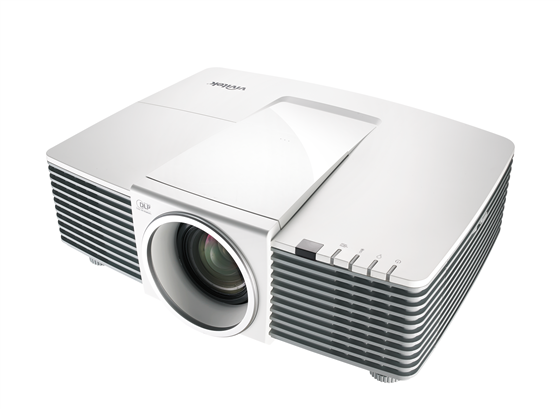

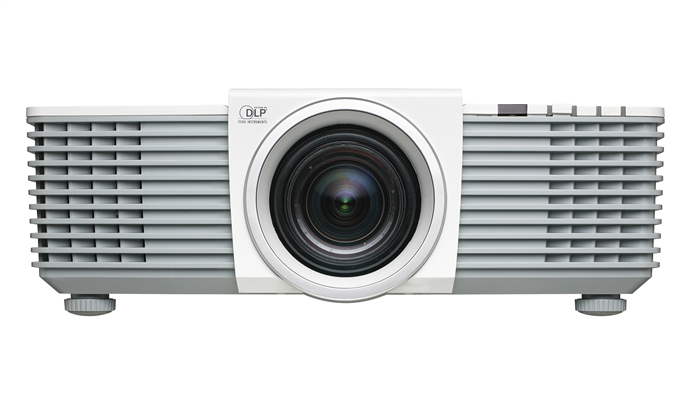

Проектор Vivitek DW3321, DLP, 3D Ready, WXGA (1280x800), 10000:1, 5100 lm, 2x HDMI, 2x VGA, DVI-D, 2x RJ-45, USB, бял

DW3321

Versatile Installation Projector

Feature rich with extensive input options and flexible installation range The DW3321 offers great features and performance combined with great installation flexibility. The 5,100 ANSI lumens make it bright enough for larger screens, and the wide screen WXGA native image resolution ensures that your content will be delivered with fidelity and sufficient detail for a wide range of applications. The 1,34-2,4:1 Throw Ratio makes it possible to install the projector in a wide range of distances, making installation planning easier whether you replace an older projector or making a new installation. The 1,7x zoom range and horizontal and vertical lens shift gives further flexibility when installing the projector. Features such as 3D, JPG reader and HDBaseT ensures the projector can handle modern signal inputs and features customers expect.

Key features DLP® technology with BrilliantColor™ for vibrant and rich picture quality 5,100 ANSI lumens of brightness, WXGA resolution, and 10,000:1 contrast ratio for clear, crisp and bright projection Great flexibility with 1.7x zoom centered lens and manual horizontal and vertical lens shift Easy image adjustment for keystone, curved screen, and individual corner corrections Pincushion or barrel distortions are easily corrected when projecting onto a curved screen HDBaseT interface for HD video and audio over standard CAT5e/6 LAN cable 2x 7W speakers and microphone input ensure you are clearly heard Integrated network monitoring and management solutions including Crestron® RoomView™, Extron, and etc. DICOM Simulation Mode for medical training and seminars Built-in 12V trigger for screen or blinds control MHL device compatibility for streaming of video and audio content from a compatible mobile device PC-Free presentation using JPG picture reader from USB thumb drive

SPECIFICATIONS

Native Resolution: WXGA (1280 x 800)
Brightness: 5100 ANSI Lumens
Contrast Ratio: 10,000:1
Max. Supported Resolution: WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio: 16:10
Lamp Life and Type: 1,500 / 3,500 Hours (Normal / Eco. Mode), 370W/280W
Display Type: Single chip DLP® Technology by Texas Instruments
Chip Size: 0.65" DMD
Throw Ratio: 1.32 - 2.24:1
Image Size (Diagonal): 21" - 351"
Projection Distance: 1 - 10 m
Projection Lens: F = 2.45 - 3.22, f = 18.8 - 32 mm
Zoom Ratio: 1.7x
Lens Shift ( Based on Full Image Height): Vertical +23.7%, -12.7%; Horizontal +/-10.9%
Offset (Based on Full Image Height): 105% - 141%
Keystone Correction: Vertical: +/-30° ; Horizontal: +/-25°
Speakers: 7W x2
Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

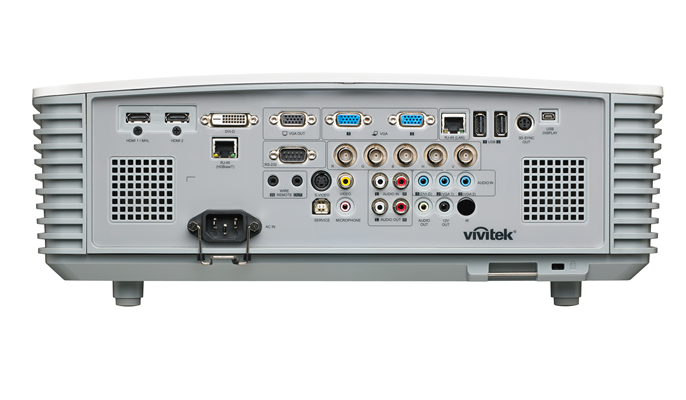

I/O Connection Ports: VGA-In (15pin D-Sub) (x2), HDMI (x2: HDMI/MHLx1, HDMIx1), DVI-D, Component (5 BNC) (RGBHV), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack) (x3), VGA-Out (15pin D-Sub), Audio-Out (RCA), Audio-Out (Mini-Jack), RJ45 (x2: LANx1, HDBaseTx1), 12v Trigger, RS-232, 3D-Sync, USB type A for Display(Frame display) and JPG reader(Photo: Jpeg / Video: Mpeg4,H.264) (yes (JPG Reader Only)), USB A (x2: WIFI Dongle or JPEG Reader), USB miniB (USB Display), USB B (Service), Microphone (Mini-Jack), Remote Jack(wire remote)
Dimensions (W x D x H): 445 x 331 x 162 mm
Weight: 8.4 kg
Noise Level: 36dB / 33dB (Normal / Eco. Mode)
Power: Supply: AC 100-240V, 50/60Hz Consumption: 380W (Eco. Mode), 480W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video): Yes
Wireless: Yes
Spare Lamp P/N: 5811119760-SVV
3D Glasses P/N: 3534257700
Remote Control P/N: 5041846600
Standard Accessories: VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
UPC Code: 813097020321
