Проектор Vivitek DU9053Z, 3D Ready, DLP, WUXGA (1920x1200), 3 000 000:1, 21000lm, DisplayPort, HDMI, DVI-D, USB, RS-232, RJ-45

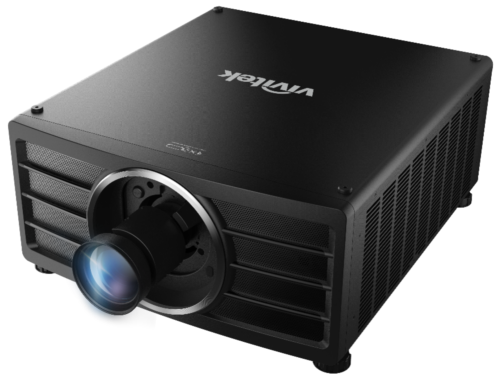

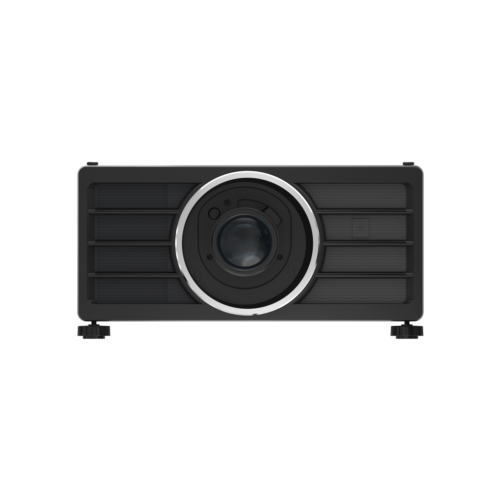

DU9053Z

Set to revolutionise projection in demanding environments



Single-chip DLP laser projector with 21,000 lumens high brightness

The DU9053Z is designed for ProAV rental, staging and large venue applications. The Single Chip WUXGA laser projector offers a constant light output of 21,000 lumens and a 3,000,000:1 dynamic contrast ratio. The Constant Brightness feature helps reduce blending maintenance with a smart sensor continuously measuring and adjusting the illumination output. The projector can run continuously for 30,000 hours in Eco Mode, guaranteeing 24/7 operation with low user intervention.





Key features:

• 21,000 ANSI lumens with only one Single DLP® DarkChip3™ technology
• WUXGA resolution and 3,000,000:1 dynamic contrast ratio
• Long lasting laser light source for 30,000 hours in Eco mode
• Installation flexibility is ensured with 7 optional lenses from TR.0.38:1 to TR.10.30:1 tthrow ratio range
• Motorized and wide lens shift range with Lens Positioning Memory
• Designed for heavy duty 24/7 operations with 360° portrait installation angle flexibility
• 3G-SDI & HDBaseTinterface for long signal transmission distribution with HD video (4K-UHD) and digital audio content
• Seamless control with industry-standard Art-Net, simplifying setup and offering efficient data flow.
• Built-in multi-screen edge-blending and warping features
• "Rental Mode" ready! To enhanced the rental experience, protect the equipment, and potentially increase the profitability of rental operations.
• Supported Projector installation Tool- PJ-Control V3.0 and Auto- Calibration features.





SPECIFICATIONS:

Native Resolution	WUXGA (1920 x 1200)
Brightness	21000 ANSI Lumens
Contrast Ratio	3 000 000:1 (Dynamic)
Max. Supported Resolution	4K UHD (3840x2160) @60Hz
Native Aspect Ratio	16:10
Display Type	DLP Technology by TI
Chip Size	Single Chip 0.96'' DMD
Throw Ratio	7 optional lenses from 0.38:1 to 10.3:1 throw ratio range
Image Size (Diagonal)	Depending on lens selection
Projection Distance	Depending on lens selection
Zoom Ratio	Motorized Zoom & Focus
Lens Shift Range	Vertical: +/-50%; Horizontal: +/-15%
Offset	Motorized Lens Shift
Keystone Correction	Vertical: +/-40 Steps; Horizontal: +/-45 Steps
Vertical Scan Rate	24~30Hz ;47~120Hz
Horizontal Scan Rate	15.31 ~ 135 kHz
Video Compatibility	SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p, 4K-UHD)

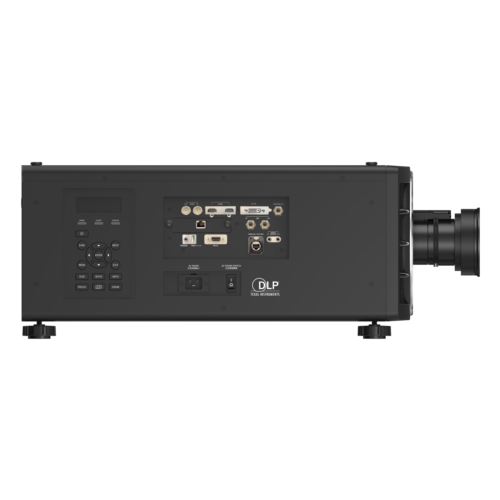

I/O Connection Ports	HDMI (2x), Display Port, DVI-D, Component (5 BNC) (RGBHV) , RJ45 (1x: HDBaseT/LAN), 12v Trigger (1x), RS-232 (1x), 3D-Sync (2x: In and Out), 3G-SDI (2x: In and Out), USB A (1x with Power), Remote Jack(wire remote)
Dimensions (W x D x H)	676.6 x 598.8 x 270mm
Noise Level	43dB / 40dB (Normal / Eco)
Power	Supply: AC 100-240V, 50/60Hz Consumption: 1300W (Normal Mode) <0.5W (Standby)
Control Software	PJ - Control +V3.0.0.4
3D Ready(DLP link, PC+Video)	Yes
