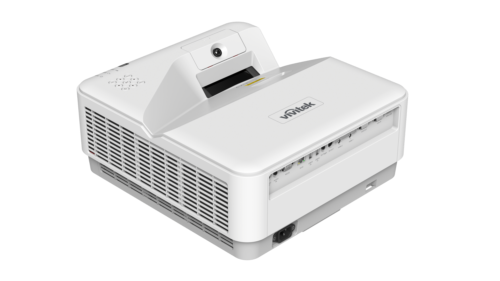

WUXGA Ultra-Short-Throw Laser projector with Best in Class image quality
The DU775Z-UST, is a highly advanced Ultra Short Throw Laser Projector, perfectly suited to the needs of museums, galleries, educators, training spaces, immersive applications, hospitality and signage applications. Its compact footprint, large image size and 4K-UHD compatibility ensure it is well-suited to locations where space is at a premium but a large, powerful, projection image is still required. The DU775Z-UST is designed with a new Tele-centric lens system to achieve a very low defocus range and flare value at large image sizes, while the Concave Reflect Mirror reduces any image distortion. It offers native WUXGA resolution and a high brightness of 5000 ANSI lumens with 3,000,000:1 contrast ratio.
Key features
- DLP® and BrilliantColor™ 0.47” DMD panel technology
- High-Performace 0.25:1 Ultra Short Throw with Tele-centric lens designed
- High brightness of 5,000 lumens with 3,000,000:1 contrast ratio
- Up to 4K-UHD (3840 x 2160) @60Hz signal compatibility
- Large projection 150" (100% focus) without image distortion
- 360° Installation, the projectors can be installed with no limitation on projection angle
- Power USB-A for signage players or wireless collaboration devices
- Support network control / Vivitek PJ-Control for easy communications and remote control over an IT network
- Optional interactive function available in IR Pen & Finger Touch
Integrated network monitoring and management solutions including Crestron® RoomView™, as well as others
Specs:
| Native Resolution | WUXGA (1920x1200) |
| Brightness | 5000 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 |
| Max. Supported Resolution | UHD (3840 x 2160) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | Laser light source 20,000 / 30,000 Hours (Normal / Eco. Mode) |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.48” DMD |
| Throw Ratio | 0.25:1 |
| Image Size (Diagonal) | 70"- 150" (100% Focus) |
| Projection Distance | 336mm~739mm |
| Zoom Ratio | Fixed |
| Offset | 122% ±5% |
| Interactivity | Optional |
| Keystone Correction | Vertical: ±15 steps |
| Speakers | 10W x 2 |

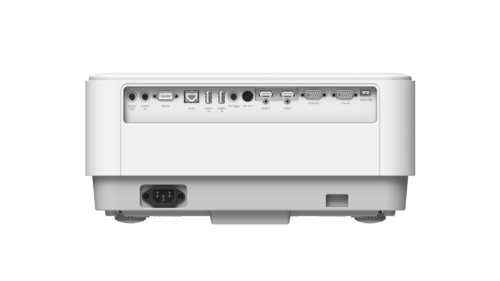

| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI (HDMI-In x2, HDMI-Out x1), Audio-In (RCA) , Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232, 3D-Sync, USB A (5V/2A (Power Only)), USB B (Service) |
| Dimensions (W x D x H) | 380 x 405 x 150 mm |
| Weight | 8.9 kg |
| Noise Level | 32dB/27dB (Normal/Eco. Mode) |
| Control Software | PJ-Tool V3.0 |
| 3D Ready(DLP link, PC+Video) | Yes |
Виж още Проектори Vivitek
Виж всички Проектори в категорията
| Тип: | DLP |
|---|---|
| 3D: | 3D Ready |
| Разделителна способност (native): | 1920 x 1200 |
| Разделителна способност (max): | 3840 x 2160 |
| Яркост: | 5000 lm |
| Контраст: | 3000000 |
| Мрежови възможности: | RJ-45 |
| Говорители: | Да |
| 4K: | Да |
| Разстояние на проектиране: | Нормално |
| Short Throw: | Не |
| Живот на лампата: | 20000 h |
| Предназначен за: | Бизнес |
| Формат: | 16:10 |
