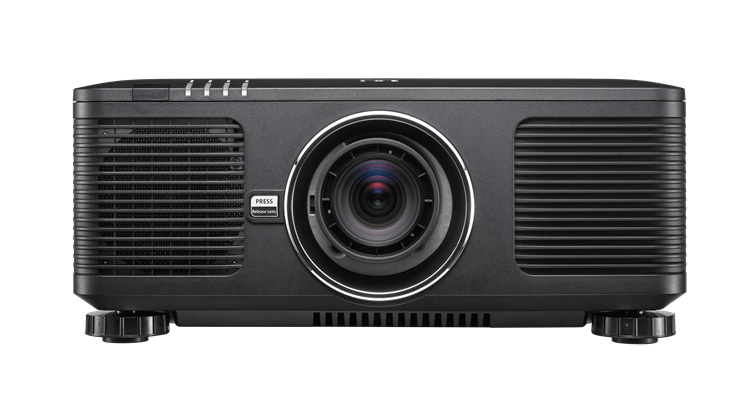

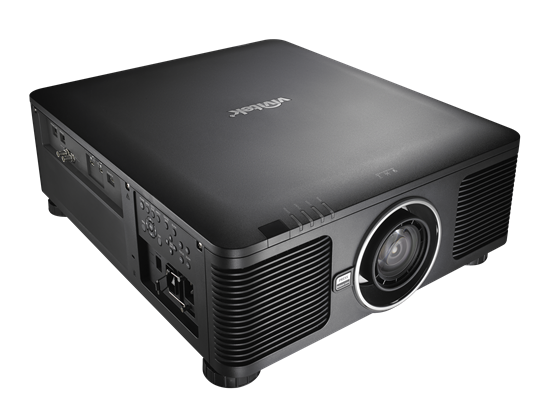

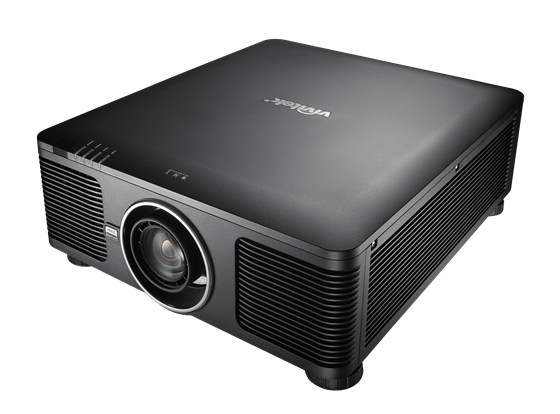

Проектор Vivitek DU6693Z, DLP, 3D Ready, WUXGA (1920x1200), 10 000:1, 7000 lm, HDMI, Display Port, VGA, DVI-D, RJ-45, черен

DU6693Z

Low Maintenance Laser Projector

Lamp-Free and Eco-Friendly The DU6693Z features a WUXGA resolution, an amazing 7000 ANSI Lumens brightness and 10,000:1 contrast ratio for a clear and bright projection. The projector is equipped with a laser light source which offers up to 20,000 hours of operation which makes it the perfect solution for large venues that need power, flexibility and a durable solution

Key features DLP® technology for vibrant and rich picture quality 7,000 ANSI lumens of brightness, WUXGA resolution, and 10,000:1 contrast ratio for clear, crisp and bright projection Long lasting laser light source for constant brightness level and color performance for up to 20,000 hours operations Silent large venue projector at only 32dB thanks to its outstanding thermal management Airtight sealed optical engine and optimized system layout ensure the high-efficiency cooling performance Installation flexibility is ensured with 8 optional lenses from 0.38:1 to 8.26:1 throw ratio range Motorized and wide lens shift range allows easy placement of the projector without distorting the image. Lens Position Memory to facilitate set up Image adjustment is made easy with 4 corner correction and keystone correction HDBaseT interface ensure robust long signal transmission up to 100 meters Designed for heavy-duty 24/7 operations with 360° installation angle flexibility Easy projector monitor and control over network

SPECIFICATIONS

Native Resolution: WUXGA (1920 x 1200)
Brightness: 7000 ANSI Lumens
Contrast Ratio: 10,000:1
Max. Supported Resolution: WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio: 16:10
Lamp Life and Type: Lamp free design. Laser light source last up to 20,000 hours
Display Type: Single chip DLP® Technology by Texas Instruments
Chip Size: 0.67” DMD
Image Size (Diagonal): 40" - 500" (Standard lens)
Projection Distance: depending on lens selection
Zoom Ratio: Motorized Zoom & Focus
Lens Shift ( Based on Full Image Height): Vertical: +64%. -33%; Horizontal: +24%. -14%
Offset (Based on Full Image Height): Motorized Lens Shift
Keystone Correction: Vertical +/- 40°, Horizontal +/- 60°
Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports: VGA-In (15pin D-Sub), HDMI (x2), DVI-D, Component (5 BNC) (RGBHV), VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger, RS-232, 3D-Sync (x2: In and Out), Remote Jack(wire remote)
Dimensions (W x D x H): 500 x 580 x 205 mm
Weight: 28 kg
Noise Level: 40dB (Normal Mode)
Power: Supply: AC 100-240V, 50/60Hz Consumption: 675W (Eco. Mode), 850W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video): Yes
Remote Control P/N: 5041848301
Standard Accessories: VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
UPC Code: DU8090Z WH: 813097021786

Native Resolution: WUXGA (1920 x 1200) Brightness: 7000 ANSI Lumens Contrast Ratio: 10,000:1 Max. Supported Resolution: WUXGA (1920 x 1200) @60Hz Native Aspect Ratio: 16:10 Lamp Life and Type: Lamp free design. Laser light source last up to 20,000 hours Display Type: Single chip DLP® Technology by Texas Instruments Chip Size: 0.67” DMD Image Size (Diagonal): depending on lens selection Projection Distance: depending on lens selection Zoom Ratio: Motorized Zoom & Focus Lens Shift ( Based on Full Image Height): Vertical: +64%, -33%; Horizontal: +24%, -14% Offset (Based on Full Image Height): Motorized Lens Shift Keystone Correction: Vertical: +/-40°; Horizontal: +/-60° Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) I/O Connection Ports: VGA-In (15pin D-Sub), HDMI, Display Port, DVI-D, Component (5 BNC) (RGBHV), VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger (x2), RS-232, 3D-Sync (x2: In and Out), USB B (Service), Remote Jack(wire remote) Dimensions (W x D x H): 500 x 580 x 205 mm Weight: 27 kg Noise Level: 32dB (Normal Mode) Power: Supply: AC 100-240V, 50/60Hz Consumption: 675W (Eco. Mode), 850W (Normal Mode), <0.5W (Standby) 3D Ready(DLP link, PC+Video): Yes Remote Control P/N: 5041848301 Standard Accessories: VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord UPC Code: DU6693Z-BK: 813097023490
