Монитор ViewSonic TD1630-3, преносим, 15.6" (39.62 cm) TN панел, тъч скрийн, HD, 12ms, 10,000,000:1, 220cd/m2, HDMI, VGA

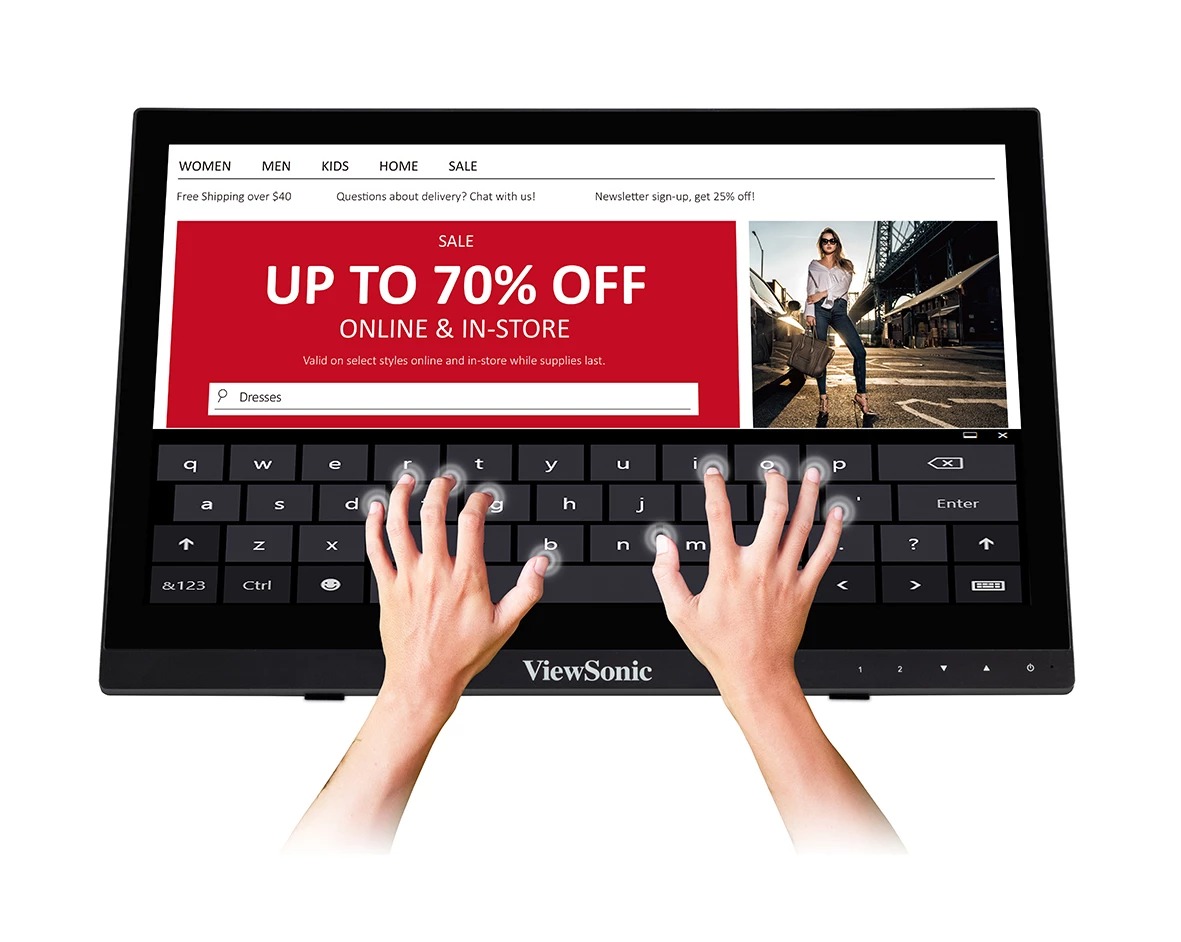

10-Point Projected Capacitive Touch

Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.











Advanced Ergonomic Stand Design

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

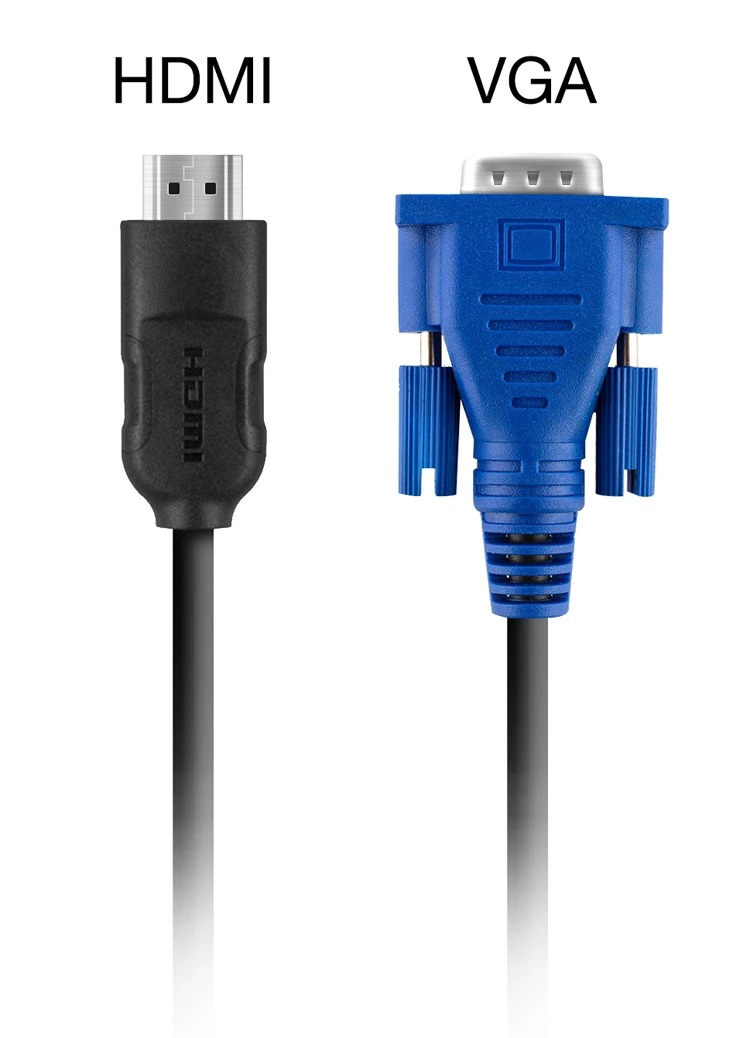

Versatile Connectivity

HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.











Cross-platform Compatibility

"Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions*.
*Supports Windows 7/8/10, Linux Kernel 4.X/3.X

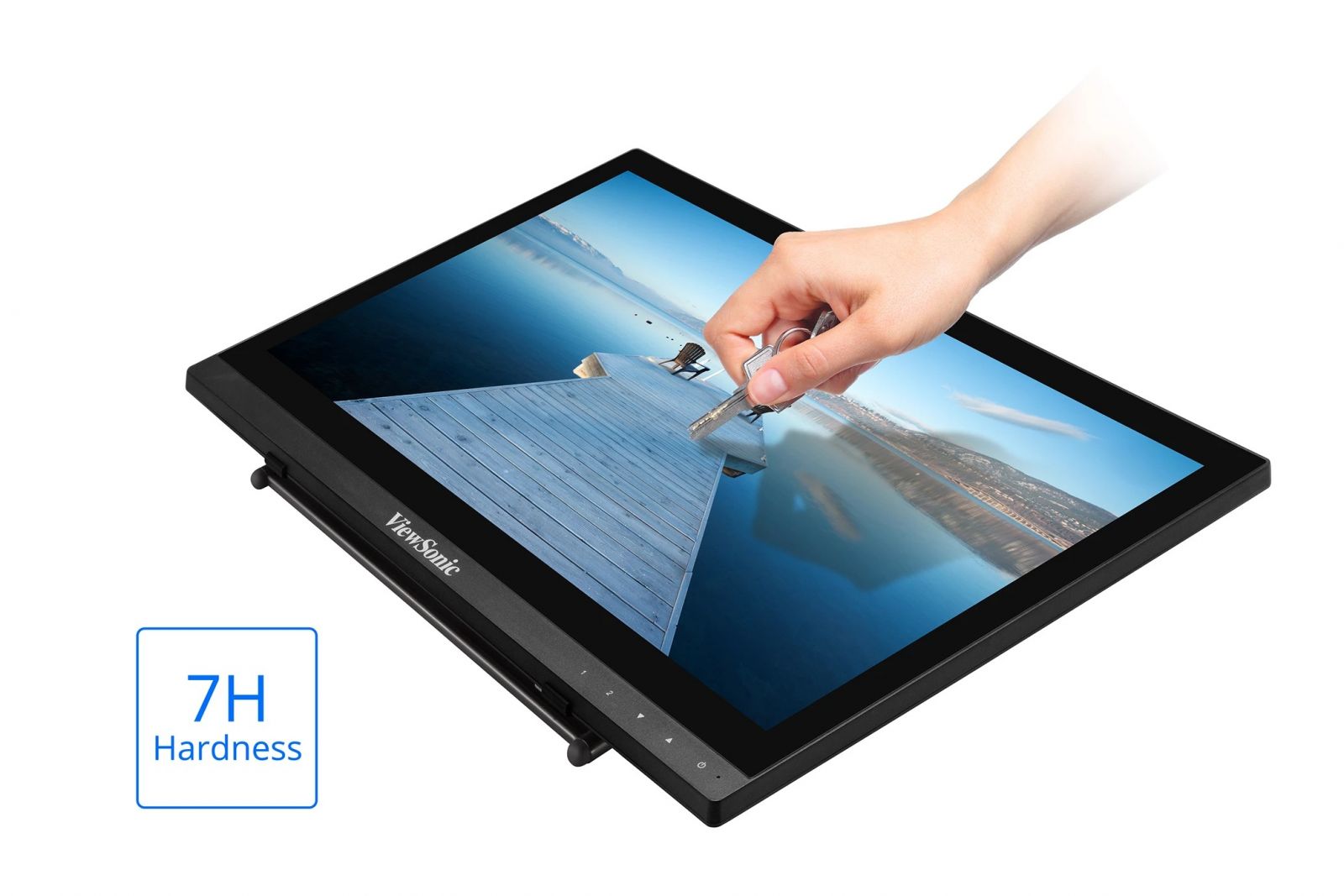

Durable, Scratch-resistant Screen

This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.









SPECIFICATIONS

LCD PANEL
Monitor Size : 15.6" (39.62 cm)
Panel Technology : TN TFT LCD
Resolution : HD 1366 x 768
Display Area : 344.23mm (H) x 193.54mm (V)
Aspect Ratio : 16:9
Brightness : 220 cd/m2 (Typ) w/o touch module, 190 cd/m2 (Typ) w/ touch module
Contrast Ratio : 500:1 (Typ)
Dynamic Contrast Ratio : 10,000,000:1
Viewing Angles : 90 degrees / 60 degrees (Typ)
Response Time : 12ms
Colours : 262K colours (6-bit)
Colour Gamut : 45% of NTSC (Typ)
Panel Surface : ≧7H, Haze < 2%

INPUT SIGNAL
Frequency : Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz
Sync : Separate Sync, TMDS

COMPATIBILITY
PC : Windows 7/8/10 tested
Mac® : Display: Power Mac tested, Touch Module:iOS not support

CONNECTOR
Input : VGA x 1
HDMI x 1 (v1.4 compatible)
Audio in x1 (3.5mm plug)

AUDIO
Speaker : 1W x 2

USB
Upstream : Type B x 1

POWER
Power : 5.5 x 2.1 x 11 mm DC connector
Voltage : AC 100-240V (Universal); 50/60Hz
Consumption : 5.5W
Optimize : 4.9W
Conserve : 4.3W

ERGONOMICS
Tilt : 15 ~ 50 degrees
SPECIAL FEATURES
Eye Care : Blue light filter, Flicker Free

WALL MOUNT
VESA® : 75mm x 75mm

OPERATING CONDITIONS
Temperature (º F / º C) : 32°F to 104°F (0°C to 40°C)
Humidity : 20% to 85% (no condensation)

DIMENSIONS (W X H X D) (MM)
Physical With Stand (mm) : 379.24mm (W) x 247.12mm (H) x 37.15mm (D) (@0 degree)
Physical Without Stand (mm) : 379.24mm (W) x 247.12mm (H) x 37.15mm (D)
Packaging (mm) : 453mm (W) x 389mm (H) x 86mm (D)

WEIGHT
Net With Stand : 1.32kg
Net Without Stand : 1.32kg
Gross : 2.5kg
