Проектор ViewSonic LSC601WU-ST, 3CLD, WUXGA (1920x1200), 3 000 000:1, 6000lm, HDMI, USB, RS232, LAN

ViewSonic LSC601WU-ST

6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector

• 6,000 ANSI Lumens offering bright images in any environment
• Up to a 180" ultra-large screen with a lower cost-per-inch
• 0.44 short throw for seamless viewing experience without shadows
• Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
• Installation flexibility: H/V keystone correction, 360° projection, and warping
• 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
• Centralized LAN control for efficient management

The LSC601WU-ST is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can display an ultra-large screen up to 180” in WUXGA resolution. With a 0.44 short throw ratio, it can project a 100” image from just 0.95 m away, enabling a seamless viewing experience without shadows. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V keystone correction, 360° projection, and warping capabilities, the LSC601WU-ST offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

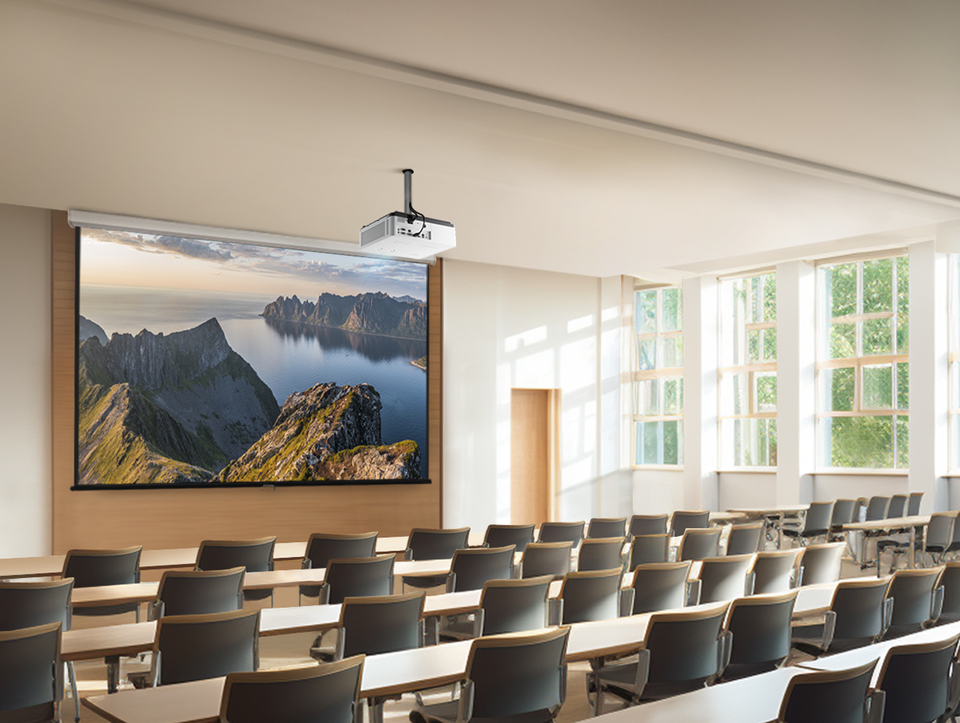

Bright Images for Large Venues

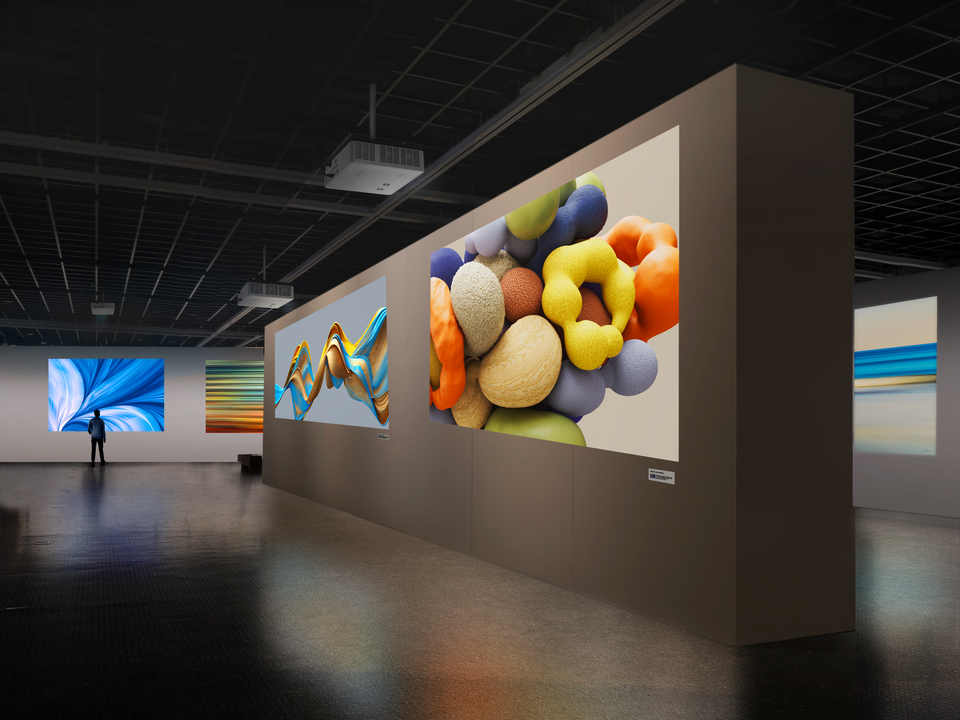

Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

6,000 ANSI Lumens

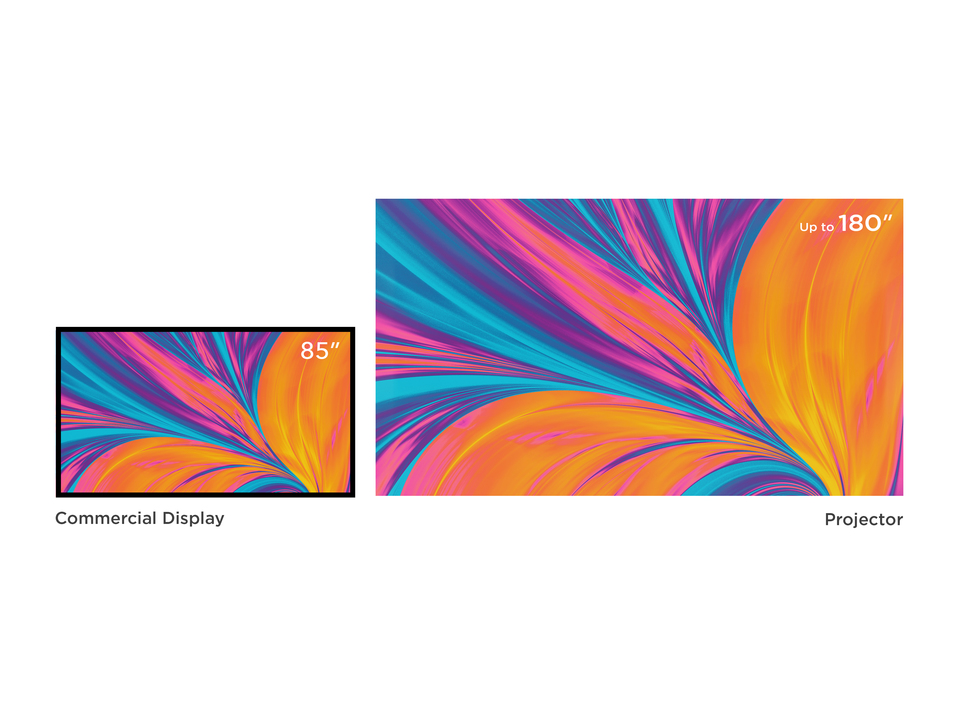

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 180”, offering a lower cost-per-inch compared to other types of commercial displays.​

Up to 180”

No Shadows, No Blinding Lights

The 0.44 short throw offers a 100” visuals from only 0.95m away. When projecting onto a wall, there are no distracting shadows, providing seamless viewing experience.

Short Throw Ratio

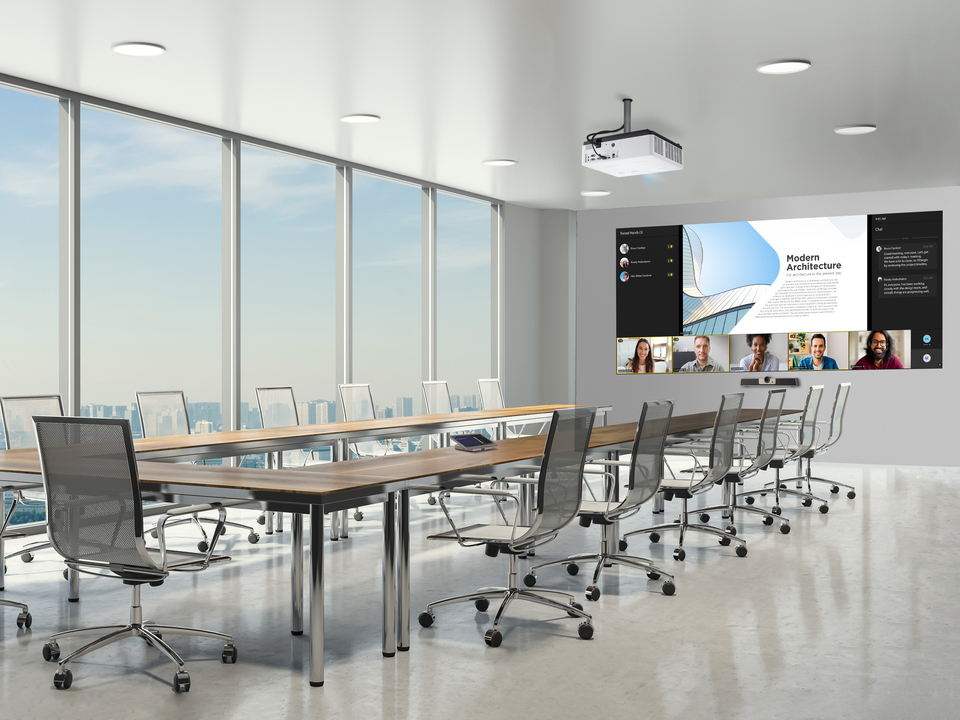

Next-Gen Meeting Experience with 21:9 Aspect Ratio

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

21:9 for MTR

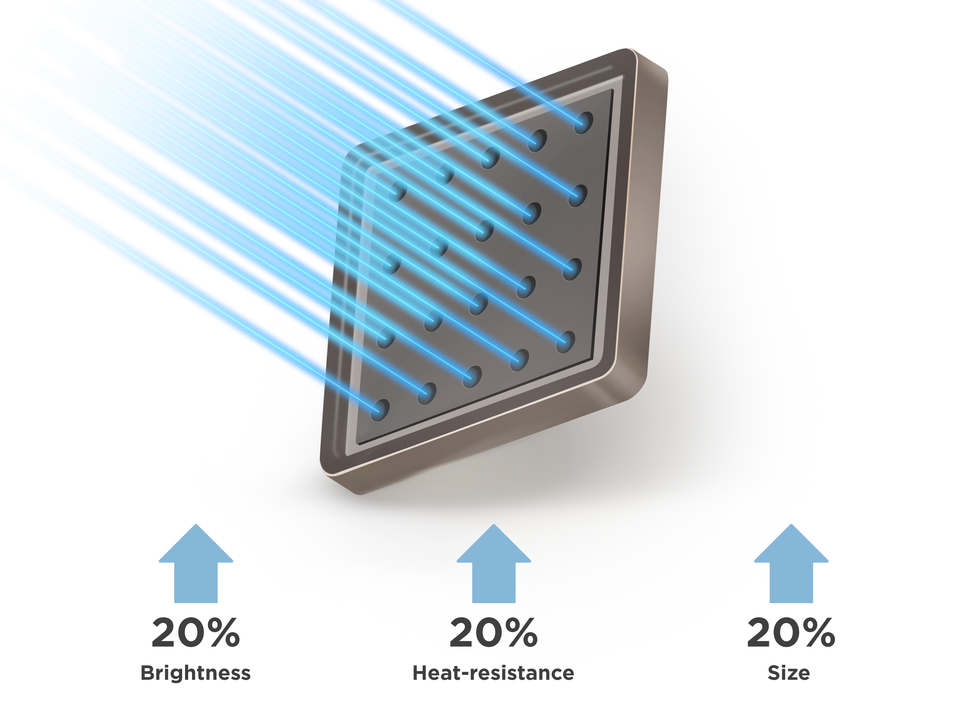

2nd Generation Laser Phosphor Technology

The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

Up to 30,000-hour Lifespan

SPECIFICATIONS:

• Specification

  Projection System: 3LCD (3x0.64" with MLA)
  Native Resolution: 1920x1200
  Brightness: 6000 (ANSI Lumens)
  Brightness (Center Lumens): 6500
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=1.6 f=6.39mm
  Projection Offset: 98%+/-5%
  Throw Ratio: 0.44
  Optical Zoom: Fixed
  Digital Zoom: 1.0x-4.0x
  Image Size: 55"- 180"
  Throw Distance: 0.521-1.71m
  (100"@0.948m)
  Keystone: H:+/-15° , V:+/-15°
  Audible Noise (Normal): 35dB
  Audible Noise (Eco): 25dB
  Input Lag: 60ms
  Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency: 15K-100KHz
  Vertical Scan Rate: 23-85Hz


• Input

  Computer in (share with component): 1
  AV in (3.5mm): 1
  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)
  USB Type A: 1 (5V/2A)
  HDBaseT: 1


• Output

  Monitor out: 1
  Audio-out (3.5mm): 1
  Speaker: 16W
  USB Type A (Power): 1
  (USB2.0 - 5V/2A,
  share with USB A Input)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type B (Services): 1


• Others

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 345W,
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 8.0kg
  Gross Weight: 11.03kg
  Dimensions (WxDxH) with Adjustment Foot: 405x404x164mm
  Packing Dimensions: 510x498x260mm
