Проектор ViewSonic LSC521WU, 3LCD, WUXGA (1920x1200), 3 000 000:1, 5200lm, HDMI, USB, RS232, LAN

ViewSonic LSC521WU

5,200 ANSI Lumens WUXGA Laser Installation Projector

• 5,200 ANSI Lumens offering bright images in any environment
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
• Installation flexibility: V lens shift, 1.6x optical zoom, and H/V keystone correction
• 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
• Centralized LAN control for efficient management

The LSC521WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 3rd generation laser phosphor technology, this projector delivers 5,200 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC521WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

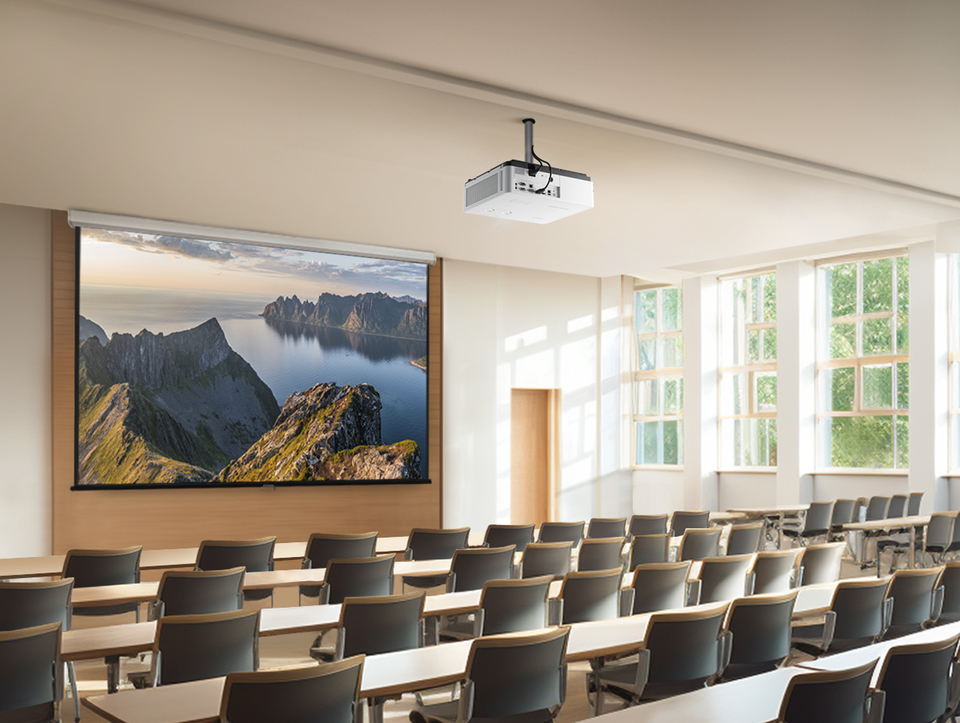

Bright Images for Large Venues

Delivering 5,200 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

5,200 ANSI Lumens

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Up to 300”

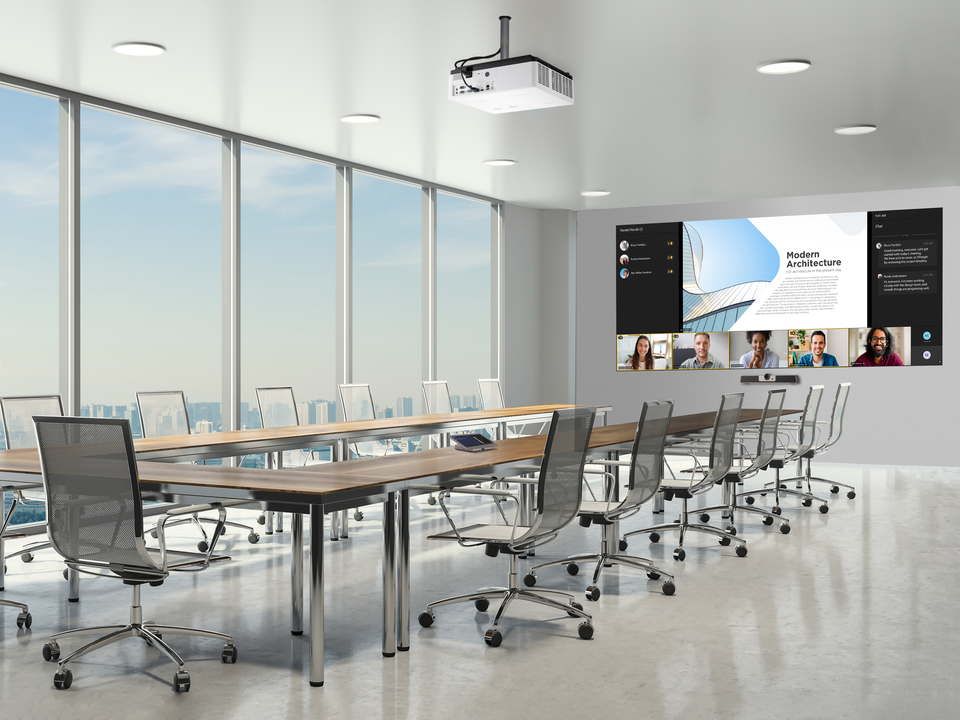

Next-Gen Meeting Experience with 21:9 Aspect Ratio

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

21:9 for MTR

Adaptable to Any Environment

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.

V Lens Shift, Keystone Correction, 1.6x Optical Zoom

Bright, Compact, Durable

The projector incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

3rd Generation Laser Phosphor Technology

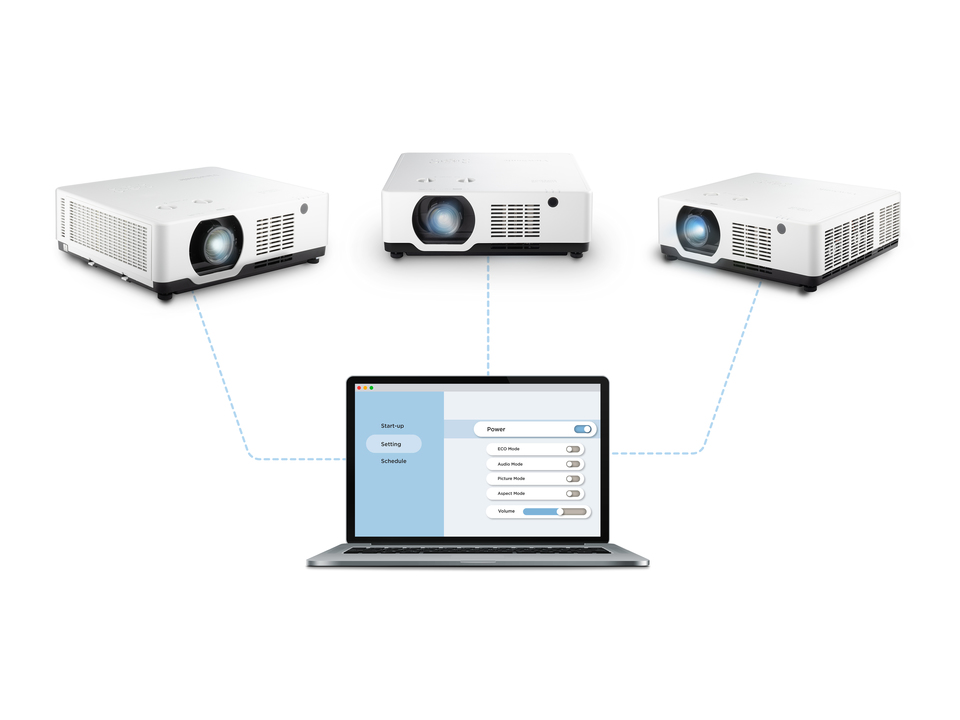

Centralized Control for Management Efficiency

The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

Comprehensive LAN Control

SPECIFICATIONS:

• Specification

  Projection System: 3LCD (3x0.64" with MLA)
  Native Resolution: 1920x1200
  Brightness: 5200 (ANSI Lumens)
  Brightness (Center Lumens): 6000
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=1.5-2.08, f=17.2-27.7mm
  Projection Offset: 0%+/-5%
  Throw Ratio: 1.2-2.01
  Optical Zoom: 1.6X
  Digital Zoom: 1.0x-4.0x
  Image Size: 30"-300"
  Throw Distance: 0.78-12.99m
  (100"@2.58m)
  Keystone: H:+/-30° , V:+/-30°
  Lens Shift V. Range: +60%, 0%
  Audible Noise (Normal): 35dB
  Audible Noise (Eco): 26dB
  Input Lag: 60ms
  Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@30Hz)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@30Hz
  Horizontal Frequency: 15K-100KHz
  Vertical Scan Rate: 23-85Hz


• Input

  Computer in (share with component): 1
  Composite: 1
  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm): 1
  Audio-in (RCA R/L): 1
  USB Type A: 1 (5V/1.5A)
  HDBaseT: 1


• Output

  Monitor out: 1
  Audio-out (3.5mm): 1
  Speaker: 16W
  USB Type A (Power): 1
  (USB2.0 - 5V/1.5A,
  share with USB A Input)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type B (Services): 1


• Others

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 240W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 5.2kg
  Gross Weight: 7.23kg
  Dimensions (WxDxH) with Adjustment Foot: 390x294x128mm
  Packing Dimensions: 492x443x239mm
