Проектор ViewSonic LS901HD, DLP, Full HD (1920x1080), 3 000 000:1, 6000lm, HDMI, USB, RS232, LAN

ViewSonic LS901HD

6,000 ANSI Lumens 1080p Laser Installation Projector​

• 6,000 ANSI Lumens ensure vibrant images in large venues​
• High native contrast ratio provided by a 0.65” DMD chip and DLP technology
• 3rd generation laser phosphor technology with up to a 30,000-hour lifespan​
• Installation flexibility: 1.7x zoom, V lens shift, H/V keystone correction, and 360° projection​
• Centralized LAN control for efficient management​
• HDMI 2.0b enables 4K HDR/HLG content playback

Introducing the LS901HD from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 6,000 ANSI Lumens brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. With a 1.7x optical zoom, it allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. The projector also features HDMI 2.0b, allowing you to enjoy original 4K quality content with HDR and HLG support. Employing advanced 3rd generation laser phosphor technology, the LS901HD boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

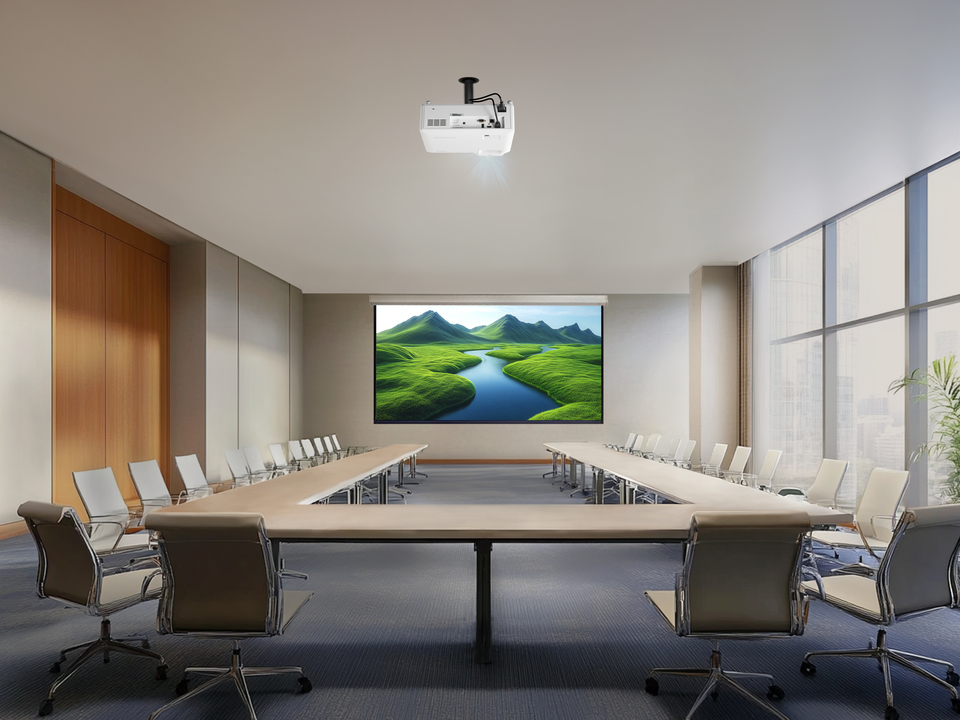

Brilliant Visuals for Large Venues

With an impressive 6,000 ANSI Lumens, the LS901HD ensures clear visuals even in brightly lit environments. Its 1080p resolution provides stunningly detailed images, enhancing the impact of presentations, training sessions, and events. This makes it the preferred choice for large venues such as auditoriums, receptions, training rooms, and indoor golf clubs.

6,000 ANSI Lumens, 1080p FHD

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LS901HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

High Native Contrast Ratio

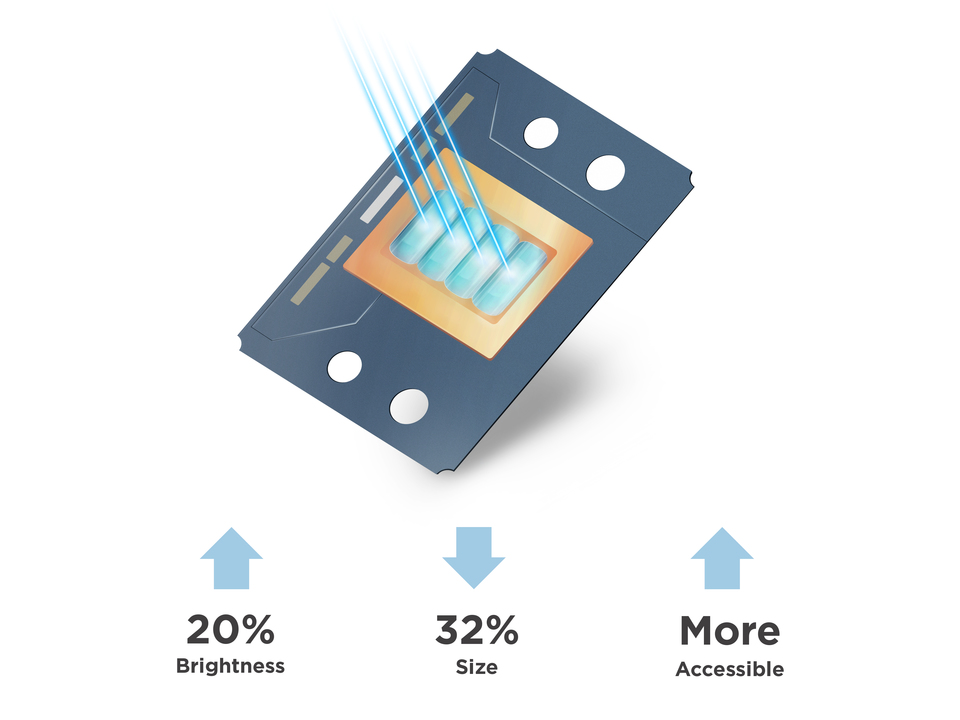

Bright, Compact, Durable

The LS901HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Up to 300”

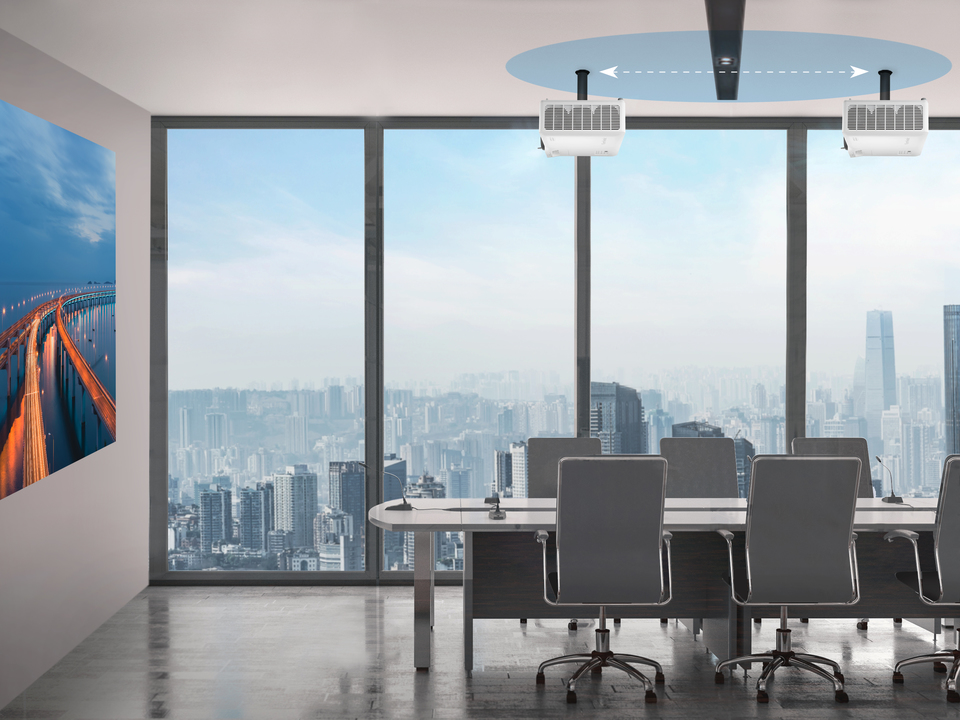

Enhanced Installation Flexibility

Equipped with a 1.7x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​

1.7x Optical Zoom

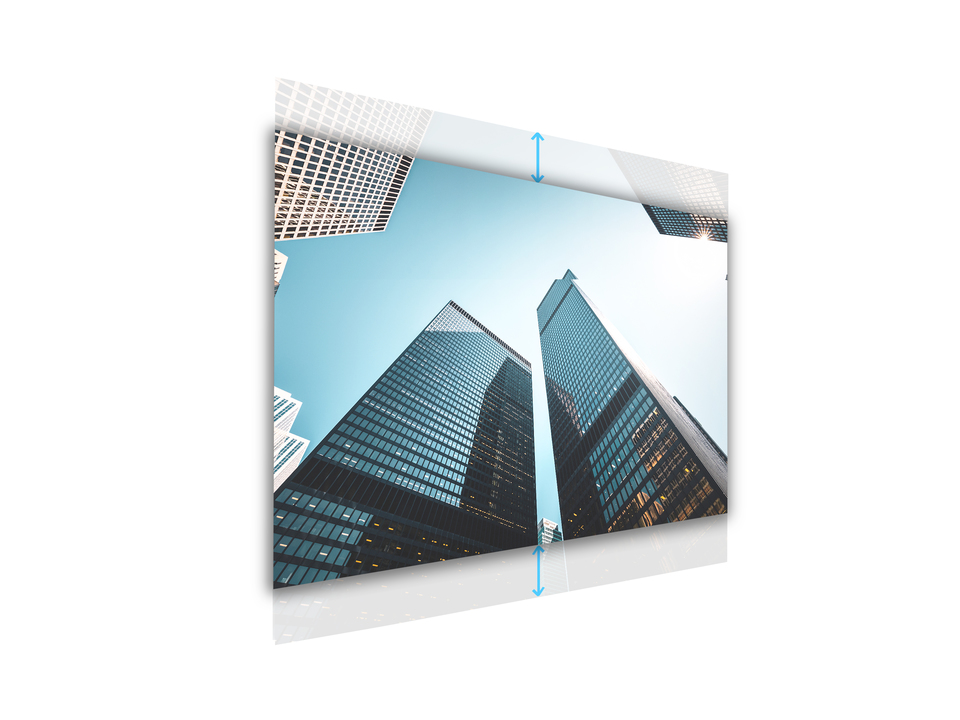

Convenient Placement Setup

The tool-free lens shift control knobs allow you to adjust the projection up and down without moving the projector. It provides flexible installation options with an adjustable range (V: - 21%) and minimal placement restrictions.

V Lens Shift

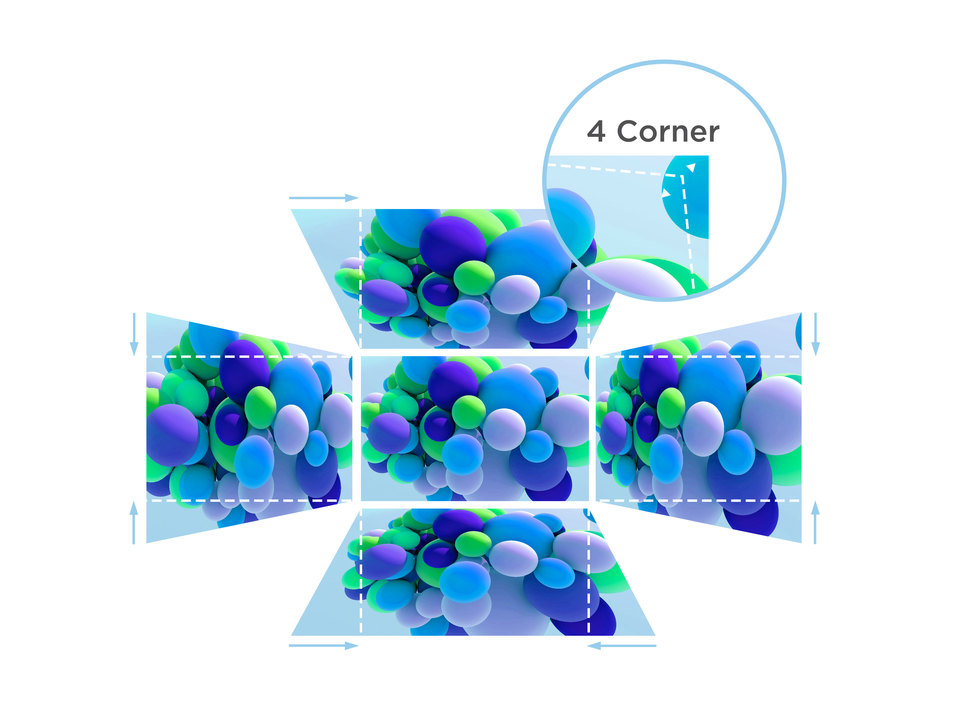

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone Correction, 4-Corner Adjustment

SPECIFICATIONS:

• Specification

  Projection System: 0.65" 1080p
  Native Resolution: 1920x1080
  Brightness: 6000 (ANSI Lumens)
  Brightness (Center Lumens): 6600
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.3-3.0, f=17.63-27.9mm
  Projection Offset: 154% +/- 10%
  Throw Ratio: 1.2-2.04
  Optical Zoom: 1.7X
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 0.80-13.55m
  (100”@2.66m)
  Keystone: H:+/-30° , V:+/-30°
  Lens Shift V. Range: 0%, -21%
  Audible Noise (Normal): 31dB
  Audible Noise (Eco): 25dB
  Input Lag: 16ms
  Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency: 15K-135KHz
  Vertical Scan Rate: 23-120Hz


• Input

  HDMI: 2
  (HDMI 2.0/ HDCP 2.2
  HDMI 1.4/ HDCP 1.4)


• Output

  Audio-out (3.5mm): 1
  Speaker: 15W x2
  USB Type A (Power): 1 (5V/1.5A)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 245W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 4.77kg
  Gross Weight: 6.7kg
  Dimensions (WxDxH) with Adjustment Foot: 337x280x132mm
