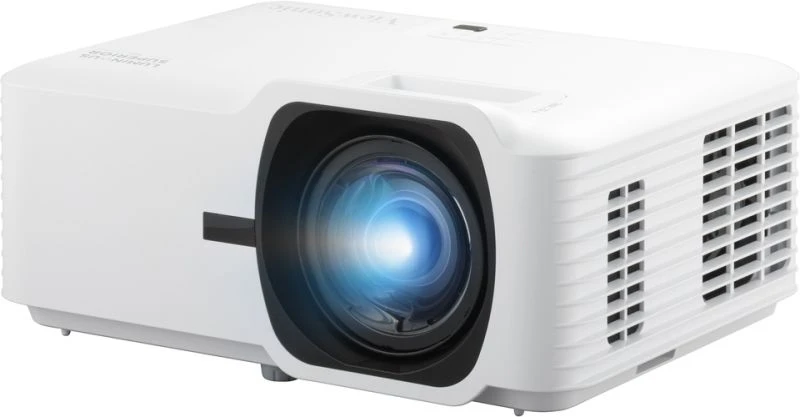

Проектор ViewSonic LS711HD, Laser, FHD (1920x1080), 3 000 000:1, 4200lm, HDMI, USB, RS232

LS711HD

4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector

• 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
• 4,200 ANSI Lumens offering bright images in any environment
• High native contrast ratio achieved through Texas Instruments 0.65" DMD chip
• 0.49 short throw for seamless edge-blending without shadows
• Compact size and light weight reducing cost of transportation and installation
• Installation flexibility: H/V keystone correction, 360° projection, and portrait mode

Bright, Compact, Durable

The LS711HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

3rd Generation Laser Phosphor Technology

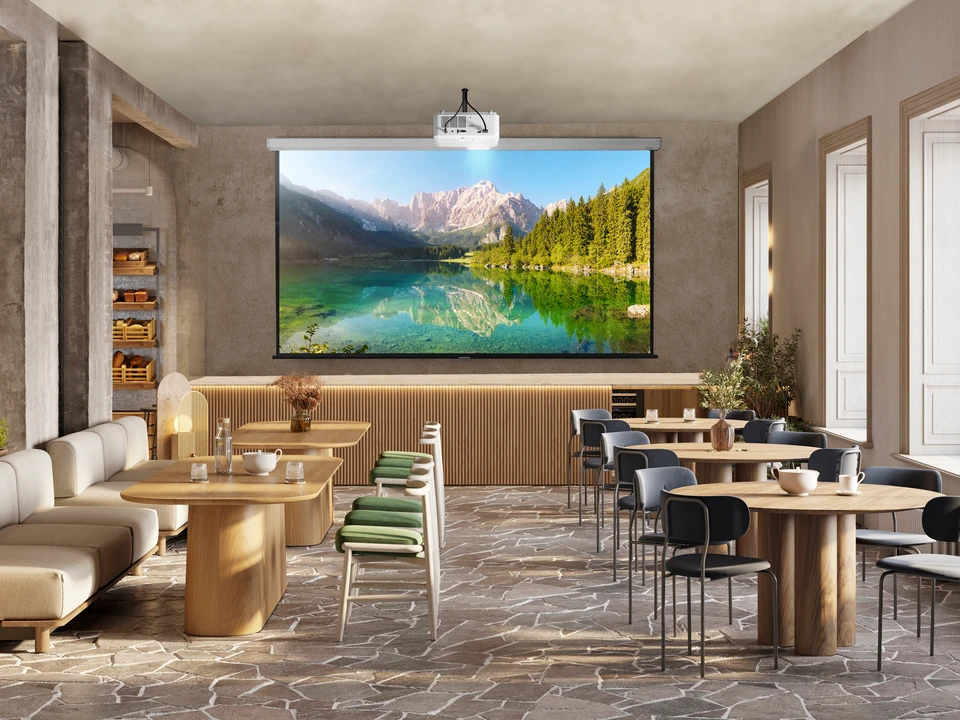

Bright Images for Large Venues

Delivering 4,200 ANSI Lumens, the LS711HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for gallery, restaurant, gym, and other expansive spaces.

4,200 ANSI Lumens

Unmatched Contrasts, Enhanced Visibility

The projector's high native contrast ratio, achieved through its Texas Instruments 0.65" DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.

High Native Contrast Ratio

No Shadows, No Blinding Lights

The 0.49 short throw offers a 100” visuals from only 1.1 m away. When projecting onto a wall, there are no distracting shadows, providing seamless edge-blending for immersive viewing experience.

0.49 Short Throw Ratio

Ultra-large Screen with Lower Cost-per-inch​

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Up to 300”

Easy and Cost-effective Installation

The LS711HD is 35% lighter in weight and 35% smaller in size compared to its predecessor and even most competing projectors in the market, greatly reducing the cost of transportation and increasing the ease of installation.​

Lighter Weight, Compact Size

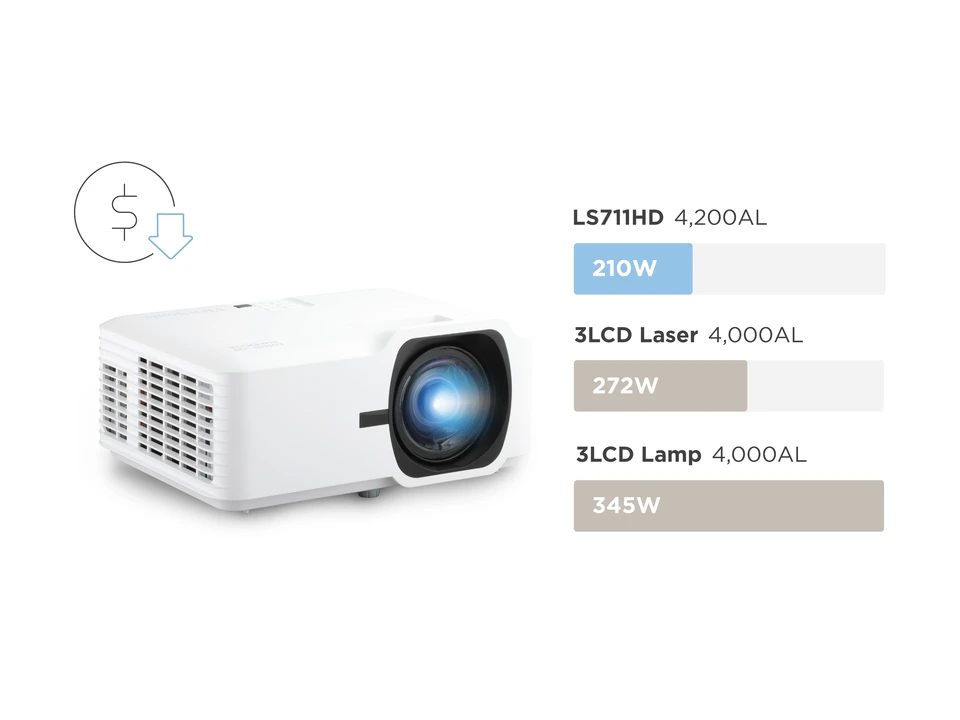

Save on Costs and Energy

With its advanced lamp-free light source, the LS711HD offers a highly energy-efficient and cost-saving display solution by consuming up to 40% less power than competing projectors.

Less Power Consumption

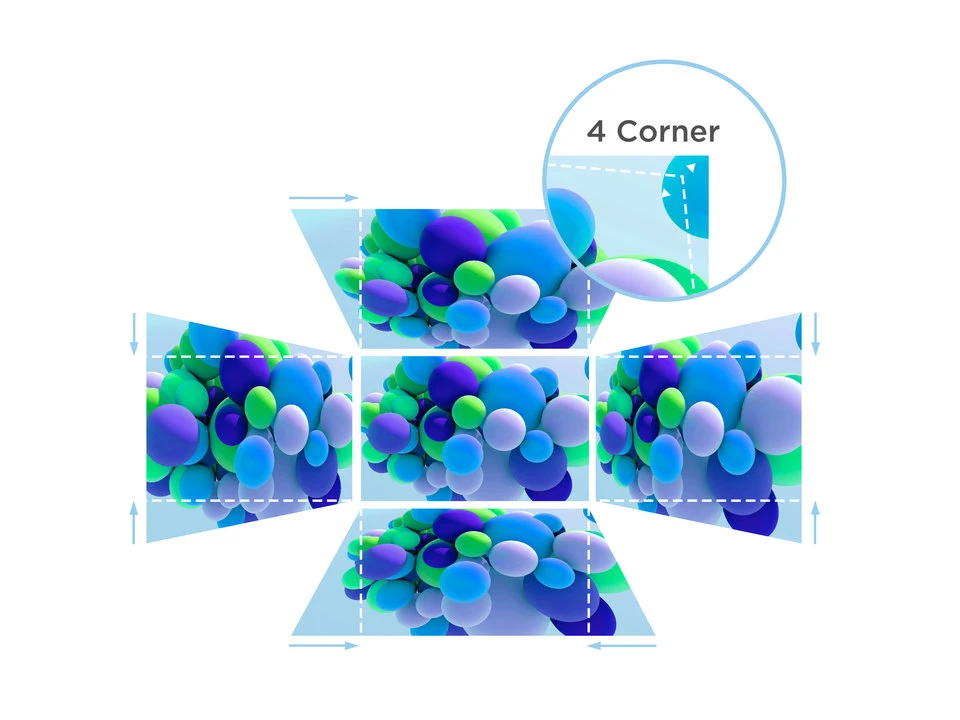

Get ​​Perfectly-shaped Images Effortlessly

Horizontal and vertical keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone Correction, 4 Corner Adjustment

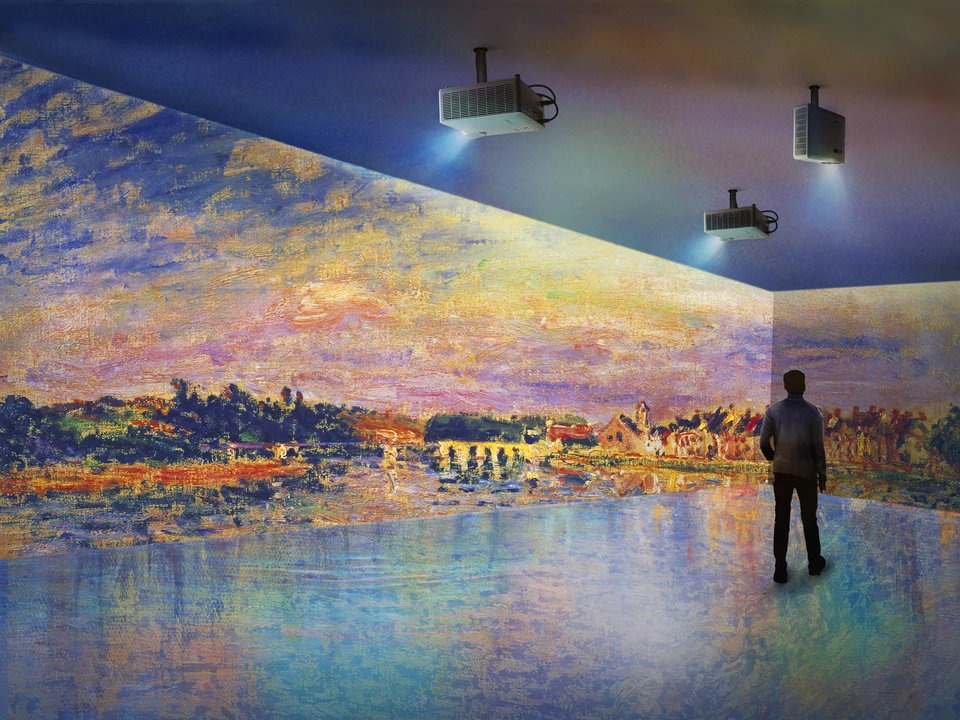

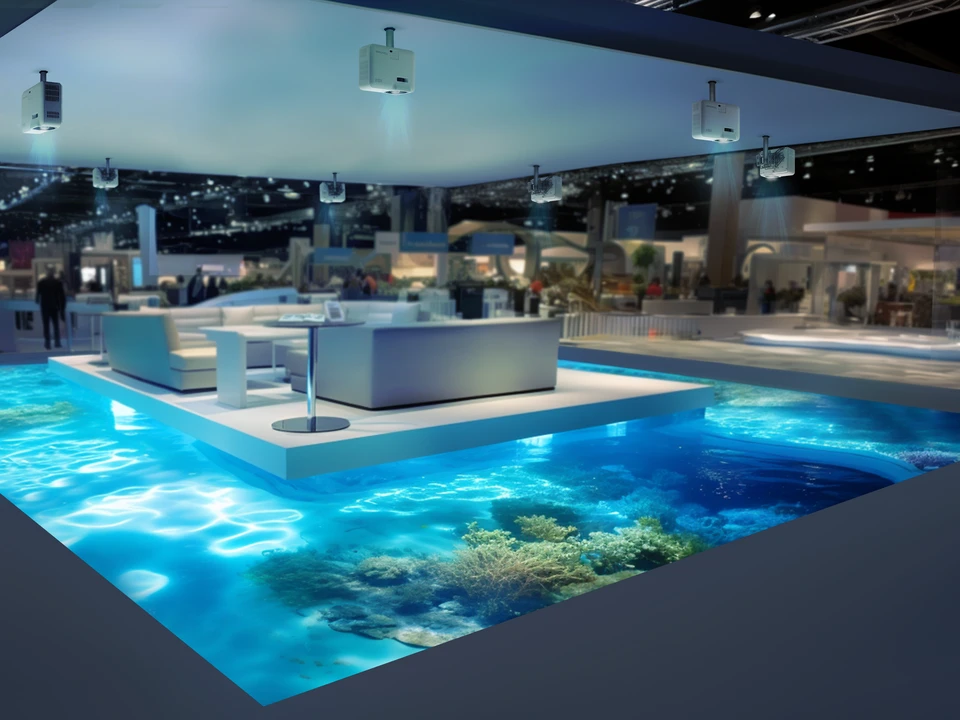

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

360° Projection, 90° Portrait Mode

Present the Best with Vibrant Colors​

Impress any audience with ViewSonic’s exclusive color technology, elevating your presentation with a vivid color experience.

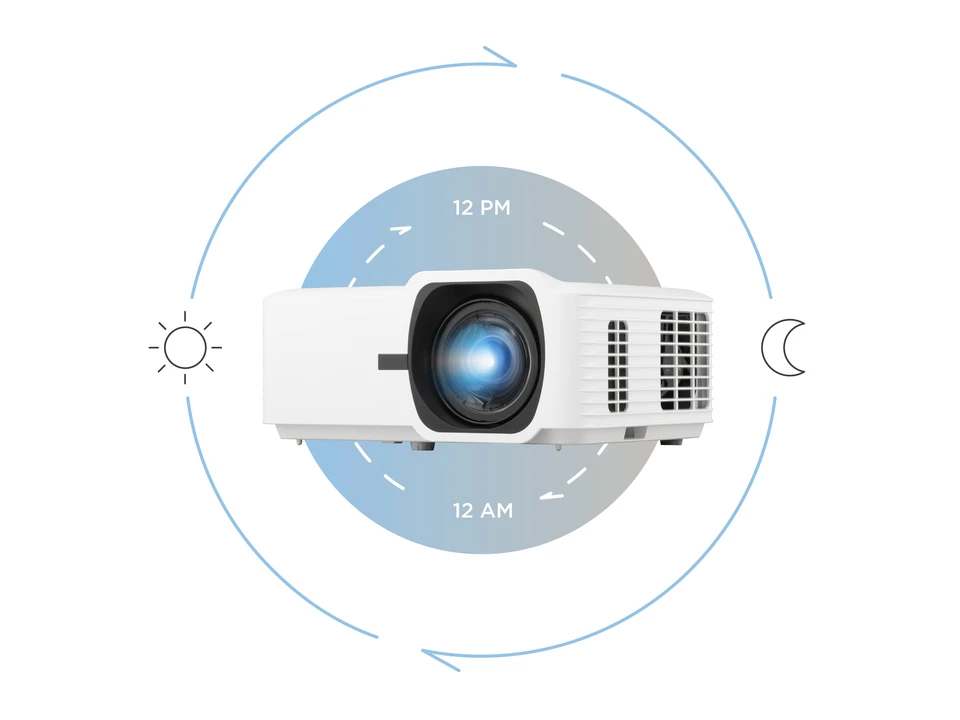

Non-stop 24/7 Operation​​

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.

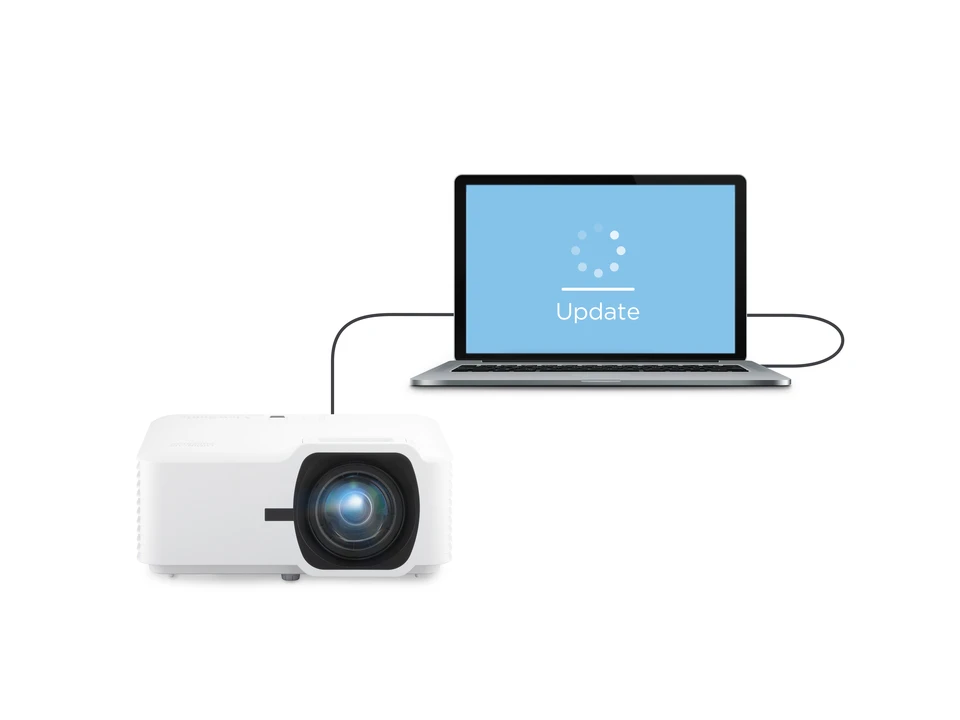

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your own laptop.

Learn more: https://youtu.be/irlhJLpDHas

*The latest projector software update can be found in the download section at the bottom of the page when available.

SPECIFICATIONS

• Specification

  Projection System: 0.65" 1080p
  Native Resolution: 1920x1080
  Brightness: 4200 (ANSI Lumens)
  Brightness (Center Lumens): 4800
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.8, f=7.51mm
  Projection Offset: 132%+/-10%
  Throw Ratio: 0.496
  Optical Zoom: Fixed
  Digital Zoom: 0.8x-2.0x
  Image Size: 35"-300"
  Throw Distance: 0.38-3.29m
  (100"@1.10m)
  Keystone: H:+/-15° , V:+/-15°
  Audible Noise (Normal): 30dB
  Audible Noise (Eco): 24dB
  Input Lag: 49.5ms
  Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
  *RB-Reduced Blanking
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 24-120Hz


• Input

  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)


• Output

  Audio-out (3.5mm): 1
  Speaker: 15W
  USB Type A (Power): 1 (5V/1.5A)


• Control

  RS232 (DB 9-pin male): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: Power adaptor:
  Input: 100~240V
  Output: 19.5VDC / 11.79A
  Power Consumption: Normal: 210W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 3.15kg
  Gross Weight: 4.88kg
  Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
  Packing Dimensions: 400x280x155mm
