Проектор ViewSonic LS630W, DLP, WXGA (1280x800), 3 000 000:1, 4500 lm, HDMI, USB, RS232, LAN

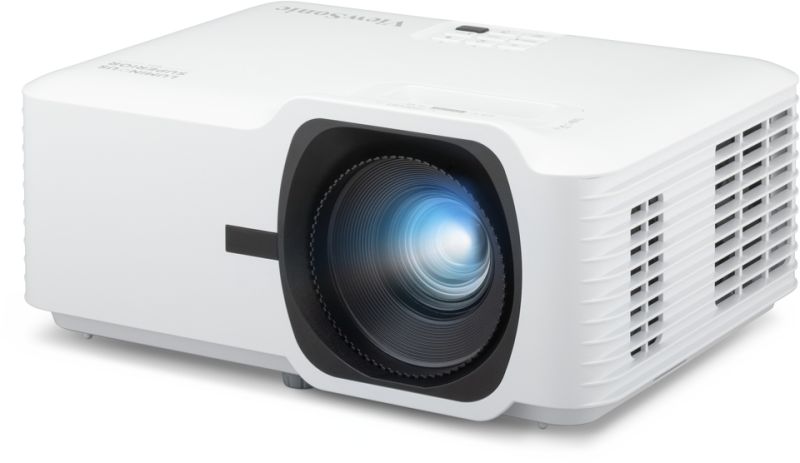

ViewSonic LS630W

4,500 ANSI Lumens WXGA Laser Business/Education Projector

• 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
• 4,500 ANSI Lumens with WXGA resolution offering clear images in any environment
• High native contrast ratio powered by a 0.65” DMD chip and DLP technology
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
• Centralized LAN control for efficient management

The LS630W is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in WXGA resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, this projector provides 4,500 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. Equipped with a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS630W supports flexible installation options. Comprehensive LAN control simplifies centralized management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

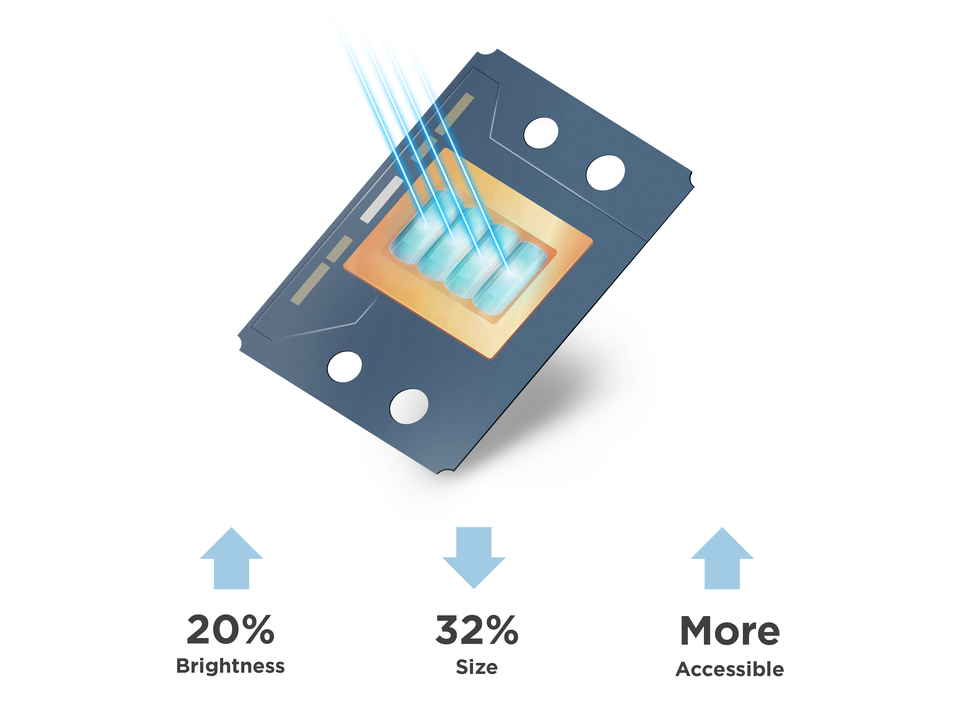

Bright, Compact, Durable

The LS630W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

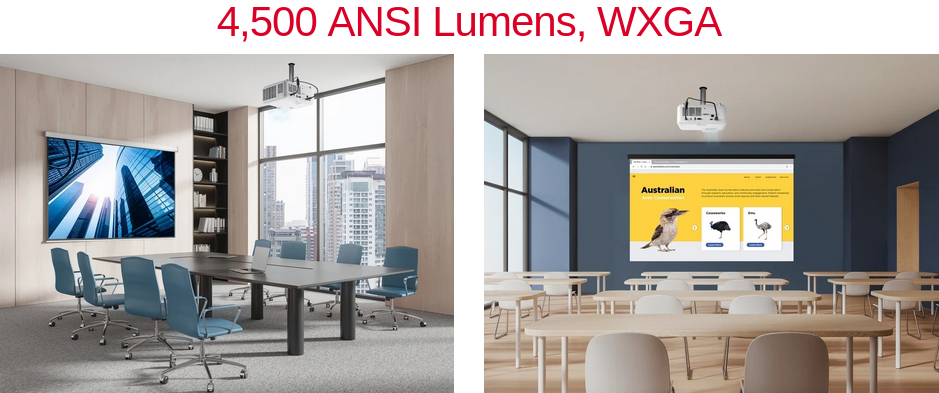

Clear Visuals for Business/Education Environments

Thanks to the latest laser technology, the LS630W achieves high brightness of 4,500 ANSI Lumens. With WXGA resolution​, the projector ensures bright and detailed images in dim or lit environments.

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LS630W, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

0.65” DMD Chip, High Native Contrast Ratio

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Up to 300”

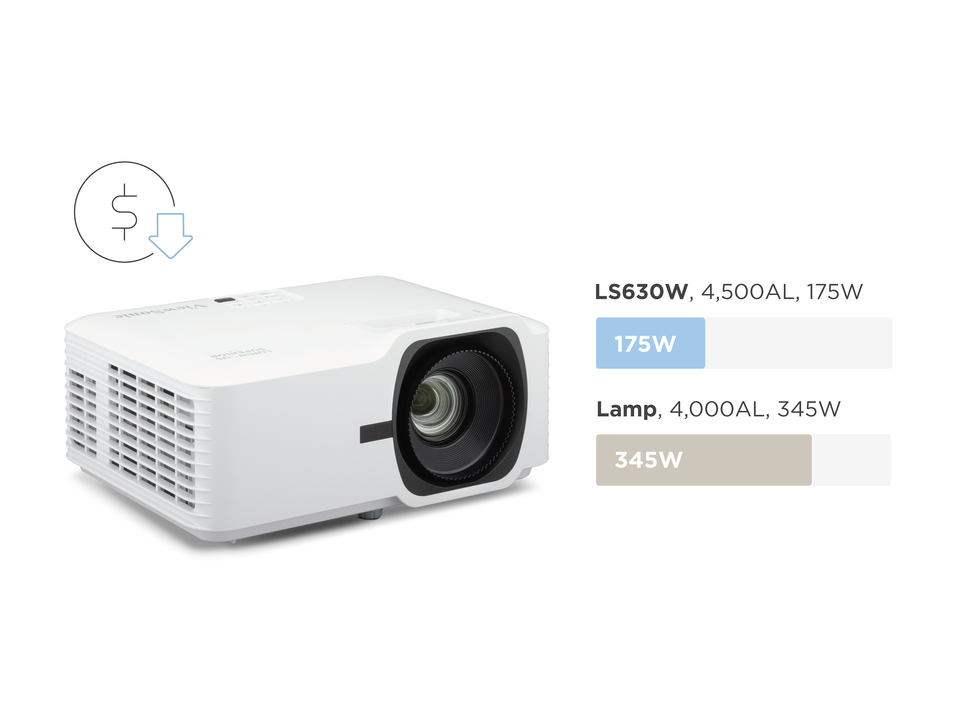

Save on Costs and Energy

With its advanced lamp-free light source, the LS630W offers a highly energy-efficient and cost-saving display solution by consuming up to 49% less power than competing projectors.

Less Power Consumption

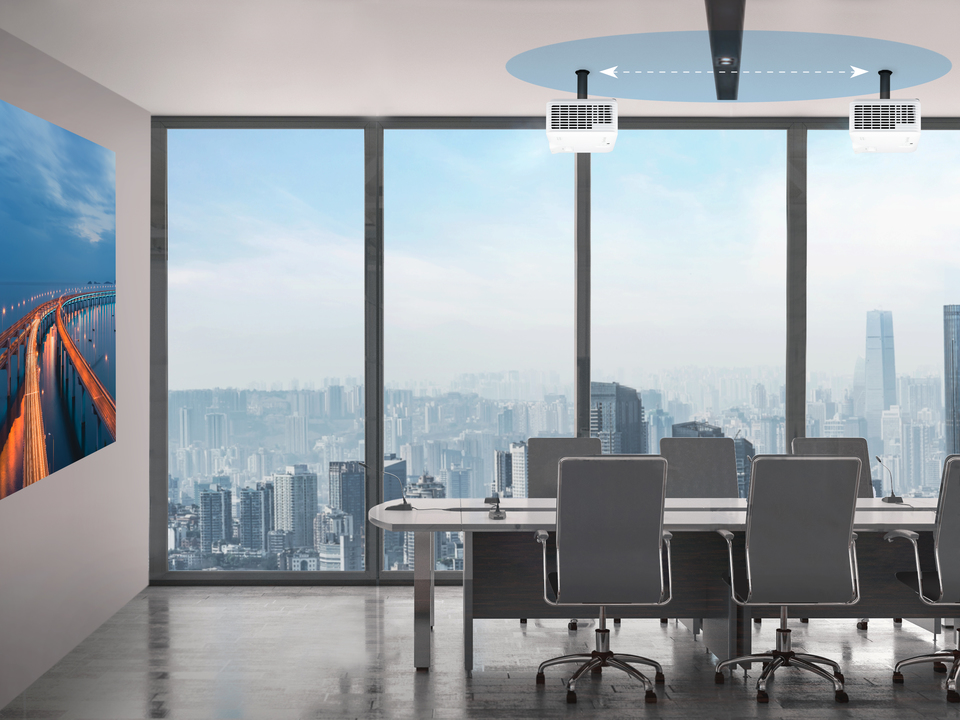

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​

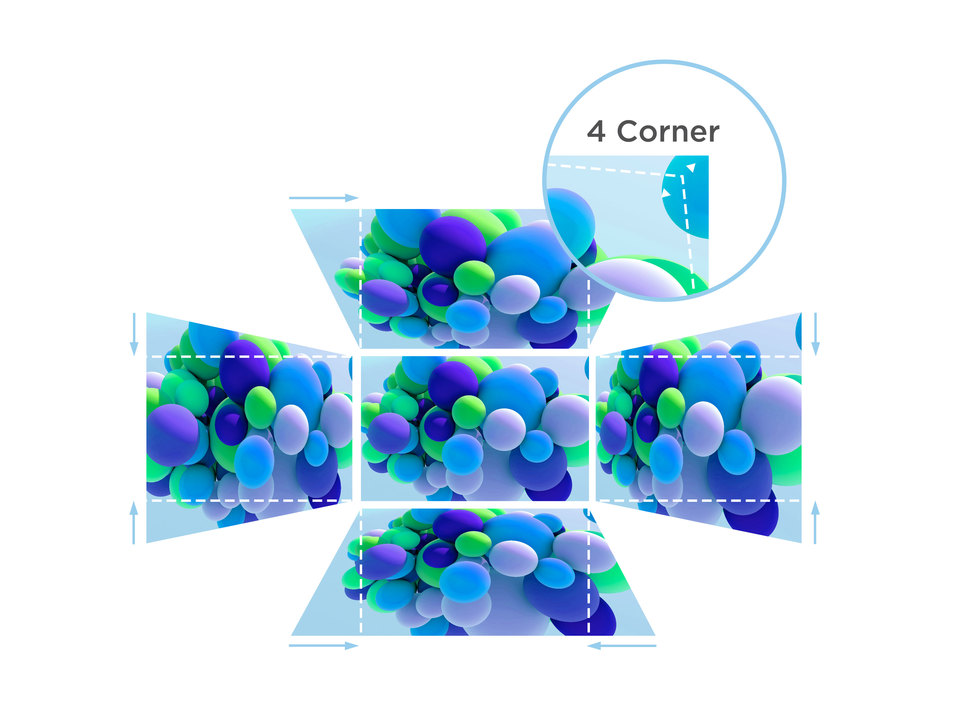

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

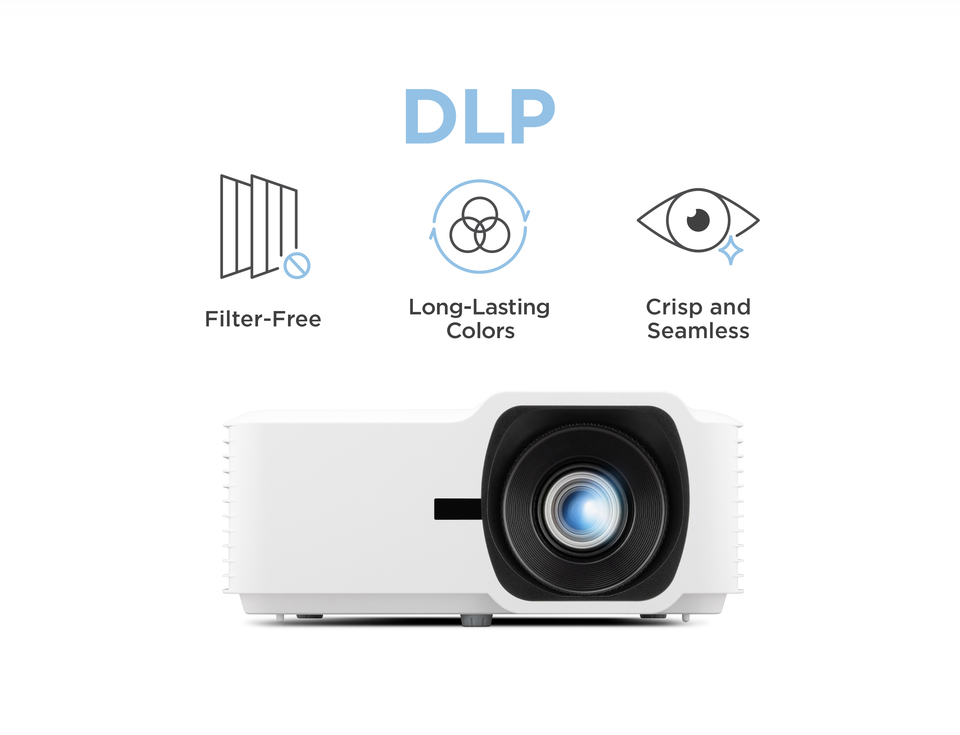

Reliable Long-Term Performance with DLP Projection Technology​

With DLP technology, the LS630W maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Upgrade Your Projector with Wireless Content Casting

Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.

SPECIFICATIONS:

• Specification

  Projection System: 0.65" WXGA
  Native Resolution: 1280x800
  Brightness: 4500 (ANSI Lumens)
  Brightness (Center Lumens): 5400
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.43-2.78, f=16.90-21.61mm
  Projection Offset: 124%+/-10%
  Throw Ratio: 1.18-1.54
  Optical Zoom: 1.3X
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 0.77-9.98m
  (100"@2.56m)
  Keystone: H:+/-30° , V:+/-30°
  Audible Noise (Normal): 32dB
  Audible Noise (Eco): 27dB
  Input Lag: 49.6ms
  Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
  *RB-Reduced Blanking
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 24-120Hz


• Input

  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)


• Output

  Audio-out (3.5mm): 1
  Speaker: 15W
  USB Type A (Power): 1 (5V/1.5A)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: Power adaptor:
  Input: 100~240V
  Output: 19.5VDC / 9.23A
  Power Consumption: Normal: 175W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 3.10kg
  Gross Weight: 4.60kg
  Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
  Packing Dimensions: 400x280x155mm
