Проектор ViewSonic LS630HD, DLP, Full HD (1920x1080), 3 000 000:1, 4000 lm, HDMI, USB, RS232, LAN

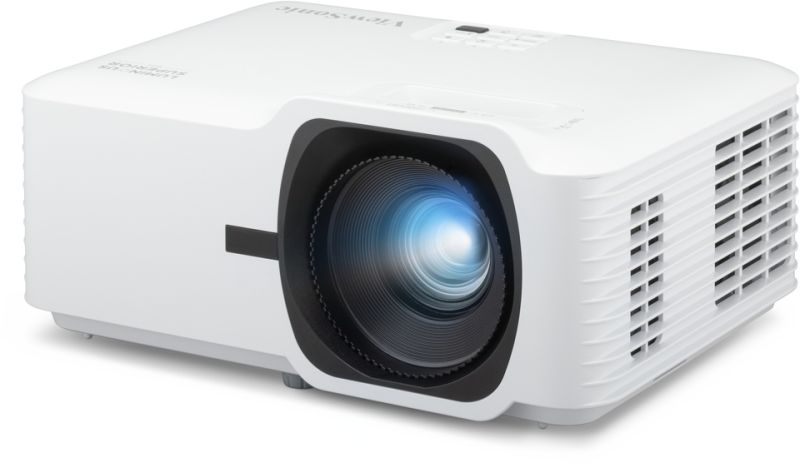

ViewSonic LS630HD

4,000 ANSI Lumens 1080p Laser Business/Education Projector

• 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
• 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
• High native contrast ratio powered by a 0.65” DMD chip and DLP technology
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
• Centralized LAN control for efficient management

The LS630HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS630HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

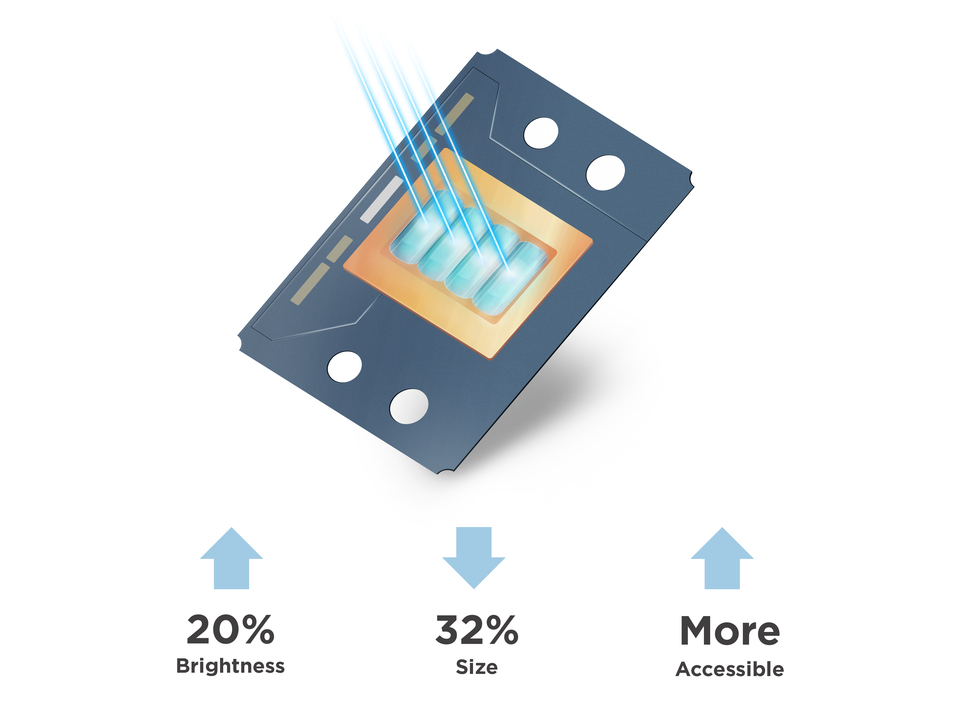

Bright, Compact, Durable

The LS630HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

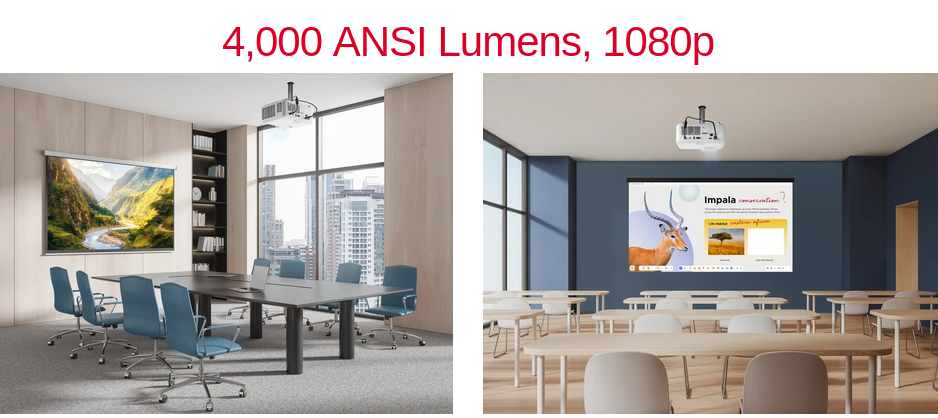

Clear Visuals for Business/Education Environments

Thanks to the latest laser technology, the LS630HD achieves high brightness of 4,000 ANSI Lumens. With 1080p resolution​, the projector ensures bright and detailed images in dim or lit environments.

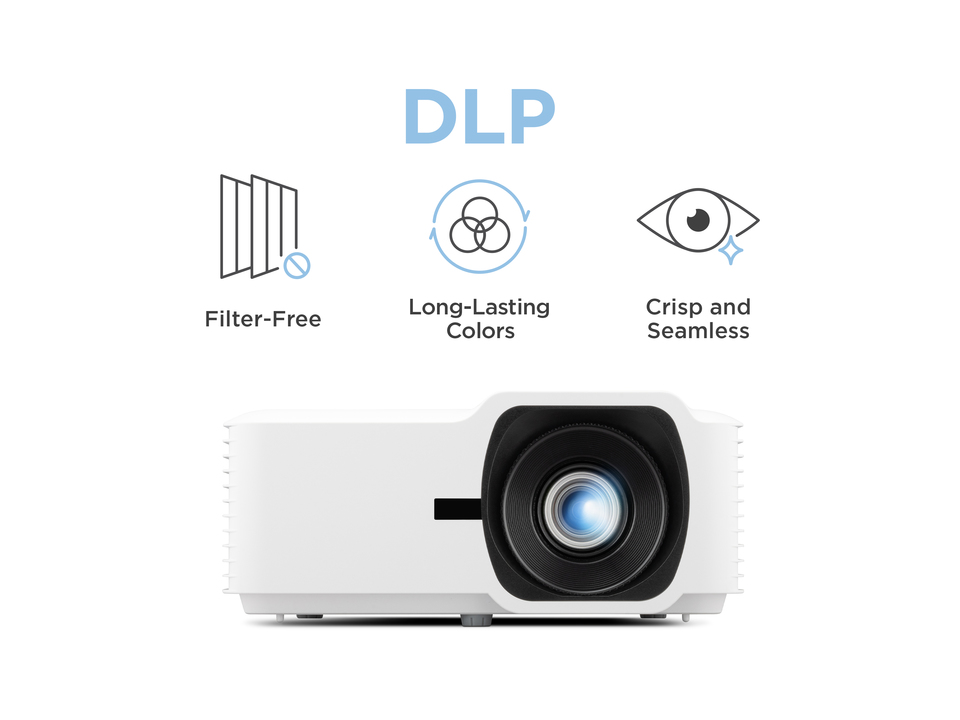

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LS630HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

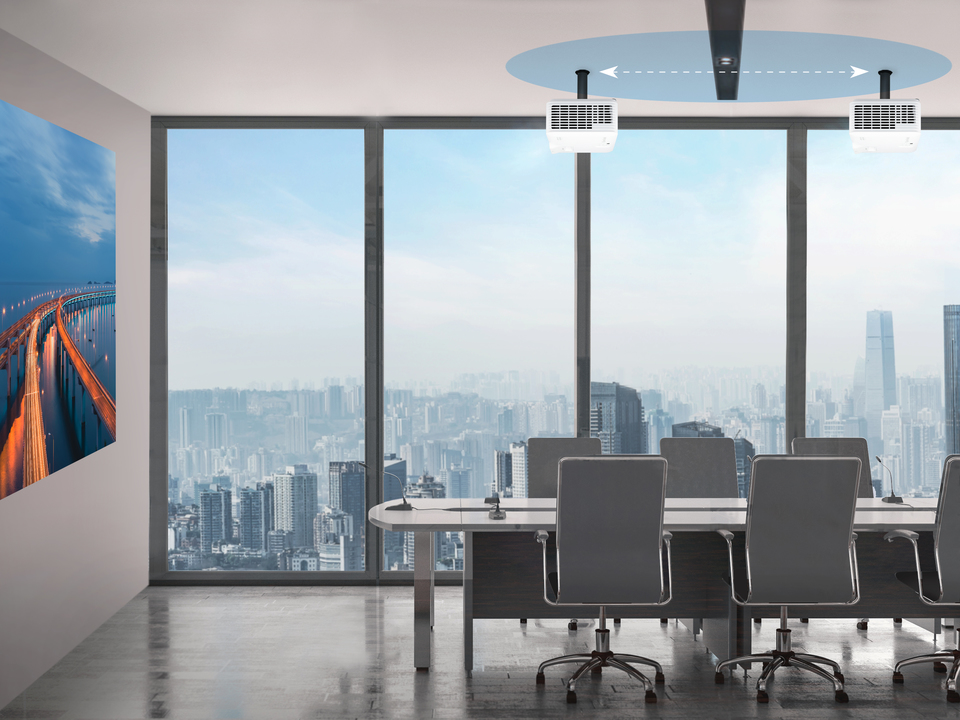

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​

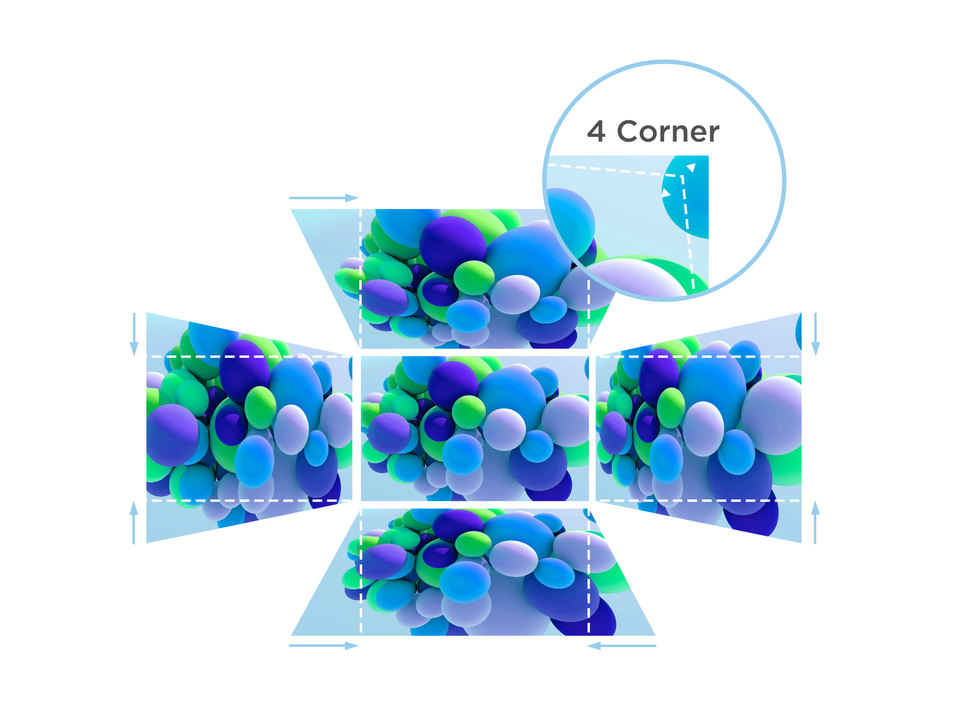

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

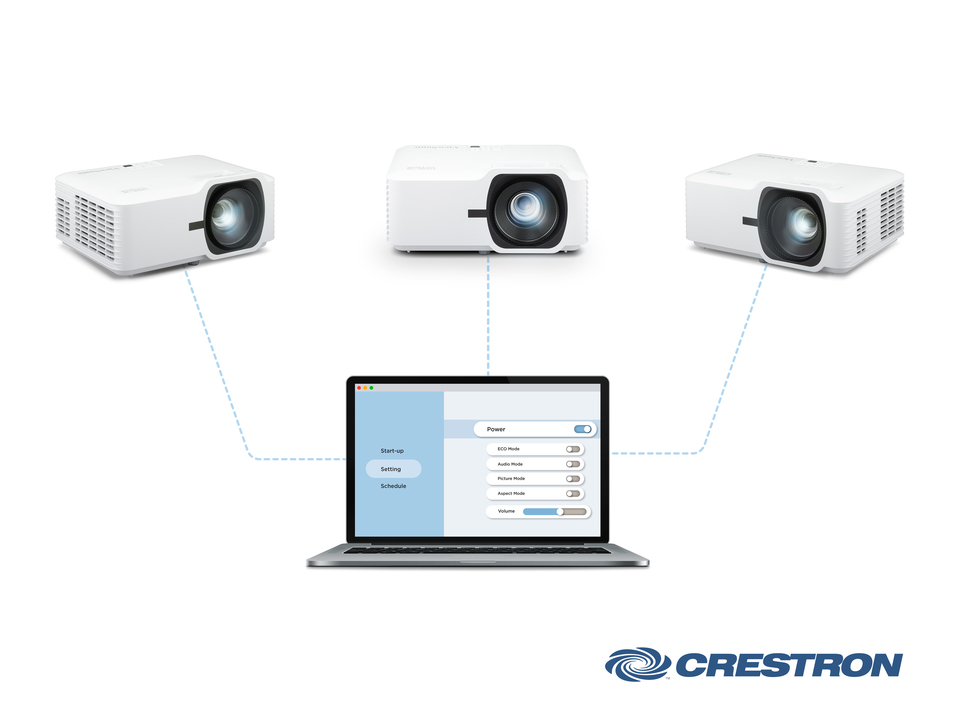

Centralized Control for Management Efficiency

The LS630HD is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

Versatile Creative Application​s​

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Versatile Creative Application​s​

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

SPECIFICATIONS:

• Specification

  Projection System: 0.65" 1080P
  Native Resolution: 1920x1080
  Brightness: 4000 (ANSI Lumens)
  Brightness (Center Lumens): 4400
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.43-2.78, f=16.90-21.61mm
  Projection Offset: 132%+/-10%
  Throw Ratio: 1.13-1.47
  Optical Zoom: 1.3X
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 0.75-9.76m
  (100"@2.50m)
  Keystone: H:+/-30° , V:+/-30°
  Audible Noise (Normal): 32dB
  Audible Noise (Eco): 27dB
  Input Lag: 16ms
  Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
  *RB-Reduced Blanking
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 24-120Hz


• Input

  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)


• Output

  Audio-out (3.5mm): 1
  Speaker: 15W
  USB Type A (Power): 1 (5V/1.5A)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: Power adaptor:
  Input: 100~240V
  Output: 19.5VDC / 9.23A
  Power Consumption: Normal: 175W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 3.10kg
  Gross Weight: 4.60kg
