Интерактивен дисплей ViewSonic IFP92UW, 92" (233.68 cm) UW5K VA сензорен дисплей, DisplayPort, HDMI, VGA, USB, USB-C, RS232, SPDIF, LAN

ViewSonic IFP92UW

ViewBoard® 92" 5K Interactive Display

• Ultrawide 92" screen enhances multitasking and collaboration.
• 5K resolution provides crystal-clear visuals and precise details.
• 21:9 aspect ratio optimized for Microsoft Teams Rooms Front Row mode.
• Comprehensive 8-mic array and 2.1 channel 60W speaker system for superior audio.
• Dual USB-C ports deliver streamlined connectivity and boost productivity.

The ViewBoard® IFP92UW delivers an expansive interactive experience with its 21:9 aspect ratio, optimized for Microsoft Teams Rooms and Front Row mode, and stunning 5K resolution. This ultrawide 92” display facilitates multitasking with split-screen functionality, enhancing collaboration and productivity in team huddles, meetings, and brainstorming sessions. It boasts highly responsive 50-point touch capabilities that capture every input naturally and intuitively, offering pen-on-paper precision, complemented by seamless wireless screen casting through vCast. Additionally, an 8-microphone array and 60W soundbar ensure optimal audio clarity for both in-room and remote participants.

More Space for Enhanced Collaboration

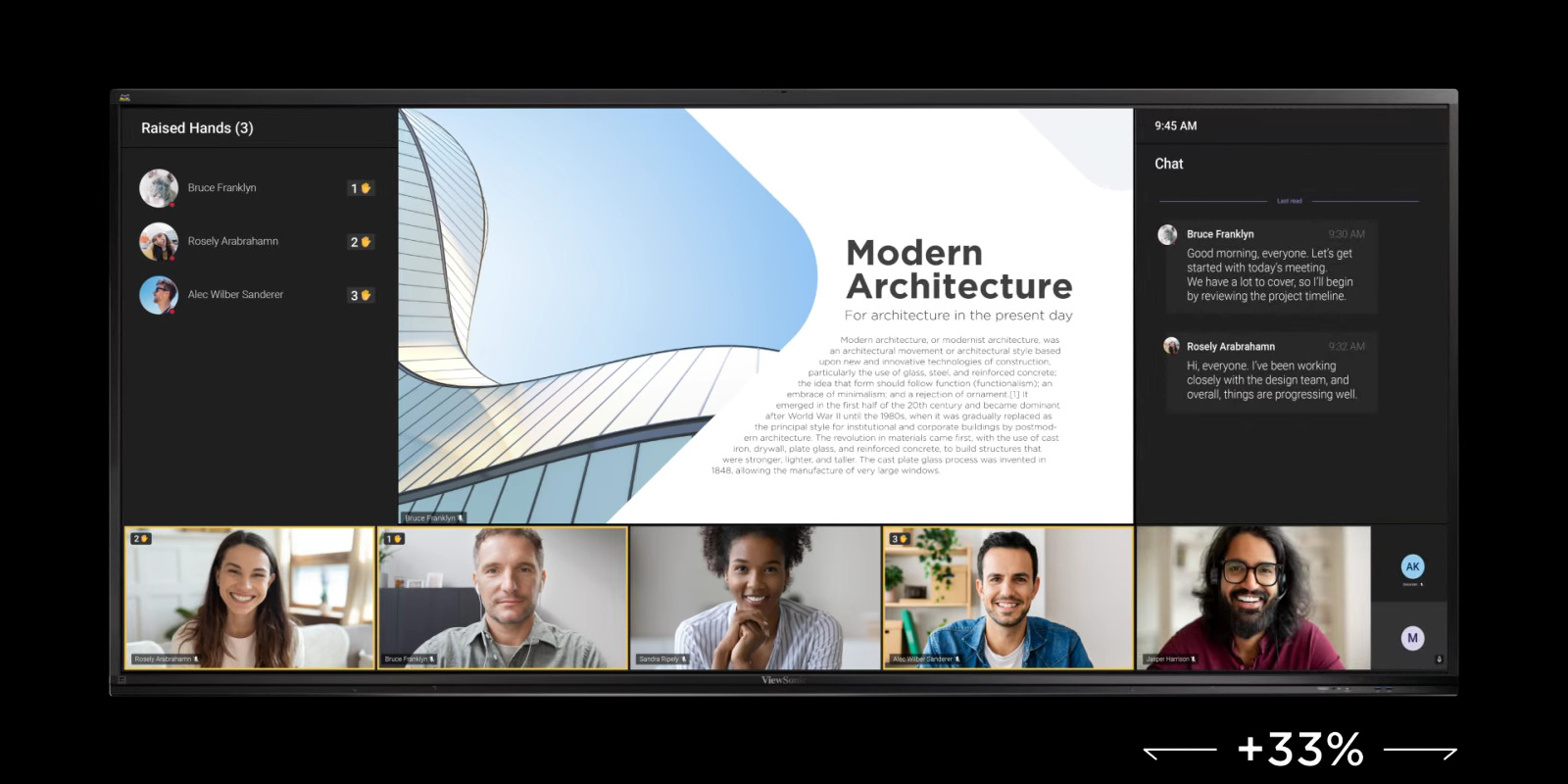

Offering 33% more screen space than a conventional 16:9 display of the same size, the 21:9 aspect ratio of the ViewBoard IFP92UW enhances multitasking and collaboration by enabling users to view more tools, documents, and information simultaneously during meetings.

Hybrid Meetings

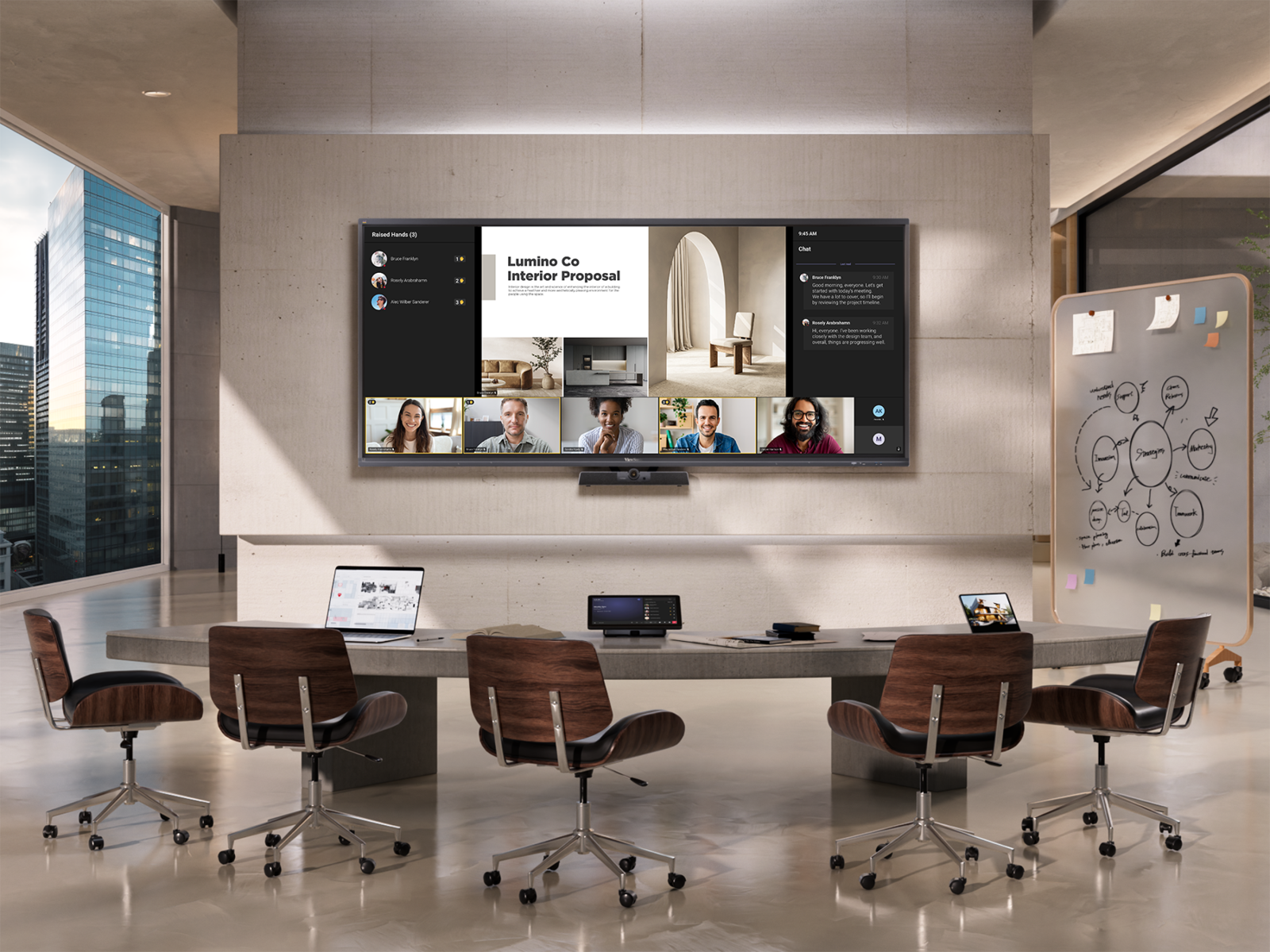

Enhance inclusivity in hybrid meetings with an ultrawide display optimized for Microsoft Teams Rooms Front Row mode​, simultaneously showcasing remote attendees, content, and chat—all on one screen.

Seamless Team Collaboration

Supporting up to 50 touch points, the ViewBoard IFP92UW enhances team collaboration by enabling multiple users to interact with the screen simultaneously using their fingers or a stylus, boosting brainstorming sessions and group activities.

Multi-device Wireless Screen Sharing

Enjoy instant, simultaneous wireless screen sharing of up to 9 devices through vCast for effective communication and efficient collaboration during team meetings.​

Maximize Productivity with Integrated Windows Experience

Unlock new productivity possibilities and work in the familiar Windows OS by coupling the ViewBoard with an optional slot-in PC. Equipped with dual-band Wi-Fi, Bluetooth, a powerful Intel® Core™ CPU, abundant memory, and ample data storage, this module delivers solid computing performance to support even the most demanding applications.

SPECIFICATIONS:

• Display

  Panel Size: 92"
  Panel Type: TFT LCD Module with DLED Backlight, VA
  Display Area (mm): 2141.952(H) × 903.636(V) (91.52” diagonal)
  Aspect Ratio: 21:9
  Resolution: WUHD 5120x2160(Pixels)
  Colors: 1.07G colors (8bits+ 2bits FRC)
  Brightness: 500nits (Typ.)
  Contrast Ratio: OC spec 5000:1 (typ.)
  Response Time: <6.5ms
  Viewing Angles: H = 178, V = 178 (Typ.)
  Backlight Life: 50,000hrs (typ.)
  Surface Treatment: Panel Hard Coating 3H
  Glass Anti-Glare + Anti-Fingerprint (7H Mohs; 9H pencil hardness)
  Bezel: 19.48/19.48/29.78/41.18 mm
  Orientation: Landscape


• Platform

  Processor: RK3588 Octa-Core CPU (A76*4 + A55*4)
  RAM: DDR4 8GB
  Storage: 128GB eMMC


• Touch

  Type/ Tech: IR Recognition
  Touch Resolution: 32767 x 32767
  Touch Point: Windows: 50
  Android and all other channels: 32


• INPUT

  HDMI: Rear x4 (HDMI 2.1x 1, HDMI 2.0 x3)
  DisplayPort: 1
  Audio: 1
  RS232: 1
  OPS: 1 (OPS Slot 80pin)
  WiFi: 1 (Module Slot)


• OUTPUT

  HDMI: 1
  Audio: 1
  SPDIF: 1


• LAN

  RJ45: 1 in 1 out
  (Android & PC 10M/100M/1000Mbps)


• USB

  Type A: REAR x 1 (USB 2.0 support OTG)
  REAR x 2 (USB 3.2 Gen 1)
  FRONT x 2 (USB 3.2 Gen 1)
  TOP x 2 (USB 3.2 Gen 1)
  Type B: REAR x 3 (USB 2.0)
  Type C: FRONT x1 (1*PD15W + DP1.2 + Data + 10M/100M sharing, USB 3.2 Gen 1)
  REAR x1 [1*PD65W(65W with OPS, 100W without OPS) + DP1.2 + Data + 10M/100M sharing, USB 2.0]


• SPEAKERS

  20W x 2+ 20W x 1 (Subwoofer)


• MICROPHONE

  Built-in 8 Array Microphone


• COMPATIBILITY

  HDMI: HDMI 1: 5120x2160 @60Hz (YUV444),
  5120x2160 @30Hz (YUV420)
  HDMI 2/3/4: 3840x2160 @60Hz
  DisplayPort: 5120x2160


• Embedded OS

  Android 13


• Bundle Software

  Basic Annotation Software: myViewBoard Whiteboard for Android
  Pro Annotation Software: myViewBoard Whiteboard for Windows (embedded in VPC)
  Wireless Presentation: myViewBoard Display, vCast, AirSync*
  *myViewBoard Display will be replaced by AirSync in Q1 2025.
  Device Management: ViewSonic® Manager
  ViewSonic Launcher: Yes


• Special Features

  All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
  Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
  Light Sensor: Yes


• Power

  Voltage: 100-240VAC +/- 10% Wide Range
  Consumption: On: 151.24W(Energy Star) / Off: <0.5W


• ERGONOMICS

  Wall Mount (VESA® ): 800 x 600


• OPERATING CONDITIONS

  Temperature (º C): 0°C to 40°C
  Humidity: 20% ~ 80% RH non-condensing


• DIMENSIONS (W x H x D)

  Physical (inch / mm): 86.73 x 39.37 x 3.62 in / 2203 x 1000 x 92mm
  Packaging (inch / mm): 92.52 x 44.72 x 8.5 in / 2350 x 1136 x 216mm


• WEIGHT

  Net (lb / kg): 147.7lb/ 67kg
  Gross (lb / kg): 183lb/ 83kg
