Интерактивен дисплей ViewSonic IFP55G1, 55" (139.7 cm) 4K/UHD LCD сензорен дисплей, HDMI, VGA, USB, USB-C, RS232, LAN

ViewBoard IFP65G1

• Bring Your Own OS interactive flat panel for versatile use in any scenario
• Seamless USB-C plug-and-play connectivity for convenient presentations
• 65W charging of peripheral devices, ensuring uninterrupted presentations
• Flexible integration with slot-in PCs, supporting Windows, Linux, and Android OS



USB-C Plug and Play Connectivity

Experience seamless connectivity with the USB-C one-cable solution. Simply plug in your laptop, desktop PC, or mobile device to instantly bring presentations to the big screen for clearer viewing and annotation. With up to 65W power delivery, it conveniently charges connected devices, creating a clutter-free workspace.





Seamlessly Integrates with Slot-In PCs

Enhance your productivity and collaboration potential by seamlessly integrating the IFPG1 with a slot-in PC featuring your OS of choice. An EDLA-certified OPS will bring more advanced whiteboarding capabilities and integrated access to the Google Play Store and Workspace Suite. Opt for a Windows slot-in PC to work in a familiar desktop environment, or select a FreeDOS or UEFI Shell device for extended customization possibilities.

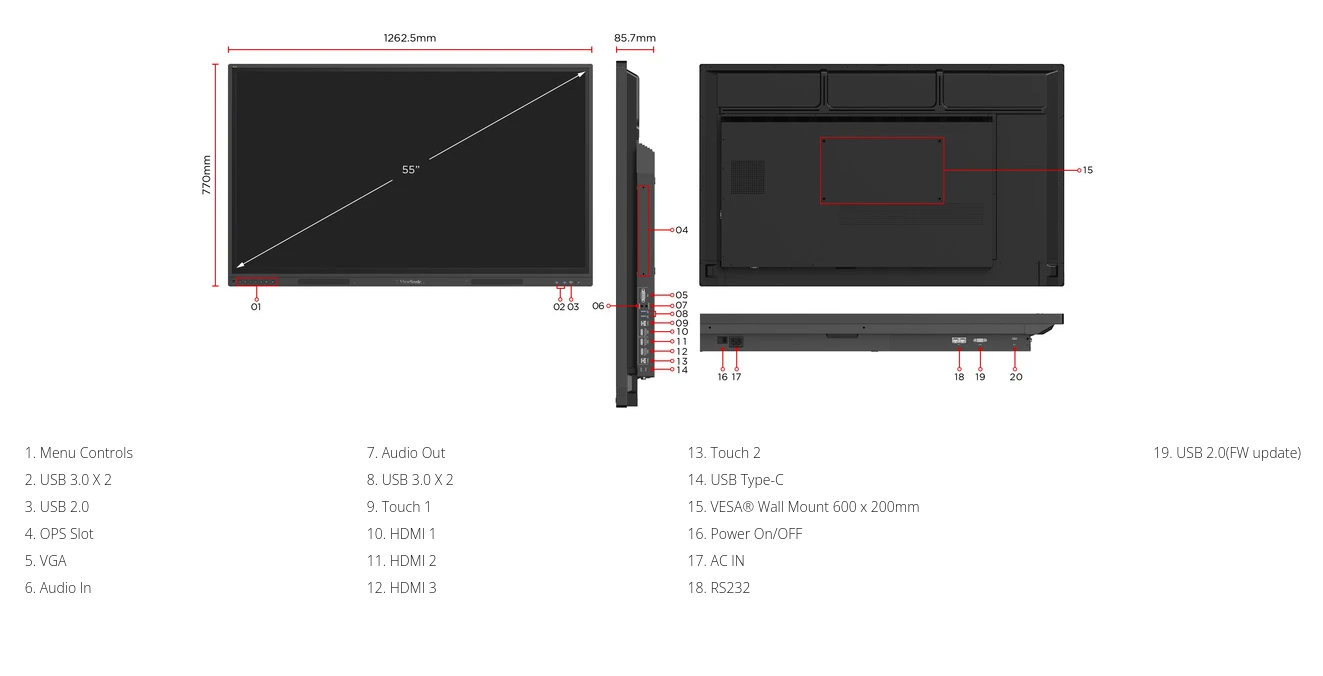

Dimensions & I/O Ports





SPECIFICATIONS



• Display

  Panel Size: 55"
  Panel Type: TFT LCD Module with DLED Backlight
  Display Area (mm): 1209.6(H) x 680.4 (V)
  Aspect Ratio: 16:9
  Resolution: UHD 3840x2160
  Colors: 1.07B colors (8bit+FRC)
  Brightness: 350 nits (typ.)
  Contrast Ratio: 1200:1 (typ.) 6000:1 (DCR)
  Response Time: 8ms
  Viewing Angles: H = 178, V = 178 typ.
  Backlight Life: 50,000 hours (Min)
  Surface Treatment: Hardness: 9H, Anti-glare coating
  Bezel: Slim
  Orientation: Landscape


• Touch

  Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
  Touch Resolution: 32767 × 32767
  Touch Point: Windows: 40 points of touch, Android : 20 points of touch


• INPUT

  HDMI: Rear 2.0 x 3 (HDMI 1 & 3 Support CEC; HDMI 2 Supports CEC & ARC)
  RGB / VGA: x1
  Audio: x1
  RS232: x1
  OPS: x1


• OUTPUT

  Audio: x1


• LAN

  RJ45: 1 in 1 out


• USB

  Type A: Front x3(USB2.0x1, USB3.0x2)
  Rear x3(USB3.0x2, 2.0 x1 for FW update)
  Type B: Rear x2 (USB 3.0x2)
  Type C: x1 ( DP 1.2, Touch, Data Sharing, PD65W, Ethernet 10M/100M)


• SPEAKERS

  10W x 2


• Top Camera Plate

  Yes


• COMPATIBILITY

  HDMI: 3840x2160 @ 60Hz


• Special Features

  All-in-one USB port: “SmartPort™ USB” to all channels.
  Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10M/100M, OPS 1000M)
  Light Sensor: Yes


• Power

  Voltage: 100-240VAC +/- 10% Wide Range
  Consumption: On:90.23W
  Off mode <0.5W


• ERGONOMICS

  Wall Mount (VESA® ): 400mm x 200 mm


• OPERATING CONDITIONS

  Temperature (º C): 0°C to 40°C
  Humidity: 20% ~ 80% RH non-condensing


• DIMENSIONS (W x H x D)

  Physical (inch / mm): 49.7 x 30.3 x 3.37 in / 1262.5 x 770 x 85.7 mm
  Packaging (inch / mm): 54.8 x 34.1 x 8.7 in / 1392 x 867 x 220 mm


• WEIGHT

  Net (lb / kg): 59.30lb/26.90kg
  Gross (lb / kg): 78.04lb/35.40kg


• REGULATIONS

  US NRTL w/ CA,FCC/ICES003, DOE Energy Star,DOE EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE,GOST-R / EAC, FF,LBL, ErP-Eco,SCIP,Annex I,Annex II,TPCH DoC,Packing waste,CA65 DoC


• Compatible Slot-in PC

  VPC-A31-O1/VPC33 series/VPC35 series/VPC37 series
