Публичен дисплей ViewSonic CDE105UW, 105"(266.7 cm) UW5K VA дисплей, DisplayPort, HDMI, LAN, USB, USB-C, RS232

CDE105UW

105” 5K Presentation Display

• Ultrawide 105" display with 5K resolution for immersive, crystal-clear visuals
• Reliable commercial-grade display ensures smooth multimedia playback 24/7.
• 21:9 aspect ratio optimized for Microsoft Teams Rooms Front Row mode.
• Ultra-slim bezel for sleek, contemporary aesthetic
• Portrait layout capability for versatile and high-impact digital signage.

Expand the Possibilities

21:9 Ultrawide Display for Effective Communication

Expand Your View

Offering 33% more screen space than a conventional 16:9 display of the same size, the 21:9 aspect ratio of the CDE105UW enables more immersive digital signage and enhances multitasking and collaboration, allowing users to view more content simultaneously during meetings.

Superior Detail, Flawless Visibility

Featuring 5K resolution, the CDE105UW delivers unparalleled image sharpness and detail for incredibly vivid visuals, complemented by a 178-degree viewing range that ensures flawless visibility from any perspective.

Minimalist Design, Maximum Impact

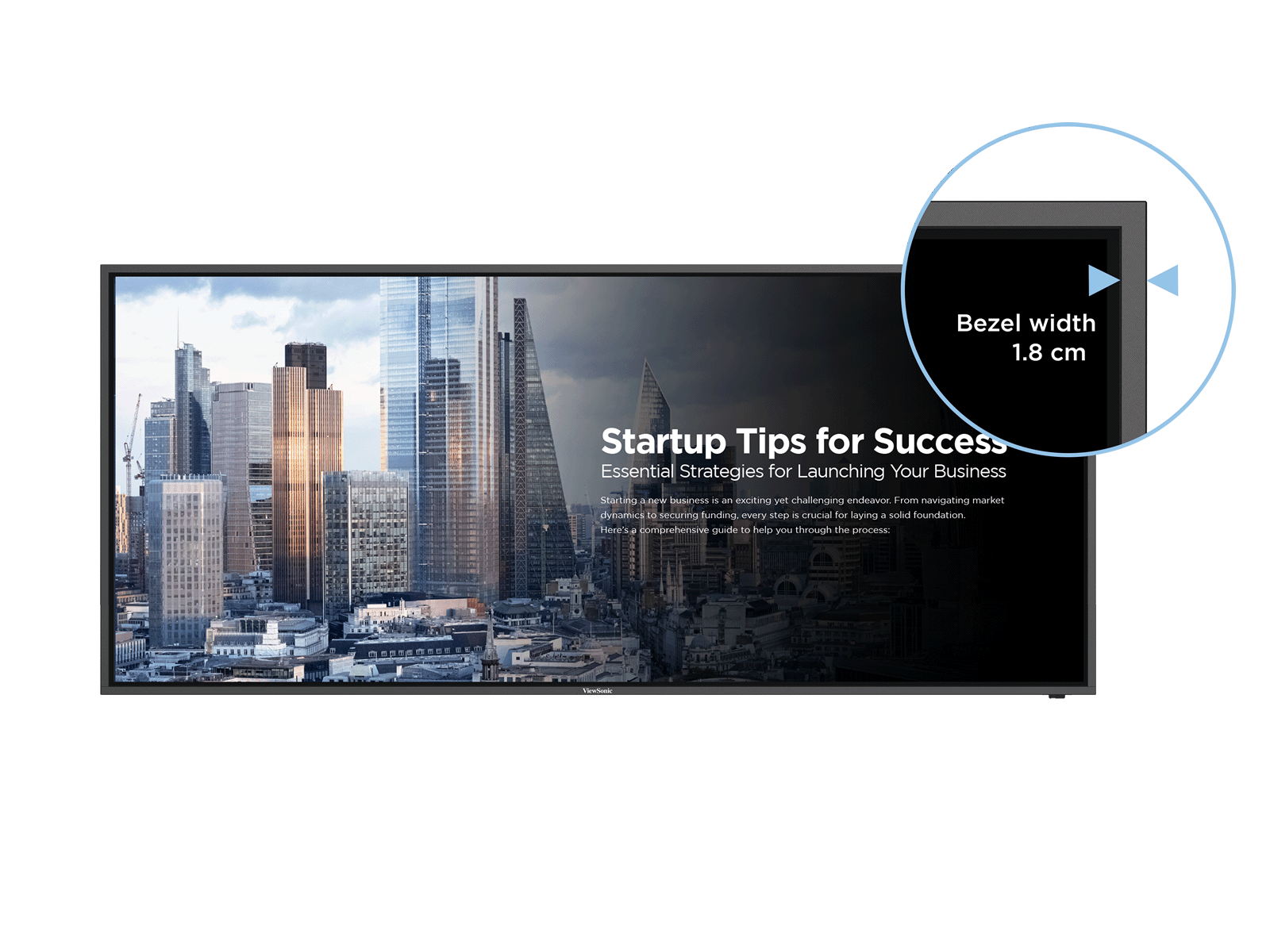

Featuring a slim 1.8 cm bezel, the CDE105UW harmonizes exceptional visual performance with a sleek, ultra-thin design, seamlessly elevating the aesthetic of any space.

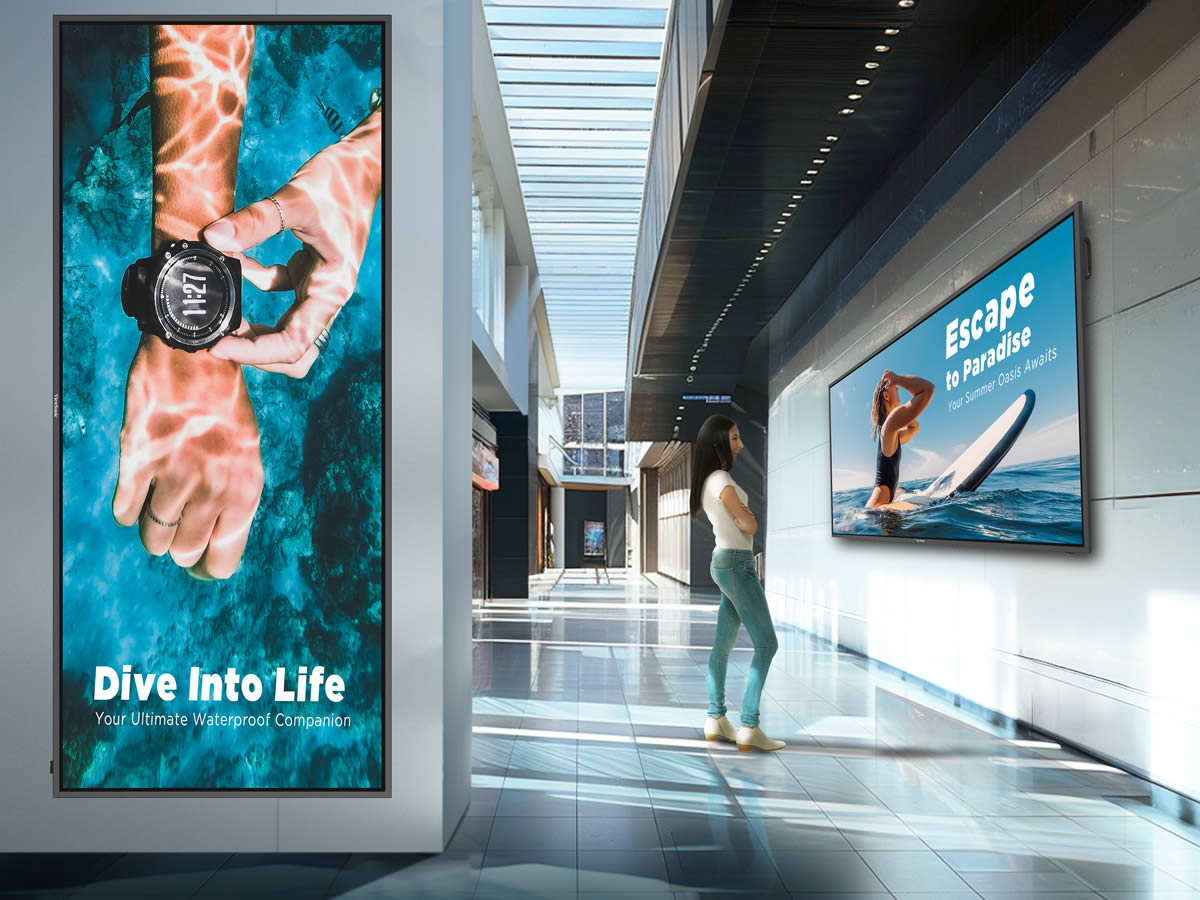

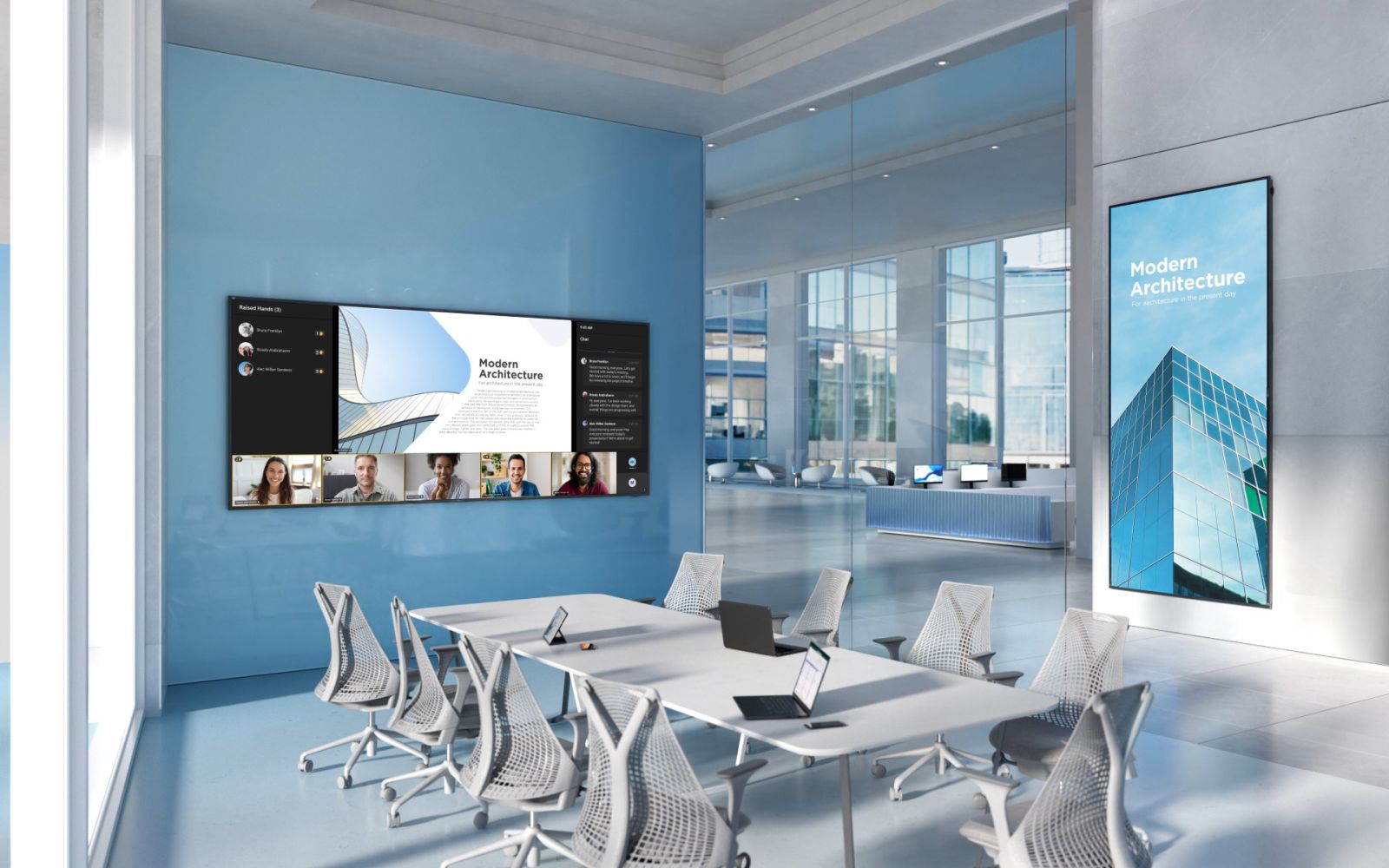

Landscape and Portrait Display Orientation

This commercial-grade display is ideal for digital signage. Featuring versatile orientation capabilities, it can easily switch between landscape and portrait modes, providing flexible display solutions for various settings.

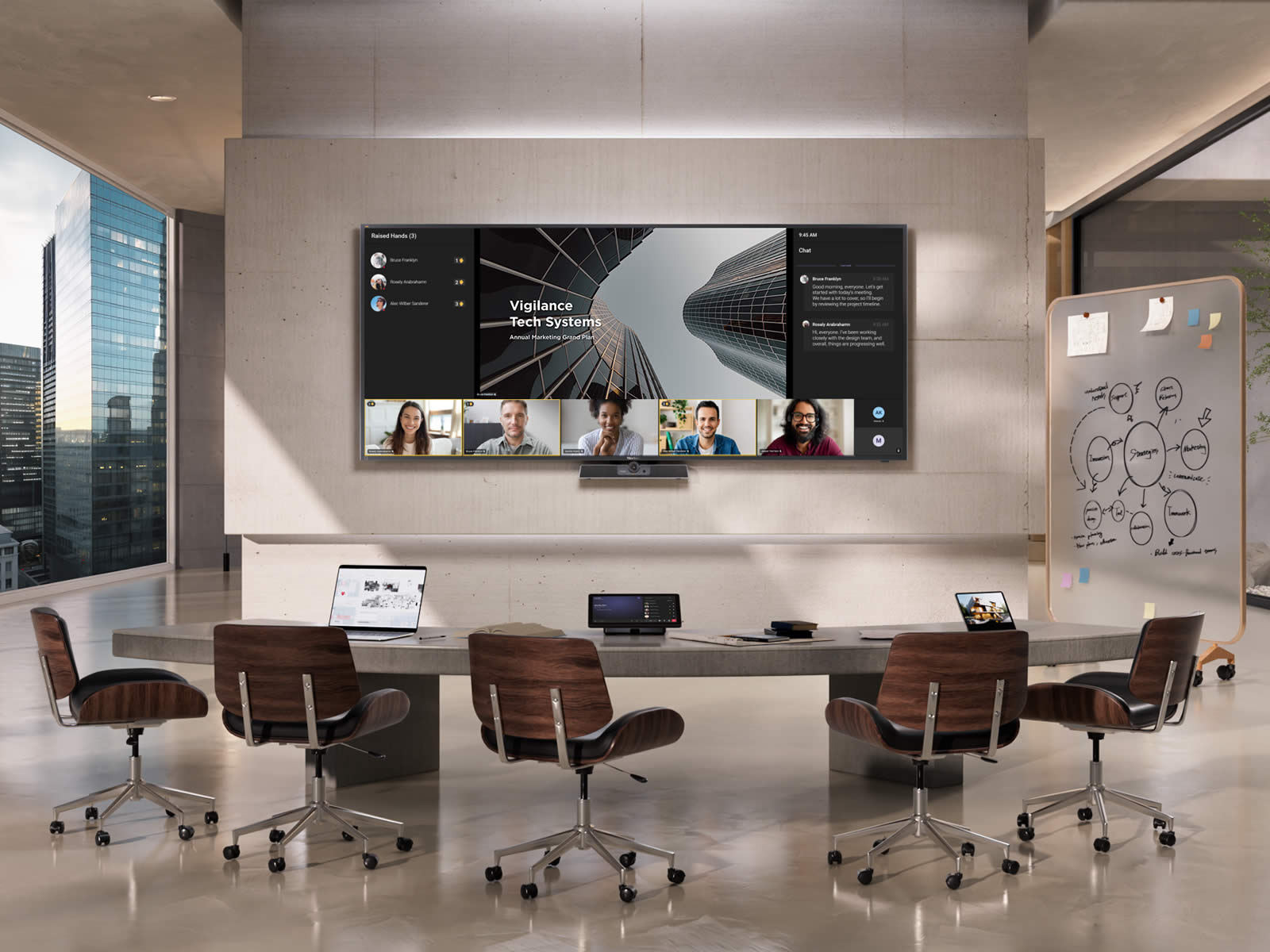

Hybrid Meetings

Enhance inclusivity in hybrid meetings with an ultrawide display optimized for Microsoft Teams Front Rooms mode, simultaneously showcasing remote attendees, content, and chat—all on one screen.

SPECIFICATIONS:

• Display

  Panel Size: 105"
  Type/ Tech: TFT LCD Module with DLED Backlight, VA
  Display Area (mm): 2449.92(H) x 1033.56(V) (105" diagonal)
  Native Resolution: 5120 x 2160
  Aspect Ratio: 21:9
  Colors: 1.07G colors (8bits+ 2bits FRC)
  Brightness: 500nits (typ.)​
  Contrast Ratio: 5000:1 (typ.)
  Response Time: <14ms
  Viewing Angles: H = 178, V = 178 (Typ.)
  Backlight Life: 50,000 hrs (typ.)
  Surface Treatment: Panel Hard Coating 3H
  Bezel: 18/18/18/18 mm
  Orientation: Landscape & Portrait


• Platform

  Processor: Octa-Core CPU (A76*4 + A55*4)
  RAM: DDR4 8GB
  Storage: 128GB (eMMC)


• INPUT

  HDMI: Rear x 4 (HDMI 2.1x 1, HDMI 2.0 x3)
  DisplayPort: 1
  Audio: 1 (3.5mm phone jack)
  RS-232: 1
  OPS Slot: 1 (OPS Slot 80pin)
  WiFi Slot: 1 (Module Slot)


• OUTPUT

  HDMI: 1
  Audio: 1 (Line Out)
  SPDIF: 1


• LAN

  RJ45: 1 in 1 out (Android & PC 10M/100M/1000Mbps)


• USB

  Type A: REAR x 1 (USB2.0 support OTG)
  REAR x 2 (USB 3.2 Gen 1)
  TOP x 2 (USB3.2 Gen 1)
  support Smart USB
  Type C: REAR x1 (PD100W+ DP1.2 + USB2.0, 100M ethernet) support smart USB (dynamic PD: W/OPS 65W, W/O OPS 100W)


• SPEAKERS

  20W x 2 + 20W x 1 (Subwoofer)


• COMPATIBILITY

  HDMI: HDMI 1: 5120x2160 @60Hz (YUV444)
  5120x2160 @30Hz (YUV420)
  HDMI 2/3/4: 3840x2160 @60Hz
  DisplayPort: 5120 x 2160


• Embedded OS

  Android 13


• Bundle Software

  Wireless Presentation: myViewBoard Display, vCast, AirSync* *myViewBoard Display will be replaced by AirSync in Q1 2025.
  Device Management: ViewSonic® Manager
  ViewSonic Launcher: Yes
  Revel Digital: Yes


• POWER

  Voltage: 100-240VAC +/- 10% Wide Range
  Consumption: Normal 320W, Max 800W


• ERGONOMICS

  Wall Mount (VESA® ): 1000 x 600 mm


• OPERATING CONDITIONS

  Temperature (º C): 0°C to 40°C
  Humidity: 20% ~ 80% RH non-condensing


• Operating Hours

  24/7


• DIMENSIONS (W x H x D)

  Physical (inch / mm): 98.03 x 42.57 x 3.03 in / 2489.9 x 1081.4 x 77 mm
  Packaging (inch / mm): 105.04 x 48.54 x 11.02 in/2668 x 1233 x 280 mm


• WEIGHT

  Net (lb / kg): 116.96 lb/ 53.05 kg
  Gross (lb / kg): 163.14 lb/74 kg
