Name: Видео карта NVIDIA GeForce RTX 2060, 12 GB, GIGABYTE WINDFORCE OC, PCI Express 3.0, GDDR6, 192-bit, DisplayPort, HDMI
Brand: Gigabyte
SKU: VCRGIGABYTEGAVCN2060WF2OC12
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

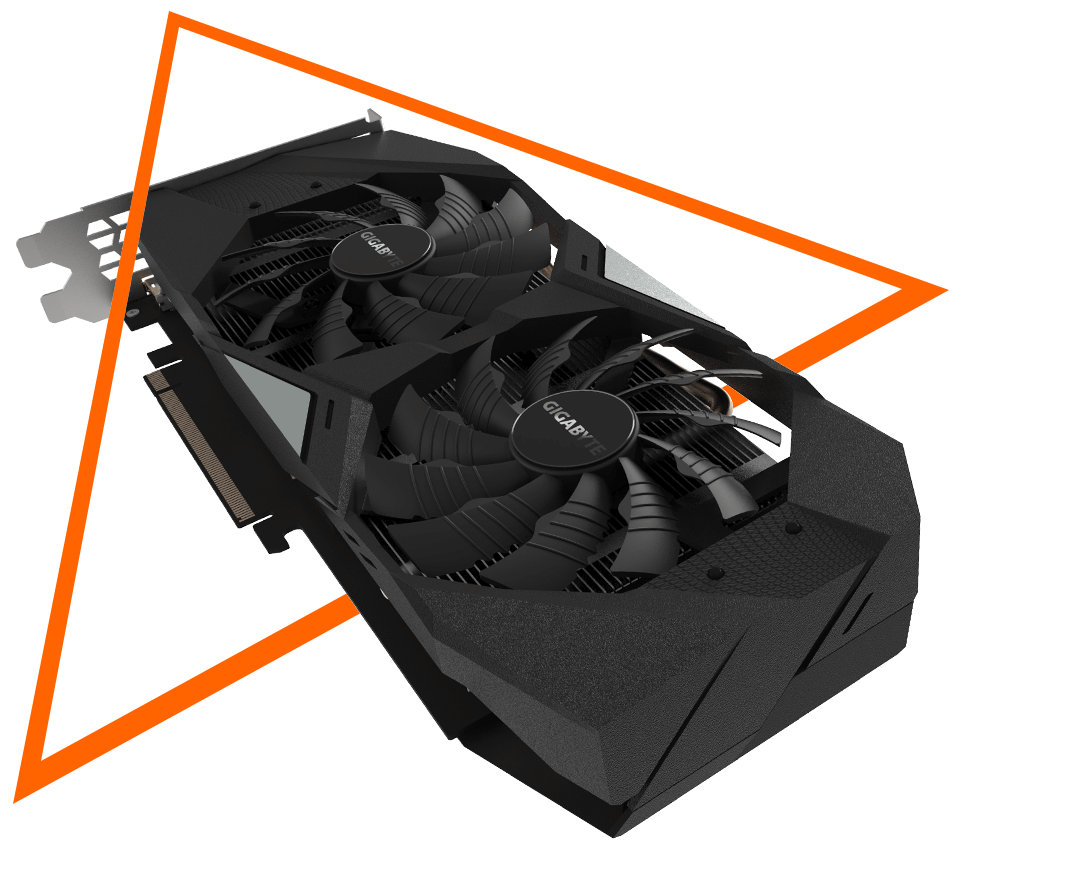

GIGABYTE GeForce RTX 2060 WINDFORCE OC 12GB

GA-VC-N2060WF2OC-12GD

Features

Powered by GeForce RTX 2060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
Protection back plate

Core Clock

1680 MHz (Reference card: 1650 MHz)

WINDFORCE 2X COOLING SYSTEM WINDFORCE 2X cooling system features two 100mm unique blade fans, alternate spinning, two composite copper heat pipe direct touches the GPU and 3D active fans, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

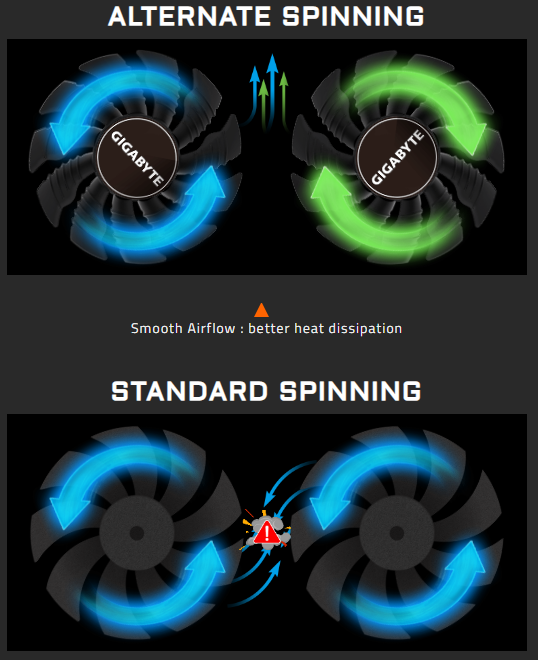

	ALTERNATE SPINNING The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

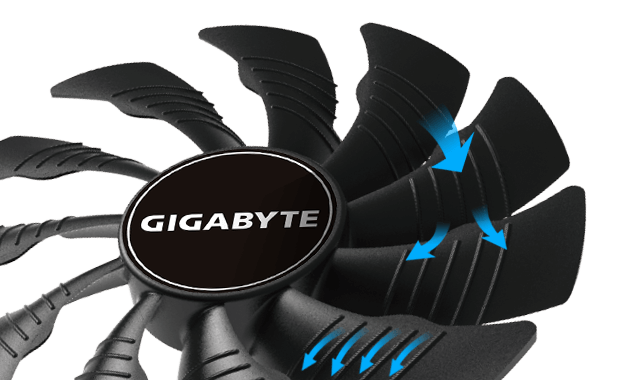

UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

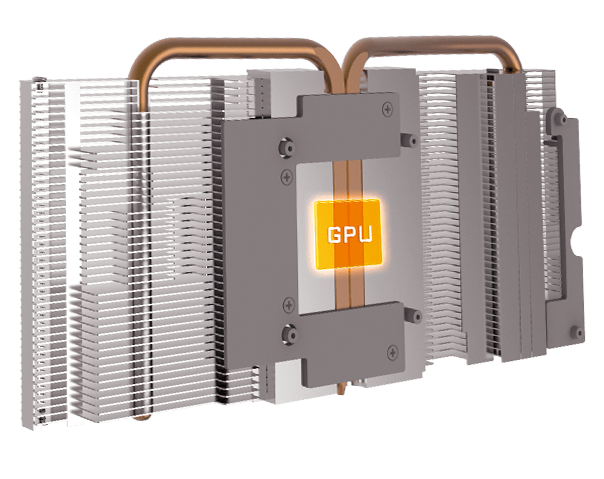

	HEAT PIPE DIRECT TOUCH The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

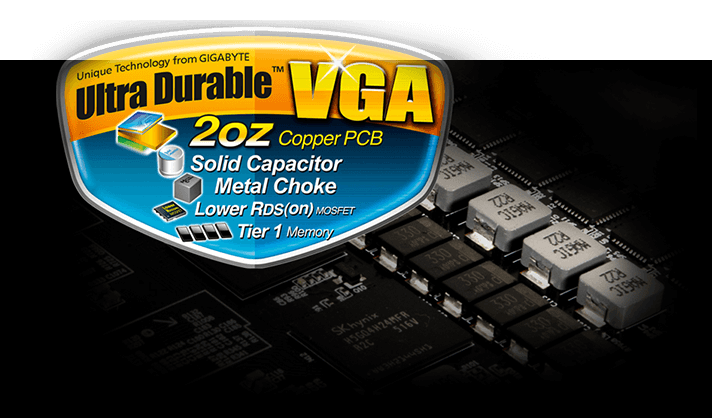

EXTREME DURABILITY The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

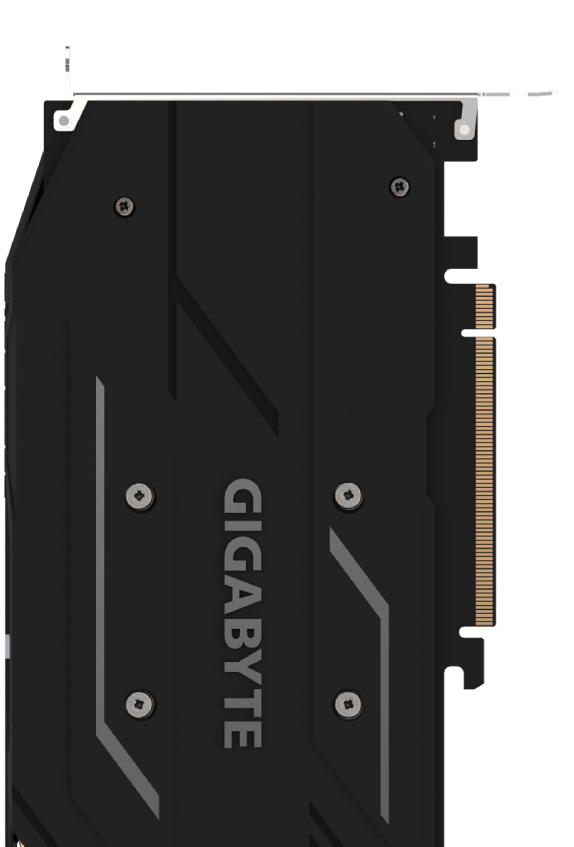

	PROTECTION BACK PLATE The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

Specification
Graphics Processing	GeForce RTX 2060
Core Clock	1680 MHz (Reference Card: 1650 MHz)
CUDA® Cores	2176
Memory Clock	14000 MHz
Memory Size	12 GB
Memory Type	GDDR6
Memory Bus	192 bit
Memory Bandwidth (GB/sec)	up to 336 GB/s
Card Bus	PCI-E 3.0 x 16
Digital max resolution	7680x4320
Multi-view	4
Card size	L=265 W=121 H=40 mm
Recommended PSU	550W
Power Connectors	8 Pin*1
Output	DisplayPort 1.4 3 HDMI 2.0b 1

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Видео карти Gigabyte
Виж всички Видео карти в категорията

Документация

Gigabyte GeForce RTX 2060 WINDFORCE OC 12G - graphics card - GF RTX 2060 - 12 GB Quick start guide

Технически характеристики

GPU производител:	nVidia
Капацитет:	12 GB
Тип памет на видеокарта:	GDDR6
Битове (BUS памет):	192 Bit
Интерфейс:	DP HDMI
