WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, a composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
.png)

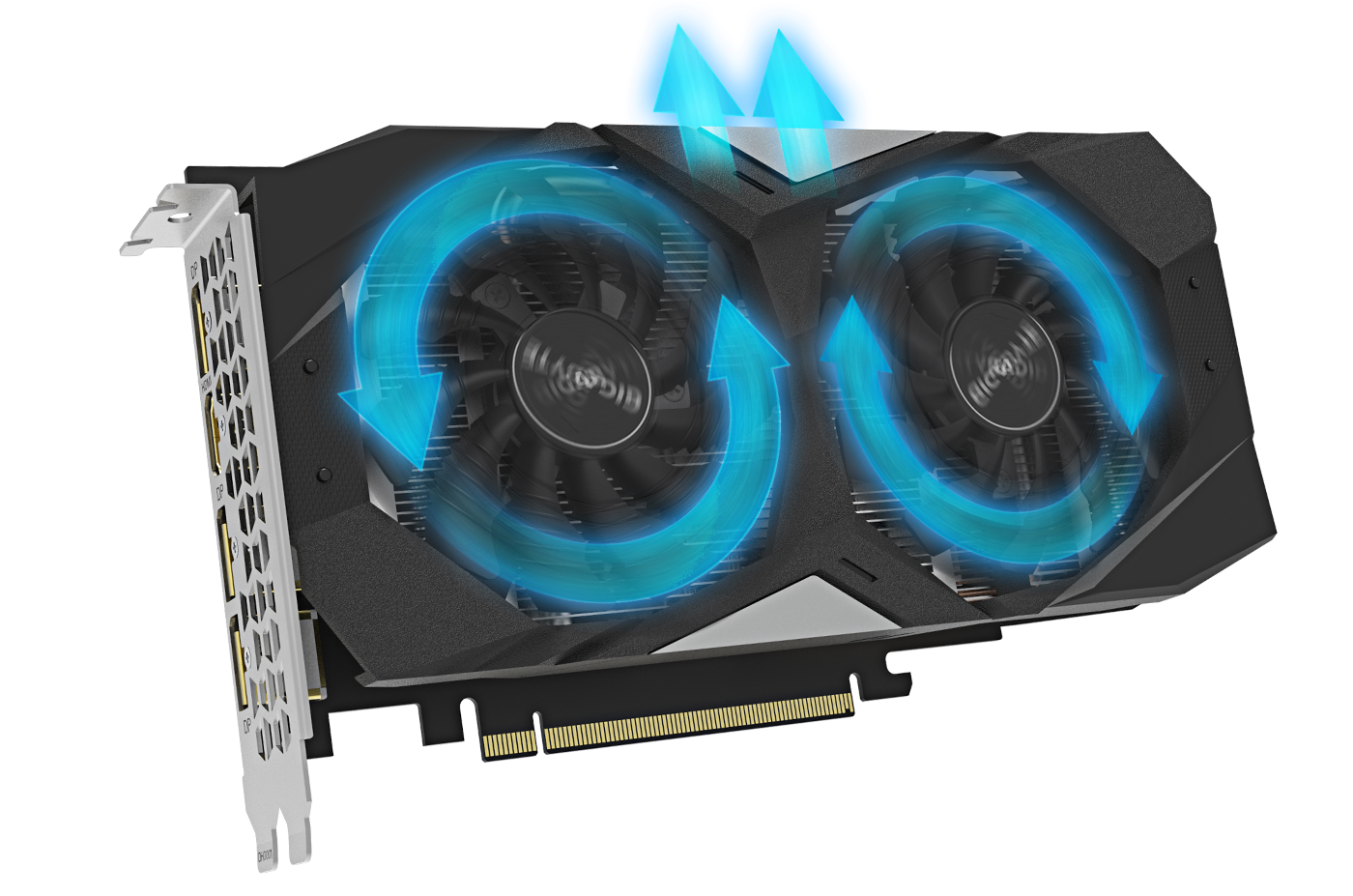

ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
.png)

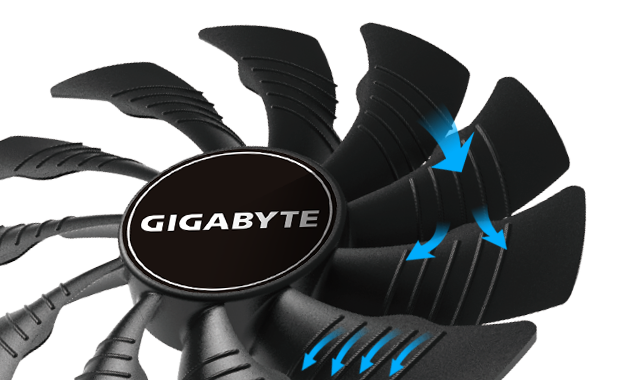

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
.png)

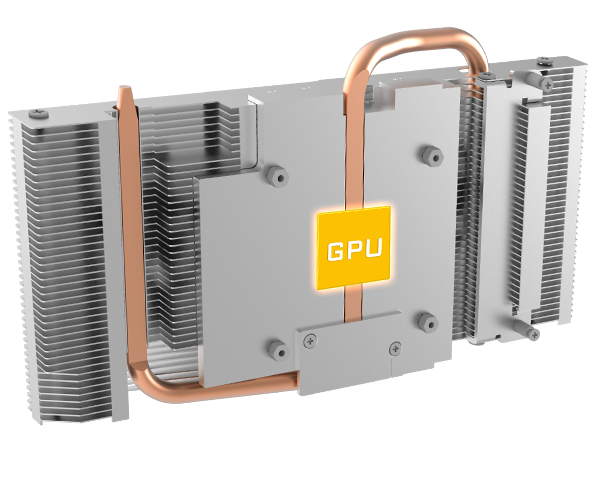

HEAT PIPE DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
-
Графична обработкаGeForce® GTX 1660 SUPER™
-
Честота на графичното ядро1830 MHz (Reference Card: 1785 MHz)
-
Ядра CUDA®1408
-
Честота на паметта14000 MHz
-
Капацитет на паметта6 GB
-
Тип на паметтаGDDR6
-
Ширина на шината към паметта192 bit
-
Пропусквателна способност на паметта (GB/sec)336 GB/s
-
Card BusPCI-E 3.0 x 16
-
Макс. цифрова резолюция7680x4320@60Hz
-
Поддръжка на Multi-view4
-
Размери на картатаL=225.65 W=122.02 H=40.5 mm
-
Форма на печатната платкаATX
-
DirectX12
-
OpenGL4.6
-
Препоръчано PSU450W
-
Захранващи конектори8 Pin*1
-
ИзходDisplayPort 1.4 *3
HDMI 2.0b *1
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти Gigabyte
Виж всички Видео карти в категорията
Gigabyte GeForce GTX 1660 SUPER OC 6G - OC Edition - graphics card - GF GTX 1660 SUPER - 6 GB Quick start guide| GPU производител: | nVidia |
|---|---|
| Капацитет: | 6 GB |
| Тип памет на видеокарта: | GDDR6 |
| Битове (BUS памет): | 192 Bit |
| Интерфейс: | DP HDMI |
