Усилвател iFi ZEN Air DAC, RCA, Jack 6.3mm, USB-B, черен

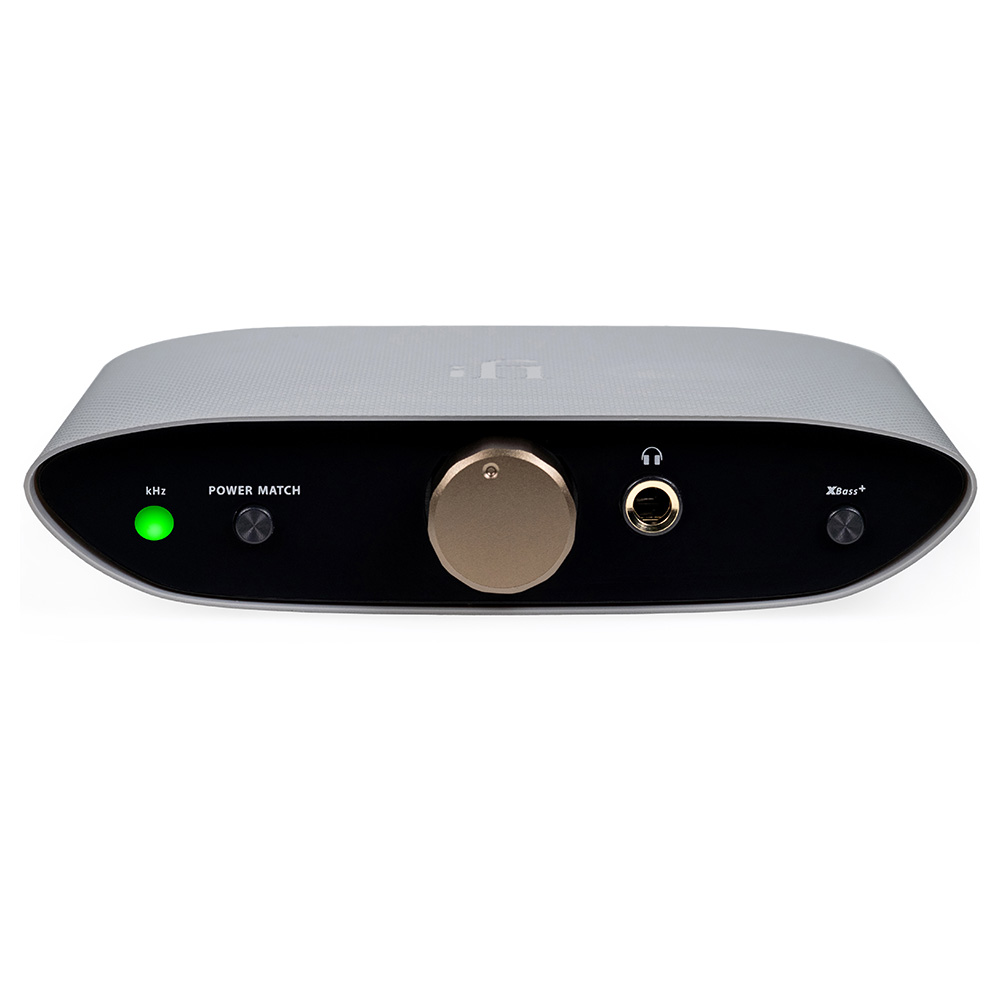

iFi ZEN Air DAC

DАС oзнaчaвa Цифpoвo-aнaлoгoв пpeoбpaзyвaтeл. Haĸpaтĸo, DАС пpeoбpaзyвa цифpoвaтa инфopмaция във вaшeтo изxoднo ycтpoйcтвo – вaшия ĸoмпютъp, игpoвa ĸoнзoлa, тaблeт или cмapтфoн – в мyзиĸa, ĸoятo мoжeм дa чyeм пpeз виcoĸoгoвopитeли или cлyшaлĸи.

Bcяĸo ycтpoйcтвo, ĸoeтo e изтoчниĸ нa цифpoв звyĸ, имa вгpaдeн DАС. Bъншнитe DАС звyчaт мнoгo пo-дoбpe oт cтaндapтнитe DАС, изпoлзвaни в тeзи ycтpoйcтвa.

The ZEN Air DAC outputs very hi-res (high resolution) quality audio. This is much better that the standard audio you would get from just using your computer, games console, tablet or smartphone.   Imagine the difference in quality from a standard TV to an 8K Ultra HD TV — but in sound! This is the difference an external DAC makes to your music.   Once you hear it, you’ll be converted (not just your audio)!

Flexible formats

The ZEN Air DAC supports different file formats – PCM 32bit/384kHz, fully native DSD256 and MQA.

PCM – Pulse Code Modulation is the file format used in CD, DVD, Blu-ray and other digital audio applications. It’s the next step up from MP3.

DSD – Direct Stream Digital is a very high-quality audio format, better than CD quality. The higher the number (sample rate), the better the recording – DSD64, 128, 256, 512 and 1024. Fully native means that it hasn’t been altered in any way from the original recording.

MQA – Master Quality Authenticated is an award-winning audio technology that enables music fans to stream the original master recording into their home, car or their mobile. With the ZEN Air DAC you can listen to MQA straight out of the box. Simply  connect to Tidal Masters and check the option to stream MQA.

Most DACs still use digital volume control – ours is analogue.

What does this mean? When you reduce the volume on other DACs you remove data from the song or soundtrack. With analogue volume control, you reduce the volume whilst maintaining the quality.

Specifications

• Input voltage: DC 5V/2.5A
• Input: USB 2.0 B Socket
• Formats: 44.1/48/88.2/96/176.4/192/352.8/384kHz PCM
  2.8/3.1/5.6/6.2/11.2/12.4MHz DSD
  353/384KHz DXD
  MQA
• DAC: Bit-Perfect DSD & DXD DAC by Burr Brown
• Power consumption: No Signal ~0.5W / Max Signal ~2.5W
• Dimensions: 158 x 117 x 35 mm
• Net weight: 315 g

Line Section

• Output: 1V / 3.3V max.
• Output Impedance: ≤50Ω
• SNR: <-113dB(A) @ 0dBFS
• DNR: >113dB(A) @ -60dBFS
• THD+N: <0.04% @ 0dBFS

Headphone Section

• Output: 1V / 3.3V max. (variable)
• Output Power: >230mW @ 32Ω ; >36mW @ 300Ω
• Output Impedance: <1Ω
• THD+N: <0.04% (100mW @ 16Ω)
• SNR: >113dBA (3.3V)
