iFi iCAN Phantom
Vanish into the music
NEW reference-class analogue headphone amp with incorporated electrostatic energiser with advanced user interface and network-connected control system.
A new extraordinary reference

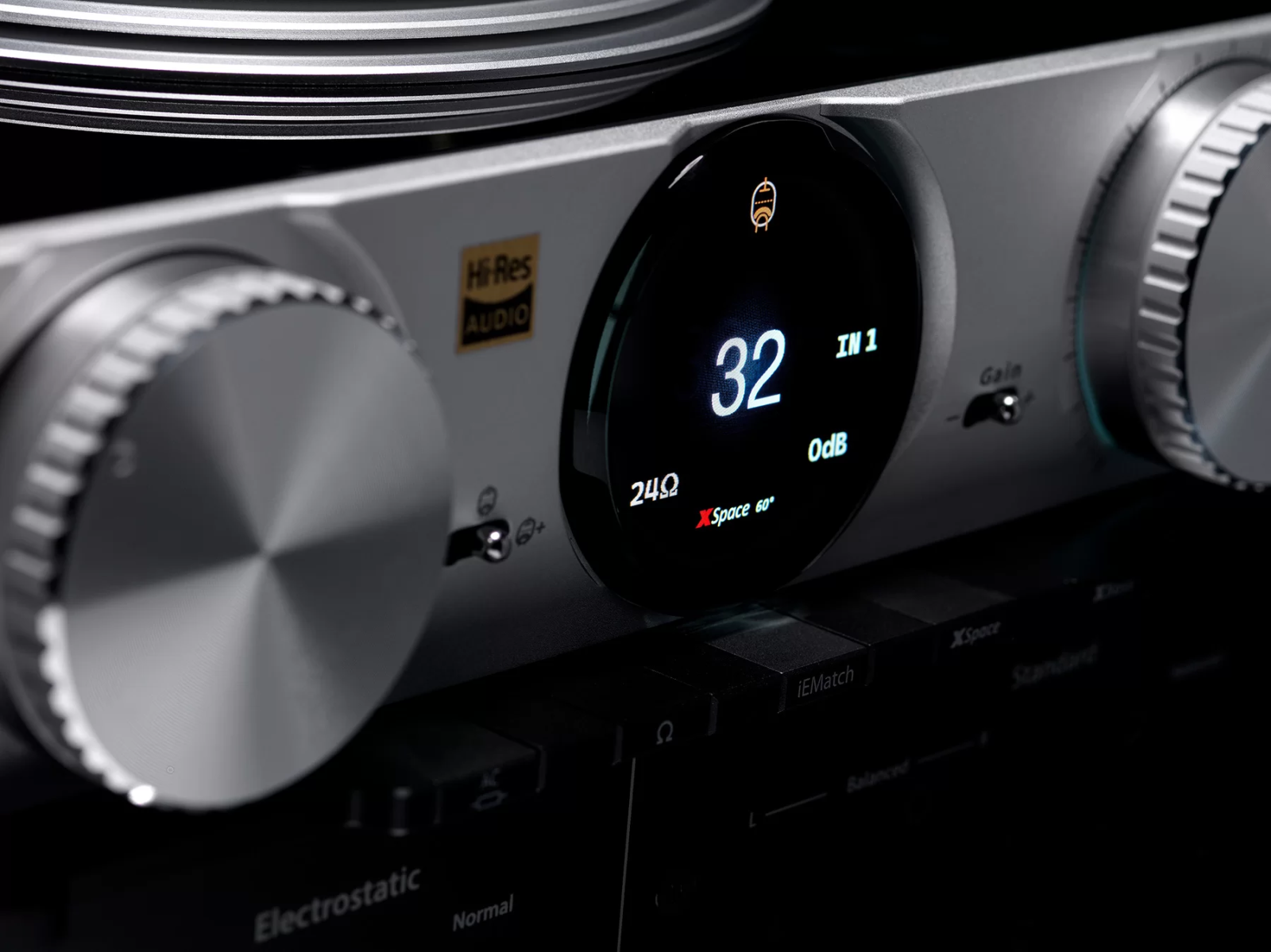

iFi’s new reference-class analogue headphone amp, the iCAN Phantom, takes the Pro iCAN, refines and enhances every element of its circuitry to further elevate its performance, incorporates technology from the Pro iESL – previously a separate component – for electrostatic headphones, and adds a new, advanced user interface and network-connected control system.
The result? A headphone amp truly worthy of its flagship status.
Exemplary build quality, sophisticated technology, an unrivalled specification and remarkable versatility, expertly engineered to drive every headphone type to its full sonic potential. From ultra-sensitive IEMs, to the finest dynamic driver and planar magnetic headphones, to the most power-hungry electrostatic designs, the iCAN Phantom delivers a truly exceptional headphone experience – exquisitely tailored to the requirements of the listener.
The iCAN Phantom also performs as a high-end preamplifier – to feed a power amp and speakers (or powered speakers) – enabling headphone and speaker listening to be combined in a single high-performance audio system.

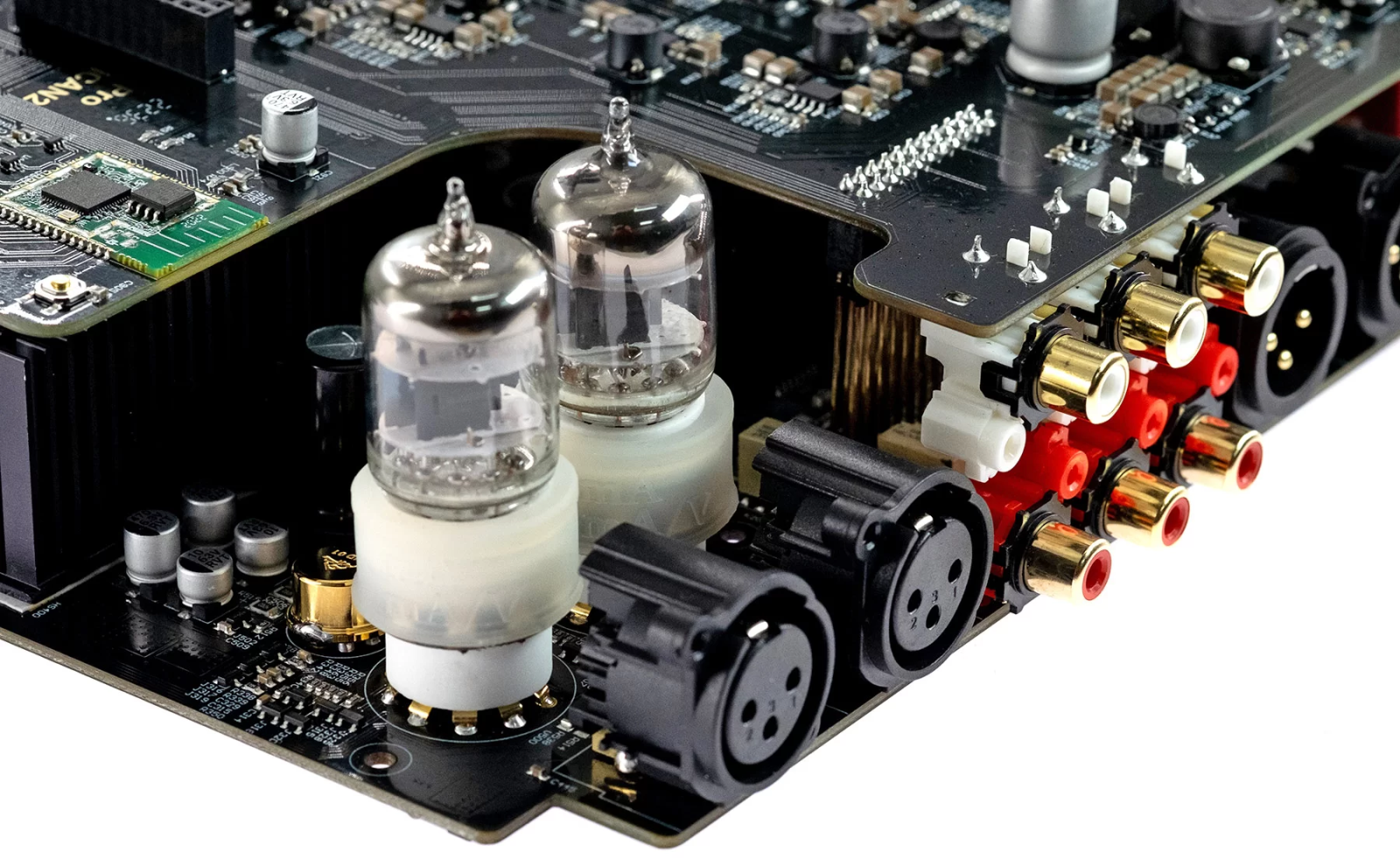

A tale of two input stages
The iCAN Phantom sports two input stages – one valve/tube-based, the other solid state – enabling the user to switch between the two in real time.
It is, indeed, like having three amplifiers in one, each with a different sonic presentation.
Solid-state offers pace and immediacy. Tube mode adds fluidity and a free-breathing dynamic quality. Tube+ accentuates the sonic influence of the valves, delivering a spellbinding romantic warmth that may suit, for example, acoustic and vocal musical styles.
The GE5670 valves have an expected lifespan of around 10,000 hours of use. When the time eventually comes to replace them, the iCAN Phantom’s smoked glass panel is easily removed to provide access, meaning the job can be completed in minutes. The amp is compatible also with 6922 valves.
Electrostatically good!
Most headphones create sound by using dynamic (or moving coil) drivers to move air. A smaller number use planar magnetic diaphragms, which are different in form and operation, but still use magnetic fields to cause motion. At the high end of the headphone scene there is another, rare but fabulous sounding driver type – electrostatic headphones.
Electrostatic drivers need an separate energiser. The iCAN Phantom incorporates our original standalone iESL energiser technology with regular amplifier technology to make a single amplifier that can handle every headphone type with aplomb.
And all users benefit as the component quality and clever circuit design required to deliver such a high level of performance with electrostatic headphones elevates the amp’s performance with other headphone types too.
Every connection covered

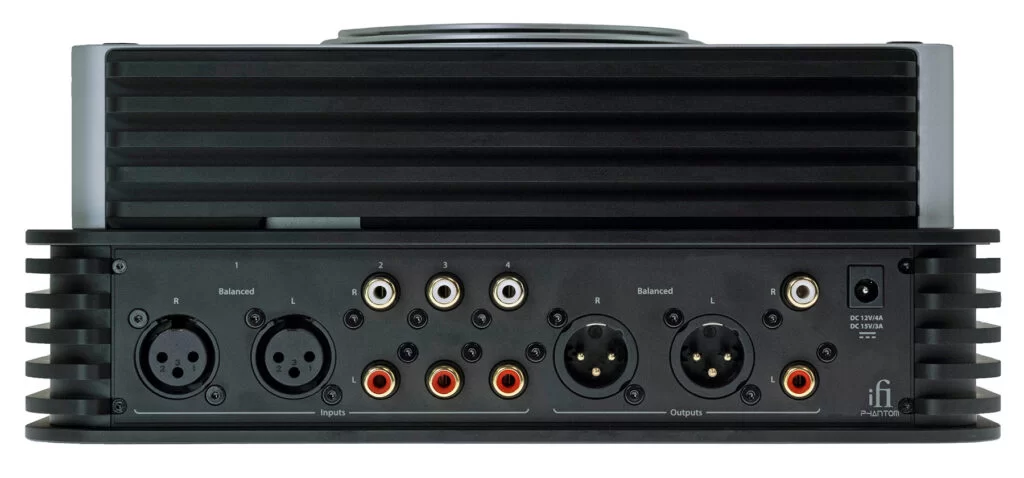

The iCAN Phantom supplies a wide array of balanced and single-ended connection options. The headphone outputs are at the front, with the source inputs and preamp outputs at the rear. Here’s a summary:
Source inputs – 1x balanced XLR (L/R), 3x RCA (L/R)
Headphone outputs – 1x 3-pin balanced XLR (L/R), 1x 4-pin balanced XLR, 1x 4.4mm balanced, 1x 6.3mm (positive phase), 1x 6.3mm (inverted phase) and 1x 3.5mm (includes S-Balanced technology to cut distortion by 50 per cent)
Electrostatic headphone outputs – 1x 5-pin normal bias, 1x 5-pin custom bias
Preamplifier outputs – 1x balanced XLR (L/R), 1x RCA (L/R)
Tech specs
Gain | 0dB, 9dB and 18dB user-selectable | ||
Frequency Response | 0.5Hz to 500kHz(-3dB) | ||
THD + N | Solid-State | Tube | Tube+ |
Balanced Unbal | ≤0.0015% ≤0.007% | ≤0.002% ≤0.006% | ≤0.012% ≤0.2% |
SNR | |||
Balanced UnBAL | >145dB(A) > 130dB(A) | ||
Output Power | |||
Balanced UnBAL | >15,000mW (@ 16Ω) >5,760mW (@ 16Ω) | ||
Output Voltage | |||
Balanced UnBAL | >27.0V (@ 600Ω) >14.0V (@600Ω) | ||
ESL Output Voltage | |||
Custom/Pro Normal | 640V RMS max. 320V RMS max. | ||
Input voltage | DC 12V/4A or 15V/3A (Phantom iCAN) | ||
Input voltage | AC 85 - 265V, 50/60Hz (iPower Elite) | ||
Power consumption | < 27W idle, 75W max | ||
Dimensions | 256 × 185 × 120 mm | ||
Net weight | 4.2 kg |
