Суич Ubiquiti UniFi Switch Pro Max 48 PoE, 26 порта, 8 10/100/1000Mbps RJ45 PoE+, 8x 10/100/1000Mbps RJ45 PoE++, 8x 100/1000/2500Mbps RJ45 PoE++, 2x 10G SFP+

24-port gigabit switch Ubiquiti UniFi Switch Pro Max 24 PoE

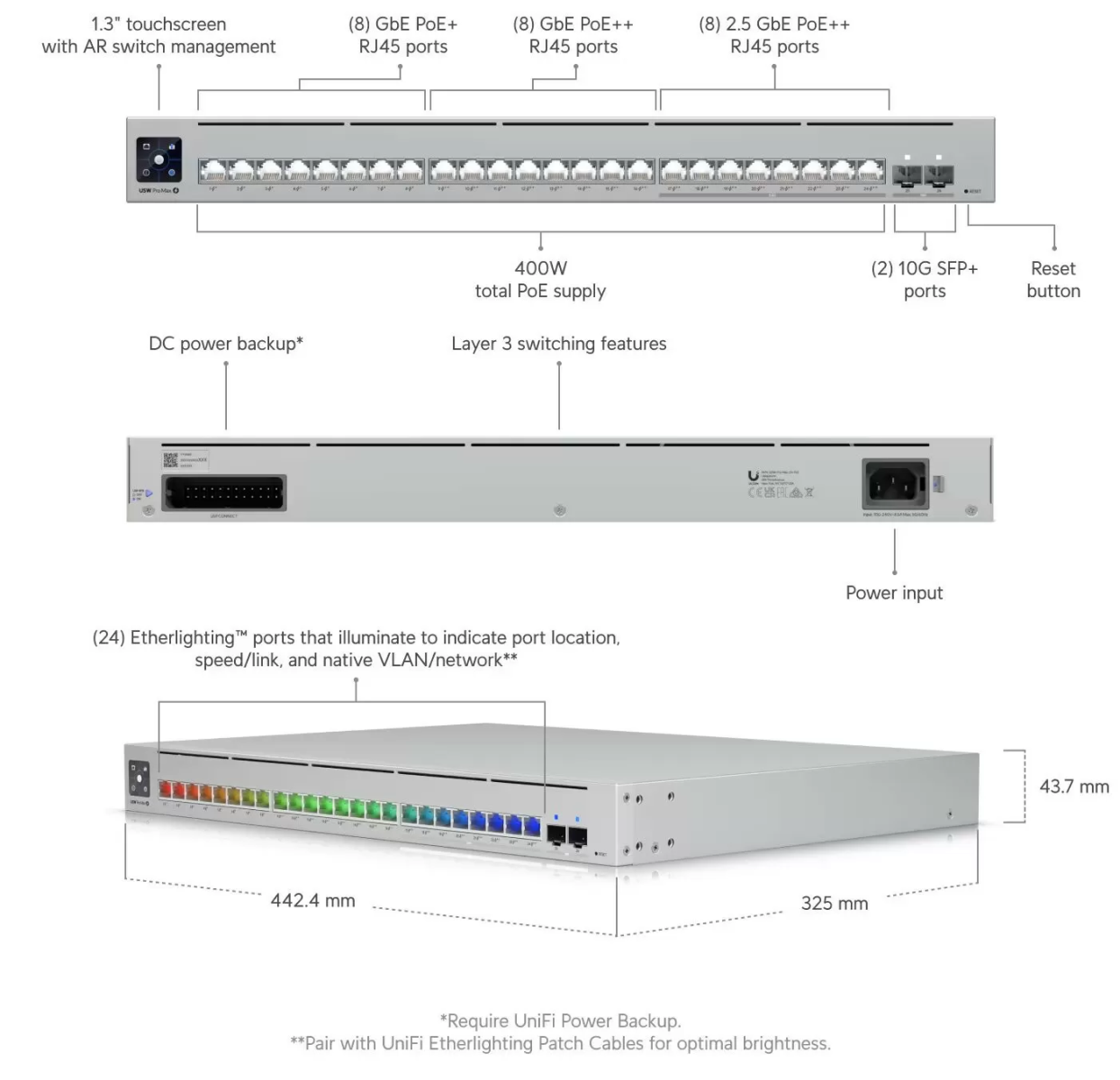

The Ubiquiti Professional Max 24 PoE is a high-performance Layer 3 Ethernet switch designed to meet the demands of modern network environments. The switch is equipped with 24 ports, including eight 2.5 GbE PoE++ ports, 16 GbE ports (8 PoE+ and 8 PoE++), and two 10G SFP+ ports, featuring the exceptional bandwidth and versatility. The switch is equipped with a total PoE capacity of 400W and incorporates innovative Etherlighting™ technology, which uses illuminated ports to provide visual cues about port location, speed/link status, and network details. With its comprehensive features and robust capabilities, it can handle even the most demanding network traffic, ensuring seamless connectivity and optimal performance for all connected devices.

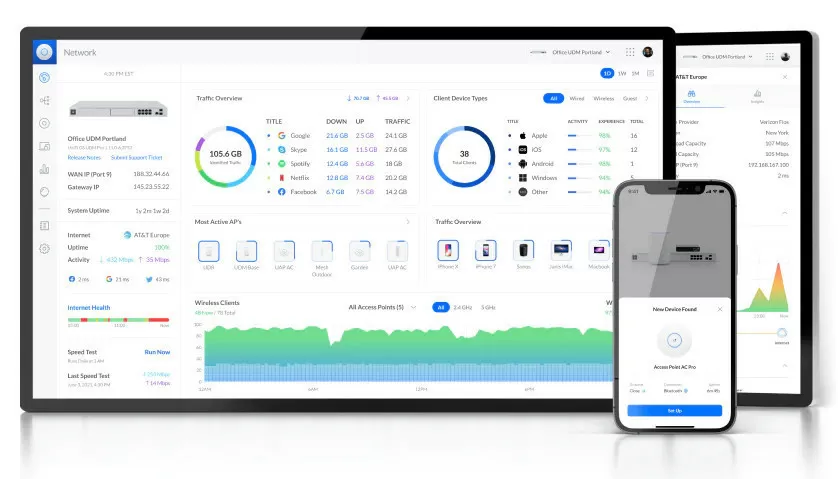

Designed with scalability and performance in mind, the USW-Pro-Max-24-PoE integrates seamlessly into existing network infrastructures thanks to its SFP+ ports that support uplinks of up to 10 Gbps, providing the necessary bandwidth for data-intensive applications and cloud services. The switch is managed by Ubiquiti’s UniFi Network Controller software, which allows for extensive device management, including monitoring and fine-tuning performance settings, from a centralized interface. This software integration enhances the user experience by offering detailed insights into network traffic, device utilization, and status alerts.

Furthermore, the USW-Pro-Max-24-PoE supports advanced network protocols and features such as VLAN tagging, network segmentation, and QoS (Quality of Service), which are crucial for optimizing network traffic and ensuring bandwidth allocation for critical applications. The device also incorporates robust security features, including ACLs (Access Control Lists), guest control, and threat management, to protect against unauthorized access and network threats.

The robust construction of the switch ensures reliability and durability in demanding operational environments. It features a rack-mountable design, making it ideal for installation in standard network racks, and its fanless design ensures quiet operation, an essential feature for noise-sensitive environments like offices or libraries.

Overall, the Ubiquiti USW-Pro-Max-24-PoE is engineered to meet the demands of modern network environments, offering high power capacity, advanced management features, and reliable performance, making it an excellent choice for businesses looking to enhance their network infrastructure.



Спецификации:

Вид на монтаж:

• Rackmount
• Декстоп

Експлоатационни качества:

• Forwarding Rate: 65.472 Mpps
• Non-Blocking throughput: 64 Gbps

Захранване:

• 100～240VAC, 50/60Hz

Интерфейс:

• (16) GbE RJ45 ports
• (2) 10G SFP+ ports
• (8) 1/2.5 GbE RJ45 ports

Мрежови характеристики:

• Switching capacity 112 Gbps

Приложение:

• Rackmount

Работна влажност:

• 10%~90% без кондензация

Работна температура:

• -5 to 40° C (23 to 104° F)

Размери височина:

43.7 mm

Размери дълбочина:

285.6 mm

Размери ширина:

443 mm

Сертификати:

• CE
• FCC
• IC

Сигурност:

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

Софтуерни функции:

• UniFi network app
• UniFi OS

Съвместимост с мрежови стандарти:

• 802.3 af
• IEEE 802.3 at
• IEEE 802.3ad
• IEEE 802.3bt

Тегло, кг.:

4.5 кг

Тип:

• Desktop switch
• Managed
• UniFi Switch

Управление/Management:

• Web UI

12 месеца за юридически, 24 месеца за физически лица
