VIGI SP9030

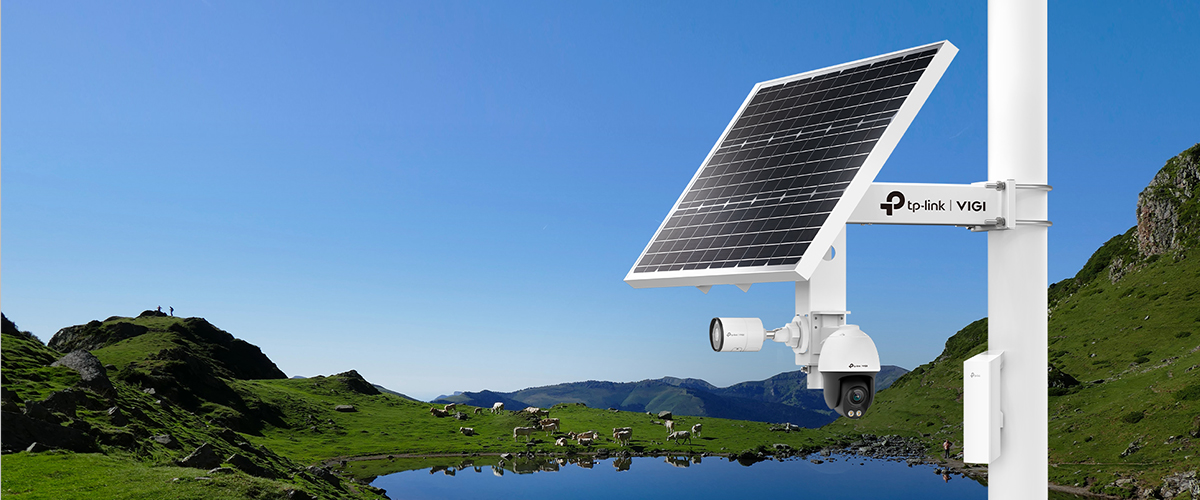

VIGI Intelligent Solar Power Supply System
- 90W Photovoltaic Panel and 30Ah/10.8V Lithium Battery
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology

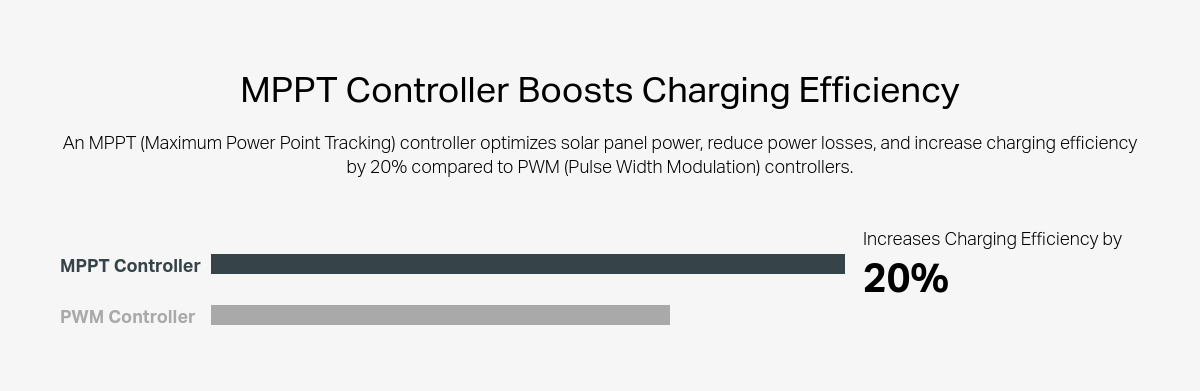

- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management
- Simple Installation
![](/images/custom/site/20240719154722.jpg)
![](/images/custom/site/Screenshot%202024-07-19%20at%2015-47-31%20VIGI%20SP9030%20VIGI%20Intelligent%20Solar%20Power%20Supply%20System%20TP-Link%20Malaysia.png)

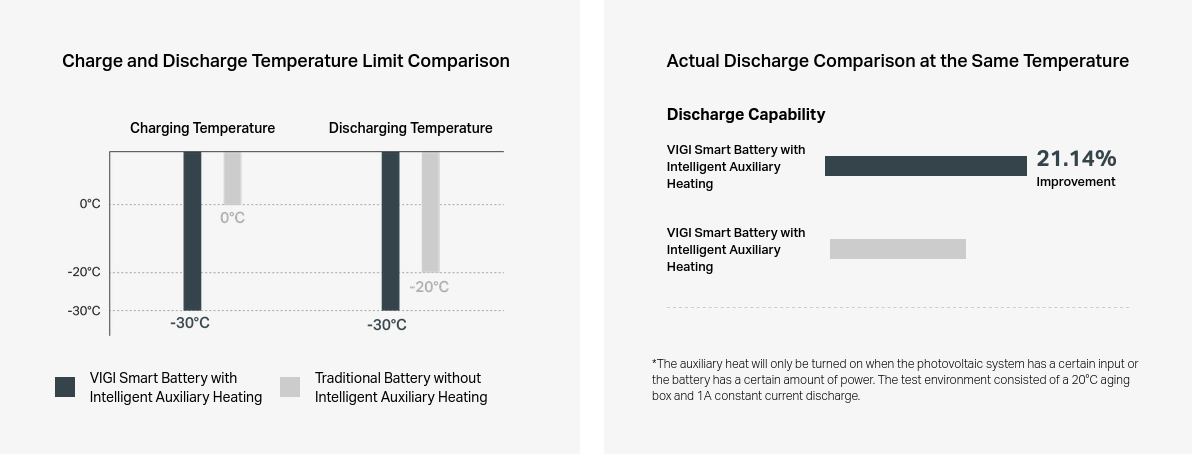

Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.
![](/images/custom/site/Screenshot%202024-07-19%20at%2015-47-59%20VIGI%20SP9030%20VIGI%20Intelligent%20Solar%20Power%20Supply%20System%20TP-Link%20Malaysia.png)
![](/images/custom/site/Screenshot%202024-07-19%20at%2015-48-59%20VIGI%20SP9030%20VIGI%20Intelligent%20Solar%20Power%20Supply%20System%20TP-Link%20Malaysia.png)
![](/images/custom/site/Screenshot%202024-07-19%20at%2015-49-04%20VIGI%20SP9030%20VIGI%20Intelligent%20Solar%20Power%20Supply%20System%20TP-Link%20Malaysia.png)
Solar Panel (Photovoltaic Panel) | |
---|---|
Power | 90 W |
Voltage | 18 V |
Dimensions (L x W x H) | 998×516×30 mm (39.3×20.3×1.2 in) |
Battery | |
---|---|
Type | Lithium |
Intelligent Auxiliary Heat | Yes |
Battery Capacity | 31.2 Ah |
Voltage | 10.8 V |
Max. Output Voltage | 12.6 V |
Life | More than 500 cycles |
Dimension | 250×74×74 mm (9.8×2.9×2.9 in) |
Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
Angle Adjustment (Manual) | |
---|---|
Range | 5°/15°/25°/35°/45°/55° |
HARDWARE | |
---|---|
Interface | • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue |
SOFTWARE FEATURES | |
---|---|
Load Control | Yes |
High and Low Temperature Protection | Yes |
Overdischarge Protection | Yes |
Power Consumption Statistics | Yes |
Displays Real-time Load Status | Yes |
Battery Level Display | Yes |
Time Zone Selection | Yes |
Region Selection | Yes |
Schedule Saving | Yes |
Firmware Remote Update | Yes |
Remote Reboot | Yes |
Local LAN Management | Yes |
Smart Charging Control | -30°C~5°C |
Account Management | Yes |
Web Management | Yes |
Remote Reset | Yes |
Remote Message Push | Yes |
OTHERS | |
---|---|
Certification | • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 |
Box Dimensions (W X D X H) | 1110×615×225 mm (43.7×24.2×8.9 in) |
Weight | • Product Weight: 15 kg • Package Weight: 17.5 kg |
Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
