TP-Link VIGI SP6020

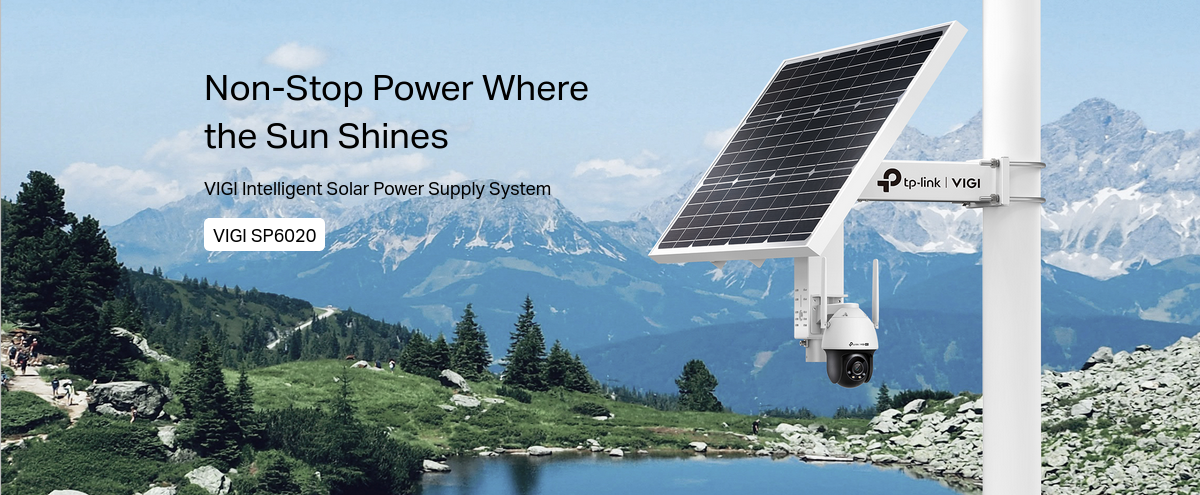

VIGI Intelligent Solar Power Supply System
- 60W Photovoltaic Panel and 20.8Ah/10.8V Lithium Battery
- 3× DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
![](/images/custom/site/Screenshot%202024-07-19%20at%2015-21-55%20VIGI%20SP6020%20VIGI%20Intelligent%20Solar%20Power%20Supply%20System%20TP-Link%20Chile.png)
![](/images/custom/site/Screenshot%202024-07-19%20at%2015-22-05%20VIGI%20SP6020%20VIGI%20Intelligent%20Solar%20Power%20Supply%20System%20TP-Link%20Chile.png)

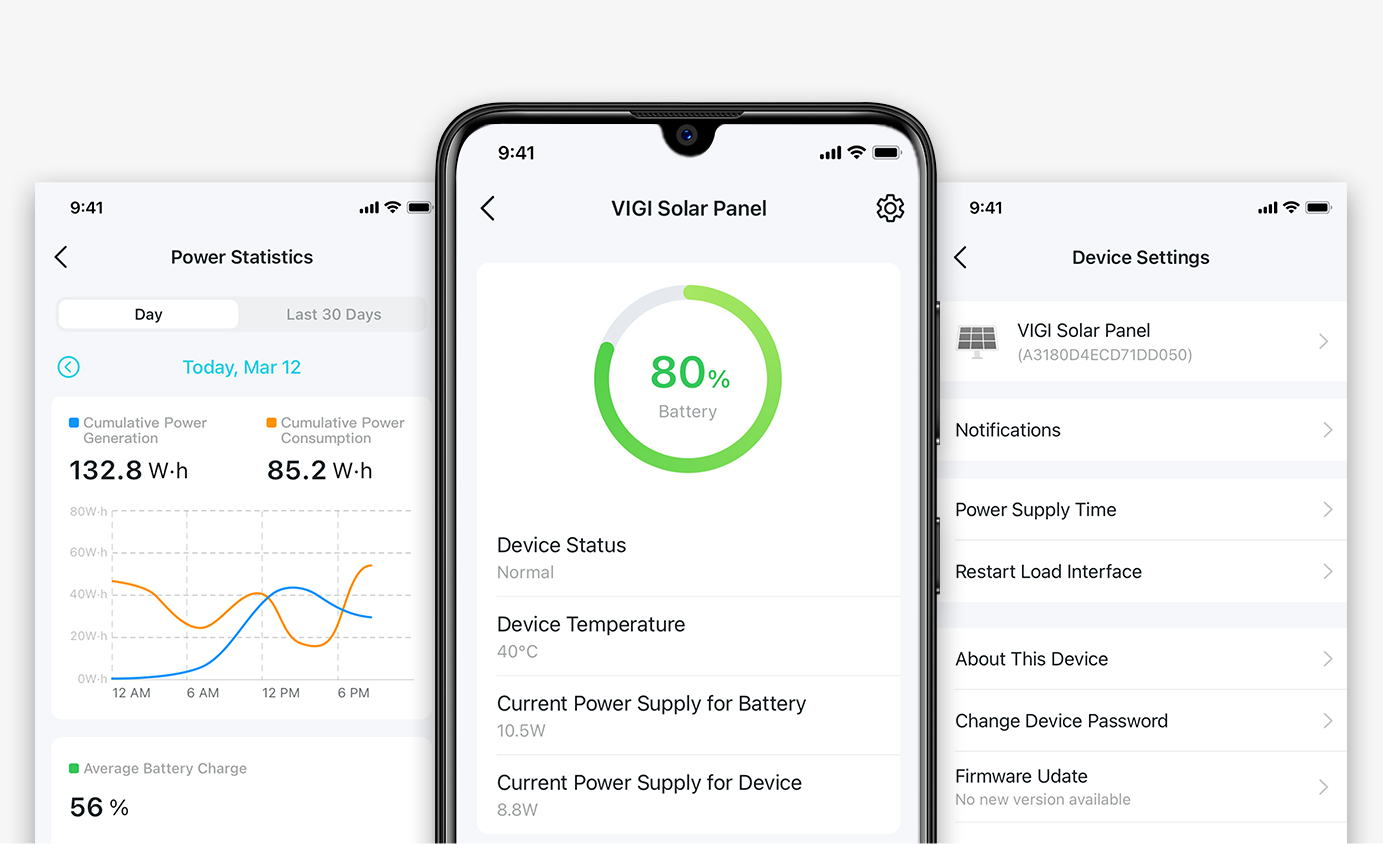

Remote Management
Control devices centrally, monitor power statistics, get low-battery alerts, update firmware, and reboot
the system via the mobile app. Enjoy peace of mind, no matter your location.
![](/images/custom/site/20240719152224.jpg)

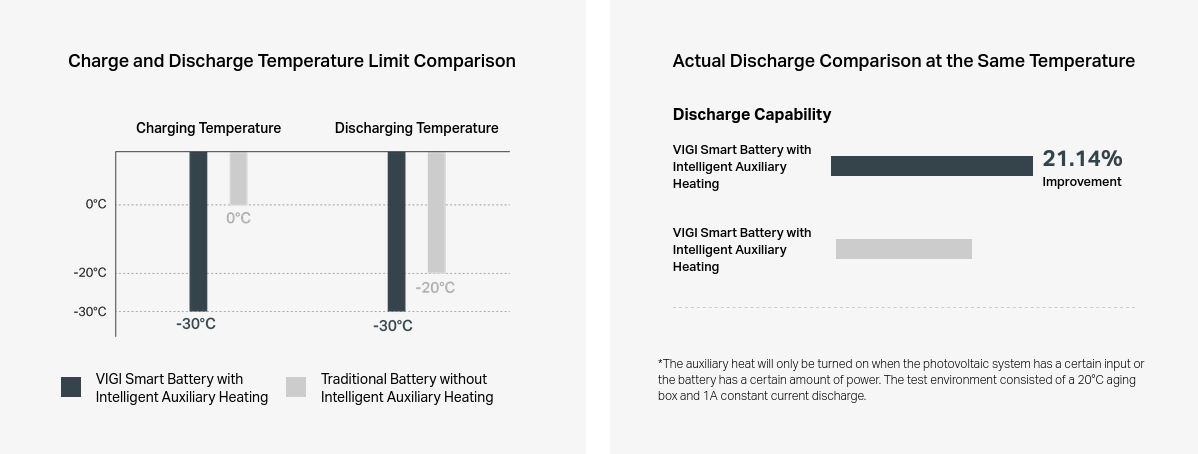

Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.
![](/images/custom/site/Screenshot%202024-07-19%20at%2015-22-45%20VIGI%20SP6020%20VIGI%20Intelligent%20Solar%20Power%20Supply%20System%20TP-Link%20Chile.png)
Solar Panel (Photovoltaic Panel) | |
---|---|
Power | 60 W |
Voltage | 18 V |
Dimensions (L x W x H) | 690×516×30 mm (27.2×20.3×1.2 in) |
Battery | |
---|---|
Type | Lithium |
Intelligent Auxiliary Heat | Yes |
Battery Capacity | 20.8 Ah |
Voltage | 10.8 V |
Max. Output Voltage | 12.6 V |
Life | More than 500 cycles |
Dimension | 242×70×55 mm (9.5×2.8×2.2 in) |
Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
Angle Adjustment (Manual) | |
---|---|
Range | 5°/15°/25°/35°/45°/55° |
HARDWARE | |
---|---|
Interface | • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue |
SOFTWARE FEATURES | |
---|---|
Load Control | Yes |
High and Low Temperature Protection | Yes |
Overdischarge Protection | Yes |
Power Consumption Statistics | Yes |
Displays Real-time Load Status | Yes |
Battery Level Display | Yes |
Time Zone Selection | Yes |
Region Selection | Yes |
Schedule Saving | Yes |
Firmware Remote Update | Yes |
Remote Reboot | Yes |
Local LAN Management | Yes |
Smart Charging Control | -30°C~5°C |
Account Management | Yes |
Web Management | Yes |
Remote Reset | Yes |
Remote Message Push | Yes |
OTHERS | |
---|---|
Certification | • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 |
Box Dimensions (W X D X H) | 800×615×225 mm (31.5×24.2×8.9 in) |
Weight | • Product Weight: 13 kg • Package Weight: 14.5 kg |
Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
