IP видеорекордер TP-Link VIGI NVR1104H-4P, 4 канала, 1x SATA до 10TB, 2x USB 2.0, 1x RJ-45 100Mbps

TP-Link VIGI NVR1104H-4P

Security Never Shuts Down

VIGI NVR1104H-4P4 Channel PoE Network Video Recorder

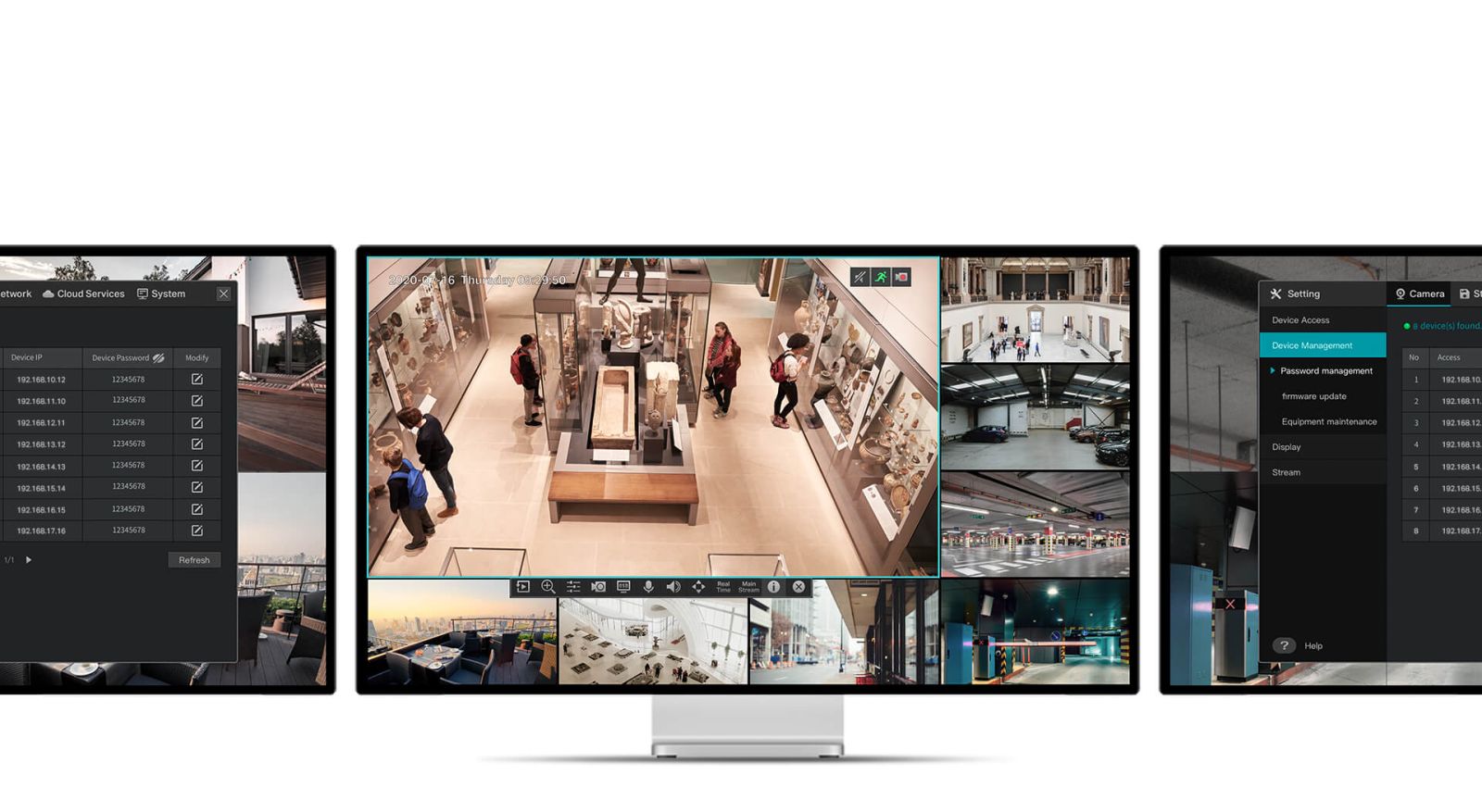

Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle



Specifications:

ИНТЕРФЕЙСИ
Мрежов интерфейс	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0

ОБЩИ ХАРАКТЕРИСТИКИ
Съдържание на пакета	VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide
Околна температура при работа	-10–55 °C
Размери (Ш x Д x В )	200.3 × 200.3 × 43 mm
PoE	Standard: 802.3af/at PoE Ports: Ports 1-4 PoE Budget: 53 W
Външно захранване	53.5V DC/1.31A
Power Consumption	4.82 W (without disk)

ВИДЕО/СНИМКА
Video Input	4-Channel IP Video Input, up to 8MP Resolution
Recording Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz

DECODING
Decoding Format	H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF
Synchronous Playback	4 Channel
Capability	2-ch @ 8MP, 4-ch @ 4MP

HARD DISK
SATA	1 SATA Interface
Capacity	Up to 10 TB

МРЕЖА
Protocol	TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith	80 Mbps
Outgoing Bandwidth	60 Mbps
