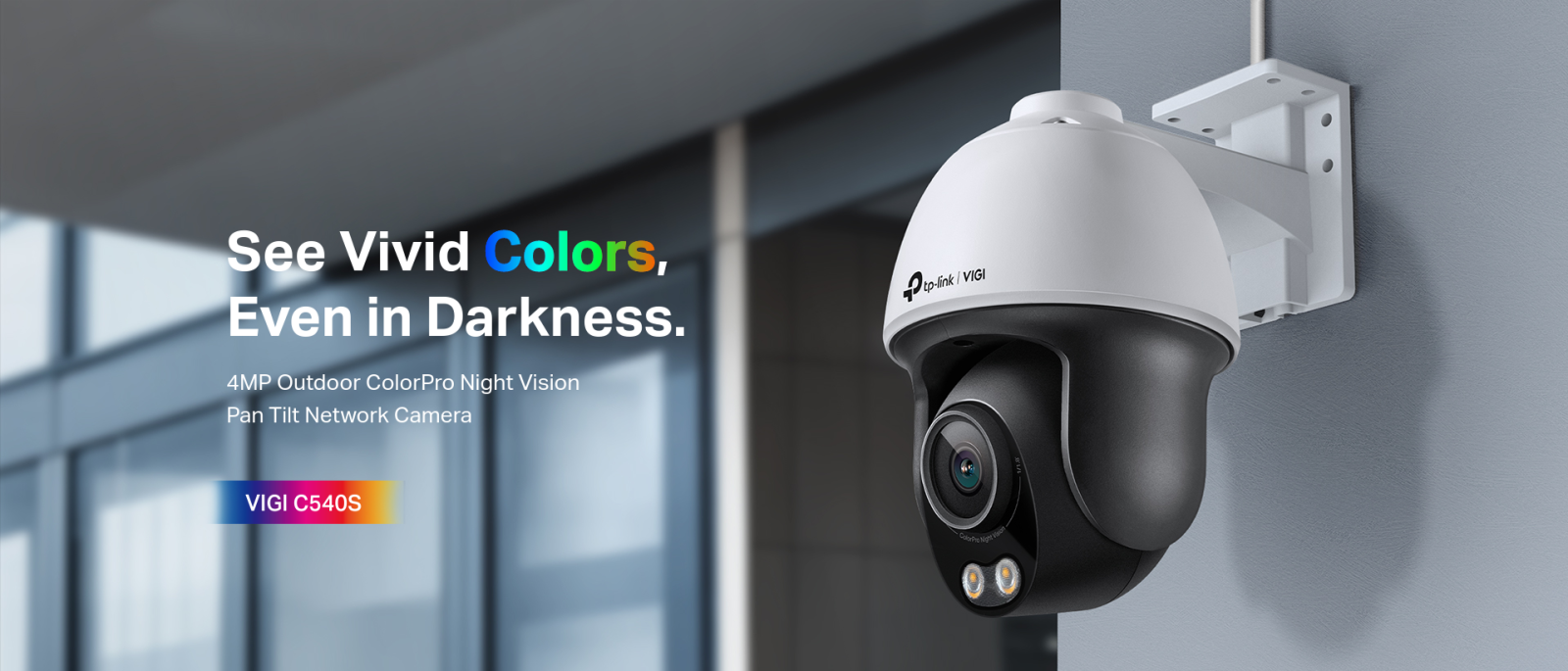

VIGI C540S
VIGI 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera
- Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Face Recognition*: Efficiently enhances access management and attendance control while better protecting privacy.*
- People & Vehicle Analytics*: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.*
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- True WDR Technology§: Enable crystal-clear images in high contrast scenes.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
VIGI ColorPro Night Vision
VIGI’s industry-leading ColorPro Night Vision technology enables its cameras to pierce the night and see everything in fine detail.
By adopting this best-in-class technology, VIGI C540S can provide 4MP high resolution and capture more vivid full-color images
in extreme low-light conditions.
Better than the Naked Eye
Featuring high low-light sensitivity, VIGI’s ColorPro Night Vision produces unparalleled colors along with amazingly crisp images in
ultra-low light conditions, which can’t be achieved with natural eyesight.

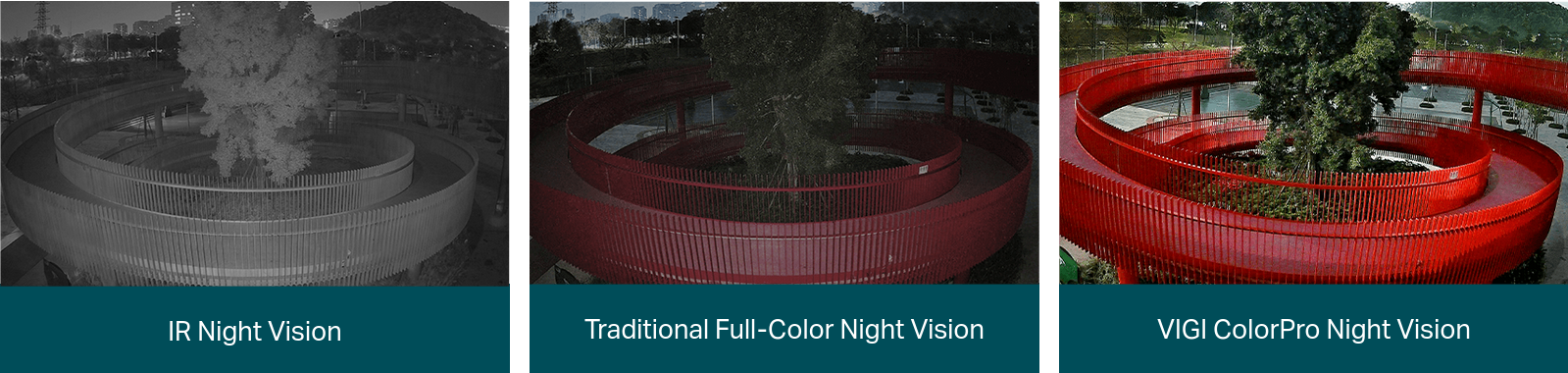

Beyond IR, Beyond Full-Color
Images captured by IR cameras or traditional full-color cameras will suffer from digital noise and the loss of detail. VIGI’s ColorPro Night
Vision cameras reveal excellent image details even in extreme darkness.
Less Light Pollution
Bright illumination is required by conventional full-color cameras to capture images at pitch-dark hours. But VIGI's ColorPro Night Vision cameras
delivers true color and bright imaging even in extremely low light with no spotlights needed, greatly reducing environmental light pollution.

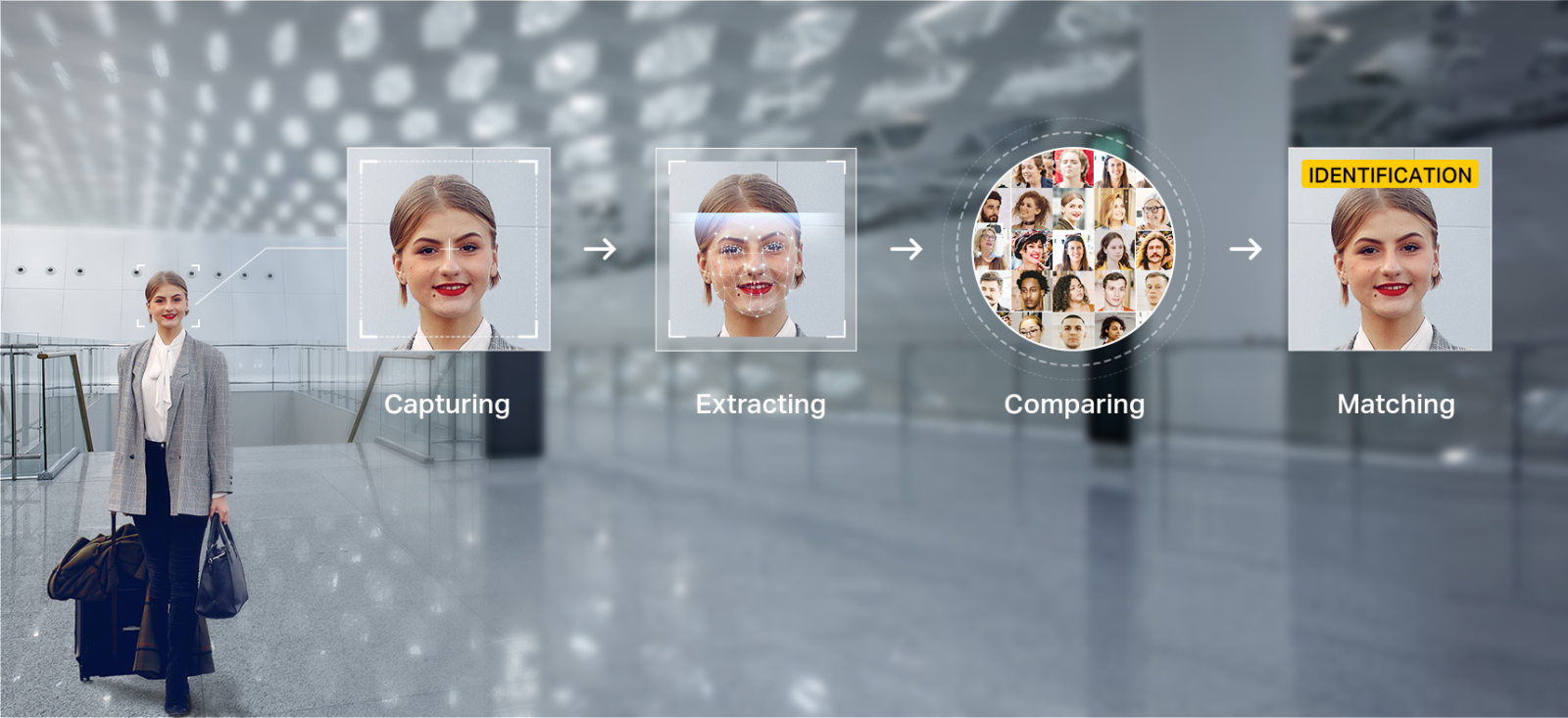

Face Recognition
VIGI’s advanced built-in face recognition algorithm enables cameras to intelligently capture faces, extract facial features, and form unique facial data. By comparing the facial data with a face library, quickly match a human face, efficiently reducing the risk of unauthorized access.
People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.
People AnalyticsFilter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency. | |
Vehicle AnalyticsIdentify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time. | |
Active DefenseWarn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene. | |
Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere. |

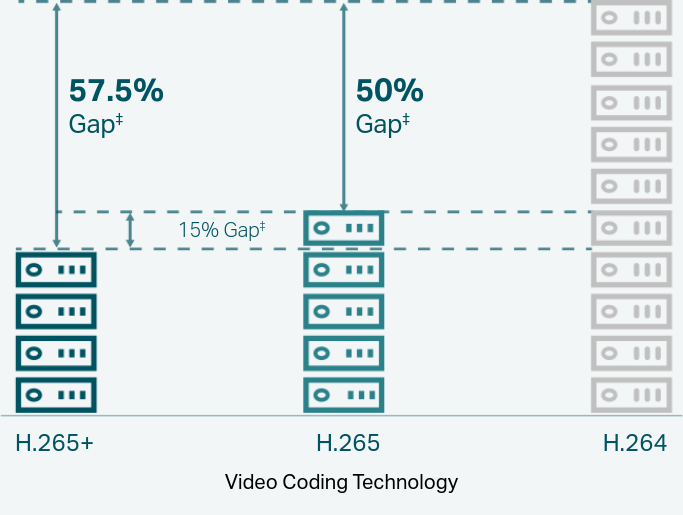

Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Specifications:
CAMERA | |
---|---|
Image Sensor | 1/1.79” Progressive Scan CMOS |
Day/Night Switch | Unified/Scheduled/Auto |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.0005 Lux; 0 Lux with White Light |
Day/Night Mechanism | N/A |
LENS | |
---|---|
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.0±5% |
FOV | 4mm: Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127° |
Lens Mount | M16*P 0.5 |
DORI Distance | 4 mm: Detect: 63 m (207 ft) Observe: 26 m (86 ft) Recognize: 13m (41 ft) Identify: 6 m (21 ft) |
Angle Adjustment (Manual) | |
---|---|
Range | Pan: 0° to 348° Tilt: 0° to 105° |
PTZ | |
---|---|
Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 105° |
Pan/tilt Speed | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed: 44°/s |
Manual Control Speed | Configurable from 8° to 35°/s |
Presets | 300 |
Patrol Scan | 8 patrols, up to 8 presets for each patrol |
Power-off Memory | Yes; Auto restore to previous PTZ and lens status after power failure |
Park Action | Yes; Preset; Patrol Scan |
3D Positioning | Yes |
ILLUMINATOR | |
---|---|
IR LED | N/A |
White LED | Quantity: 2 Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
---|---|
Max. Resolution | 2688 x 1520 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
Image | |
---|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/HLC |
Wide Dynamic Range | 120dB Note: When Face Recognition s is enabled, only DWDR is supported. |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
---|---|
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
---|---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
ONVIF | Yes |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, Web UI |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
---|---|
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame |
Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
Linkage Method | N/A |
Output Notification | Message Push |
Deep Learning Function | |
---|---|
People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Face Capture | Support |
Face Comparison | Support |
INTERFACES | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
---|---|
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Material | Plastic |
Power Supply | 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16.47 W |
Protection | IP66 |
Product Dimensions (L x W x H) | 120 × 172 × 203 mm |
