Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

VIGI 4MP Full-Color Wi-Fi Turret Network Camera

Name: IP камера TP-Link VIGI C440-W, куполна камера, 4Mpix(25601440@30fps), 4mm обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 30 метра), за вътрешен монтаж, Wi-Fi, RJ-45, PoE (802.3af/at), микрофон, високоговорител, MicroSD слот
Brand: TP-Link
SKU: SCMDGTPLINKVIGIC440W4MM
Price: 161.16 BGN
Availability: InStock
Rating: 5.00 (1 reviews)

4MP Ultra-High Definition: The VIGI C440 comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
Wireless Connection: Simple and quick deployment with Wi-Fi signals.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+ Smart Coding: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

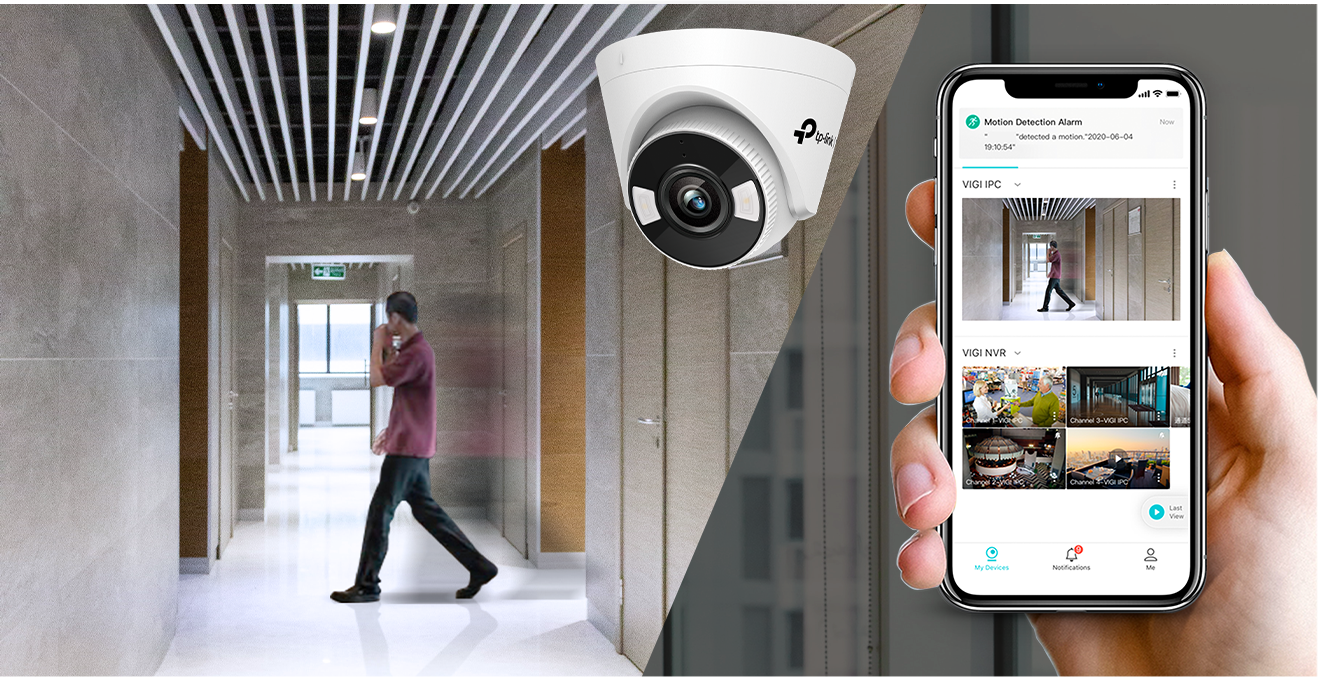

Remote Monitoring: Manage your security from the palm of your hand with the VIGI app.

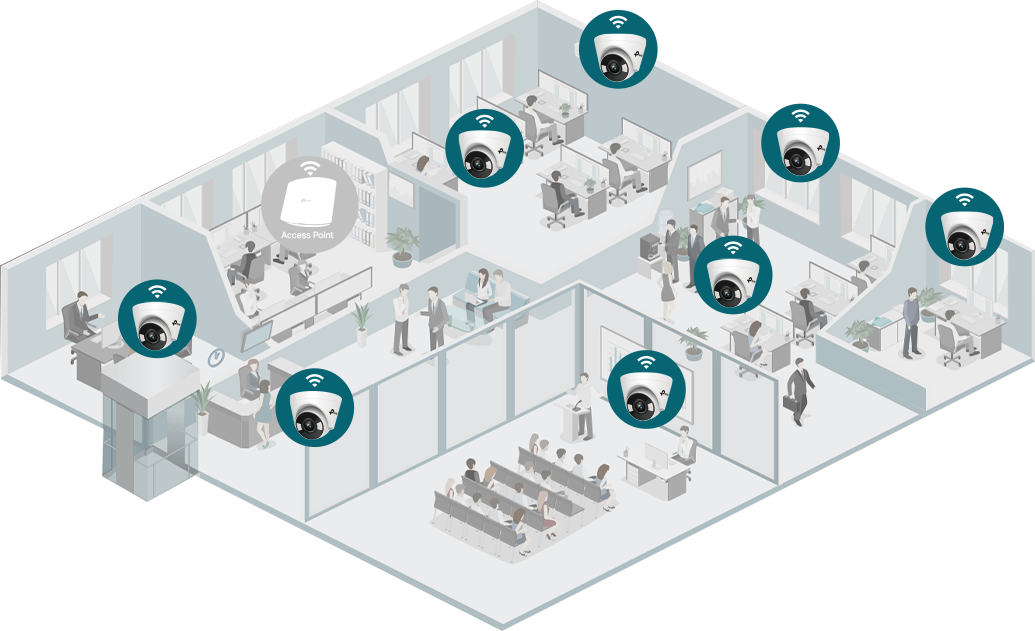

Simple and Fast
Wireless Connection

Enjoy simple wiring with Wi-Fi signals. Just power up your camera, then the transmission starts with its built-in 2×2 MIMO antennas.

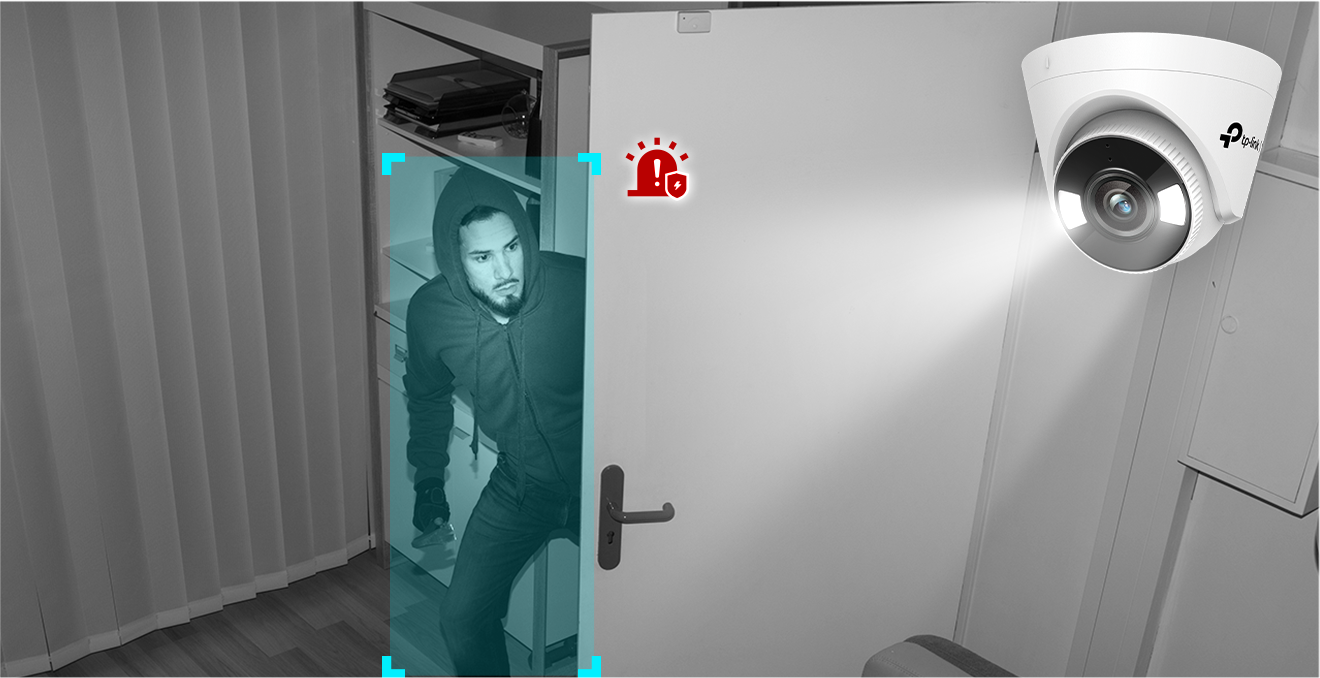

Active Defense

Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.

Every Event is Under Your Control.

VIGI cameras intelligently detects activities, inform you instantly and respond automatically by smart detection and two-way audio.

Specifications:

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
Lens Mount	M12
DORI Distance	Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)

VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Видео компресия	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 3 Mbps Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Quantity: 2 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

Angle Adjustment (Manual)
Range	Pan: 0° to 360° Tilt: 0° to 85° Rotate: 0° to 360°

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

АУДИО
Аудио комуникация	Two-Way Audio
Аудио вход	Yes
Аудио изход	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

МРЕЖА
Защита	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate	11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
Frequency	2.4 GHz
Wireless Security	WPA/WPA2-PSK
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
ONVIF	Yes

ИНТЕРФЕЙСИ
Мрежов интерфейс	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Бутони	-
Slot	Micro SD card
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

ОБЩИ ХАРАКТЕРИСТИКИ
Съдържание на пакета	VIGI Network Camera Quick Start Guide Screws and Anchors Mounting Template
Околна температура при работа	-30–60 °C
Storage Temperature	-40–60 °C
Storage Humidity	95% or Less (Non-Condensing)
Околна влажност при работа	95% or Less (Non-Condensing)
Размери	123 × 123 × 84 mm
Material	Plastic
Тегло	195 g
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Net Weight	0.24 Kg
Gross Weight	0.53 Kg
Power Consumption	12V DC: Max 7W
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Antenna	Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi
Protection	N/A
Product Dimensions (L x W x H)	123× 83× 123 mm
Certifications	CE, FCC, RCM, BSMI, VCCI, RoHS

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
WiFi Channels	1-13
Честота	2.4 GHz
Предавателна безжична мощност	High
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Throughput Mornitor	N/A
Radio Bandwidth	Auto: N/A 20M: Yes 40M: Yes
Wireless Rate	11Mbps(802.11b) 54Mbps(802.11g) 150/300Mbps(802.11n)
Wireless Security	PWPA/WPA2-PSK
Wireless Mode	AP, AP Client

ВИДЕО/СНИМКА
Видео компресия	Main stream: H.265/H.264 Sub-Stream: H.265/H.264
Кадрова скорост и резолюции	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
Настройки на изображението	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	64 Kbps to 6 Mbps

SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

Камера
Светлочувствителен сензор	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Обектив	Fixed focal lens (4 mm)
Aperture	2.8 mm: F1.6 4 mm: F1.6
Lens Mount	M12
Зрителен ъгъл	(2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122° (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
IR Working Distance	30m
Illumination Distance	30m
Pan/Tilt Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Digital Noise Reduction	3D DNR
WDR	DWDR

Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията

Документация

TP-Link VIGI C440-W V1 - network surveillance camera - turret Brochure

Технически характеристики

Вид:	Куполни камери
Външен монтаж:	Не
Безжична:	Да
IR Осветление:	Да
Мрежова:	Да
Разделителна способност, max:	4MP
Аудио:	Двупосочно (Мик+Гов)
