TP-Link VIGI C340S(4mm)
VIGI C340S

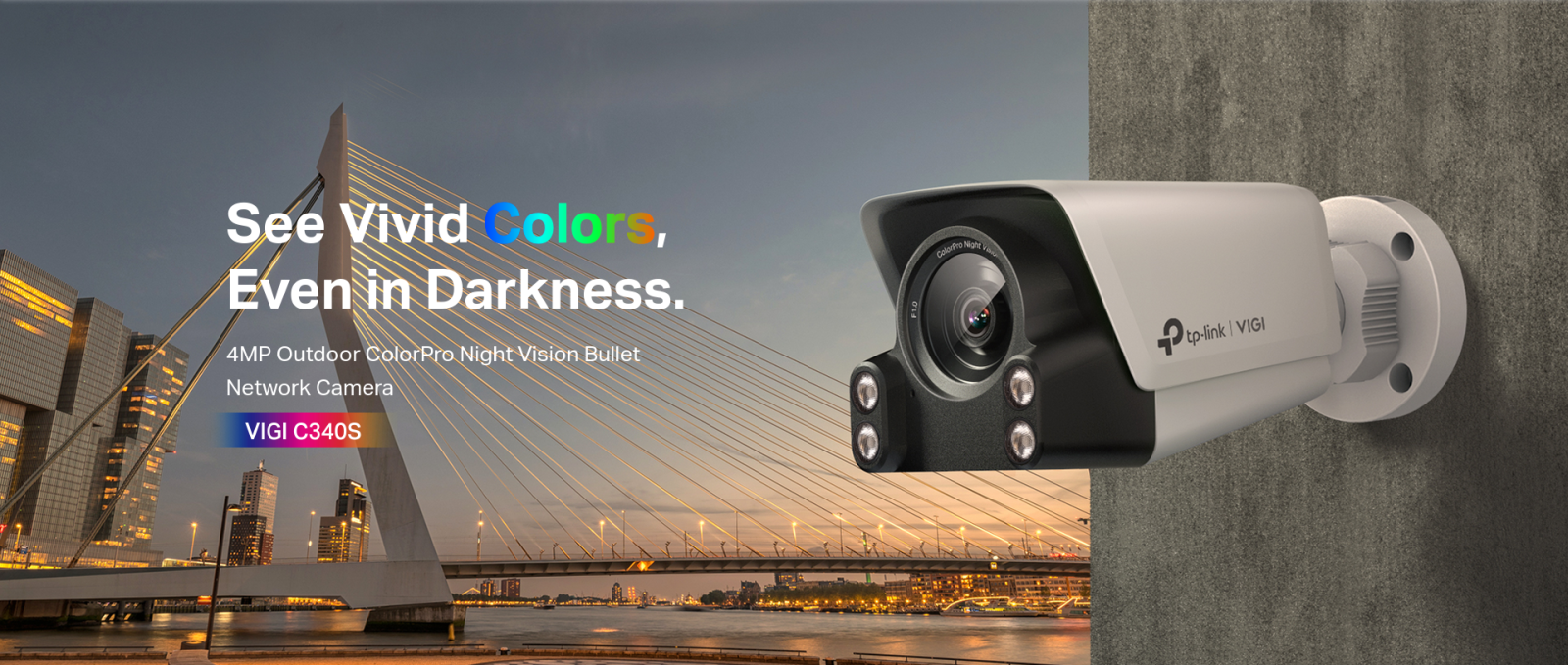

VIGI 4MP Outdoor ColorPro Night Vision Bullet Network Camera
Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
Face Recognition: Efficiently enhances access management and attendance control while better protecting privacy§.
People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency§.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
True WDR‡: Enable crystal-clear images in high contrast scenes.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP67 Waterproof: Reliable IP67 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot† (up to 512 GB).
![](/images/custom/site/Screenshot%202024-07-18%20at%2013-09-02%20VIGI%20C340S%20VIGI%204MP%20Outdoor%20ColorPro%20Night%20Vision%20Bullet%20Network%20Camera%20TP-Link.png)
![](/images/custom/site/Screenshot%202024-07-18%20at%2013-09-48%20VIGI%20C340S%20VIGI%204MP%20Outdoor%20ColorPro%20Night%20Vision%20Bullet%20Network%20Camera%20TP-Link.png)
VIGI ColorPro Night Vision
VIGI’s industry-leading ColorPro Night Vision technology enables its cameras to pierce the night and see everything in fine detail.
By adopting this best-in-class technology, VIGI C340S can provide 4MP high resolution and capture more vivid full-color images
in extreme low-light conditions.
![](/images/custom/site/Screenshot%202024-07-18%20at%2013-10-52%20VIGI%20C340S%20VIGI%204MP%20Outdoor%20ColorPro%20Night%20Vision%20Bullet%20Network%20Camera%20TP-Link.png)
Less Light Pollution
Bright illumination is required by conventional full-color cameras to capture images at pitch-dark hours. But VIGI's ColorPro Night Vision cameras
delivers true color and bright imaging even in extremely low light with no spotlights needed, greatly reducing environmental light pollution.
![](/images/custom/site/Screenshot%202024-07-18%20at%2013-11-40%20VIGI%20C340S%20VIGI%204MP%20Outdoor%20ColorPro%20Night%20Vision%20Bullet%20Network%20Camera%20TP-Link.png)
Specifications:
Камера | |
---|---|
Светлочувствителен сензор | 1/1.8” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.0005 Lux; 0 Lux with white light |
Day/Night Mechanism | NA |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
---|---|
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.0 |
FOV | 4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
Lens Mount | M16*P 0.5 |
DORI Distance | 4 mm: Detect: 70 m (231 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft) |
Angle Adjustment (Manual) | |
---|---|
Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR | |
---|---|
IR LED | N/A |
White LED | Quantity: 4 Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
---|---|
Max. Resolution | 2688 x 1520 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 705x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Видео компресия | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
Image | |
---|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°) |
Image Enhancement | BLC/3D DNR/HLC |
Wide Dynamic Range | 120 dB |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
АУДИО | |
---|---|
Аудио комуникация | Two-Way Audio |
Аудио вход | Yes |
Аудио изход | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw) |
МРЕЖА | |
---|---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
ONVIF | Yes |
API | Open Network Video Interface (Profile S) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, Web UI |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Cloud | Yes |
Защита | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА | |
---|---|
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Abnormal Sound Detection, Scene Change Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
Linkage Method | N/A |
Output Notification | Message Push |
Deep Learning Function | |
---|---|
People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Face Capture | Support |
Face Comparison | Support |
ИНТЕРФЕЙСИ | |
---|---|
Мрежов интерфейс | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
ОБЩИ ХАРАКТЕРИСТИКИ | |
---|---|
Околна температура при работа | -30–60 °C |
Storage Temperature | -40–60 °C |
Околна влажност при работа | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Material | Front Cover: Metal Back Cover: Plastic |
Power Supply | 12V DC ± 5%, Max. 10.1 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 11.5 W |
Protection | IP67 |
Product Dimensions (L x W x H) | 102× 236× 99 mm |
Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията
Технически характеристики
Вид: | Насочени ("bullet") камери |
---|---|
Външен монтаж: | Да |
Безжична: | Не |
IR Осветление: | Не |
Мрежова: | Да |
Разделителна способност, max: | 4MP |
Аудио: | Двупосочно (Мик+Гов) |
