TP-Link VIGI C330(4mm)
НазадTP-Link VIGI C330(4mm)TP-Link VIGI C330(4mm)TP-Link VIGI C330(4mm)TP-Link VIGI C330(4mm)Напред

IP камера TP-Link VIGI C330(4mm), насочена "bullet" камера, 3Mpix(2304x1296@30FPS), 4mm обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 30 метра), външна IP67, PoE, микрофон

id 276853 Код: SCMDGTPLINKVIGIC3304MM
136.37 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

VIGI C330

VIGI 3MP Outdoor Full-Color Bullet Network Camera

  • 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.

  • IP67 Waterproof: Reliable IP67 for stable outdoor performance.

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

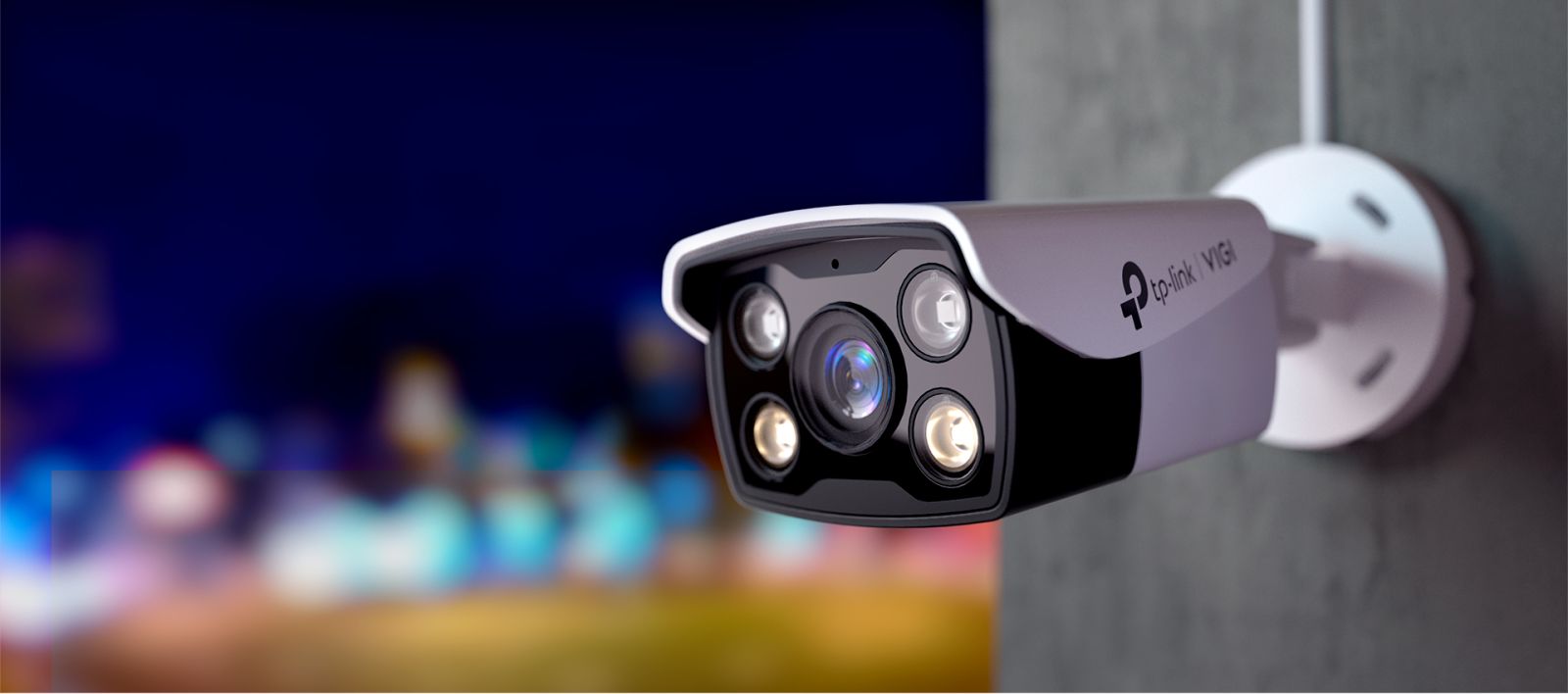

All The Colors, All The Time

3MP Outdoor Full-Color Bullet Network Camera





Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.





We keep an eye on your business.

Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.



No more silent surveillance.

Built-In Microphone

The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.



Outdoor PoE Connection, Simple Wiring

Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.



LENS
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOV4 mm:
Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
Lens MountM12
DORI Distance4 mm:
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
VIDEO
Max. Resolution2304 × 1296
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Видео компресияMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Angle Adjustment (Manual)
RangePan: -90° to 90°
Tilt: -90° to 90°
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
АУДИО
Аудио комуникацияN/A
Аудио входN/A
Аудио изходN/A
Audio CompressionN/A
Audio Sampling RateN/A
Environment Noise FilteringN/A
Audio Bit RateN/A
МРЕЖА
ЗащитаPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network StorageNAS (NFS, SMB/ CIFS)
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
ONVIFYes
ИНТЕРФЕЙСИ
Мрежов интерфейс1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
Бутони-
Video Output-
On-board Storage-
Built-in MicrophoneYes
Built-in SpeakerN/A
AudioN/A
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageWhite Light Flashing, Message Push
Linkage MethodN/A
Output NotificationMessage Push
ОБЩИ ХАРАКТЕРИСТИКИ
Съдържание на пакетаVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Околна температура при работа-30–60 °C
Storage Temperature-40–60 °C
Storage Humidity95% or Less (Non-Condensing)
Околна влажност при работа95% or Less (Non-Condensing)
Размери174 × 78 × 70 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.26 Kg
Gross Weight0.4 Kg
Power ConsumptionMaximum: 5.4 W
Typical (Day Mode): 1.93 W
Typical (Night Mode with IR LED): 2.84 W
Typical (Night mode with White LED): 4.35 W
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
ProtectionIP67
Product Dimensions (L x W x H)174 × 78 × 71 mm
CertificationsCE/BSMI/VCCI/ONVIF
ВИДЕО/СНИМКА
Видео компресияMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Кадрова скорост и резолюцииMain Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution3MP (2304 × 1296)
Видео стриймингMain Stream
Sub-Stream
Настройки на изображениетоMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
SMART FEATURE-SET
Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
Камера
Светлочувствителен сензор1/2.8” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum IlluminationColor: 0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchDay/Night/Auto/Schedule-Switch
Aperture2.8 mm: F1.6
Lens MountM12
IR Working Distance30m
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP67




    Виж още Цифрови IP камери TP-Link
    Виж всички Цифрови IP камери в категорията
    Технически характеристики
    Вид:  Насочени ("bullet") камери
    Външен монтаж:  Да
    Безжична:  Не
    IR Осветление:  Да
    Мрежова:  Да
    Разделителна способност, max:  3MP
    Аудио:  Микрофон
