VIGI C330
VIGI 3MP Outdoor Full-Color Bullet Network Camera
- 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IP67 Waterproof: Reliable IP67 for stable outdoor performance.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

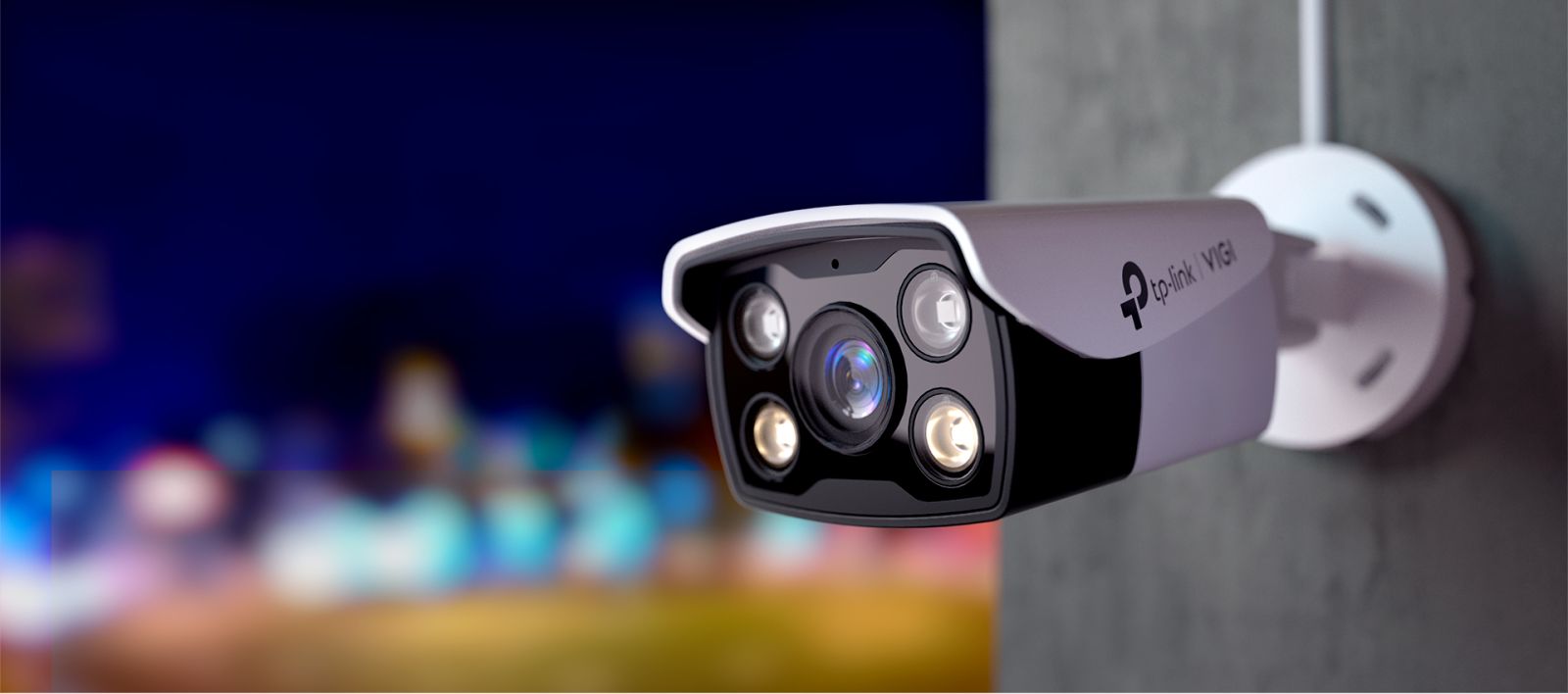

All The Colors, All The Time
3MP Outdoor Full-Color Bullet Network Camera

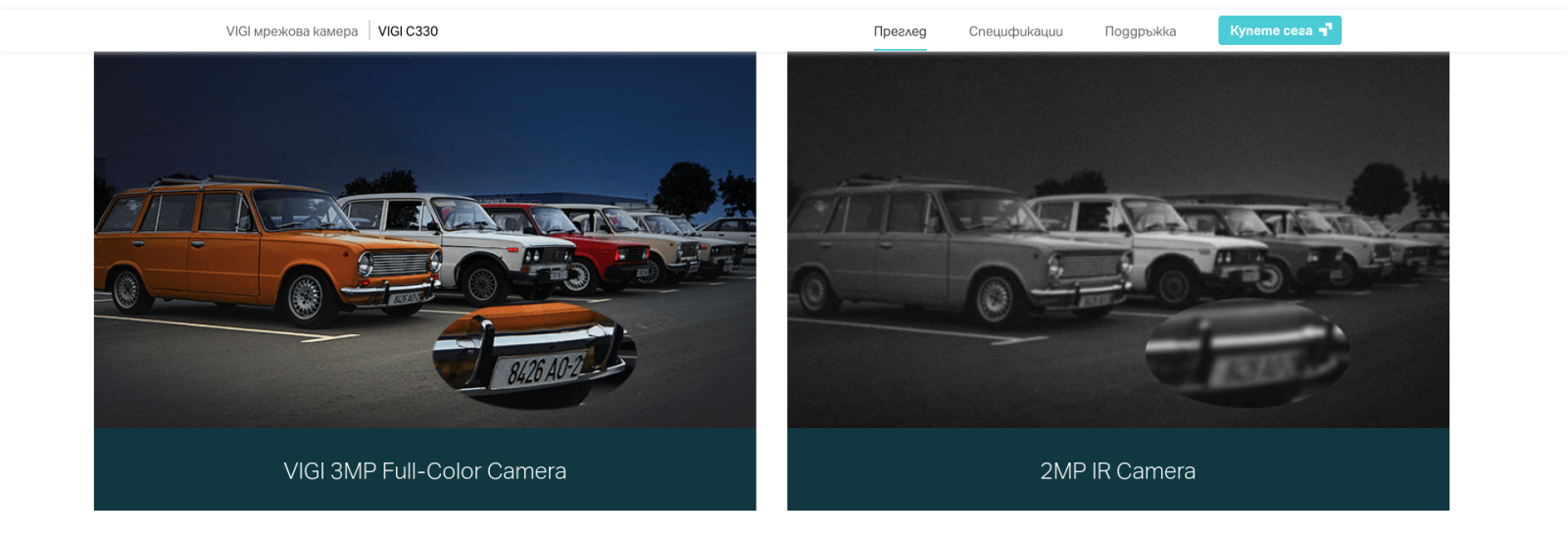

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.

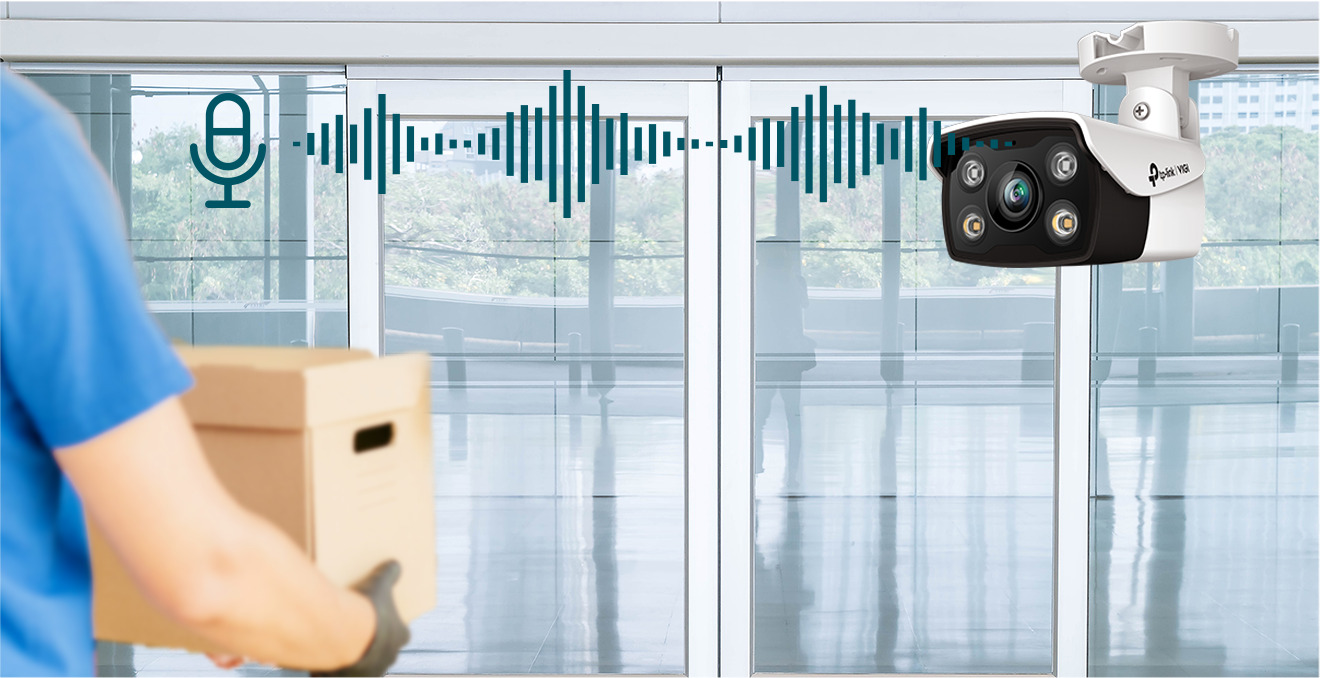

Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

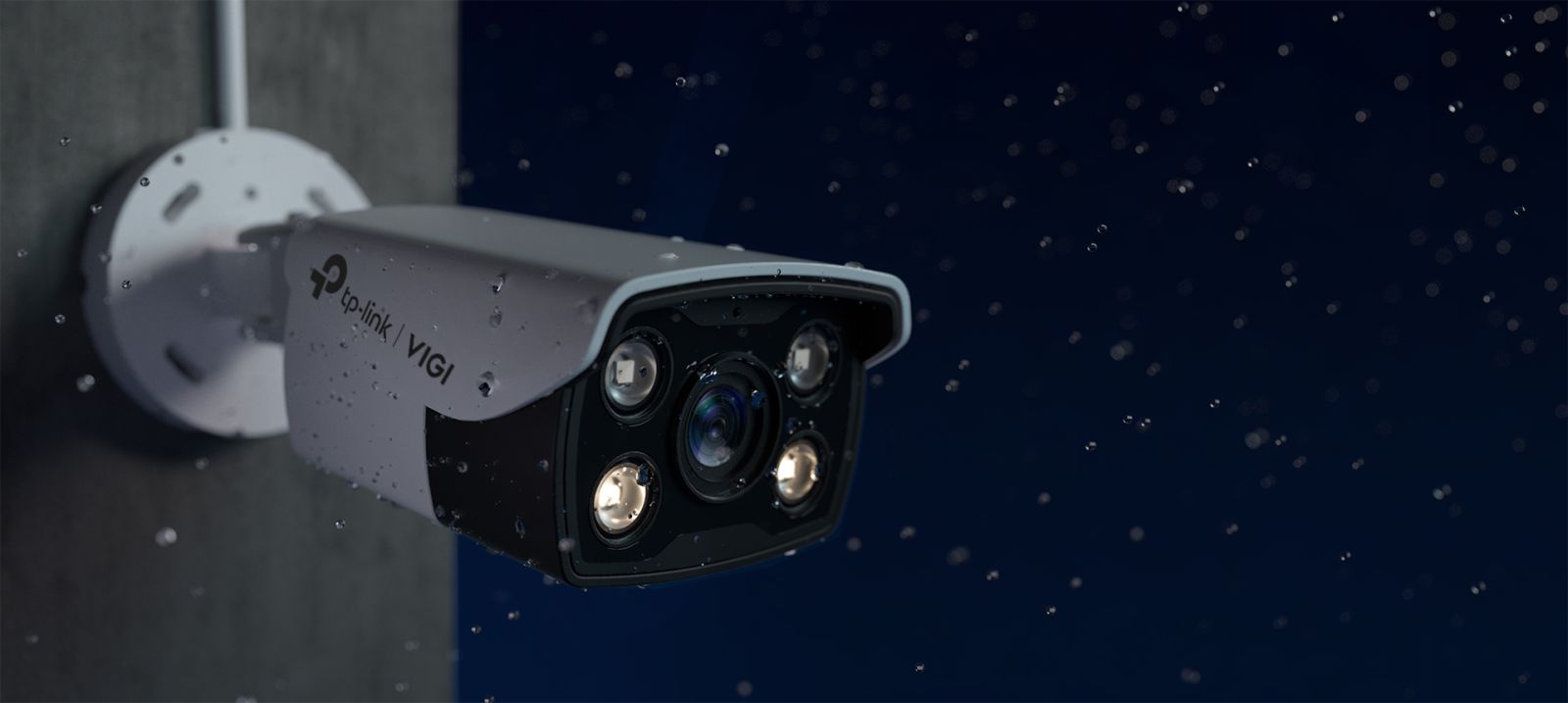

Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
LENS | |
---|---|
Type | Fixed Focal Lens |
Focal Length | 2.8 mm |
Aperture | F1.6 |
FOV | 2.8 mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7° |
Lens Mount | M12 |
DORI Distance | 2.8 mm: Detect: 52 m (170 ft) Observe: 22 m (71 ft) Recognize: 10 m (34 ft) Identify: 5 m (17 ft) |
VIDEO | |
---|---|
Max. Resolution | 2304 × 1296 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Видео компресия | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
ILLUMINATOR | |
---|---|
IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
White LED | N/A |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Angle Adjustment (Manual) | |
---|---|
Range | Pan: -90° to 90° Tilt: -90° to 90° |
Image | |
---|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | DWDR |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
АУДИО | |
---|---|
Аудио комуникация | N/A |
Аудио вход | N/A |
Аудио изход | N/A |
Audio Compression | N/A |
Audio Sampling Rate | N/A |
Environment Noise Filtering | N/A |
Audio Bit Rate | N/A |
МРЕЖА | |
---|---|
Защита | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Network Storage | NAS (NFS, SMB/ CIFS) |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Cloud | Yes |
ONVIF | Yes |
ИНТЕРФЕЙСИ | |
---|---|
Мрежов интерфейс | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Alarm | N/A |
Reset Button | N/A |
Power | DC Power Port |
Бутони | - |
Video Output | - |
On-board Storage | - |
Built-in Microphone | Yes |
Built-in Speaker | N/A |
Audio | N/A |
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА | |
---|---|
Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
Alarm Linkage | White Light Flashing, Message Push |
Linkage Method | N/A |
Output Notification | Message Push |
ОБЩИ ХАРАКТЕРИСТИКИ | |
---|---|
Съдържание на пакета | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Околна температура при работа | -30–60 °C |
Storage Temperature | -40–60 °C |
Storage Humidity | 95% or Less (Non-Condensing) |
Околна влажност при работа | 95% or Less (Non-Condensing) |
Размери | 174 × 78 × 70 mm |
Material | Plastic |
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Net Weight | 0.26 Kg |
Gross Weight | 0.4 Kg |
Power Consumption | Maximum: 5.4 W Typical (Day Mode): 1.93 W Typical (Night Mode with IR LED): 2.84 W Typical (Night mode with White LED): 4.35 W |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
Protection | IP67 |
Product Dimensions (L x W x H) | 174 × 78 × 71 mm |
Certifications | CE/BSMI/VCCI/ONVIF |
ВИДЕО/СНИМКА | |
---|---|
Видео компресия | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
Кадрова скорост и резолюции | Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
Max. Resolution | 3MP (2304 × 1296) |
Видео стрийминг | Main Stream Sub-Stream |
Настройки на изображението | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Video Bit Rate | 64 Kbps to 4 Mbps |
Day/Night Switch | Day/Night/Auto/Schedule |
SMART FEATURE-SET | |
---|---|
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
Камера | |
---|---|
Светлочувствителен сензор | 1/2.8” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Day/Night/Auto/Schedule-Switch |
Aperture | 2.8 mm: F1.6 |
Lens Mount | M12 |
IR Working Distance | 30m |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
Weatherproof Rating | IP67 |
