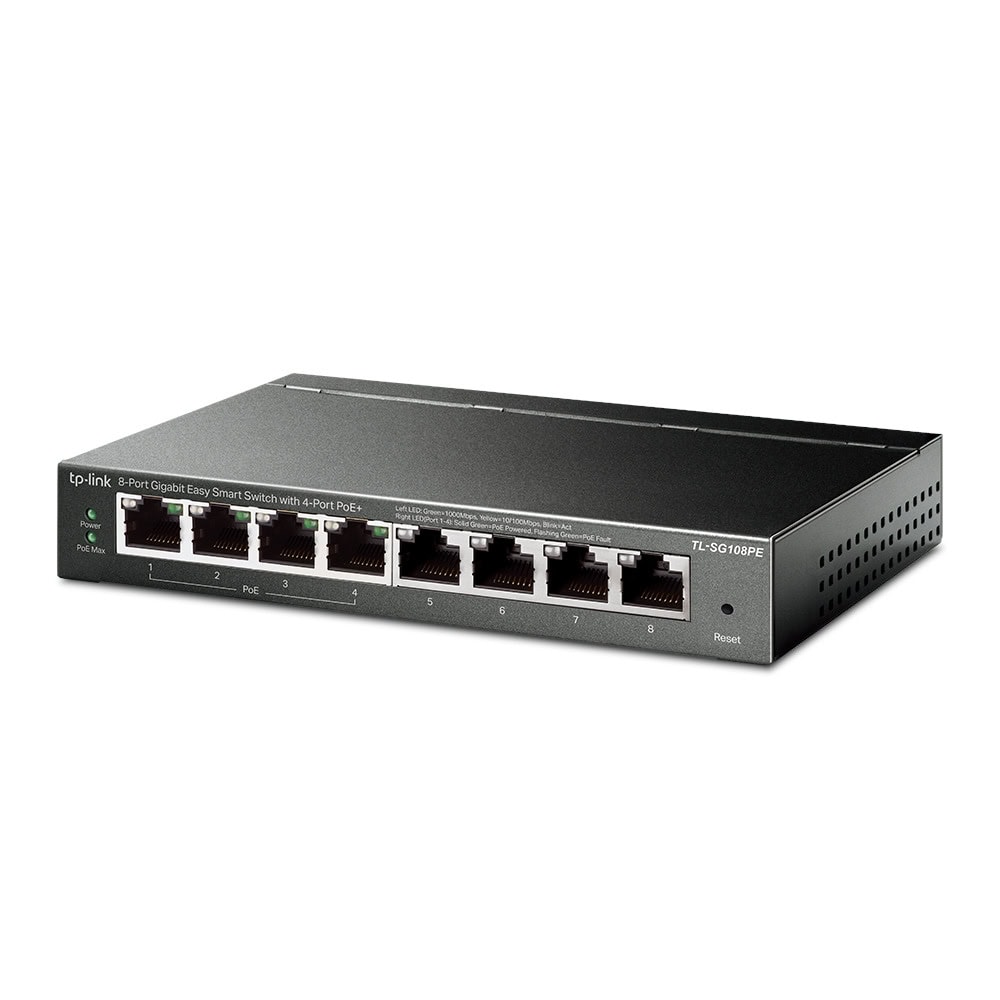

8-Port Gigabit Easy Smart Switch with 4-Port PoE
- 8 10/100/1000Mbps RJ45 ports
- With 4 PoE ports, data and power can be transferred on one single cable
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
Power Consumption
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
PERFORMANCE
Switching Capacity: 16Gbps
Packet Forwarding Rate: 11.9Mpps
MAC Address Table: 4K
Packet Buffer Memory: 1.5Mb
Jumbo Frame: 15KB
SOFTWARE FEATURES
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
- 8 10/100/1000Mbps RJ45 ports
- With 4 PoE ports, data and power can be transferred on one single cable
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
Power Consumption
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
PERFORMANCE
Switching Capacity: 16Gbps
Packet Forwarding Rate: 11.9Mpps
MAC Address Table: 4K
Packet Buffer Memory: 1.5Mb
Jumbo Frame: 15KB
SOFTWARE FEATURES
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Документация
Технически характеристики
Брой портове: | 8 |
---|---|
Максимална скорост: | 1 Gbit/s |
Стандарт: | 802.3af |
Управляем: | Да |
