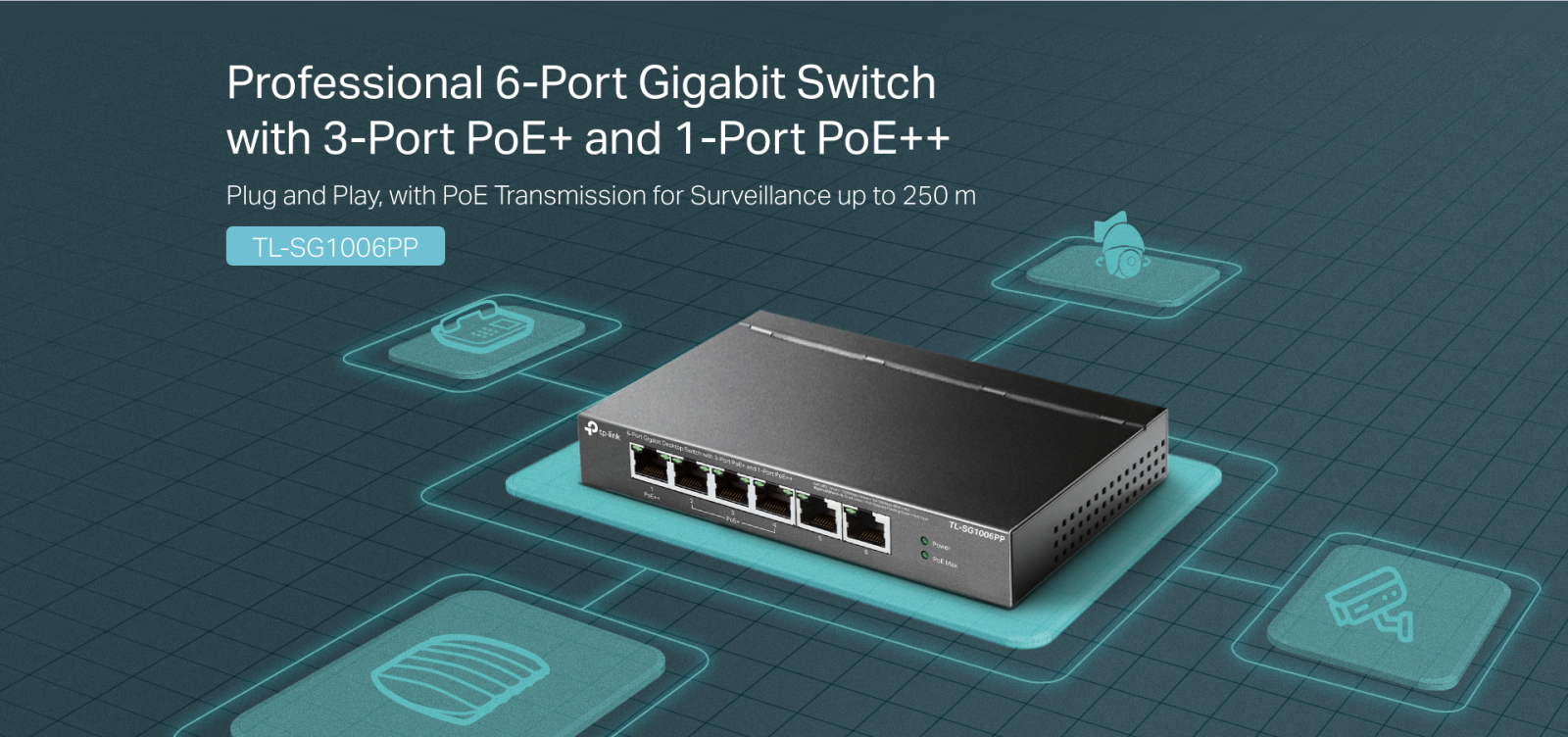

TP-Link TL-SG1006PP
6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- 6× 10/100/1000 Mbps RJ45 ports
- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
![](/images/custom/site/Screenshot%202024-03-07%20at%2012-18-19%206-Port%20Gigabit%20Desktop%20Switch%20with%203-Port%20PoE%20and%201-Port%20PoE.png)
![](/images/custom/site/Screenshot%202024-03-07%20at%2012-18-36%206-Port%20Gigabit%20Desktop%20Switch%20with%203-Port%20PoE%20and%201-Port%20PoE.png)

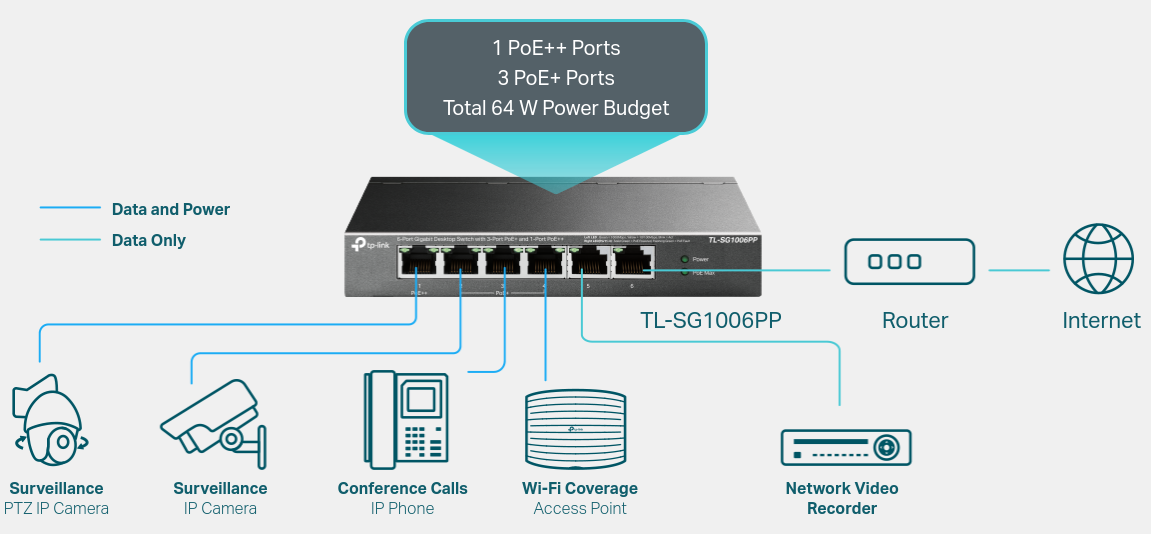

Dedicated 1 PoE++ and 3 PoE+ Ports (64 W Budget) for Numerous Applications
Port 1 complies with the 802.3af/at/bt PoE++ to supply ample power up to 60 W, and ports 2-4 compliance with 802.3af/at PoE+ support up to 30 W on each PoE+ port. The total 64 W PoE power budget* for all PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
![](/images/custom/site/Screenshot%202024-03-07%20at%2012-19-10%206-Port%20Gigabit%20Desktop%20Switch%20with%203-Port%20PoE%20and%201-Port%20PoE.png)

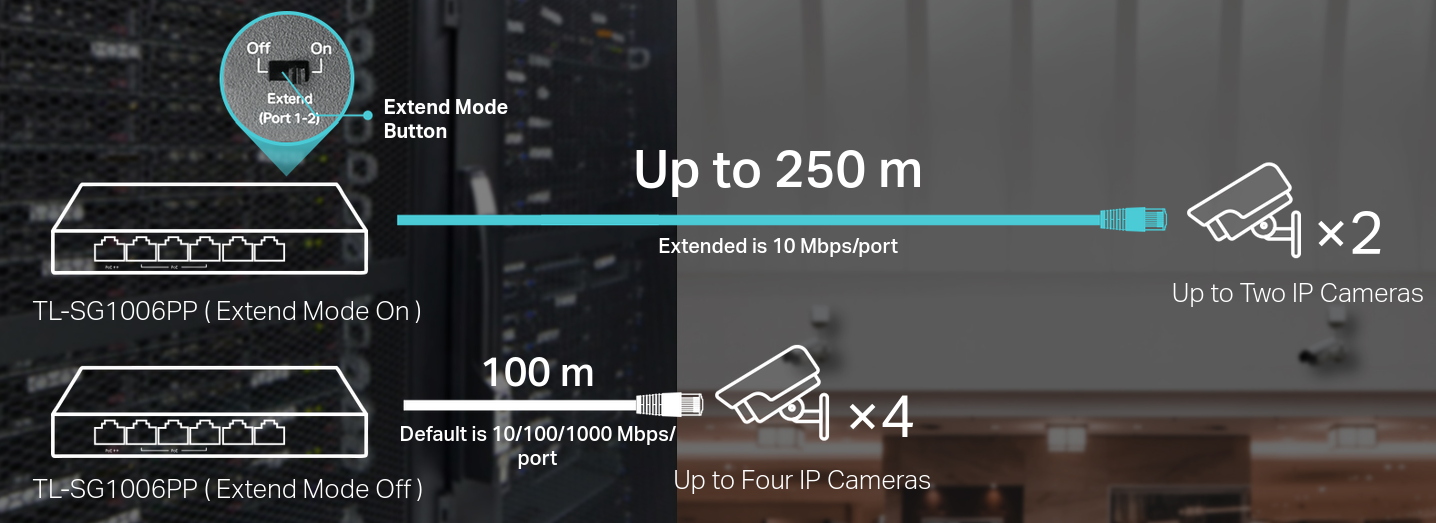

Ideal for IP Surveillance —Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
![](/images/custom/site/Screenshot%202024-03-07%20at%2012-19-48%206-Port%20Gigabit%20Desktop%20Switch%20with%203-Port%20PoE%20and%201-Port%20PoE.png)

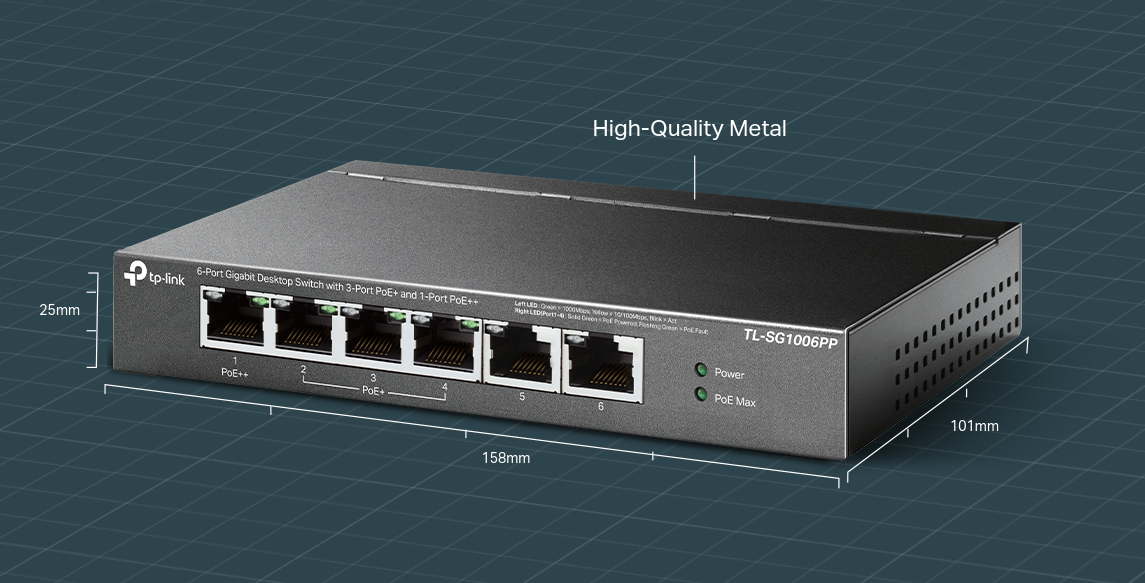

Durable Metal Casing
The interior components of TL-SG1006PP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1006PP delivers switching performance you can depend on.
![](/images/custom/site/Screenshot%202024-03-07%20at%2012-20-22%206-Port%20Gigabit%20Desktop%20Switch%20with%203-Port%20PoE%20and%201-Port%20PoE.png)
Specifications:
HARDWARE FEATURES | |
---|---|
Interface | • 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Packet Forwarding Rate | 8.928 Mpps |
PoE Ports (RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W |
Mac Address Table | 4K |
Switching Capacity | 12 Gbps |
Dimensions ( W x D x H ) | 6.2x4.0x1.0 in (158x101x25 mm) |
Max Power Consumption | • 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected) |
Max Heat Dissipation | • 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
SOFTWARE FEATURES | |
---|---|
Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
Transfer Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 6 |
---|---|
Максимална скорост: | 1 Mbps |
Стандарт: | 802.3x |
Управляем: | Не |
