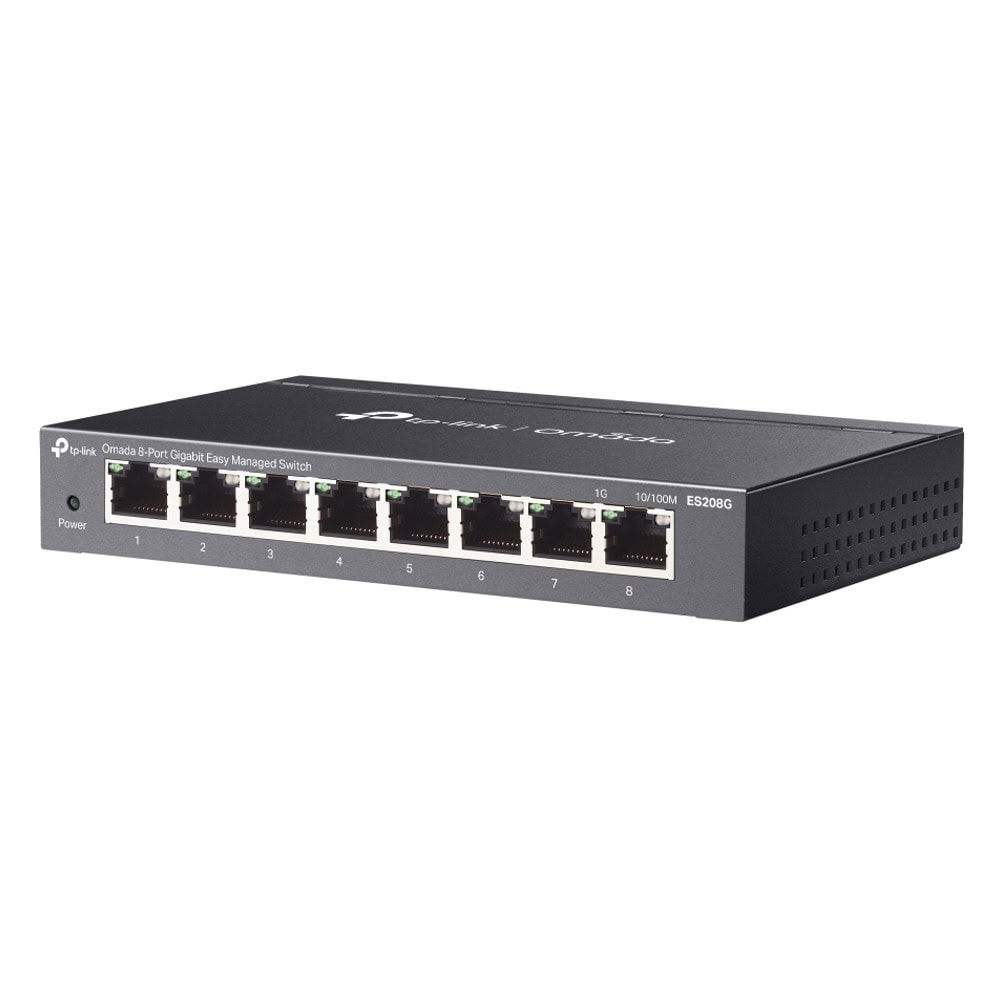

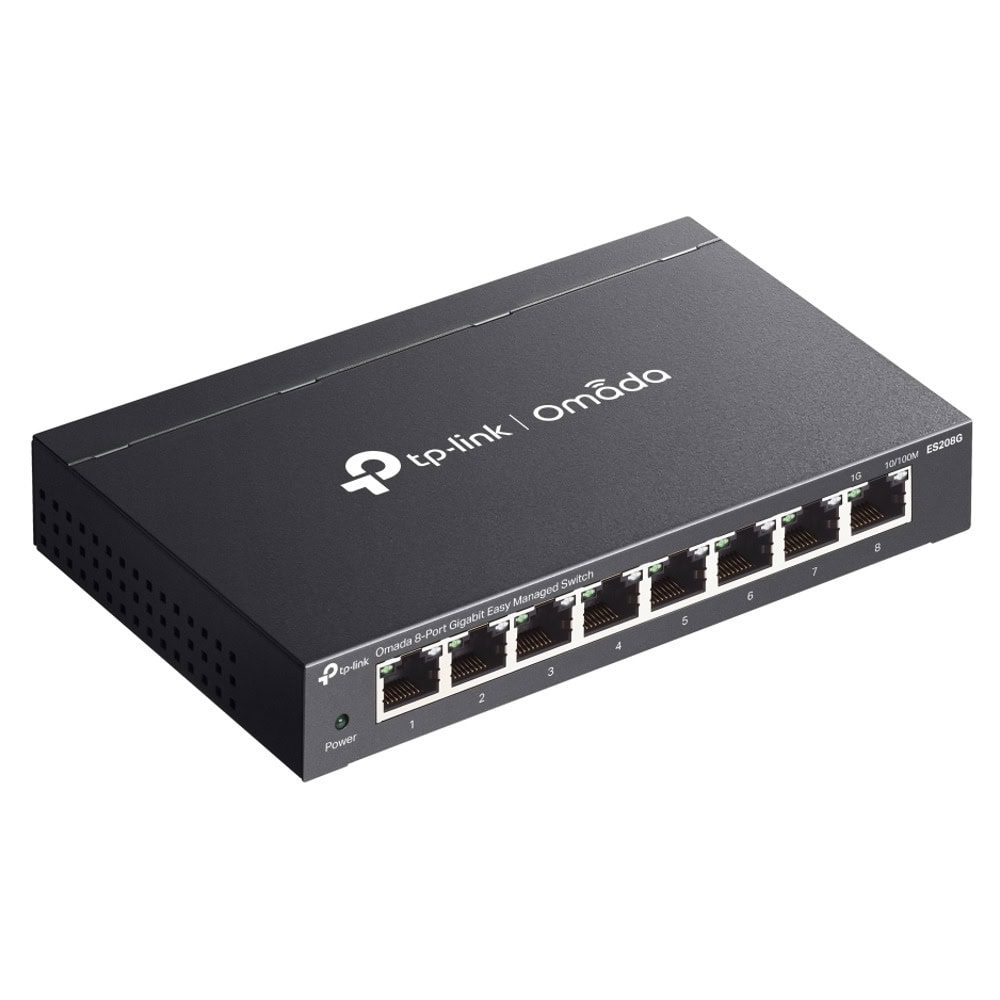

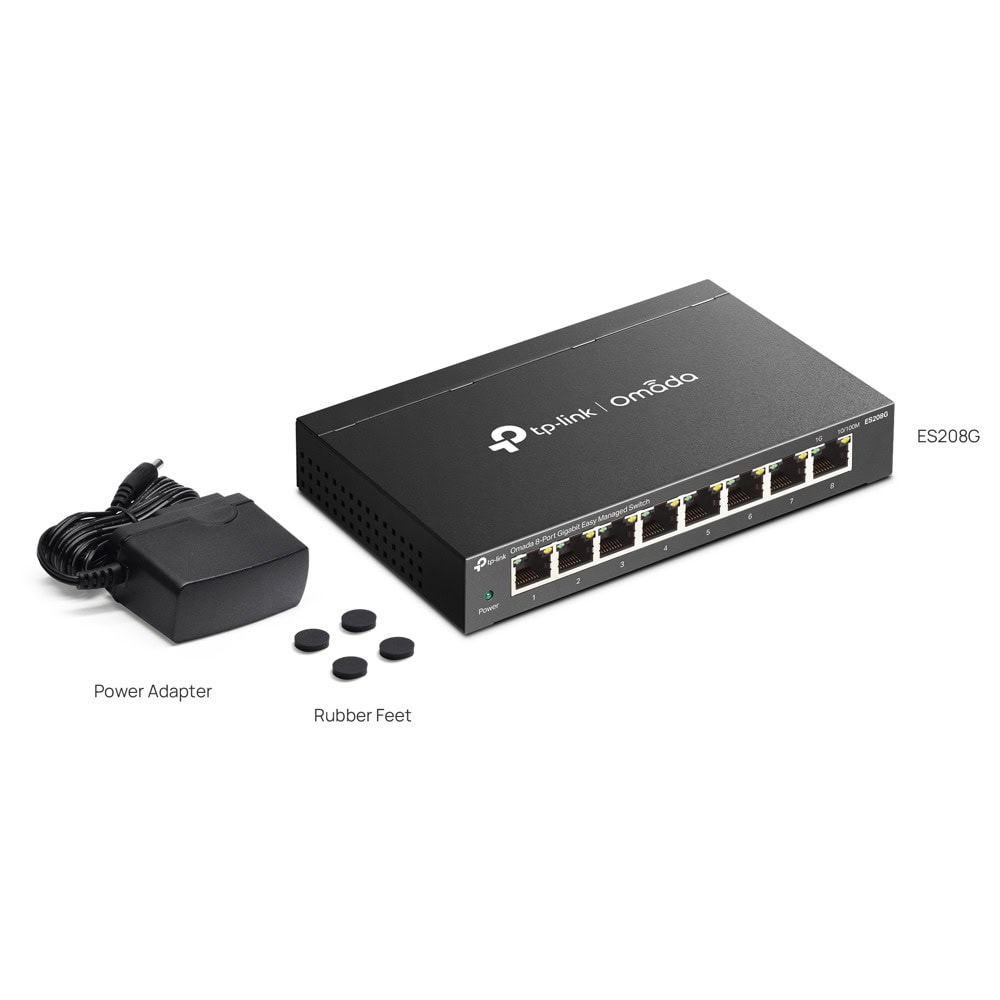

TP-Link Omada ES208G
Omada 8-Port Gigabit Easy Managed Switch

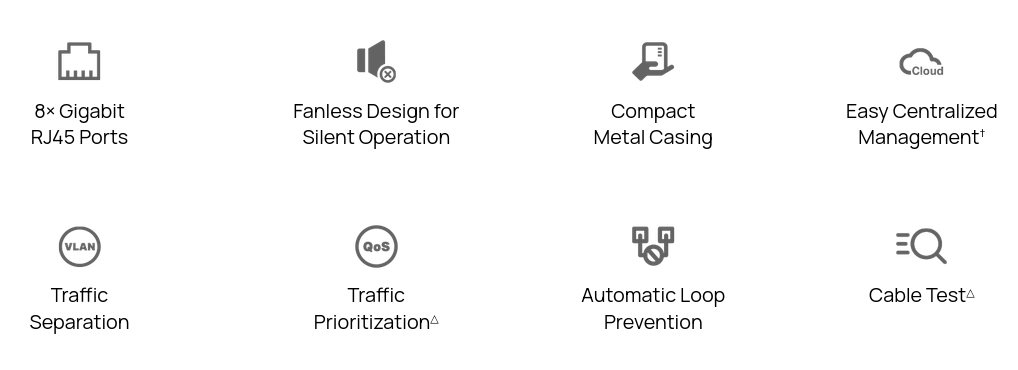

- 8× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design

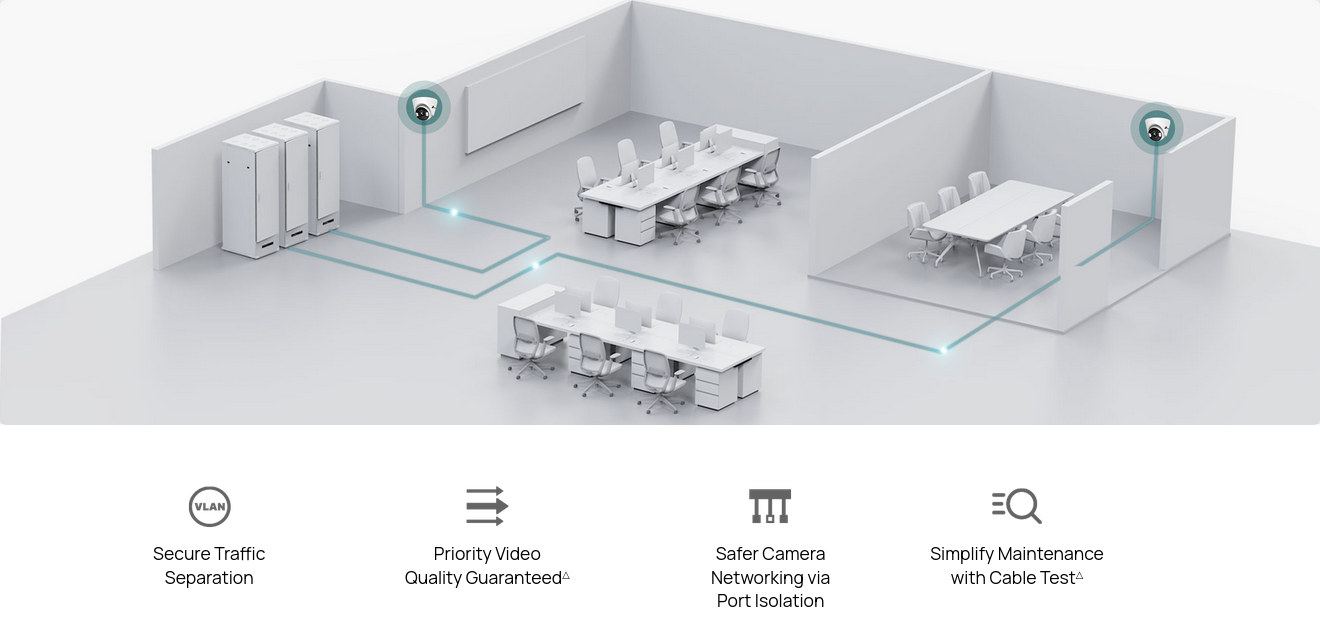

Abundant Functions for Reliable Surveillance Networking
| Category | Specification |
|---|---|
| HARDWARE FEATURES | |

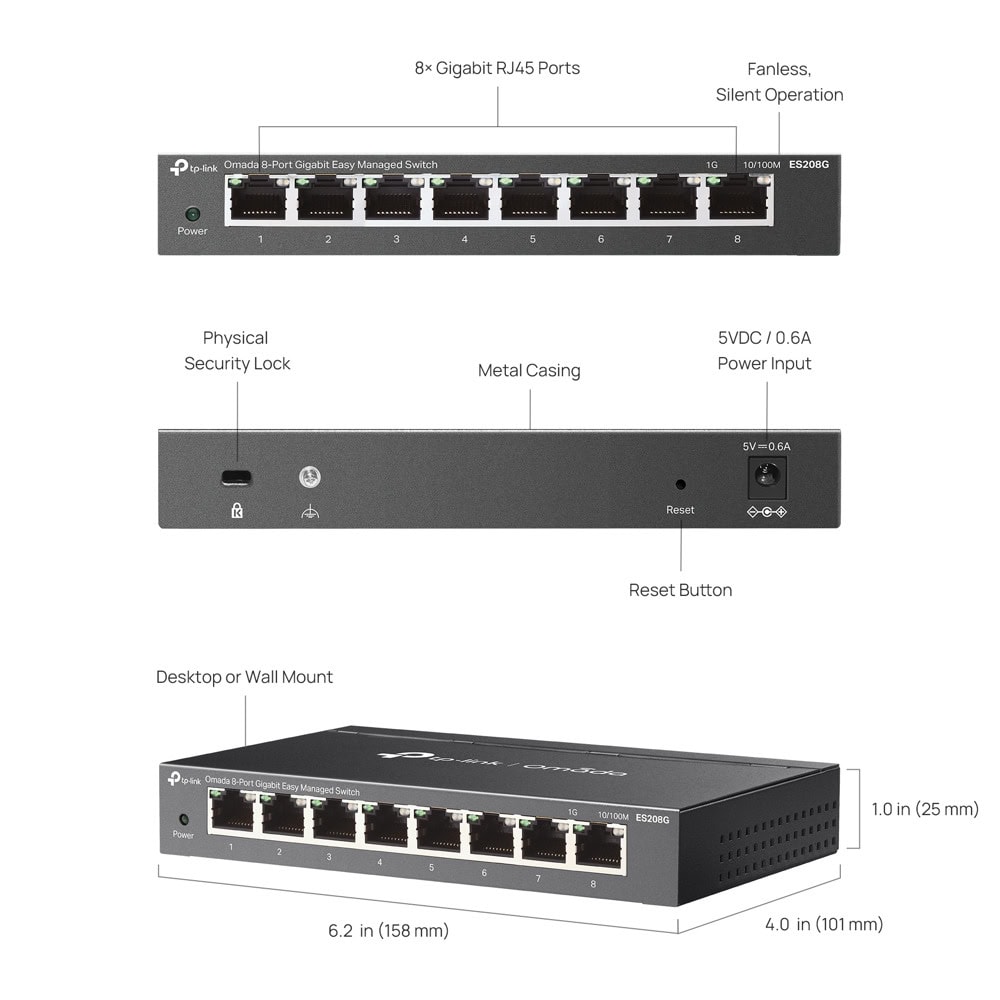

| Interface | 8× 10/100/1000 Mbps RJ45 PortsAuto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

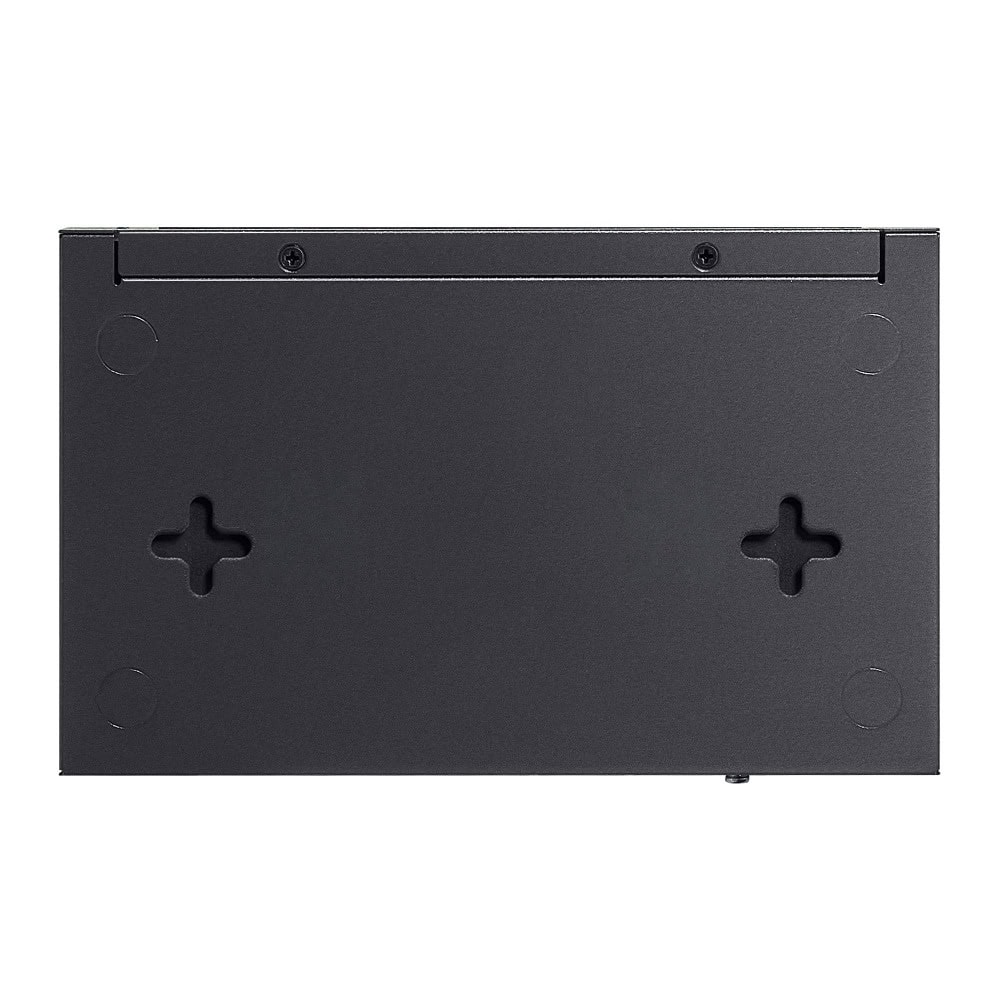

| Installation | DesktopWall Mount |

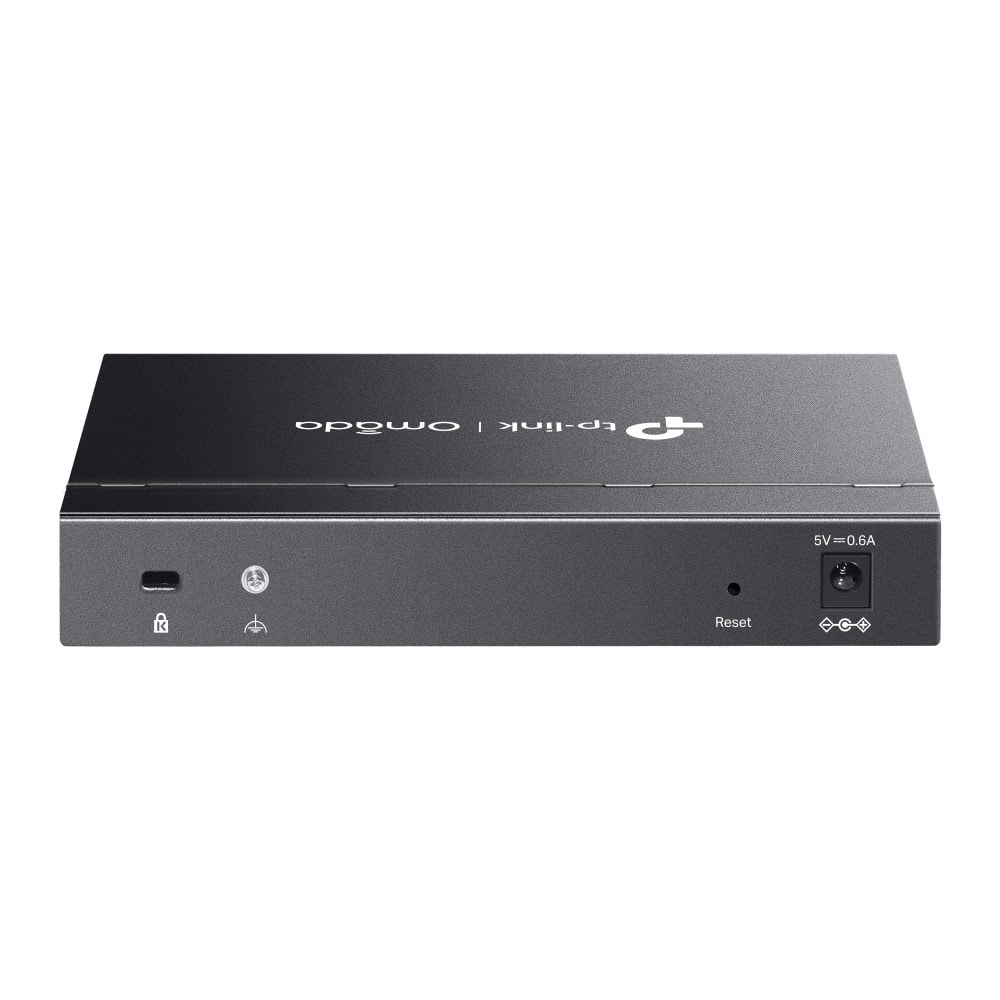

| Physical Security Lock | Yes |
| Power Supply | DC Power Adapter (Output: 5VDC / 0.6A) |
| Dimensions (W×D×H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | Port-based/802.1p/DSCP QoS8 Priority QueuesWRR (Weighted Round Robin)Queue Weight ConfigBandwidth Control (Port-Based Rating Limit)Storm Control (kbps/pps, Broadcast/Multicast/Unknown-Unicast) |
| L2 Features | Static Link AggregationLoop Prevention / Loopback Detection802.3x Flow ControlPort Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both)Port Statistics (Mirror Status, Traffic Statistics)802.1ab LLDP |
| L2 Multicast | IGMP Snooping (v1/v2/v3)Fast Leave |
| VLAN | MTU VLANPort-Based VLAN802.1Q Tag VLAN (Max 32 VLAN Groups, 4K VID) |
| Transmission Method | Store-And-Forward |
| MANAGEMENT FEATURES | |
| Omada App | Yes. Requires Omada Hardware Controller, Cloud-Based Controller, or Software Controller |
| Centralized Management | Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller |
| Cloud Access | Yes. Requires Omada Hardware Controller, Cloud-Based Controller, or Software Controller |
| Zero-Touch Provisioning | Yes. Requires Omada Cloud-Based Controller |
| Other Management | Web-based GUIDHCP ClientCable DiagnosticsAutomatic Device Discovery†Batch Configuration†Batch Firmware Upgrading†Unified Configuration† |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Технически характеристики
| Брой портове: | 8 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | 802.3x |
| Управляем: | Не |
