Name: Рутер TP-Link Omada ER707-M2, 1x WAN 100/1000/2500 Mbps, 1x WAN/LAN 100/1000/2500 Mbps, 4x WAN/LAN 10/100/1000 Mbps, 1x SFP, 1x USB 2.0, 1GB RAM, 128MB Flash памет
Brand: TP-Link
SKU: NTLRTPLINKER707M2
Price: 372.31 BGN
Availability: InStock
Rating: 5.00 (1 reviews)

Описание Характеристики Ревюта / Въпроси Документация

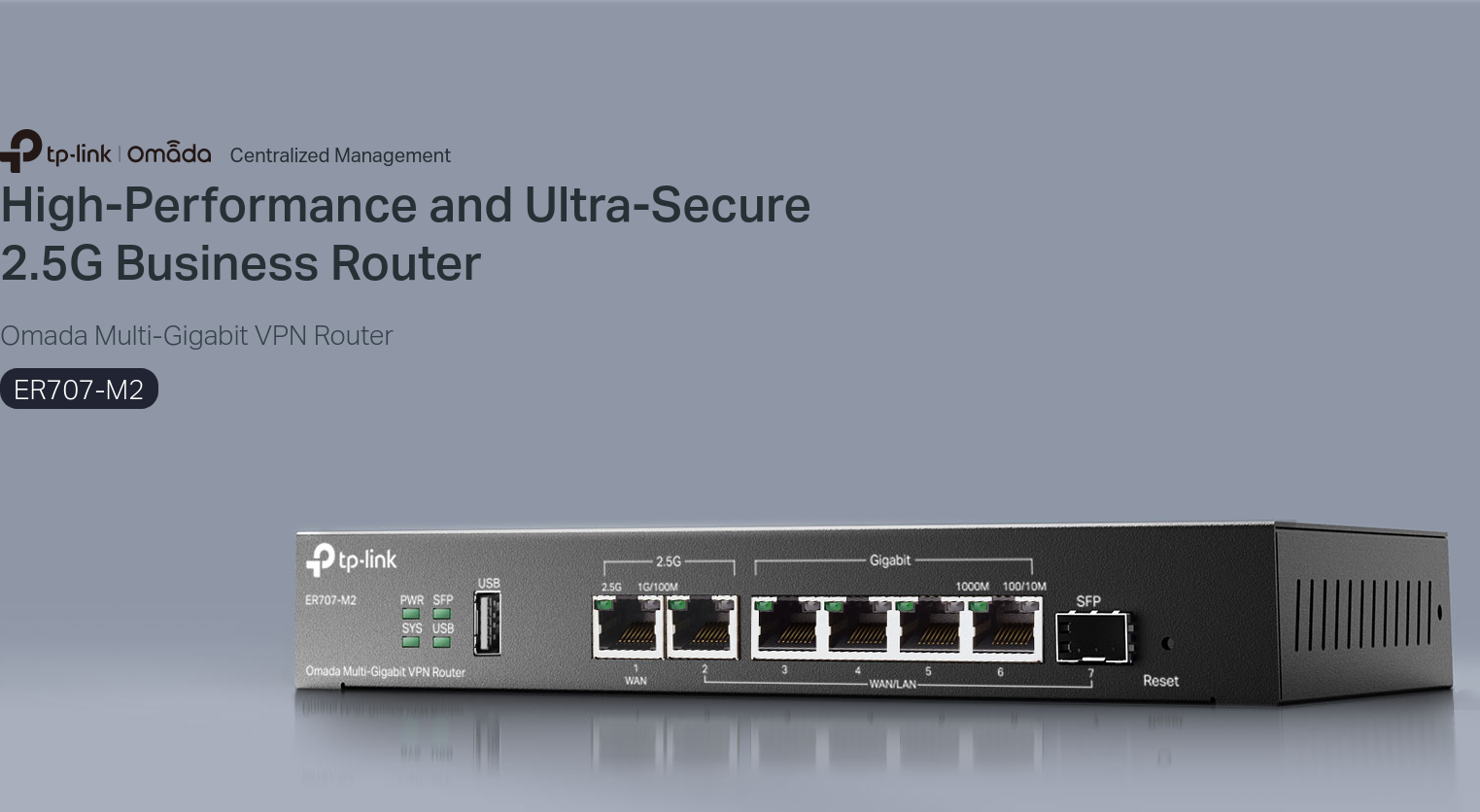

ER707-M2

Omada Multi-Gigabit VPN Router

Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.

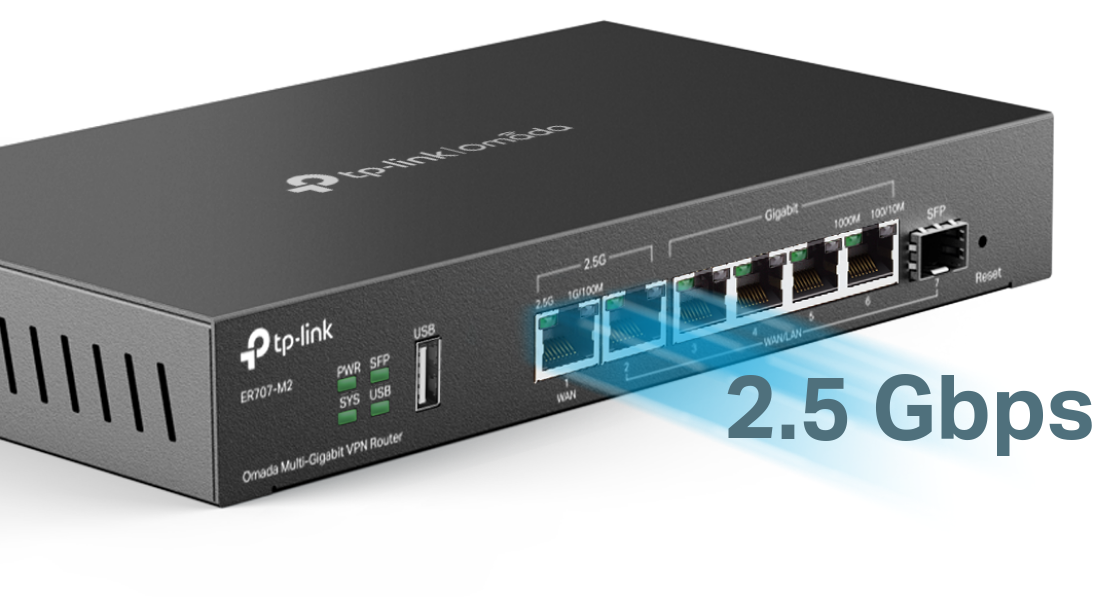

Dual 2.5 Gbps Ports, Engineered for Dense Environments

Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.

6× WAN Ports & 1 USB WAN for Mobile Broadband

Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.

Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.

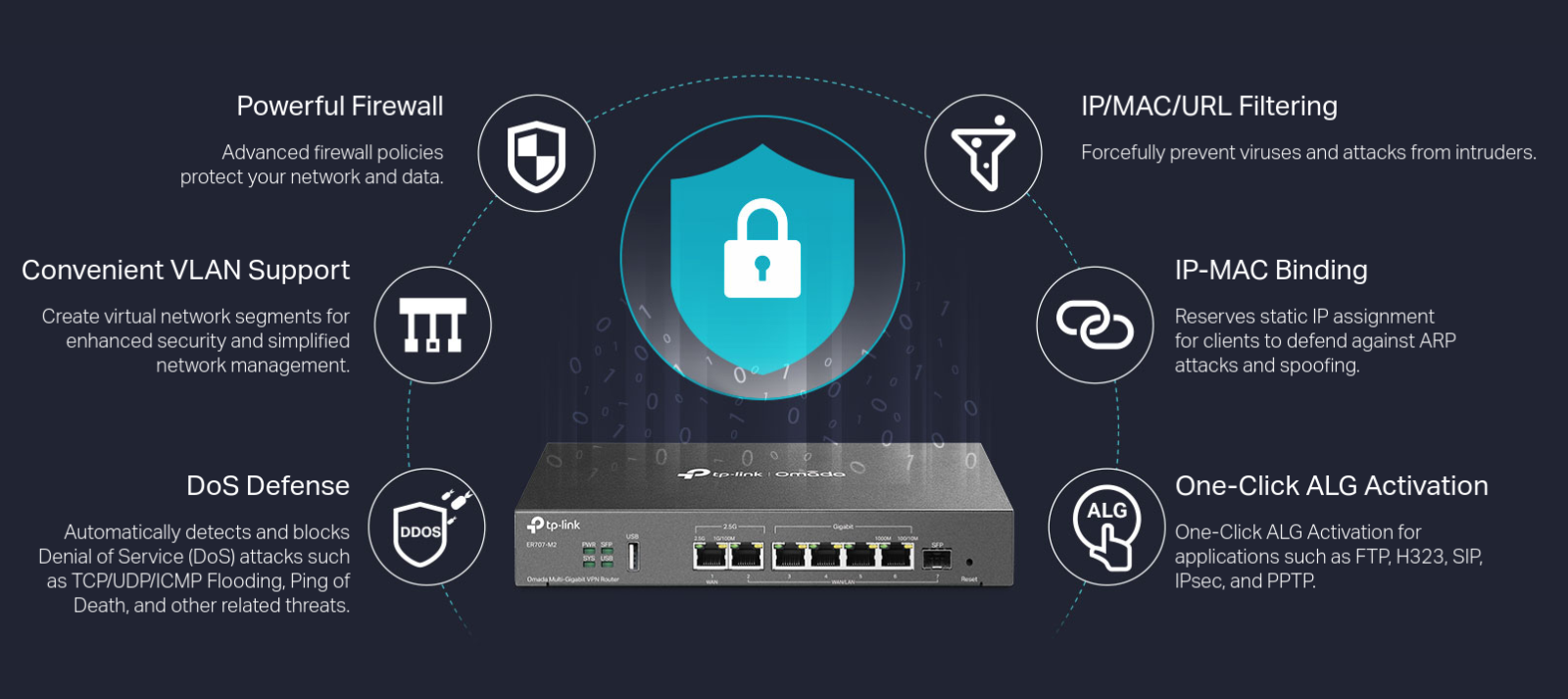

Abundant Security Features

Спецификации:

СИГУРНОСТ
Контрол на достъпа	Source/Destination IP Based Access Control
Filtering	• WEB Group Filtering§ • URL Filtering • Web Security§
ARP Inspection	• Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
Стандарти и протоколи	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

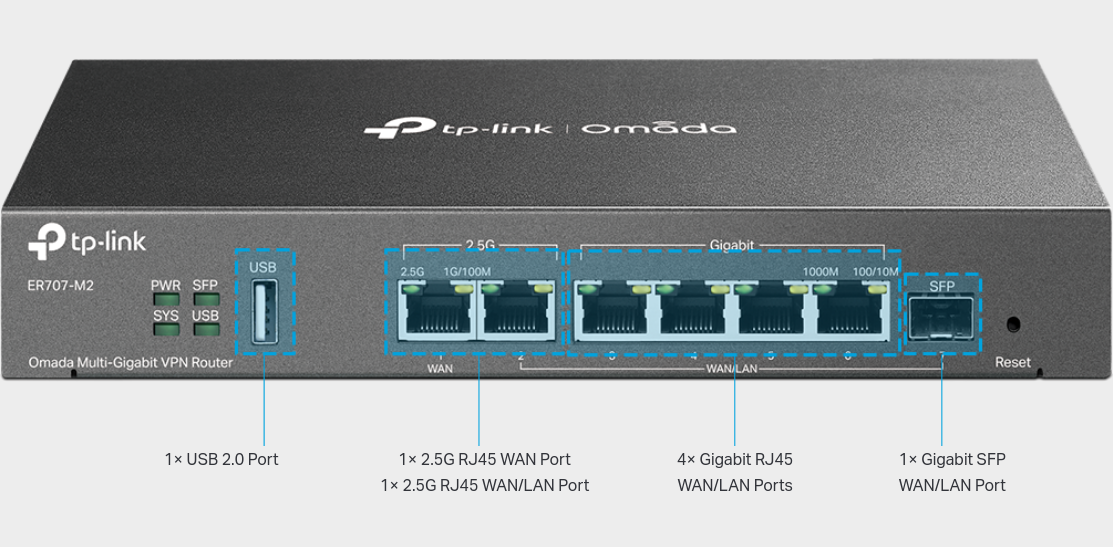

Интерфейс	• 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Мрежова медия	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Брой вентилатори	Fanless
Бутон	Reset Button
Захранване	12V/1.5A Adapter
PoE Budget	-
Flash	128MB NAND
DRAM	1 GB DDR4
LED	PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Размери (Ш x Д x В )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Защита	4 kV surge protection
Корпус	Steel
Монтаж	Desktop/Wall Mounting
Макс. консумация на енергия	14.2 W (with USB2.0 connected) 7.1 W (without USB2.0 connected)

ПРОИЗВОДИТЕЛНОСТ
IPS Throughput	TCP: 208 Mbps; UDP: 161 Mbps
DPI Throughput	TCP: 1823 Mbps; UDP: 1272 Mbps
Concurrent Session	500,000
New Sessions /Second	6,000
NAT (Static IP)	2365.17 Mbps / 2364.45 Mbps
NAT(DHCP)	2364.45 Mbps / 2366.04 Mbps
NAT(PPPoE)	2347.14 Mbps / 2348.29 Mbps
NAT (L2TP)	1308.86 Mbps / 974.10 Mbps
NAT (PPTP)	1236.27 Mbps / 1280.99 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps
L2TP VPN Throughput	• Unencrypted: 1243.7 Mbps • Encrypted: 561.0 Mbps
SSL VPN Throughput	132.24 Mbps
66 Byte Packet forwarding rate	1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate	2461.18 Mbps / 2457.32 Mbps

BASIC FUNCTIONS
WAN Connection Type	• IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6in4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address†
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP*
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
Advanced Routing	• Static Routing • Policy Routing • RIP (only in Standalone Mode) • OSPF (only in Standalone Mode)
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection
NAT	• One-to-One NAT§ • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit

VPN
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Clients (12) • 60 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Clients (12) • 60 Tunnels (Shared with PPTP) • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Clients (6) • 66 OpenVPN Tunnels*

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password* • Hotspot (Local User/Voucher* /SMS/Radius) • External Radius Server • External Portal Server* • LDAP

MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)
