TP-Link Omada ER706W
Flexible Wi-Fi Coverage through Business Wired Connectivity
Ubiquitous Connectivity Starts with WiFi 6

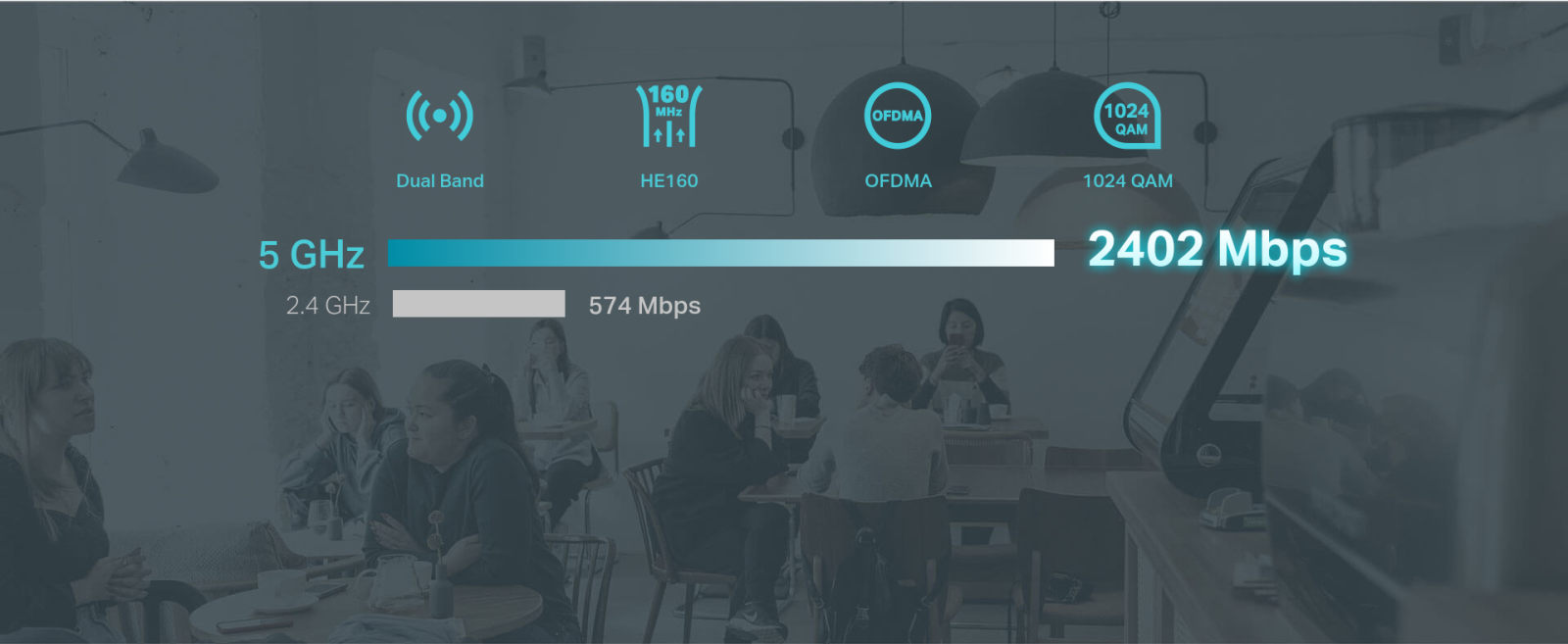

ER706W is an enterprise-grade dual-band wireless router. It’s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more. Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W’s concurrent transmission rate reaches up to 3 Gbps. Bufferless network experience is at your fingertips.

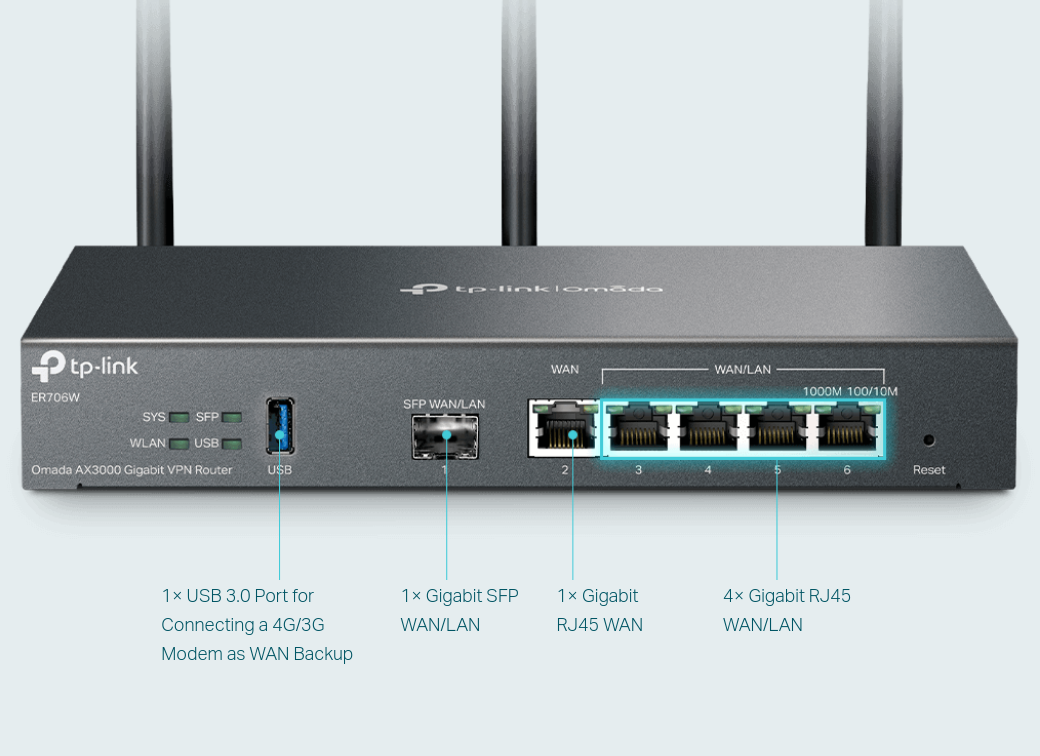

Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband
Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.
Professional Hardware Empowers the Wireless Future

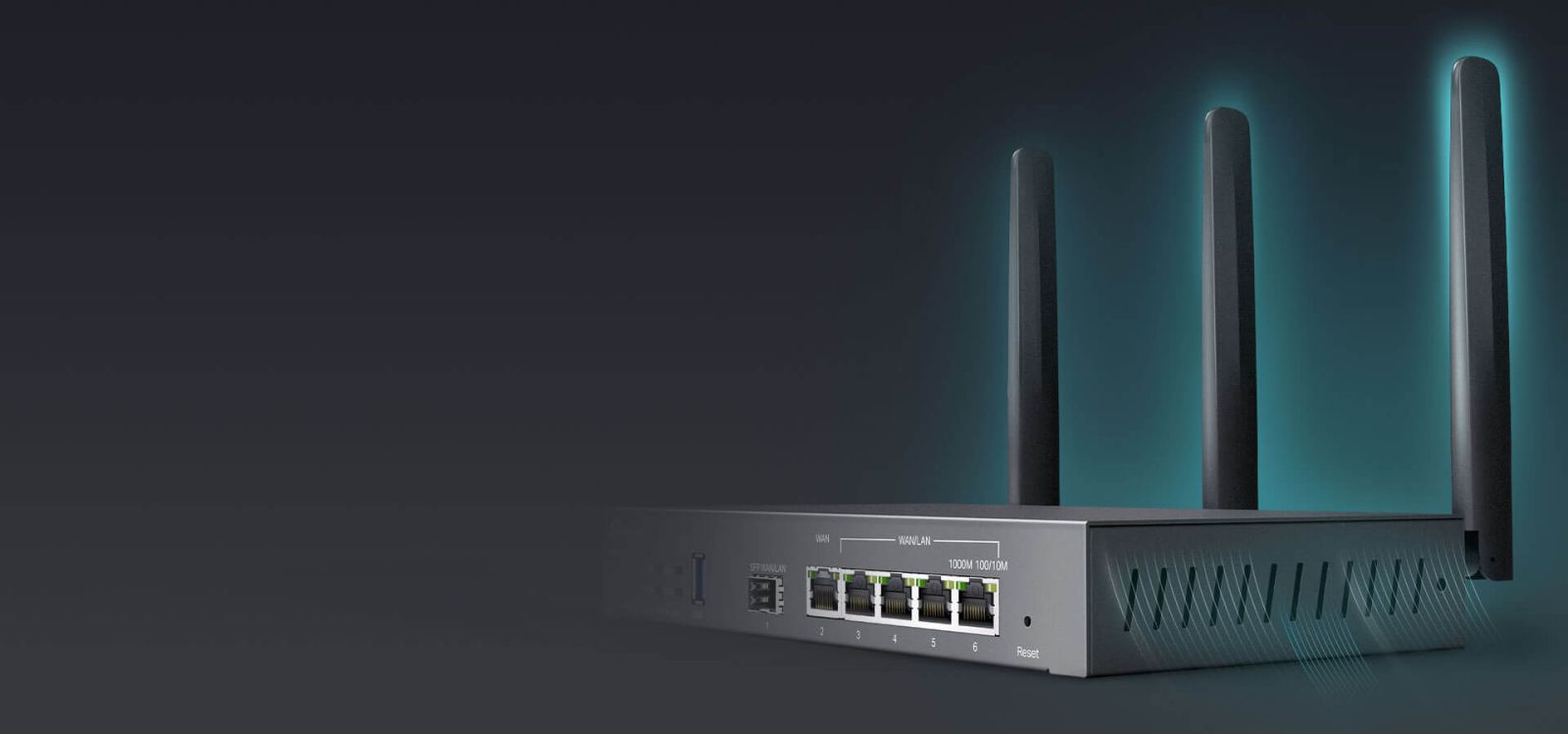

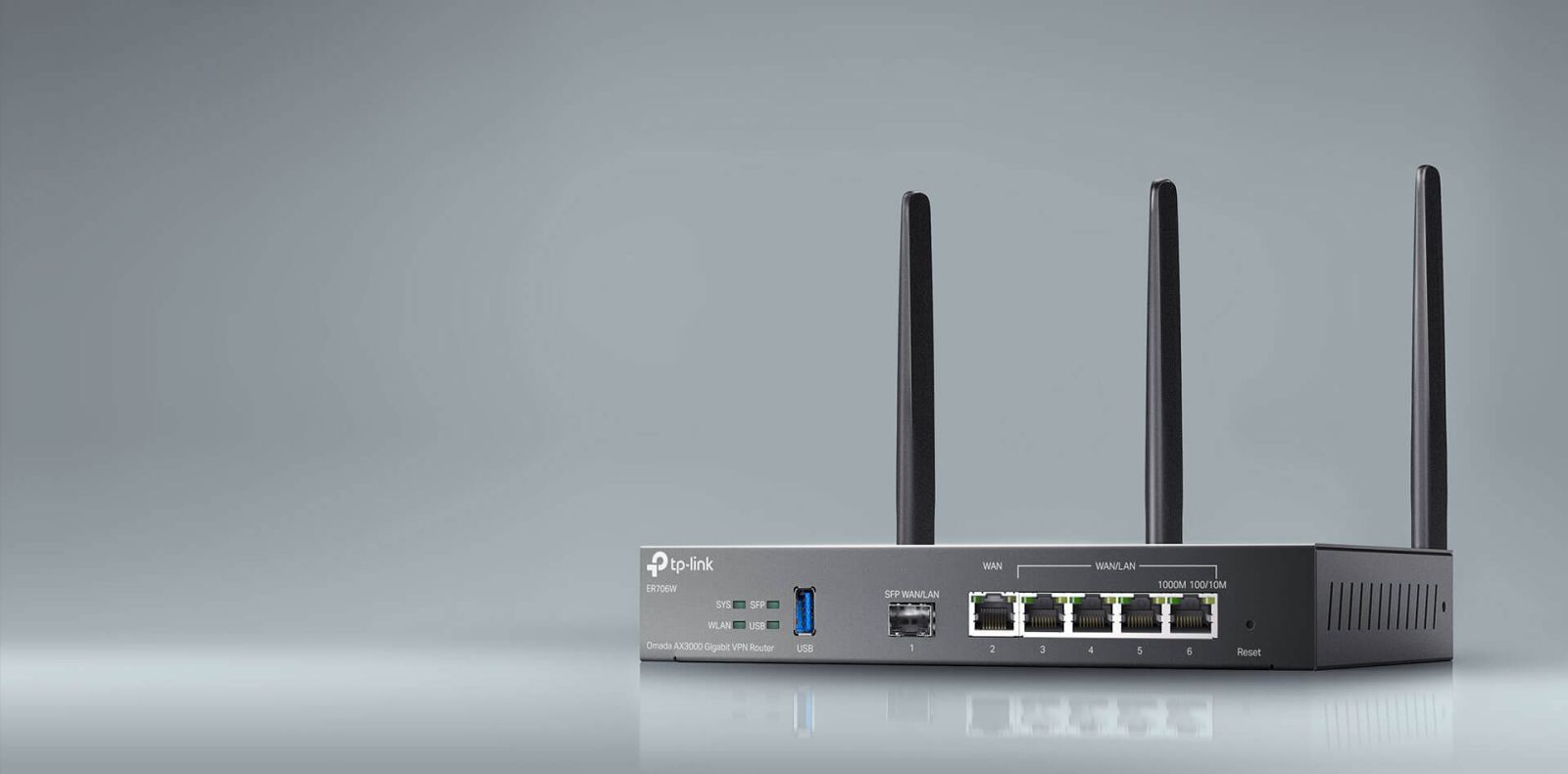

The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It’s easier for users to adjust the quantity and angle of antennas to fit various network environments.
ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.
High-Security VPN

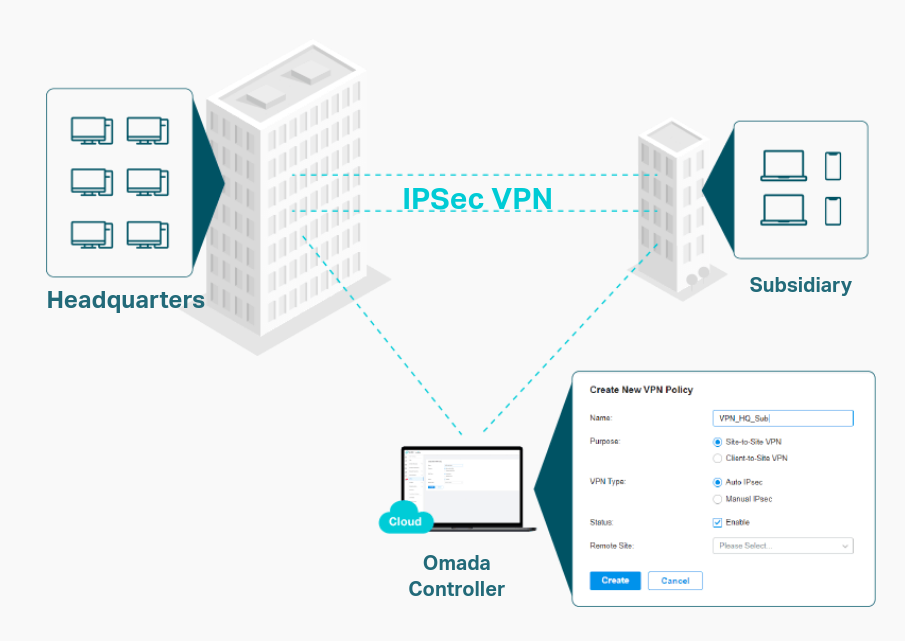

Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.
СИГУРНОСТ | |
Контрол на достъпа | Source/Destination IP Based Access Control |
Filtering | • Web Group Filtering† • URL Filtering • Web Security |
ARP Inspection | • Sending GARP Packets • ARP Scanning† • IP-MAC Binding |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
Интерфейс | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage) |
Бутон | Reset Button |
Захранване | 12VDC / 2A Power Adapter |
Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
Flash | 128 MB NAND |
DRAM | 512 MB DDR4 |
Размери (Ш x Д x В ) | 226 × 131 × 35 mm (Antenna dimensions are not included) |
Антена | • 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
Монтаж | Desktop/Wall-mounting |
Макс. консумация на енергия | • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
ПРОИЗВОДИТЕЛНОСТ | |
GRE | • Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps |
WireGuard VPN | 393.5Mbps |
Concurrent Session | 150,000 |
New Sessions /Second | 5,100 |
NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
IPsec VPN Throughput | • ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps |
OpenVPN | 129.3Mbps |
L2TP VPN Throughput | • Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps |
PPTP VPN Throughput | • Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps |
SSL VPN Throughput | 126.7Mbps |
66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ | |
Разширени характеристики | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
Мрежа за гости | Support |
BASIC FUNCTIONS | |
WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
MAC Clone | Modify WAN Address |
DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
ADVANCED FUNCTIONS | |
ACL | IP/Port/Protocol/Domain Name Filtering |
Advanced Routing | • Static Routing • Policy Routing • RIP† • OSPF† |
Bandwidth Control | IP-Based Bandwidth Control |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
Session Limit | IP-Based Session Limit |
VPN | |
SSL VPN | 50 Tunnels |
IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) • 50 Tunnels • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10) • 50 Tunnels • L2TP over IPSec |
OpenVPN | • OpenVPN Server • OpenVPN Client (5)△ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
AUTHENTICATION | |
Web Authentication | • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever§ • LDAP |
MANAGEMENT | |
Omada App | Yes. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
