Name: Точка за достъп TP-Link EAP223, 2.4GHz (450Mpbs)/ 5GHz (867Mbps), 1x 10/100/1000 RJ-45 PoE, 3x вътрешни антени
Brand: TP-Link
SKU: NTWBTPLINKEAP223
Price: 162.48 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

TP-Link EAP223

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Точка за достъп TP-Link EAP223, 2.4GHz (450Mpbs)/ 5GHz (867Mbps), 1x 10/100/1000 RJ-45 PoE, 3x вътрешни антени - характеристика 1

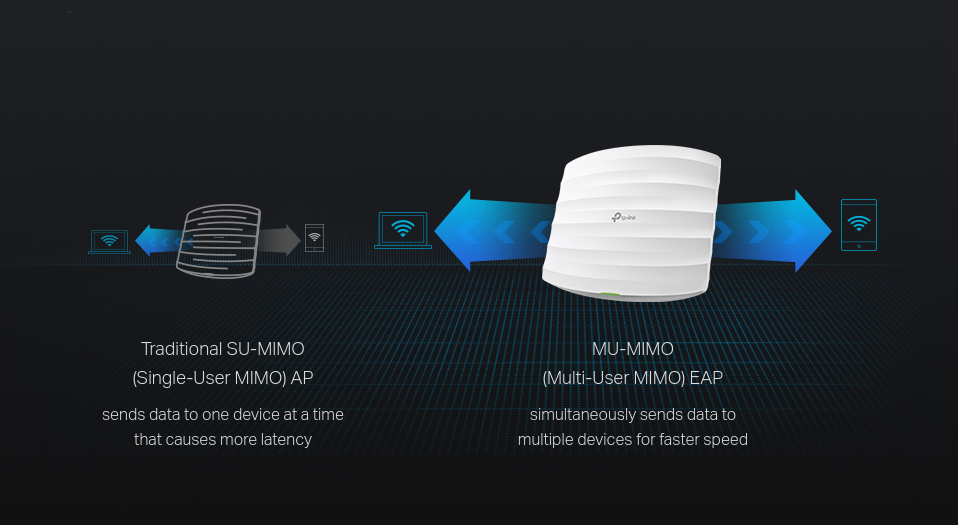

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Точка за достъп TP-Link EAP223, 2.4GHz (450Mpbs)/ 5GHz (867Mbps), 1x 10/100/1000 RJ-45 PoE, 3x вътрешни антени - характеристика 2

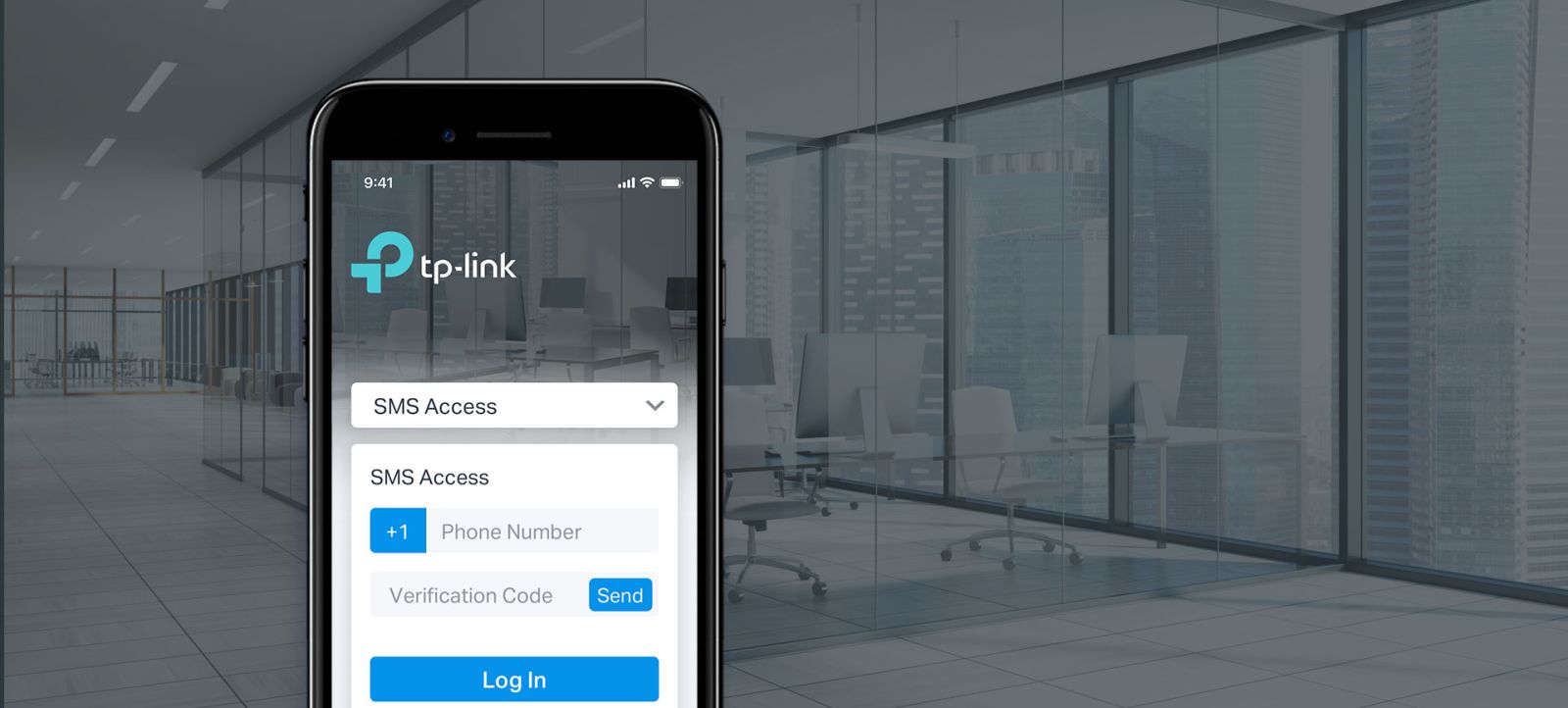

Secure Guest Network with SMS Authentication

The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Точка за достъп TP-Link EAP223, 2.4GHz (450Mpbs)/ 5GHz (867Mbps), 1x 10/100/1000 RJ-45 PoE, 3x вътрешни антени - характеристика 3

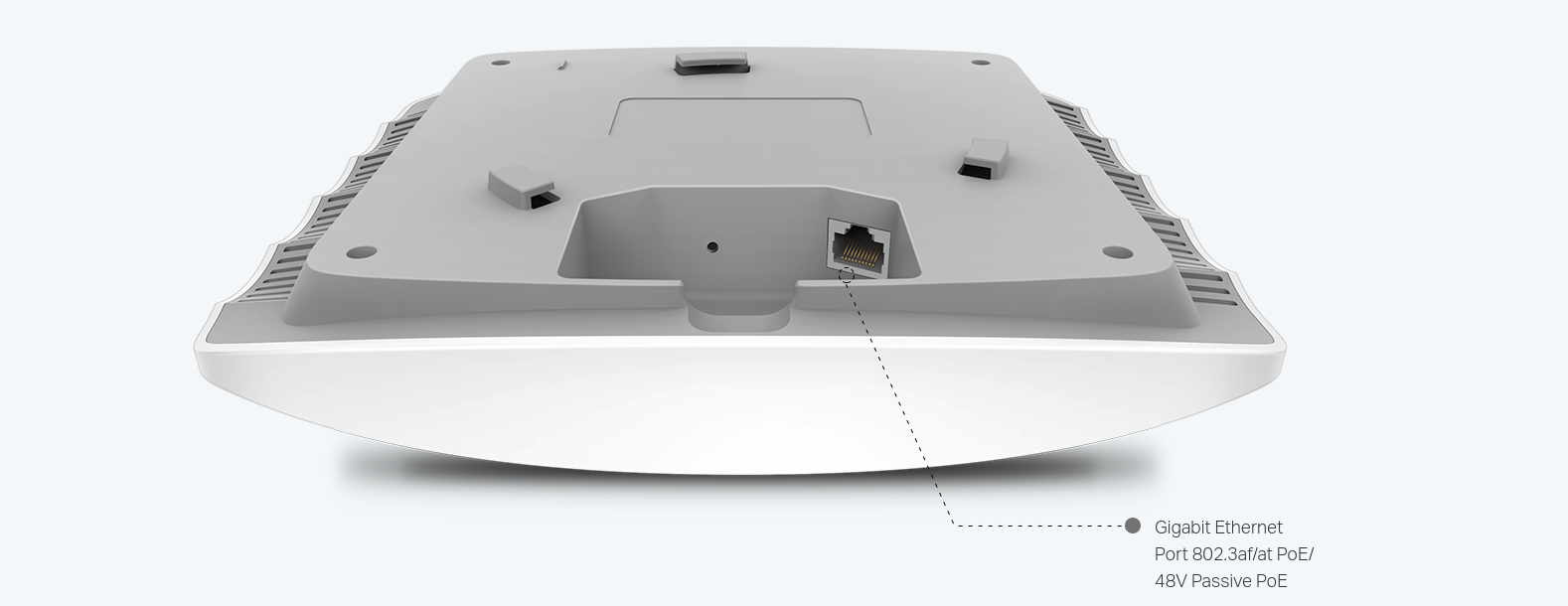

Multiple PoE Options for Easy Installation

EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.

Точка за достъп TP-Link EAP223, 2.4GHz (450Mpbs)/ 5GHz (867Mbps), 1x 10/100/1000 RJ-45 PoE, 3x вътрешни антени - характеристика 4

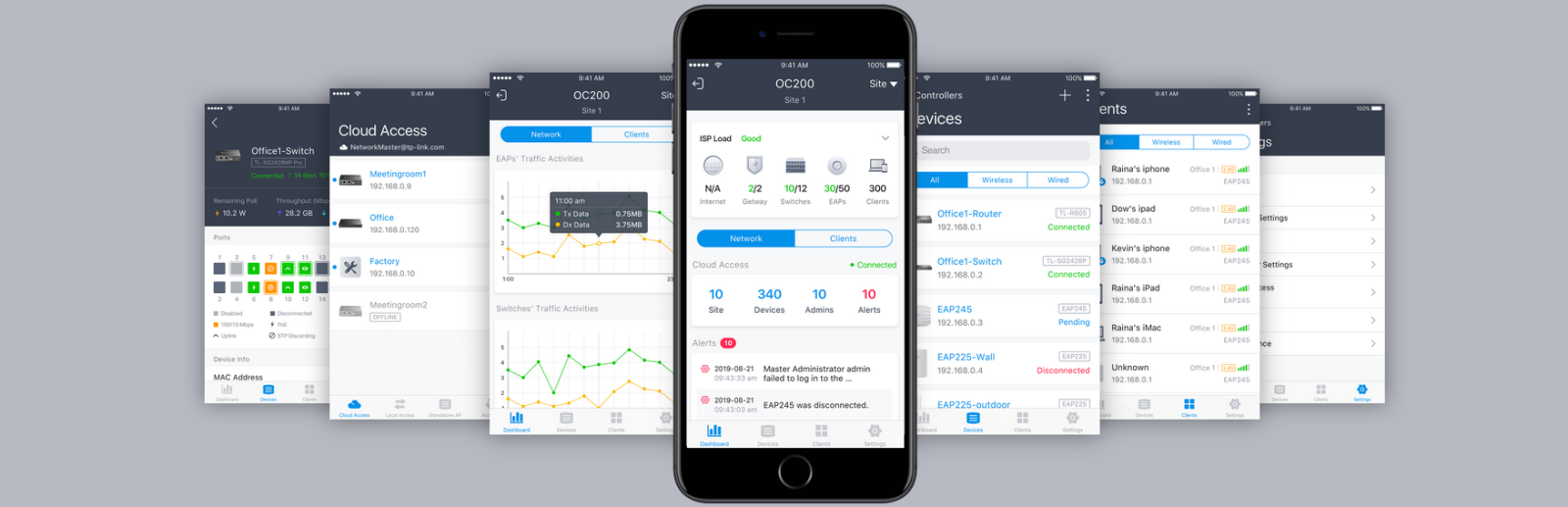

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Точка за достъп TP-Link EAP223, 2.4GHz (450Mpbs)/ 5GHz (867Mbps), 1x 10/100/1000 RJ-45 PoE, 3x вътрешни антени - характеристика 5

Спецификации:

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
Безжични стандарти	IEEE 802.11ac/n/g/b/a
Честотa	2.4 GHz and 5 GHz
Скорост на сигнала	• 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps
Безжични функции	• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Безжична сигурност	• Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support
Предавателна мощност	• CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller
Сигнали по електронна поща	Yes
Управление Вкл/Изкл на LED	Yes
Управление на контрола на достъпа по МАС адрес	Yes
SNMP	v1,v2c
Влизане в системата Локално/Отдалечение	Local/Remote Syslog
SSH	Yes
Уеб-базирано управление	HTTP/HTTPS
L3 управление	Yes
Управление на множество сайтове	Yes
Управление на VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller

ДРУГИ
Сертификати	CE, FCC, RoHS
Съдържание на пакета	• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223 • Mounting Kits • Installation Guide
Системни изисквания	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Околна среда	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
Интерфейс	Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
Защита с физическо заключване	Yes
Бутон	Reset
Захранване	• 802.3af/at PoE • 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
Консумирана енергия	EU: 9.7W US: 12.1W
Размери (Ш x Д x В )	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Тип антена	3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi
Монтаж	Ceiling /Wall Mounting (Kits included)

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	1400 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 & 5 GHz
Антени:	3 Вътрешни
dBi на антена/и:	5
PoE:	In
Интерфейс:	1x 1000
Други:	Няма
