TP-LINK CPE605
TP-LINK CPE605TP-LINK CPE605TP-LINK CPE605

Аксес пойнт TP-LINK CPE605, 150Mbps, 5GHz (150Mbps), 1x GbE, 23 dBi, 1 външна атена

id 179827 Код: NTWBTPLINKCPE605
101.24 лв
87.01 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

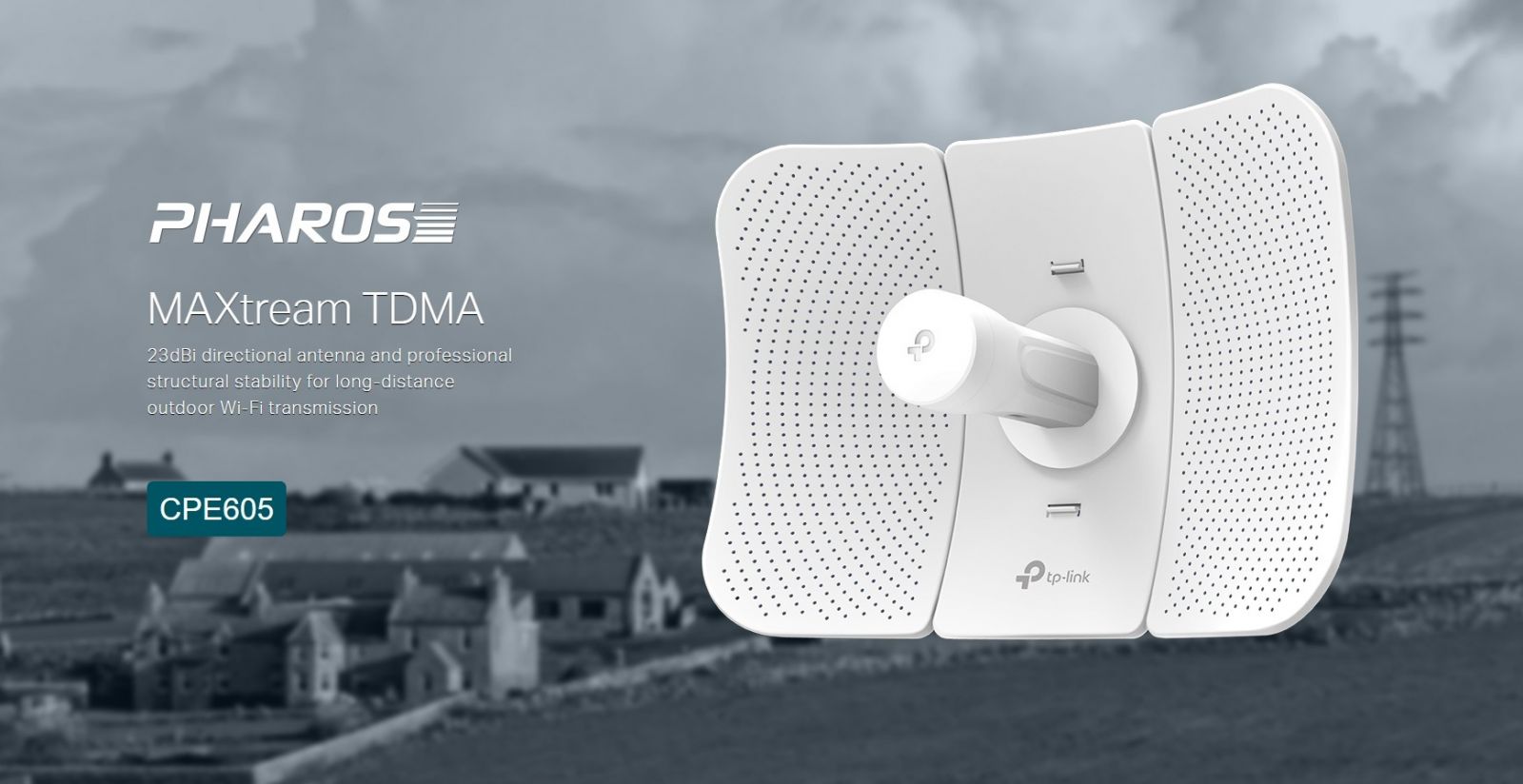

5GHz 150Mbps 23dBi Outdoor CPECPE605

  • Up to 150Mbps on 5GHz wireless data rates
  • 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation





Аксес пойнт TP-LINK CPE605, 150Mbps, 5GHz (150Mbps), 1x GbE, 23 dBi, 1 външна атена - характеристика 1







ХАРДУЕРНИ ХАРАКТЕРИСТИКИ

ПроцесорQualcomm 560MHz CPU, MIPS 74Kc
Памет64MB DDR2 RAM,8MB Flash
Интерфейс1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
ЗахранванеPassive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Размери (Ш x Д x В )350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
Усилване на антената23dBi
Ширина на лъча на антената7°(Azimuth), 10°(Elevation)
Защита15KV ESD Protection
6KV Lightning Protection
КорпусMaterial: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ

Безжични стандартиIEEE 802.11a/n
Собствен протоколTDMA Mode (with Pharos MAXtream enabled)
Безжични скоростиUp to 150Mbps (40MHz,Dynamic)
Up to 72.2Mbps (20MHz,Dynamic)
Up to 36.1Mbps (10MHz,Dynamic)
Up to 18.05Mbps (5MHz,Dynamic)
Честотa5.15~5.85GHz
Предавателна мощностMax. 23dBm (Adjustable power by 1dBm)

СОФТУЕРНИ ХАРАКТЕРИСТИКИ

IPv6Yes
Мрежова конфигурацияWAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Безжични конфигурацииPharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Long Range PtP
УправлениеDiscovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Системни инструментиIndicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
Оптимизации на системно нивоOptimized IGMP Snooping/Proxy for multicast applications

ДРУГИ

СертификатиCE, FCC, RoHS, IP65
Съдържание на пакетаOutdoor Wireless CPE
24V 0.25A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide
Системни изискванияMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Околна средаOperating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing




    Виж още Аксеспойнт/Репитер Безжични TP-Link
    Виж всички Аксеспойнт/Репитер Безжични в категорията
    Технически характеристики
    Тип:  Аксес пойнт
    Монтаж:  За външен монтаж
    Безжична скорост:  150 Mbps
    Wi-Fi Стандарт:  Wi-Fi 4 (802.11n)
    Честота:  5 GHz
    Антени:  1 Външна
    dBi на антена/и:  23
    PoE:  In
    Интерфейс:  1x 100
    Други:  Няма
