Archer Air R5
AX3000 Dual-Band Wi-Fi 6 Air Router
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.1
- Smart Antennas – Uses intelligent algorithms to auto-detect your devices’ locations and adjust antennas’ direction for all-round stable signals.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
- EasyMesh-Compatible - Works with EasyMesh-compatible routers to create a whole home seamless mesh network.3
- Flexible Installation – Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket.

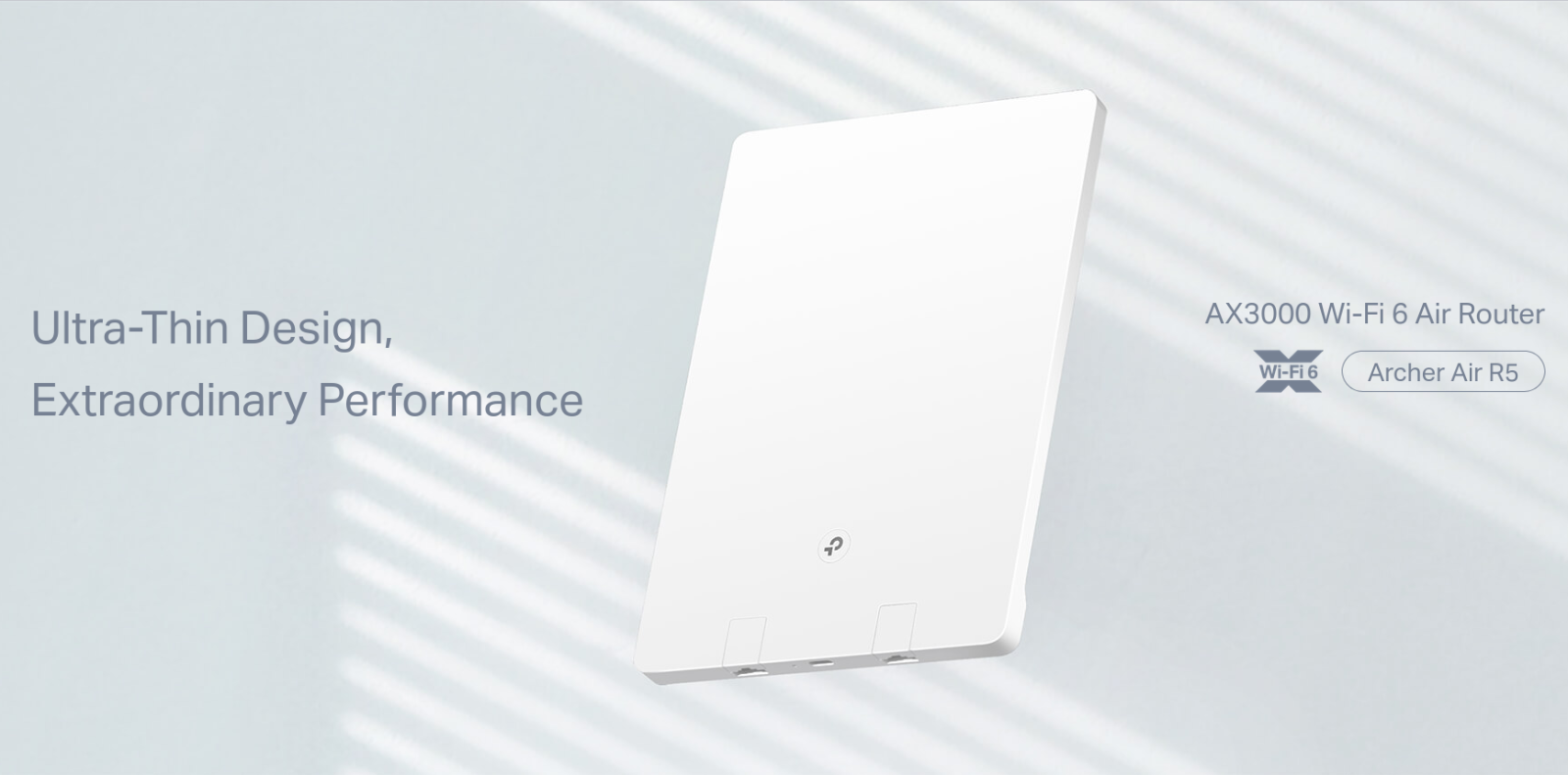

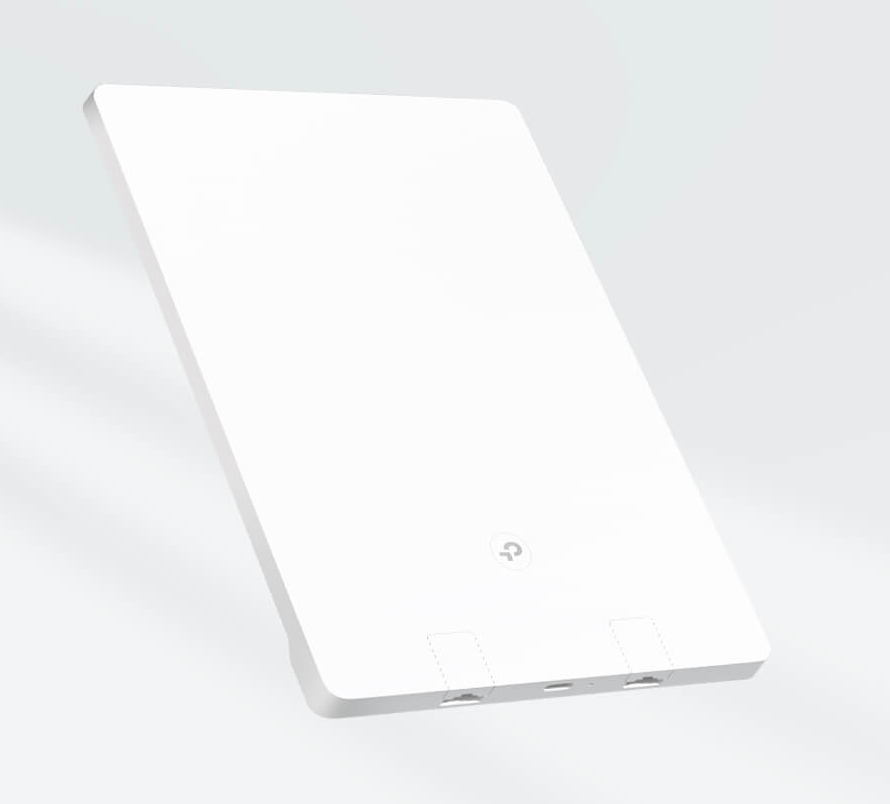

Ultra-Thin and Minimalist Design
Archer Air R5 has a compact size of 210×148×10.8mm and is even thinner than a wall outlet.
The pure white shell, minimalist lines and rounded corners form an elegant appearance and make Archer Air R5 better integrated with modern home interiors.
The LED and WPS 2-in-1 button on the front and the Type-C power port on the bottom further simplify Archer Air R5’s look.
.png){kind=tracking}
Live in the Fast Lane with WiFi 6
Armed with AX3000 WiFi 6, Air R5 is built to deliver a huge boost in speed, capacity, and coverage.

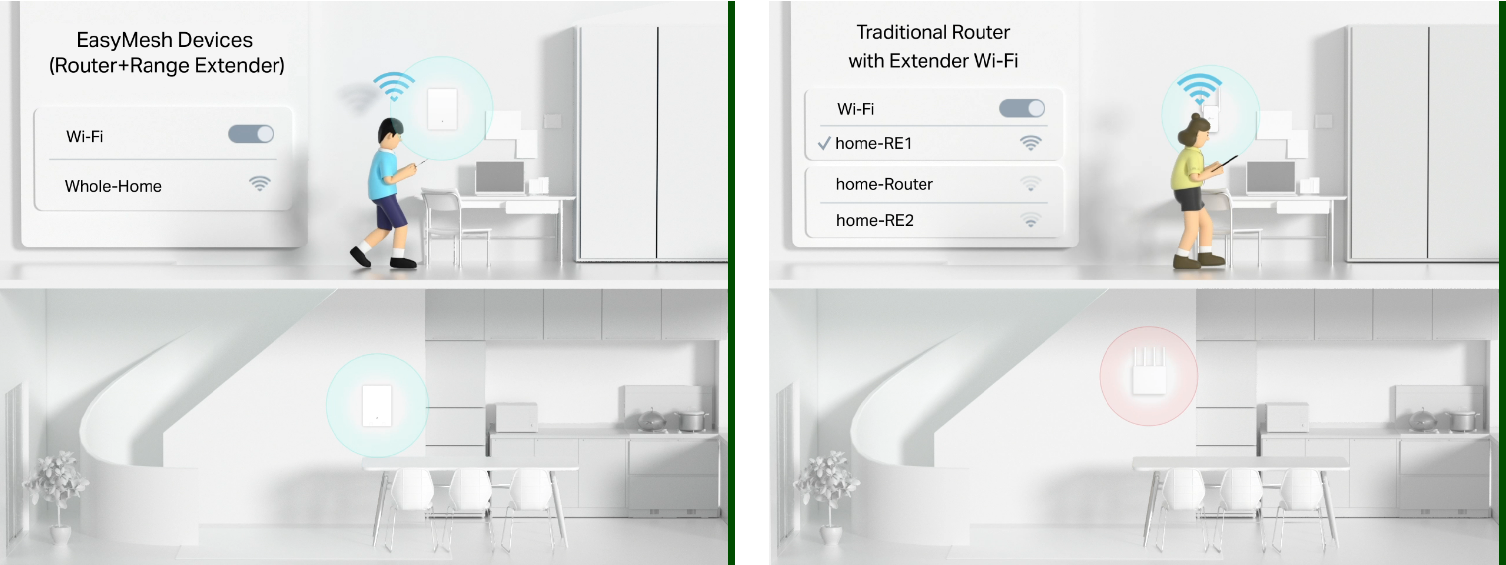

Flexibly Create Whole Home Mesh WiFi
Archer Air R5 is EasyMesh-compatible. If you have any dead zones at home, simply add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection. For a better network experience, we recommend combining with Archer Air E5.

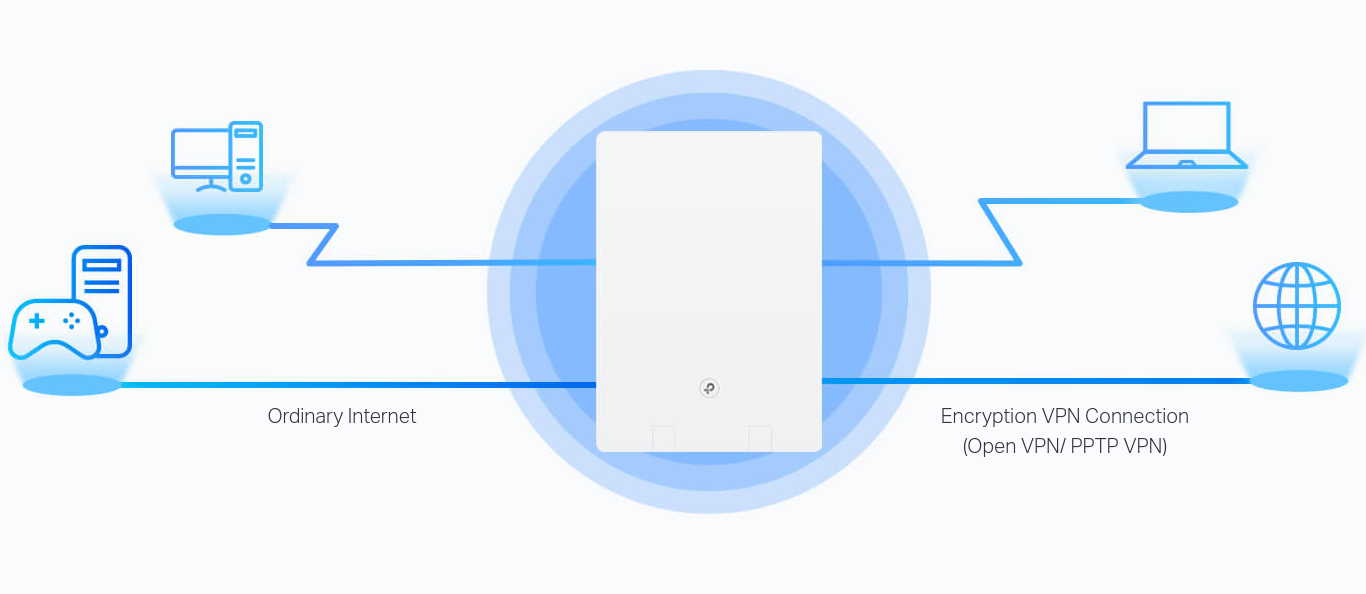

VPN Server: More Granular VPN Function Usage
When using the VPN Server function, external devices can access the VPN server, including remote desktops, NAS, printers, cameras, and other devices in the home network. Archer Air R5 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Specifications:
| БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | HighDual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode AP Mode |
| СИГУРНОСТ | |
|---|---|
| Network Security | HomeShield Security Real-Time IoT Protection |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | PPTP ServerN OpenVPN ServerN |
| WiFi Encryption | WPA/WPA2 WPA3 WPA/WPA2-PSK |
| HARDWARE | |
|---|---|
| Ethernet Ports | 1× Gigabit WAN Port 1× Gigabit LAN Port |
| Бутони | WPS Button Reset Button |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. |
| Parental Controls | HomeShield Parental Controls Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPPoE + Dynamic IP PPPoE + Static IP L2TP + Dynamic IP L2TP + Static IP PPTP + Dynamic IP PPTP + Static IP |
| Quality of Service | QoS by Device |
| Cloud Service | FOTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Fowarding Port Triggering DMZ UPnP |
| IPTV | Profile Bridge Custom Allowed range of VLAN ID |
| DHCP | DHCP Server Address Reservation DHCP Client List |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40~60℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz) |
| WiFi Reception Sensitivity | 5GHz-band1: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 5GHz-band2: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 5GHz-band3: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-72dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 8.3 × 5.5 × 0.4 in (210 × 140 × 10.8 mm) |
Виж още Рутери Безжични TP-Link
Виж всички Рутери Безжични в категорията
| Безжична скорост: | 3000 Mbps |
|---|---|
| Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
| Честота: | 2.4 + 5 GHz |
| LAN портове: | 1 x 1000 Mbps |
| WAN портове: | 1 x 1000 Mbps |
| Антени: | 4 Вътрешни |
| USB портове: | Няма |
| 3G/4G: | Не |
| Преносим: | Не |
| Други: | Няма |
| Жична скорост: | 10/100/1000 Mbps |
