Точка за достъп TP-Link EAP673, 5400Mbps, 2.4GHz (574Mbps)/5GHz (4804Mbps), 1x 2500 RJ-45 (PoE), 1x вътрешна антена

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz


High-Efficiency WiFi 6
More connected devices can enjoy faster speeds


Centralized Cloud Management
Manage the whole network locally or from the cloud


2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port


160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡


Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference


Omada Mesh Technology
More flexible and convenient wireless deployment§


Seamless Roaming
Uninterrupted streaming when moving between APs§


PoE+ Powered
Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations


	Hospitality High-quality and full coverage Guest WiFi
	Education High-security WiFi to connect more devices
	Shopping Mall Seamless marketing WiFi coverage to boost business
	Meeting Room Faster streaming, downloading, video conferencing, and more
	Office Stable, seamless, and high-security WiFi coverage

Higher Efficiency for More Devices

Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.‡  Enjoy faster speeds on more devices with less lag.

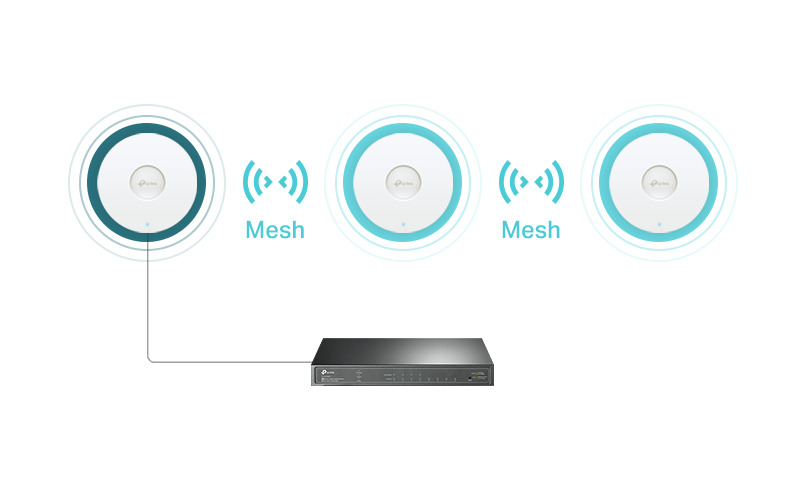

Easy Deployment & Higher Performance by Omada Mesh§

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Boosted Network Security and Efficiency

Security

• Secure Guest Network with Up to 16 SSIDs

  Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

• Boost Business with SMS Login

  Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§

• WPA3 for Worry-Free Open Public Networks

  With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Efficiency

• Band Steering

  Automatically moves dual band devices onto the wider 5GHz band for faster connections.

• Load Balance

  Ensures large numbers of users have smooth network experiences in high-density business networks

• Airtime Fairness

  Increases average network throughput in heavily congested environments

Specifications

Interface

1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button

Reset

Power

• 802.3at PoE
• 12 V / 2 A DC (Power adapter not included)

Energy consumption

• EU: 20.8 W
• US: 22.3 W

Dimensions (W x D x H )

(220 × 220 × 32.5 mm)

Antenna type

Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi

Bluetooth

Yes

WIRELESS FEATURES
Coverage

140㎡(1500 ft²)***

Wireless Client Capacity

250+**

Concurrent Clients

250+**

Wireless standards
IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal speed

• 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Features

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission power

• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)

• FCC:
<25dBm (2.4GHz)
<28dBm (5GHz)

MANAGEMENT
Omada App

Yes

Centralized Management Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access

Yes. Requires the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email alerts

Yes

LED On/Off control

Yes

Access control management by MAC address

Yes

SNMP

v1, v2c, v3

Logging into the system Local/Remote

Local/Remote Syslog

SSH

Yes

Web-based

HTTP/HTTPS management

L3 management

Yes

Manage multiple sites

Yes

VLAN management

Yes

Zero-Touch Provisioning

Yes. Require the use of Omada Cloud-Based Controller.

OTHERS
Certificates

CE, FCC, RoHS

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
