Захранване Thermaltake Thoughpower GF1 Snow(PS-TPD-0850FNFAGx-W), 850W, Active PFC,80+ Gold, 140mm вентилатор

id 226477 Код: PWRPCTATEPSTPD0850FNFAGXW
  • Модел: TTP-850AH3FCG
  • Марка: Thermaltake
  • Гаранция: 60 месеца
  • Код на продукта: PS-TPD-0850FNFAGx-W
  • Изходна мощност: 850 W
  • Модулен блок: Да
  • Форм фактор: ATX
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / ВъпросиДокументация

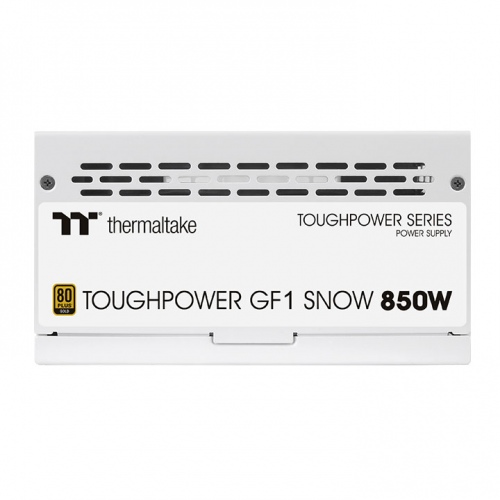

    Thermaltake Thoughpower GF1 Snow

    Toughpower GF1  Snow - TT Premium Edition

    The fully modular Toughpower GF1 Snow Edition series comes in 850W and built to deliver 80 PLUS Gold efficiency. Toughpower GF1 Snow 850W features flat white cables, a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 850W Snow Gold can satisfy PC enthusiasts who are looking for a white premium power supply with all the latest features. For users who crave for a pure white build, this power supply can defenitely meet their demand.



    А  Durable Chassis

    B  Anti-Vibration Mounting System

    C  DC to DC Design

    D  Modular Cable Management

    Side Ventilation Design

    Concentrated Compression Fan Blade

    G  100% High Quality Japanese 105°C / 221°F Capacitors

    H  Zero Cable Platform



    Zero Cable Platform

    Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.



    Ultra Quiet 140mm Hydraulic Bearing Fan

    Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.


    Smart Zero Fan


    Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.



    <30mV Low Ripple Noise

    All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.


    Extremely Strict Voltage Regulation <±2%


    The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.



    Fully Modular Low-Profile Flat Cable

    Fully modular low-profile flat cables offer cable selection while powering the system at an advantageous voltage. By only connecting the cables your system needs, cable management is easier, clutter is reduced, and the airflow inside the chassis is increased. Additionally, the white flat cables can enrich the users' PC build experience depending on their build style.




    SPECIFICATION

    P/N PS-TPD-0850FNFAGx-W
    WATTS 850W
    MODEL TTP-850AH3FCG
    MAX. OUTPUT CAPACITY 850W
    PEAK OUTPUT CAPACITY 1020W
    COLOR White
    DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
    PFC (POWER FACTOR CORRECTION) Active PFC
    POWER GOOD SIGNAL 100-500 msec
    HOLD UP TIME > 16msec at 100% of full load
    INPUT CURRENT 12A
    INPUT FREQUENCY RANGE 47Hz - 63Hz
    INPUT VOLTAGE 100V – 240V~
    OPERATING TEMPERATURE 0°C to + 50°C
    OPERATING HUMIDITY 20% to 90%,non-condensing
    STORAGE TEMPERATURE -20°C to + 70°C
    STORAGE HUMIDITY 5% to 95%, non-condensing
    COOLING SYSTEM 14cm hydraulic bearing fan
    EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
    MTBF 120,000 hrs minimum
    SAFETY APPROVAL CE/cTUVus/TÜV/FCC/BSMI/CCC/EAC
    PCI-E 6+2PIN 6
    PROTECTION OCP, OVP, UVP, OPP, SCP, OTP
