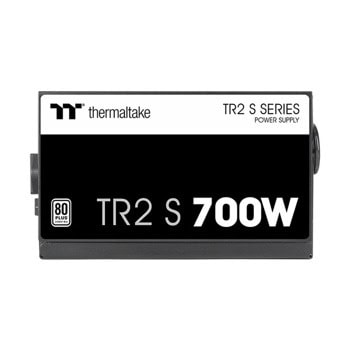

Thermaltake TR2 S 700W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

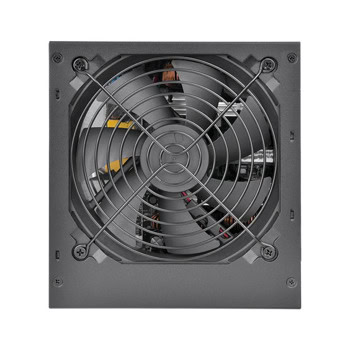

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 700W connector’s specification as below:
Short P/N
TRS-0700P-2
Model TRS-700AH2NK
Type
Intel ATX 12V 2.3
Max. Output Capacity 700W
Color Black
Dimension (H x W x D)
86mm x 150mm x 140mm
PFC （Power Factor Correction）
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
16msec (minimum) within 60% load
Input current 9A max
Input Frequency Range
50 Hz - 60 Hz
Input Voltage
230 Vac
Operating Temperature 5℃ to +40℃
Operating Humidity
20% to 85%,non-condensing
Storage Temperature
-40 ℃ to +55 ℃
Storage Humidity
10% to 95%, non-condensing
Cooling System 120mm Fan: 1800 R.P.M. ± 10%
Efficiency 82-86% efficiency @ 20-100% load
MTBF
100,000 hrs minimum
Safety Approval
CE/CB/TUV
PCI-E Connector
PCI-E 6+2pin x 2
For more information : http://www.thermaltake.com/products-model.aspx?id=C_00002714
