Thermaltake Toughpower TF3 1550W
ATX 3.0 & PICe 12V-2x6 Ready
Unlocking the Power of the Future

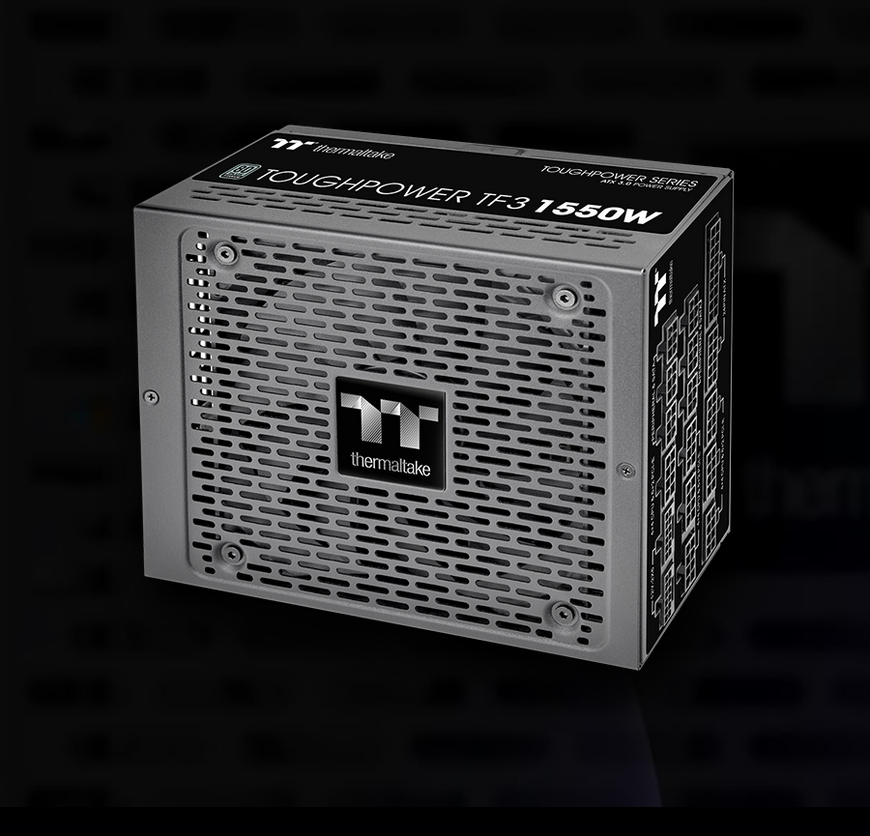

Toughpower TF3 1550W

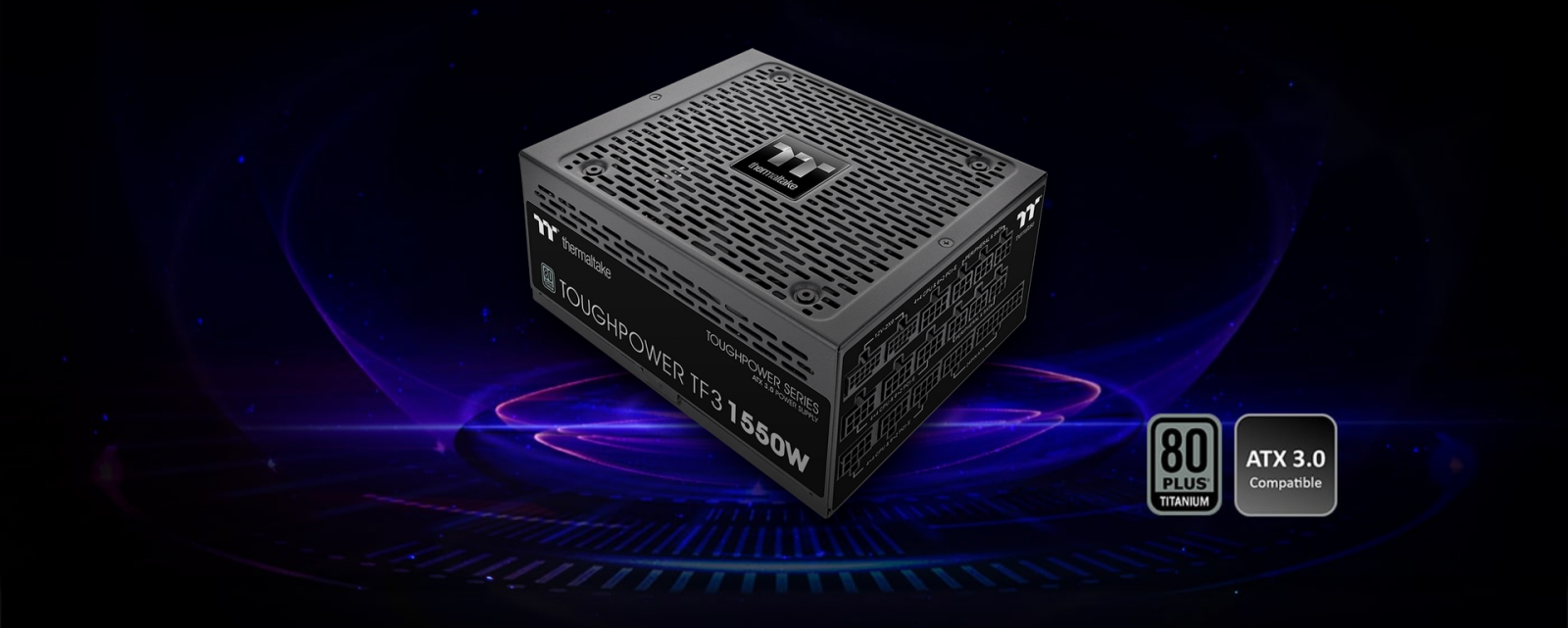

Designed for overclockers, user’s with high-end system demands, and more, the Toughpower TF3 Titanium 1550W delivers 80 PLUS Titanium efficiency to satisfy their needs. Built for next-gen hardware, the Toughpower TF3 1550W is compatible with Intel ATX 3.0 specifications and comes with two native 12V-2x6 connectors.
PCIe 12V-2x6 Ready

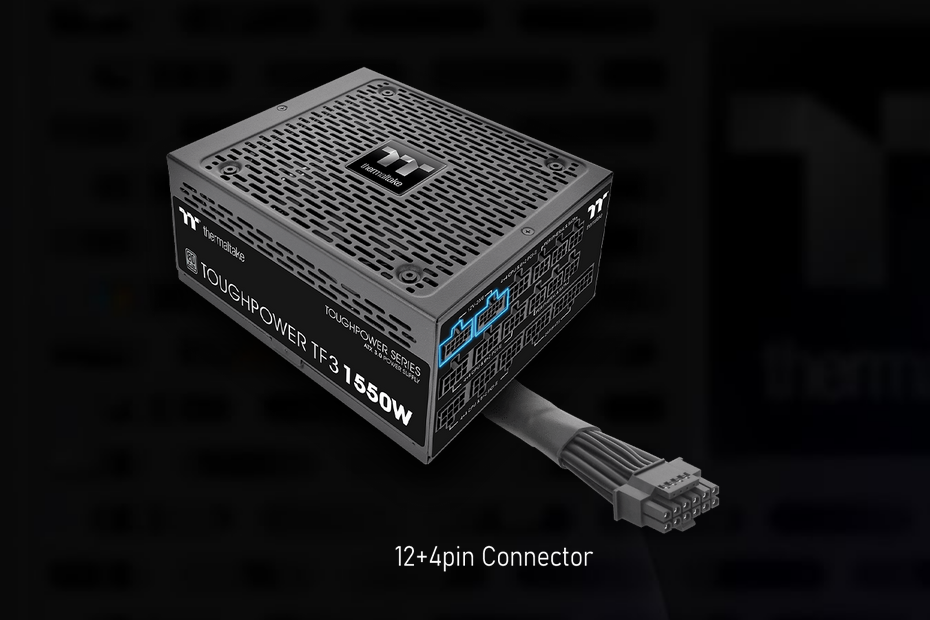

Toughpower TF3 1550W comes with two native PCIe 12V-2X6 connectors to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the PCIe 12V-2X6’s connector is the recommended wattage. (Ref. Intel design guideline) The native PCIe 12+4pin (12V-2X6) connector of the TF3 1550W can deliver up to 600W for graphics cards.
Made to Comply with the Latest Graphics Cards

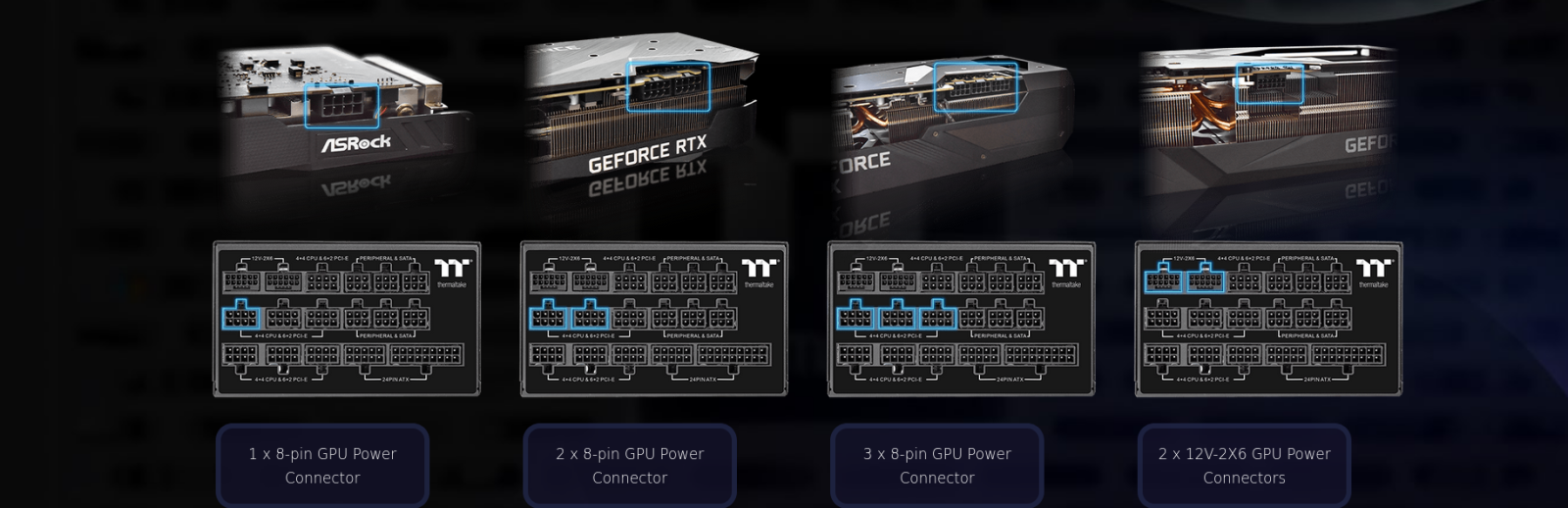

As the power consumption of graphics cards increase, so has their demand for power. The TF3 1550W is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables for AMD graphics cards & RTX 40 series graphics cards, it also comes with 2 x PCIe 12V-2X6 connectors for RTX 40 series cards that need a PCIe Gen 5.0 connector, ready to supply the graphics cards according to their different ways of connections.
80 PLUS Titanium Certified

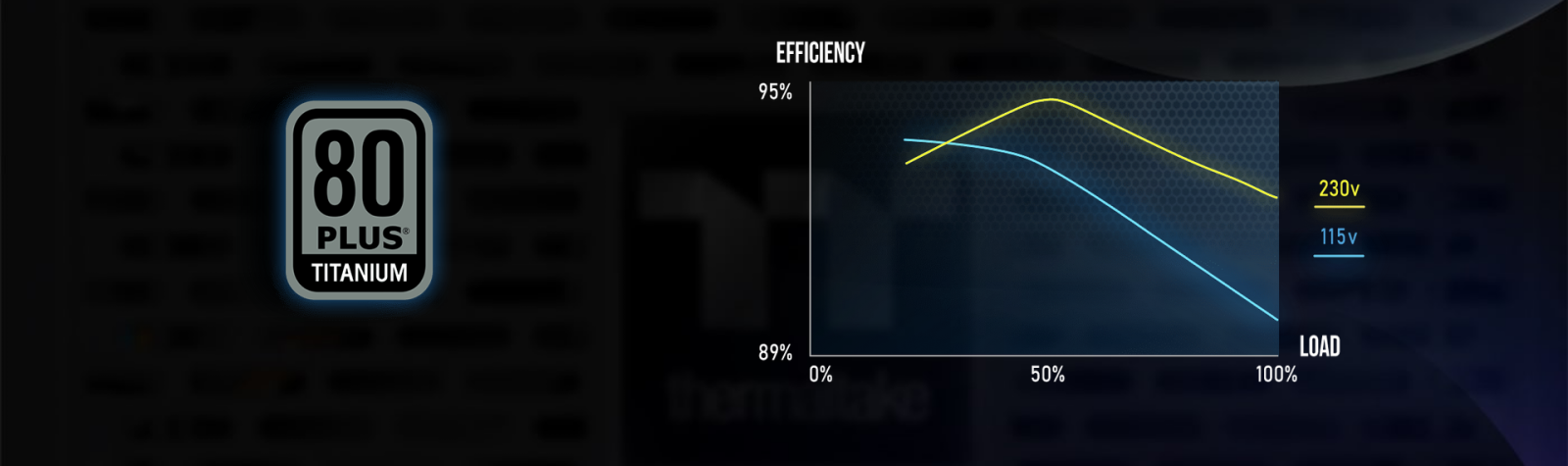

80 PLUS Titanium certification means the Toughpower TF3 converts power efficiently, saves energy through its high efficiency up to 94%, resulting in lower power loss and heat buildup inside the power supply.
Specs:
Watts | 1550W |
Model | TTP-1550AH3FCT-A |
Max. Output Capacity | 1550W |
Dimension ( W / H / D ) | 150mm(W)x86mm(H)x180mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | > 17msec |
Input Current | 15.0A |
Input Frequency Range | 50Hz - 60Hz |
Input Voltage | 100-240V~ |
Operating Temperature | 0°C to + 50°C |
Operating Humidity | 20% to 90%,non-condensing |
Storage Temperature | -20°C to + 70°C |
Storage Humidity | 5% to 95%, non-condensing |
Cooling System | 14cm PWM fan |
Efficiency | Meet 80 PLUS Titanium at 115Vac input. |
MTBF | 100,000 hrs minimum |
PCI-E 6+2pin | 9 |
PCIe 12+4pin | 2 |
Input current | 15.0A |
Protection | OCP/OVP/UVP/OPP/OTP/SCP |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Thermaltake
Виж всички Захранвания Настолни компютри в категорията
Изходна мощност: | 1550 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
