Thermaltake Toughpower GF A3 750W PS-TPD-750FNFAGE
НазадThermaltake Toughpower GF A3 750W PS-TPD-750FNFAGEThermaltake Toughpower GF A3 750W PS-TPD-750FNFAGEThermaltake Toughpower GF A3 750W PS-TPD-750FNFAGEThermaltake Toughpower GF A3 750W PS-TPD-750FNFAGEНапред

Захранване Thermaltake Toughpower GF A3, 750W, Active PFC, 80 Plus Gold, 120mm вентилатор

id 271382 Код: PWRPCTHERMALTAKEPSTPD750FNFAGE
260.38 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиДокументация



Thermaltake Toughpower GF A3 750W

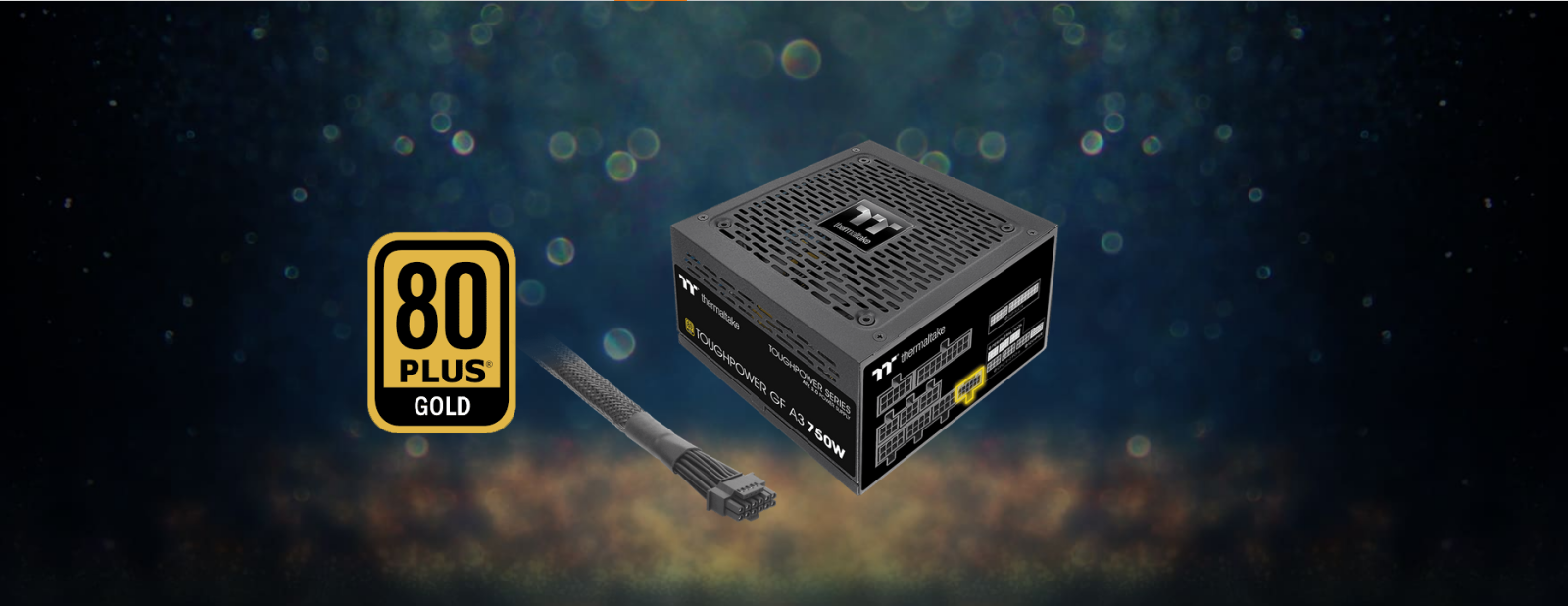

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.











Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.











Fully Compatible with Intel ATX 3.0 Standards

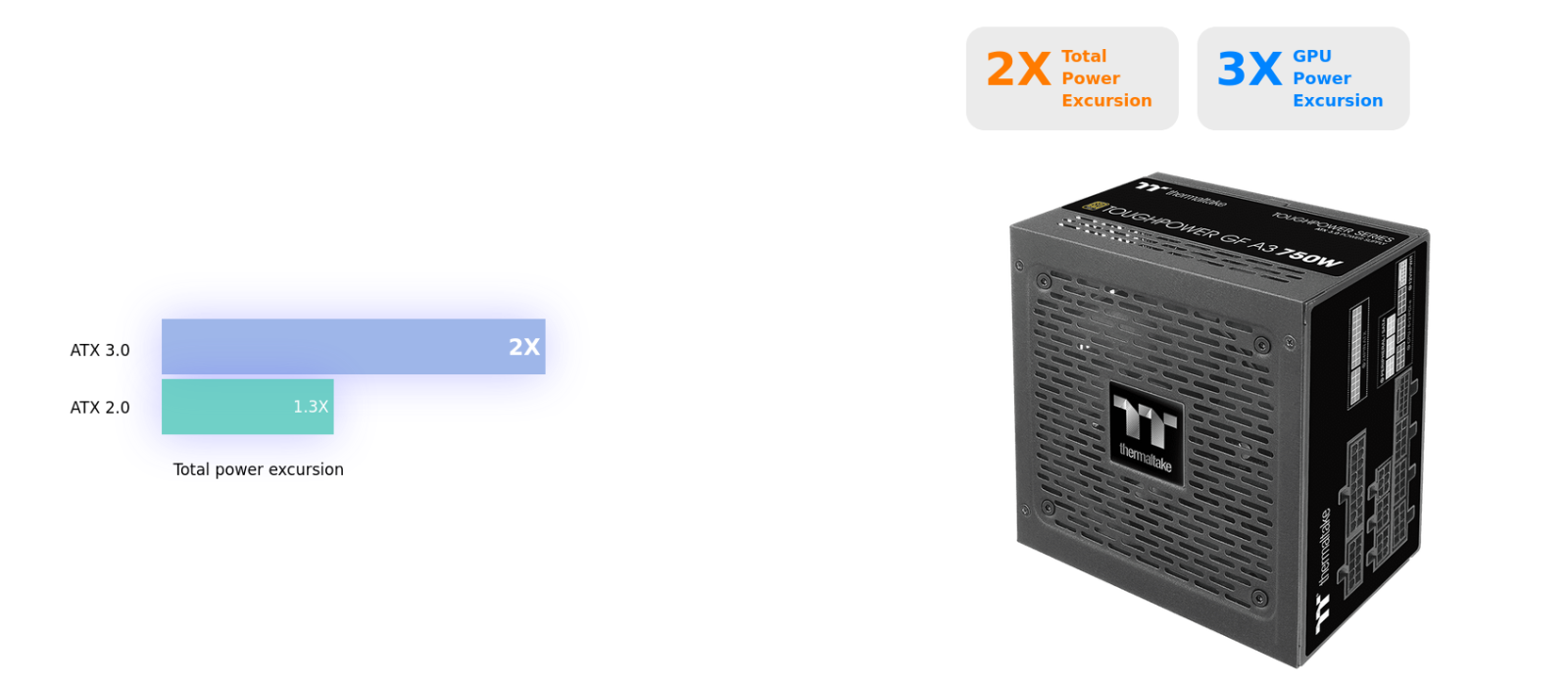

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.











PCIe Gen 5.0 Ready

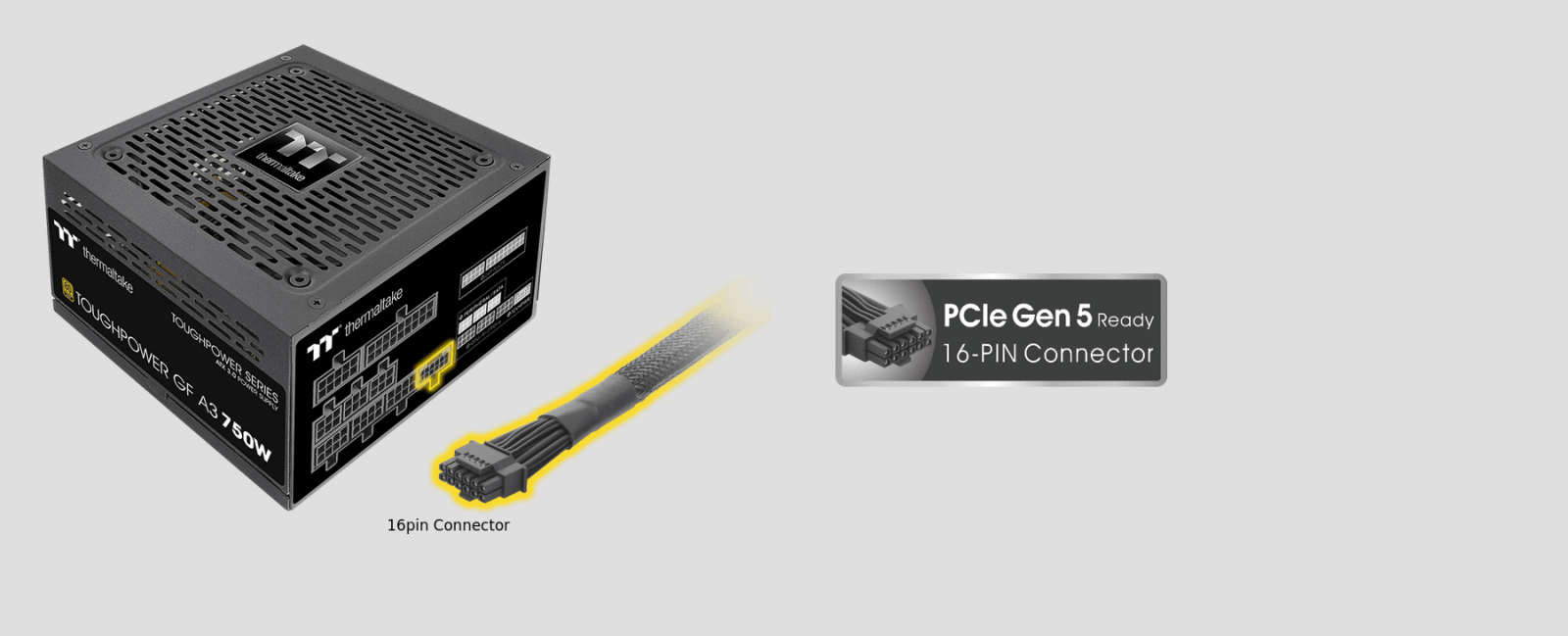

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.











Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.









Be Smart, Stay Quiet

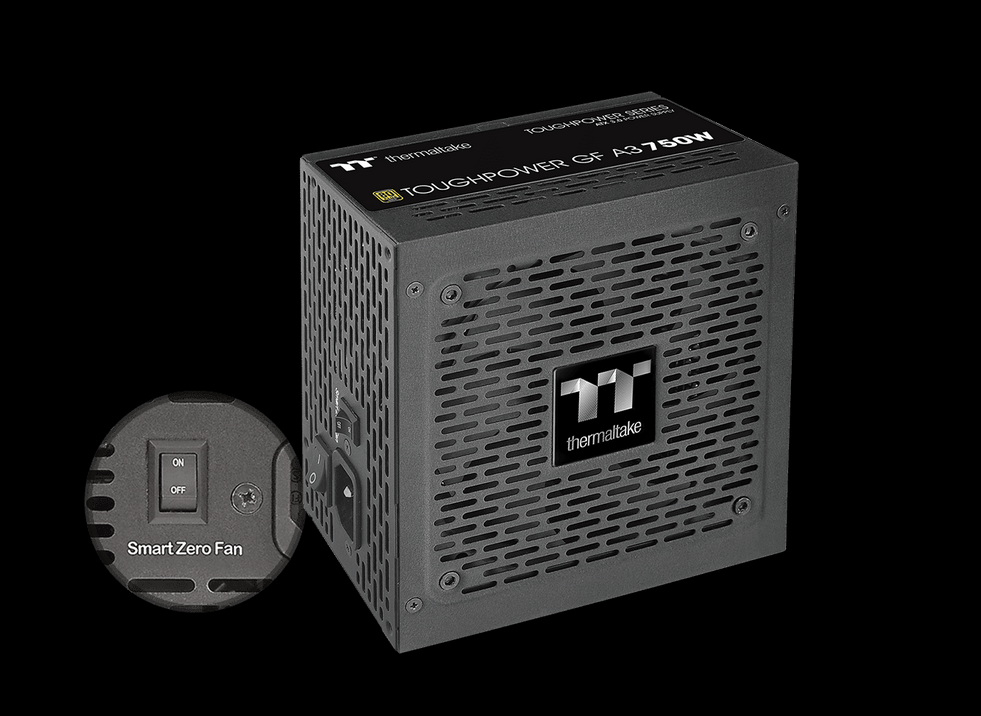

Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.









Specs:

Max. Output Capacity750W
ColorBlack
Dimension ( W / H / D )150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction)Active PFC
Power Good Signal100-250 msec
Hold Up Time> 17msec
Input Current10A Max.
Input Frequency Range50Hz - 60Hz
Input Voltage100 - 240Vac
Operating Temperature0°C to + 45°C
Operating Humidity5% to 85%,non-condensing
Storage Temperature-40°C to + 70°C
Storage Humidity5% to 95%, non-condensing
Cooling System12cm FDB Fan
Efficiency80 PLUS Gold at 115Vac input.
MTBF100,000 hrs minimum
Safety ApprovalCE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
PCI-E 6+2pin4
PCIe 12+4pin1(300W)


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Thermaltake
    Виж всички Захранвания Настолни компютри в категорията
    Документация
    Технически характеристики
    Изходна мощност:  750 W
    Модулен блок:  Да
    Форм фактор:  ATX
